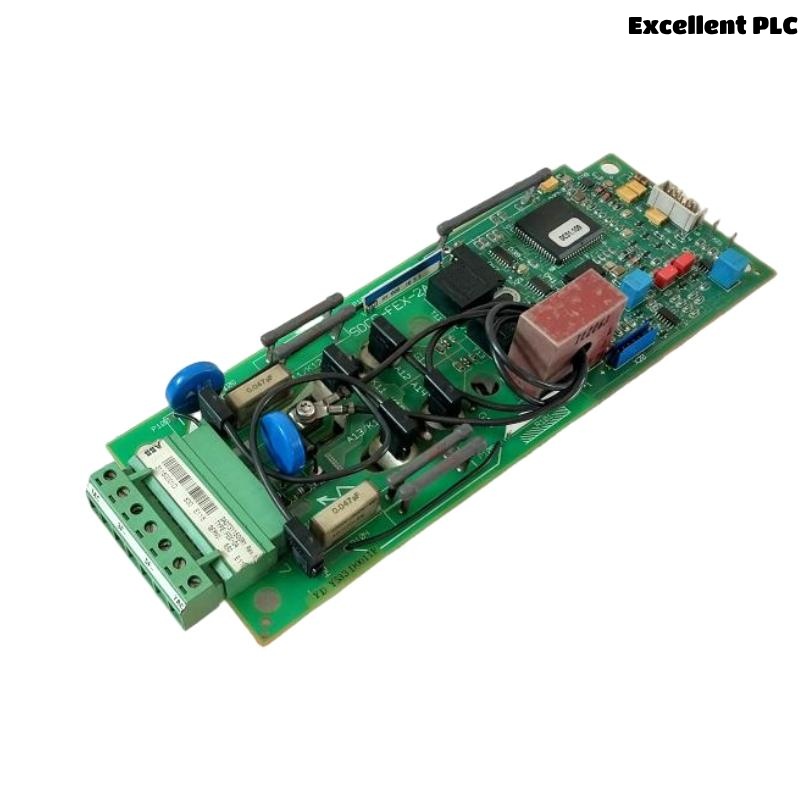

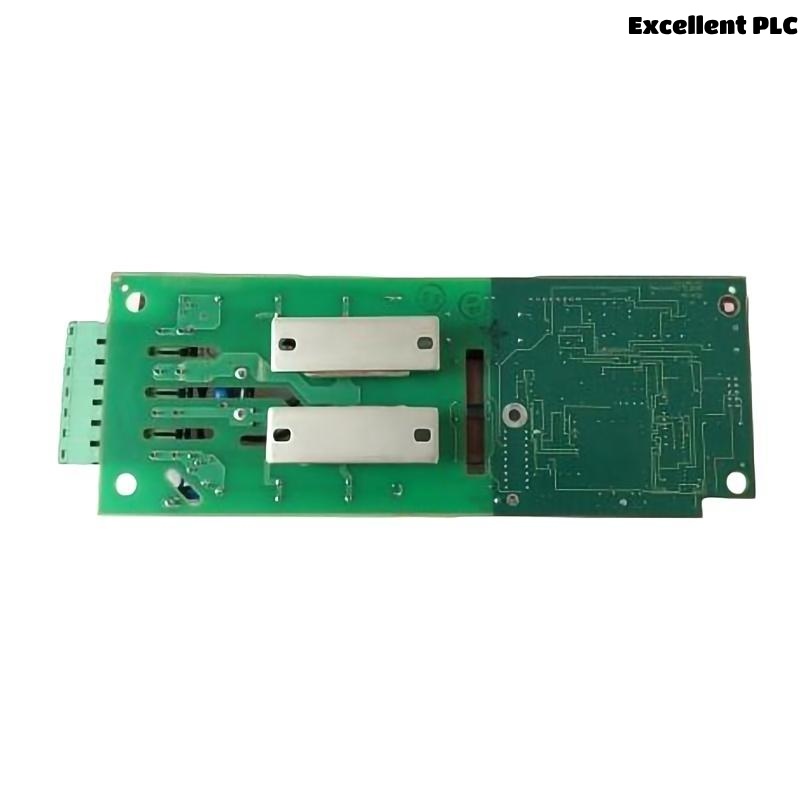

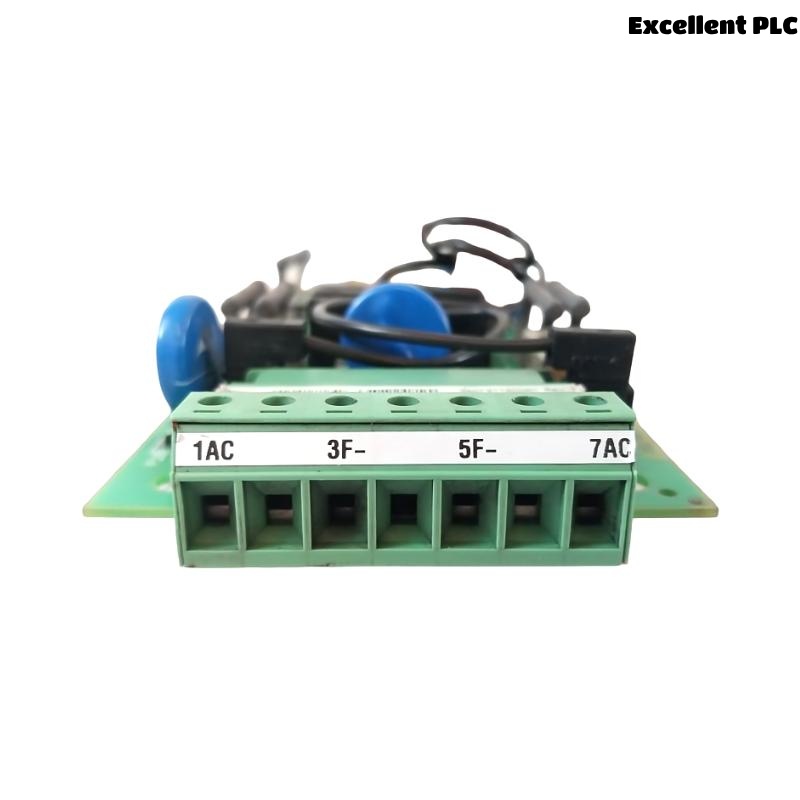

The ABB SDCS-FEX-2A (Part Number: 3ADT311500R0001) is a specialized DC speed regulator excitation module designed to provide precise control over the field current of DC motors. This module is part of ABB’s SDCS family and is engineered to deliver stable, accurate, and responsive excitation current necessary for controlling motor speed and torque in demanding industrial applications.
Specifically designed for use with ABB’s DCS500 series drives, the FEX-2A module enables dynamic adjustment of motor excitation, supporting smooth acceleration, controlled deceleration, and efficient operation under varying load conditions. Its robust design ensures reliable performance even in harsh industrial environments, making it an indispensable component for industries relying on DC motor-driven processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SDCS-FEX-2A |
| Part Number | 3ADT311500R0001 |
| Function | DC Speed Regulator Excitation Module |
| Compatible Drives | ABB DCS500 Series |
| Excitation Voltage | Up to 500 VDC |
| Excitation Current | Up to 20 A (depending on system configuration) |
| Control Type | Closed-loop excitation current regulation |
| Interface | Fiber optic link for communication with control system |
| Communication Protocol | ABB proprietary internal bus |
| Power Supply | Supplied internally by drive unit |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Plug-in board |
| Cooling Method | Natural convection and drive system-assisted cooling |
| Protection Features | Overvoltage, overcurrent, thermal shutdown, field loss detection |
| Dimensions (L × W × H) | 95 x 63 x 241 mm |
| Weight | 0.3 kg |
| Certification | CE, RoHS compliant |
Applications
The SDCS-FEX-2A module finds use across a broad range of industries and applications where DC motor speed and torque control are critical. Typical uses include:
-
Steel and Metal Processing: Maintaining steady motor torque in rolling mills and processing lines.
-
Pulp and Paper Manufacturing: Regulating motor speed during critical stages of paper production.
-
Mining and Material Handling: Controlling winches, hoists, and conveyors operating in demanding conditions.
-
Marine and Shipbuilding: Precise speed control for propulsion systems and heavy lifting equipment.
-
Cranes and Elevators: Supporting safe and smooth operation through accurate field excitation control.
-
Power Plants: Controlling excitation in rotating equipment for generation and distribution systems.
The module excels in applications requiring fast response times, accurate field weakening, and stable excitation control under fluctuating loads.
Product Advantages
-
Accurate Speed Regulation: Ensures precise field current control leading to stable motor speed and torque.
-
Seamless ABB Integration: Tailored for DCS500 drives, guaranteeing compatibility and optimal performance.
-
Robust Industrial Design: Withstands harsh temperature ranges and high humidity environments.
-
Fast Dynamic Response: Rapid adjustment of excitation current allows smooth acceleration and deceleration.
-
Built-In Protection: Safeguards motor and module from faults such as overcurrent, overheating, and loss of field.
-
Plug-In Modular Design: Facilitates quick installation and replacement without extensive downtime.
-
Energy Efficient: Adjusts excitation optimally, reducing power consumption during low-load conditions.
-
Long-Term Support: Supported by ABB’s global service network ensuring product availability and technical assistance.
Frequently Asked Questions (FAQ)
1. What is the primary role of the SDCS-FEX-2A module?
It controls the DC motor field excitation current to regulate motor speed and torque accurately.
2. Can the FEX-2A module be used with drives outside the DCS500 series?
It is specifically designed for the DCS500 series; compatibility with other models should be confirmed with ABB.
3. How is the module powered?
The excitation module receives its power supply internally from the connected DCS drive.
4. Does this module support field weakening?
Yes, it allows controlled field weakening for operations requiring high-speed motor control.
5. What protection features are included?
It has overvoltage, overcurrent, thermal shutdown, and field loss protection mechanisms.
6. How fast does the module respond to excitation changes?
Response times are typically less than 1 millisecond, enabling precise control during dynamic load changes.
7. Can this module be replaced on-site?
Yes, the plug-in design allows for easy replacement with minimal disruption.
8. What are the environmental operating limits for this module?
Operating temperature ranges from -10°C to +55°C, with humidity tolerance up to 95% non-condensing.
9. Is the module configurable by the user?
Configuration is handled via the DCS500 drive interface or through connected automation systems.
10. Does the module comply with international safety and environmental standards?
Yes, it is CE and RoHS certified, meeting industry regulations.
