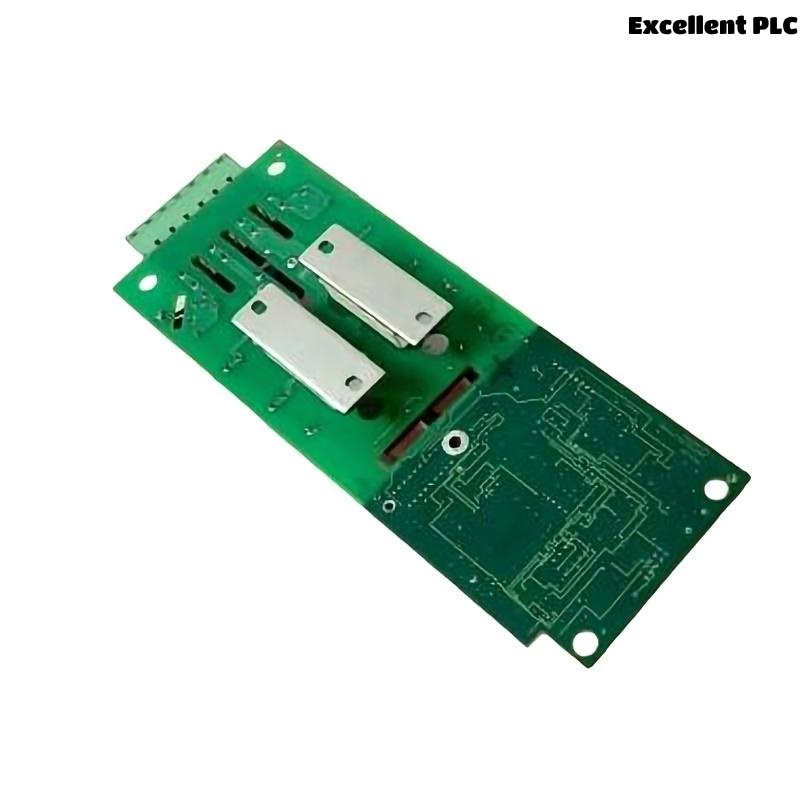

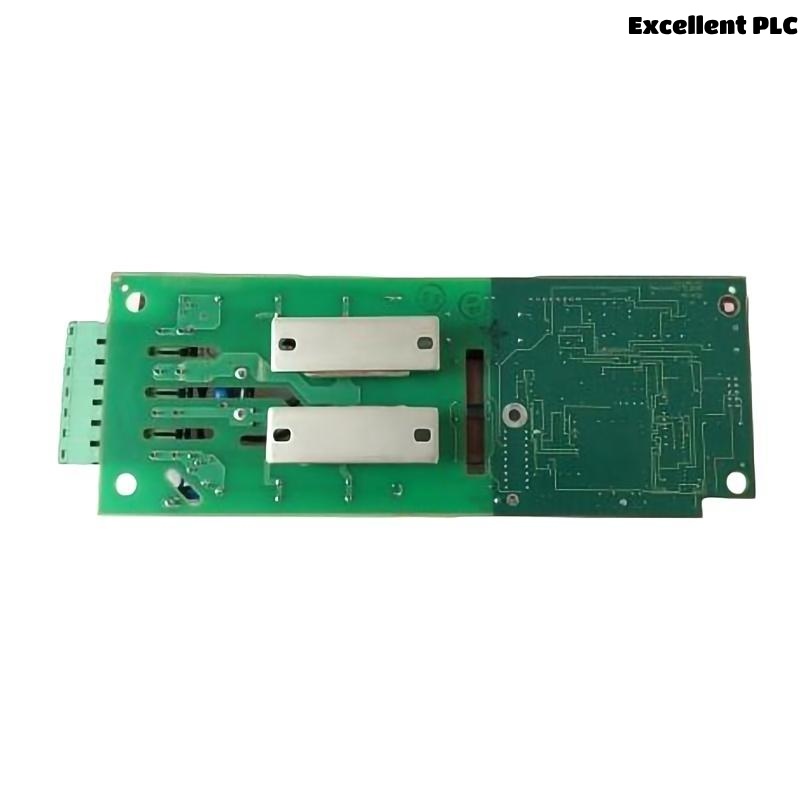

ABB SDCS-FEX-2A 3ADT311500R1 DC Speed Regulator Excitation Module

Manufacturer:ABB

Product Number:SDCS-FEX-2A 3ADT311500R1

Product Type:DC Speed Regulator Excitation Module

Origin:Sweden

Dimensions:95 x 63 x 241 mm

Weight:0.3 kg

Views:115

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB SDCS-FEX-2A 3ADT311500R1 DC Speed Regulator Excitation Module

Product Introduction

The ABB SDCS-FEX-2A (Part Number: 3ADT311500R1) is a DC speed regulator excitation module developed for integration with ABB’s DCS500 drive systems. As part of the SDCS (Speed Drive Control System) family, this excitation module plays a vital role in regulating the field current of DC motors, providing precise control over motor speed and torque across a wide range of industrial applications.

This excitation module ensures that the motor’s magnetic field is optimized dynamically in real time, enabling smooth transitions in acceleration and deceleration, reliable field weakening, and consistent performance under load changes. Built for industrial-grade use, the SDCS-FEX-2A provides robust electrical isolation, high-speed feedback processing, and seamless compatibility with ABB’s DC drive ecosystem.


Technical Specifications

Parameter Specification
Product Name SDCS-FEX-2A
Part Number 3ADT311500R1
Function Excitation Module for DC Speed Regulator
Series SDCS Series
Compatible Drive Systems DCS500, DCS600
Excitation Voltage Up to 500 VDC
Excitation Current Up to 20 A (depending on configuration)
Control Type Closed-loop field current regulation
Feedback Type Voltage and current feedback (analog)
Interface Fiber optic link to main control board
Communication Protocol Internal ABB system bus
Input Power Supply Provided internally by DCS drive system
Operating Temperature -10°C to +55°C
Storage Temperature -25°C to +70°C
Humidity Tolerance 5% – 95%, non-condensing
Mounting Type Plug-in board
Cooling Method Natural convection (drive-assisted cooling)
Protection Features Overvoltage, overcurrent, thermal, and field loss protection
Dimensions (L × W × H) 95 x 63 x 241 mm
Weight 0.3 kg
Certifications CE, RoHS, complies with IEC/EN 61131-2

Applications

The ABB SDCS-FEX-2A module is purpose-built for industrial automation systems where DC motor field excitation is required. It is deployed across a variety of critical applications, including:

  • Steel and Metal Processing Plants: For high-torque rolling mills requiring constant and dynamic torque regulation

  • Pulp and Paper Machinery: Ensuring steady motor control during large paper roll transitions

  • Mining Equipment: Used in winches, hoists, and conveyors operating in rugged conditions

  • Marine Drives: For propulsion systems and cranes using DC motors

  • Cranes and Elevators: Supporting smooth field weakening and speed control

  • Power Generation Facilities: In applications involving excitation control of rotating machines

The FEX-2A delivers stable and safe field excitation, ensuring optimal motor performance, especially during frequent starts, stops, or load fluctuations.


Product Advantages

  • Precision Control: Offers closed-loop regulation of field current, enhancing motor responsiveness and torque control.

  • Seamless Integration: Designed specifically for ABB’s DCS500 series, ensuring electrical and communication compatibility.

  • Fast Dynamic Response: Field current adjusts within milliseconds, enabling real-time motor behavior adaptation.

  • Rugged Design: Withstands harsh industrial environments with wide operating temperature and humidity ranges.

  • Enhanced Safety: Multiple onboard protections prevent damage due to field loss, overheating, or power anomalies.

  • Maintenance-Friendly: Modular plug-in design allows for quick replacements and easy diagnostics.

  • Efficient Energy Use: Optimizes excitation levels, reducing unnecessary power usage during idle or low-load operations.

  • Long Product Lifecycle: Engineered to support ABB’s commitment to long-term industrial system reliability.


Frequently Asked Questions (FAQ)

1. What does the SDCS-FEX-2A module do?
It regulates the excitation (field current) of DC motors, ensuring optimal magnetic field strength for speed and torque control.

2. Is the FEX-2A interchangeable with FEX-2?
While similar, the FEX-2A may include hardware or firmware updates. Always verify compatibility based on part numbers.

3. Which ABB drives are compatible with this module?
It is primarily designed for ABB DCS500 drives, with extended compatibility for some DCS600 systems.

4. Does it support field weakening?
Yes, the module supports controlled field weakening for applications requiring high-speed motor operation.

5. How is the module powered?
It draws power internally from the ABB drive system; no external power supply is needed.

6. Can the module be used in regenerative applications?
Yes, it supports excitation management during regenerative braking operations.

7. How fast can it react to excitation changes?
Typical response time is under 1 ms, enabling smooth dynamic transitions.

8. What kind of protection features are included?
It includes overvoltage, overcurrent, thermal shutdown, and field loss detection.

9. Is this module user-configurable?
Configuration is typically managed through the DCS500 drive interface or connected automation system.

10. Is this product CE and RoHS certified?
Yes, it complies with all major international standards including CE and RoHS directives.


Related Models (Same Series or Function)

Model Description Drive Compatibility Function
SDCS-FEX-1 Excitation controller module (earlier version) DCS500 Field excitation control
SDCS-FEX-2 Standard excitation regulator DCS500, DCS600 Field current regulation
SDCS-DSL-4 Serial communication board DCS500, ACS600 Serial data communication
SDCS-IOB-21 Digital/Analog I/O expansion module DCS500 I/O signal extension
SDCS-COM-8 CAN bus interface module DCS500, ACS800 Communication interface
SDCS-CON-2 Control connector interface board DCS500 Internal signal routing

Popular ABB Modules (Same Brand)

Model Module Type Main Function Weight
PM864AK01 AC 800M CPU Module Central control processor 0.28 kg
CI854AK01 Communication Interface PROFIBUS communication 0.30 kg
AI810 Analog Input Module 8-channel analog signal acquisition 0.18 kg
07KT98 GJR5253100R3260 Communication Processor PLC/DCS communication and control 0.35 kg
TU810V1 Terminal Base Unit Mounting for S800 I/O modules 0.25 kg
CP651 HMI Operator Panel Industrial control touchscreen 2.5 kg
