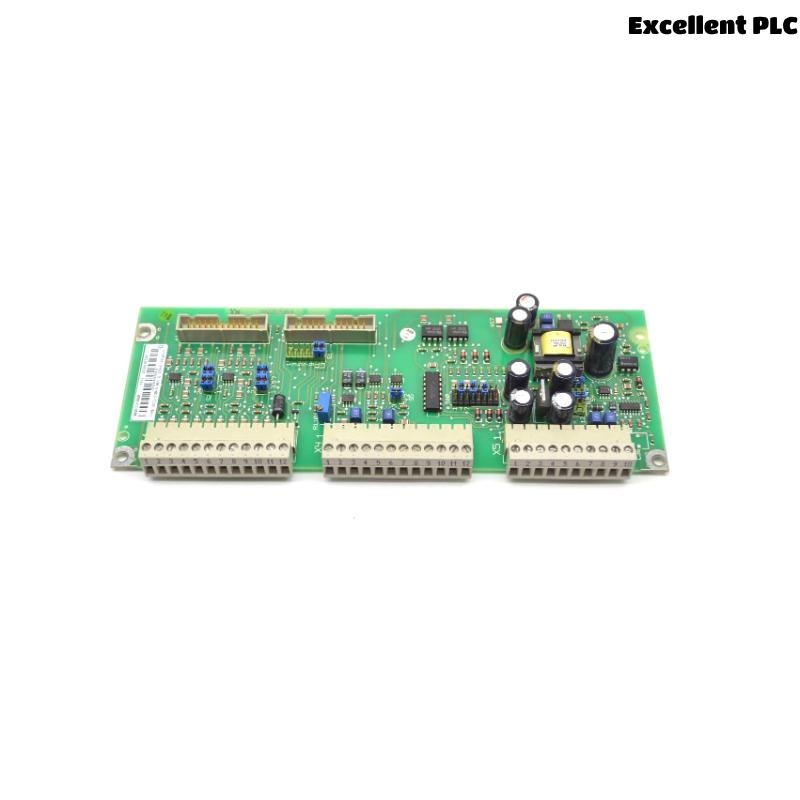

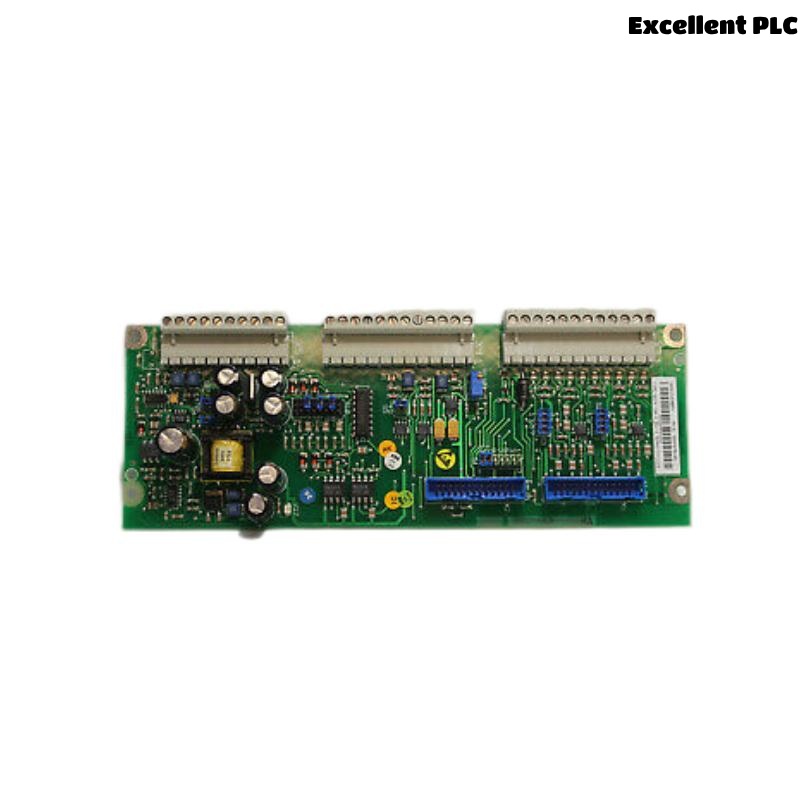

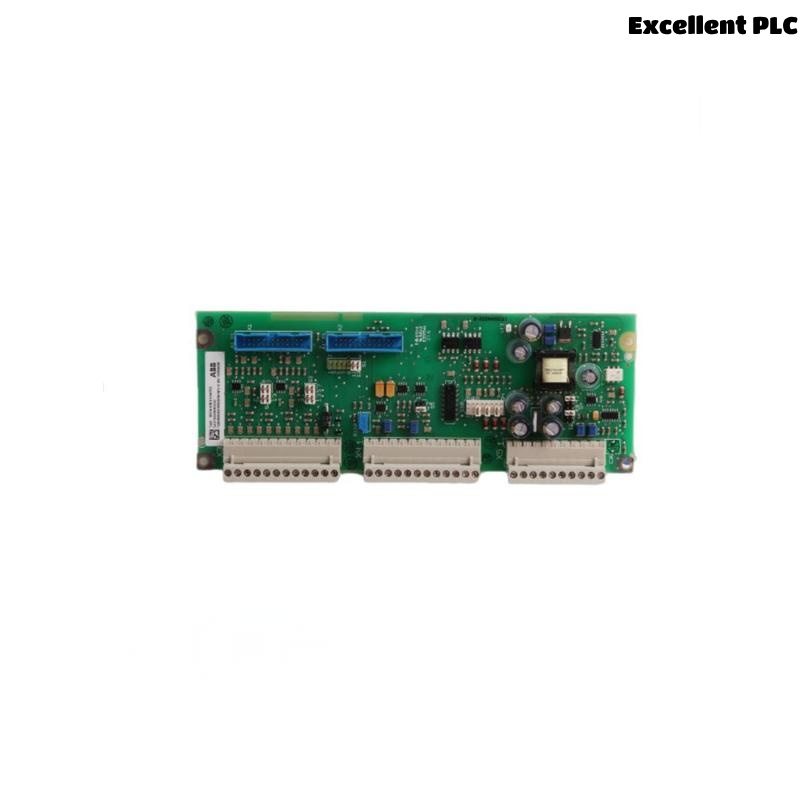

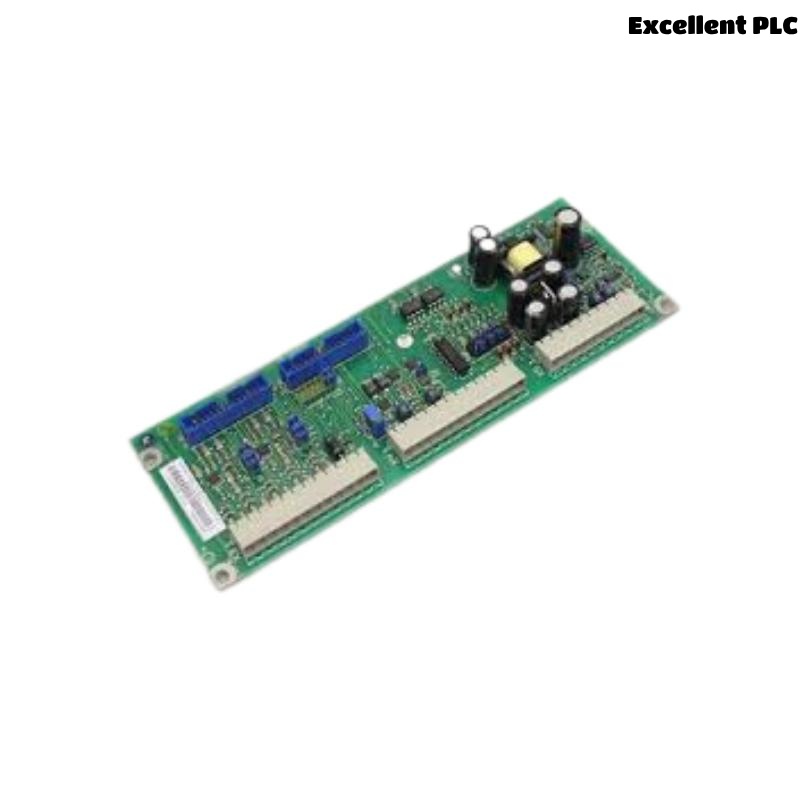

ABB SDCS-IOB-3 3BSE004086R1: Product Overview
The ABB SDCS-IOB-3 (3BSE004086R1) is a versatile, high-performance input-output board designed for use within the ABB SDCS (System Data Communication System). This board plays a critical role in controlling and managing I/O signals in industrial automation systems. It is typically employed in power generation, oil and gas, manufacturing, and other industries that rely on precise control and monitoring of machinery and processes.
With its robust features, it supports various I/O signals and interfaces with other automation components to ensure seamless data flow and system integration. This unit is part of a larger control system that can be integrated into complex processes and facilities for reliable automation.
Technical Specifications
Below is the technical specification table for the ABB SDCS-IOB-3 (3BSE004086R1):
| Parameter | Value |
|---|---|
| Part Number | 3BSE004086R1 |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Current Draw | 0.6 A |
| Dimension | 220 x 100 x 35 mm |
| Weight | 0.35 kg |
| Temperature Range | -20°C to 70°C |
| Mounting Type | DIN Rail |
| Signal Type | Digital Inputs/Outputs |
| Communication Protocol | MODBUS, Profibus, EtherCAT |
| Environmental Rating | IP20 |
| Warranty | 12 months |
Product Applications
The ABB SDCS-IOB-3 input-output board is ideally suited for applications where precise communication and control of digital signals are essential. It finds usage in:
-
Power Plants: For monitoring and controlling turbine performance, sensors, and other crucial systems.
-
Manufacturing Plants: Used for process control, automation, and machine monitoring systems.
-
Oil and Gas: In rigs and production sites for the communication between different control systems.
-
Automated Warehouses: For managing various sensors and actuators in robotic systems.
-
Water Treatment Facilities: For controlling pumps, valves, and other equipment.
Advantages
The ABB SDCS-IOB-3 offers several key advantages:
-
High Reliability: The product ensures stable and reliable performance even in harsh environments, contributing to minimal downtime in industrial applications.
-
Easy Integration: Compatible with multiple communication protocols (MODBUS, Profibus, EtherCAT), making it highly adaptable for a range of automation systems.
-
Compact Design: The slim form factor ensures easy mounting on standard DIN rails, saving space in control panels.
-
Wide Temperature Range: Withstanding extreme temperatures from -20°C to 70°C, it can function in various environmental conditions.
-
Versatility: Supports both digital input and output, making it suitable for a wide range of applications across industries.
-
Long-Term Support: ABB provides 12 months of warranty and continuous updates to enhance performance and ensure longevity.
Frequently Asked Questions (FAQ)
Q1: What is the operating temperature range for the ABB SDCS-IOB-3?
The operating temperature range for the ABB SDCS-IOB-3 is from -20°C to 70°C.
Q2: What type of mounting is supported by this I/O board?
The I/O board is designed for DIN rail mounting, allowing easy installation in control cabinets.
Q3: Does the ABB SDCS-IOB-3 support both digital inputs and outputs?
Yes, it supports both digital inputs and outputs, offering flexibility in industrial control systems.
Q4: What is the warranty period for this product?
The warranty period for the ABB SDCS-IOB-3 is 12 months from the date of purchase.
Q5: What communication protocols are supported by the ABB SDCS-IOB-3?
The board supports MODBUS, Profibus, and EtherCAT protocols, making it versatile for integration with other automation systems.
Q6: What is the weight of the ABB SDCS-IOB-3?
The weight of the board is 0.35 kg.
Q7: How does this product handle different voltage levels?
The ABB SDCS-IOB-3 operates with 24V DC input and output, providing compatibility with a wide range of systems.
Q8: Can the board be used in hazardous environments?
The ABB SDCS-IOB-3 is rated for standard industrial environments with an IP20 rating but may require additional protection for more hazardous locations.
Q9: How is the ABB SDCS-IOB-3 typically used in a control system?
It is used for managing I/O signals and ensuring communication between sensors, actuators, and control units in an automation system.
Q10: Is the ABB SDCS-IOB-3 suitable for use in oil and gas applications?
Yes, the board is suitable for industrial environments, including oil and gas, where robust communication and signal processing are required.
Recommended Models
6 Models from the Same Series or Related:
| Model | Description | Specifications |
|---|---|---|
| SDCS-IOB-2 | Input-Output Board | Digital I/O, 24V DC |
| SDCS-IOB-4 | Input-Output Board | Digital I/O, 24V DC |
| SDCS-ICF-1 | Communication Interface | Supports MODBUS, Profibus |
| SDCS-DO-2 | Digital Output Board | 24V DC, 16 Outputs |
| SDCS-ADI-1 | Analog Input Board | 4-20mA Inputs, 24V DC |
| SDCS-DSO-1 | Digital Signal Output | 24V DC, 8 Outputs |
6 Popular Models from the Same Brand (ABB):
| Model | Description | Specifications |
|---|---|---|
| ABB 07KT97 | Fieldbus Communication Board | Profibus, 24V DC |
| ABB CM592-DP | Profibus Communication Module | Profibus DP, 24V DC |
| ABB PM810V1 | Power Monitoring Module | 24V DC, Power Measurement |
| ABB 83SR04A-E | Fieldbus I/O Module | Ethernet, 24V DC |
| ABB SPBRC400 | Signal Processing Board | Digital I/O, 24V DC |
| ABB 140ACI05100 | Analog Input Card | 4-20mA Inputs, 24V DC |
