Product Introduction

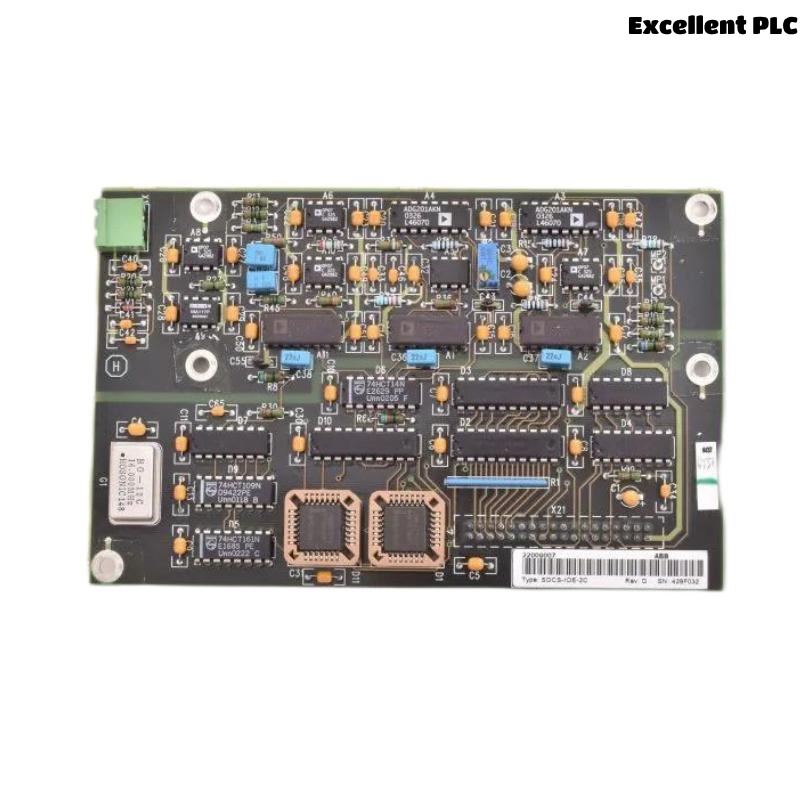

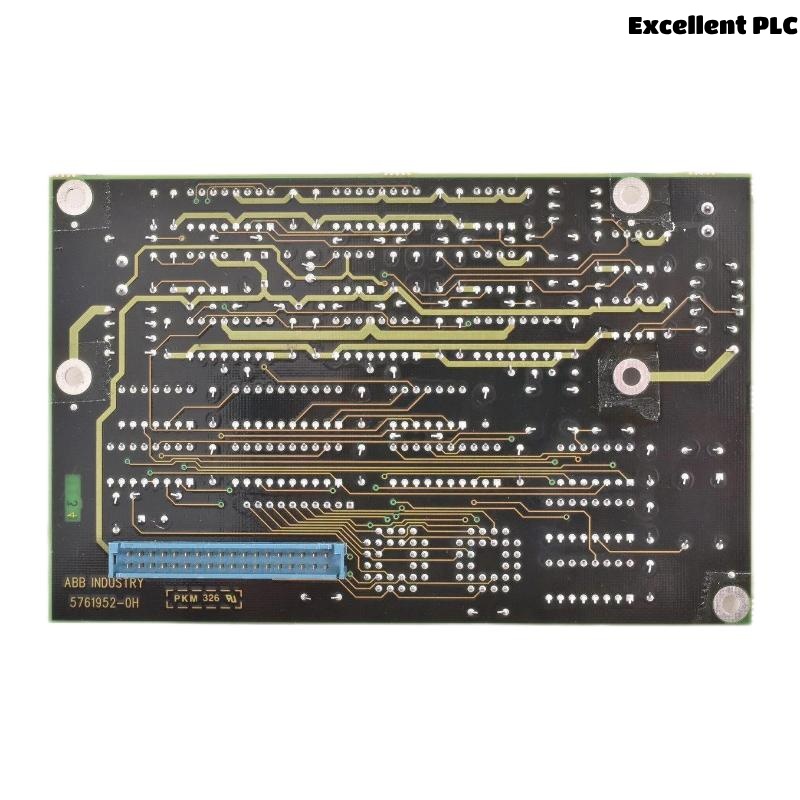

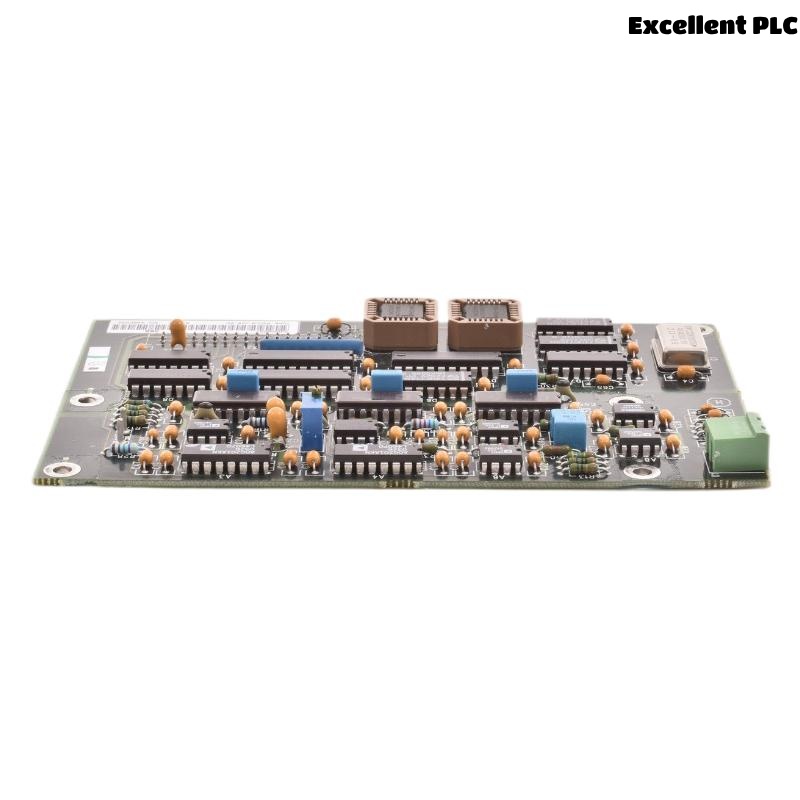

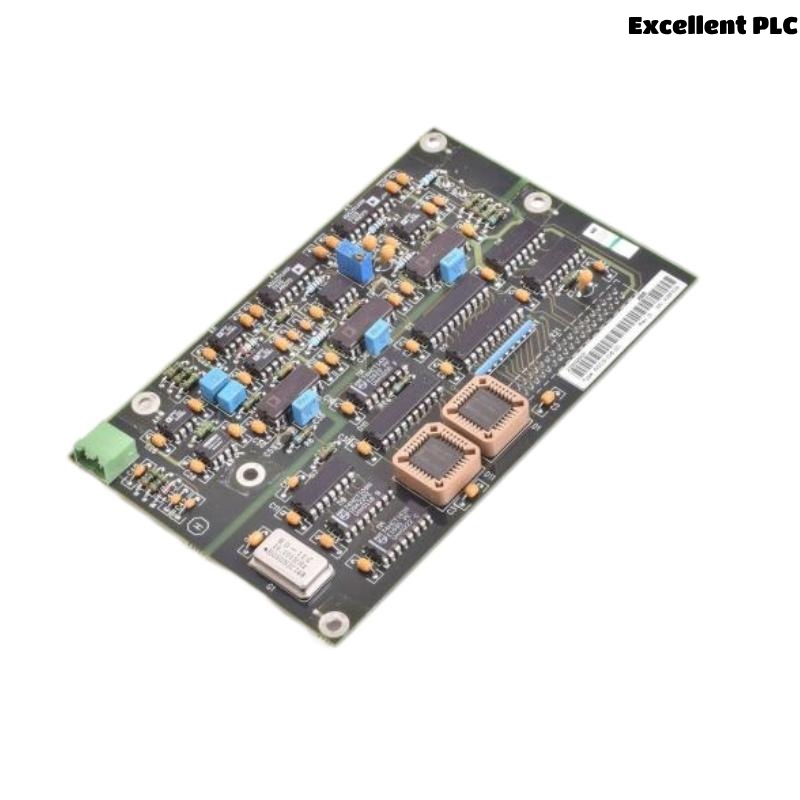

The ABB SDCS-IOE-2 DCF1208097R0001 is an advanced I/O expansion board designed to provide seamless communication between I/O devices and control systems in industrial automation. This board is ideal for applications requiring enhanced I/O capacity and flexible integration in automation environments.
Designed with versatility in mind, the SDCS-IOE-2 can be easily integrated with various ABB control systems, offering an efficient and reliable solution for expanding I/O capabilities. Whether in process control, factory automation, or other industrial systems, the SDCS-IOE-2 offers superior performance, flexibility, and scalability, helping businesses streamline their operations and improve system efficiency.
With its compact size and low weight, the board can be easily incorporated into various industrial setups, ensuring a quick and smooth integration into existing systems. It is engineered for high reliability and consistent performance even under demanding operating conditions.
Product Parameters
The technical specifications of the ABB SDCS-IOE-2 DCF1208097R0001 I/O Expansion Board are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 150 x 120 x 20 mm |
| Weight | 0.113 kg |
| Power Supply | 24V DC ± 20% |
| Communication Protocol | Modbus RTU, CANopen |
| Mounting | DIN rail mounting |
| Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Input Voltage | 24V DC |
| Operating Voltage | 24V DC |
| Maximum Input Current | 0.2A |
| Power Consumption | 2W |
Product Applications
The ABB SDCS-IOE-2 DCF1208097R0001 I/O Expansion Board is designed for a wide range of industrial applications, providing robust I/O functionality to support complex automation systems. Some common applications of the board include:
-
Process Automation: The I/O board is used to expand I/O capacity in process control systems, ensuring seamless integration of various sensors, actuators, and other devices for accurate monitoring and control.
-
Factory Automation: Facilitates the connection of additional sensors, actuators, and I/O devices to automation systems in manufacturing processes, allowing for efficient monitoring and control of production lines.
-
Building Automation: Integrated into HVAC, lighting, and security systems to enable centralized control and data collection for energy-efficient operations in commercial buildings.
-
Material Handling Systems: The board supports material handling and logistics systems, ensuring that sensors and actuators are properly connected for efficient transportation and sorting of materials.
-
Energy Monitoring Systems: It provides expanded I/O capability for energy monitoring systems, enabling real-time tracking of energy consumption and system optimization.
-
Test and Measurement Systems: Used in test setups that require additional I/O ports to connect measurement devices, sensors, and other equipment for testing and analysis.
Product Advantages
-
Compact and Lightweight: The SDCS-IOE-2 has a compact design (150 x 120 x 20 mm) and weighs only 0.113 kg, making it ideal for space-constrained installations and easy to integrate into existing systems.
-
Versatile Integration: Compatible with a variety of communication protocols, including Modbus RTU and CANopen, the module is highly adaptable to different industrial automation systems and control devices.
-
High Flexibility: The I/O board allows for the addition of multiple I/O channels to expand system capabilities without the need for a complete overhaul of existing systems.
-
Reliable Performance: Designed to operate in challenging industrial environments with an extended temperature range of -20°C to +60°C, the SDCS-IOE-2 delivers reliable performance under demanding conditions.
-
Energy-Efficient: The board’s power consumption is just 2W, making it an energy-efficient solution that minimizes operating costs.
-
Easy Installation: The SDCS-IOE-2 is designed for DIN rail mounting, simplifying the installation process in control panels or industrial racks.
-
Robust Communication Support: It supports two commonly used industrial communication protocols, Modbus RTU and CANopen, ensuring smooth and efficient data exchange in industrial systems.
FAQs
-
What is the primary function of the ABB SDCS-IOE-2 DCF1208097R0001 I/O Expansion Board?
The SDCS-IOE-2 provides additional I/O channels for control systems, allowing for seamless integration of sensors, actuators, and other devices into industrial automation systems. -
What communication protocols does the SDCS-IOE-2 support?
The board supports Modbus RTU and CANopen communication protocols, which are widely used in industrial automation. -
What is the power supply requirement for the SDCS-IOE-2?
The board requires a 24V DC power supply with a ± 20% tolerance. -
What is the maximum current supported by the SDCS-IOE-2?
The module supports a maximum input current of 0.2A. -
How is the SDCS-IOE-2 mounted?
The board is designed for DIN rail mounting, making it easy to integrate into control systems. -
What is the operating temperature range of the SDCS-IOE-2?
The module can operate within a temperature range of -20°C to +60°C, making it suitable for various industrial environments. -
What is the weight of the SDCS-IOE-2?
The module weighs only 0.113 kg, which makes it light and easy to handle during installation. -
Can the SDCS-IOE-2 be used in harsh environments?
Yes, the module is built to withstand industrial environments and operates reliably within the specified temperature range and humidity levels. -
What is the power consumption of the SDCS-IOE-2?
The board has a low power consumption of just 2W, helping reduce overall operational costs. -
Is the SDCS-IOE-2 compatible with other ABB control systems?
Yes, the board is designed to work seamlessly with various ABB automation systems, providing a flexible and scalable solution for expanding I/O capacity.
Related Models (Same Series or Related)
| Model | Description |
|---|---|
| SDCS-IOE-1 | A smaller version of the I/O expansion board with fewer channels. |
| SDCS-IOE-3 | A more advanced version with additional I/O and communication capabilities. |
| SDCS-IOE-4 | High-performance I/O board designed for large-scale industrial applications. |
| SDCS-IOE-5 | A specialized I/O module with extended support for various industrial protocols. |
| SDCS-IOE-6 | A compact version optimized for small automation setups with limited I/O needs. |
| SDCS-IOE-7 | A modular I/O board offering high flexibility and scalability for complex systems. |
