Product Overview

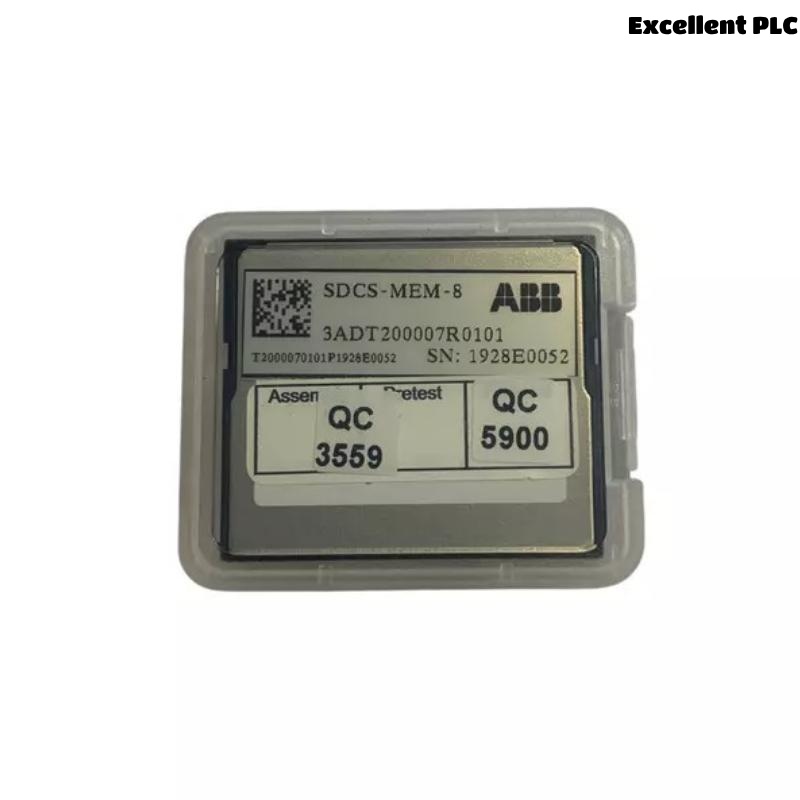

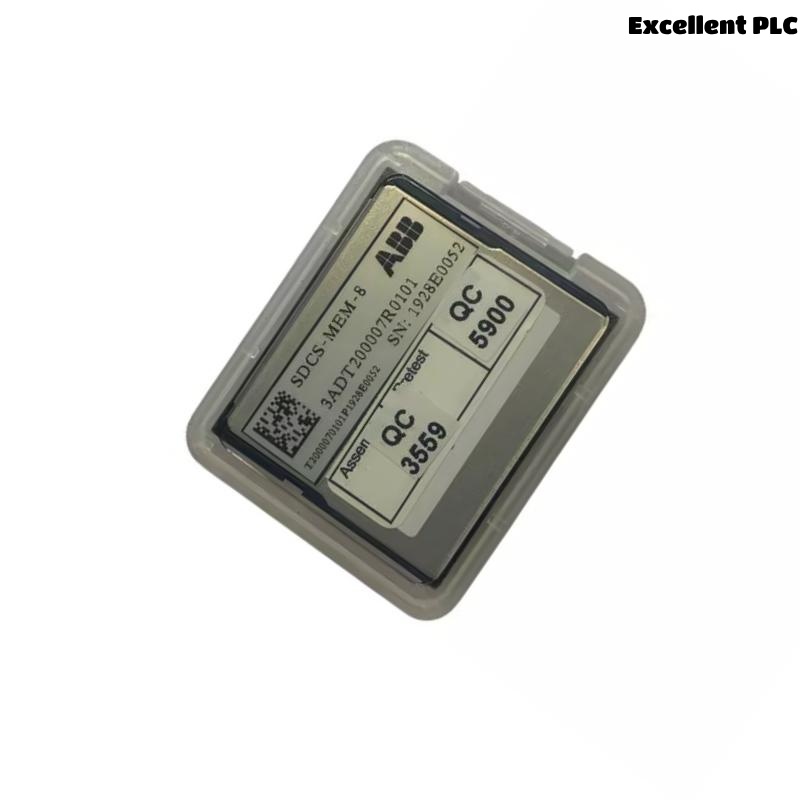

The ABB SDCS-MEM-8 3ADT200007R0101 Memory Card is an essential data storage component designed for ABB’s Static Drive Control System (SDCS). This memory card provides secure and reliable non-volatile storage for critical system data, configurations, parameters, and firmware essential to drive system operation.
Designed for seamless integration with ABB SDCS platforms, the SDCS-MEM-8 memory card ensures data integrity and facilitates quick recovery and system diagnostics. It plays a vital role in system reliability, backup, and efficient configuration management in industrial drive applications.
Key Features
-
High-reliability non-volatile memory storage
-
Compatible with ABB SDCS drive control systems
-
Secure storage for system configurations, parameters, and firmware
-
Fast data access speeds for efficient operation
-
Compact and rugged design suitable for industrial environments
-
Facilitates easy system backups and restoration
-
Low power consumption for extended operational life
-
Supports rapid firmware upgrades and parameter updates
-
Designed for vibration and temperature extremes common in industrial settings
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ABB SDCS-MEM-8 Memory Card |
| Model Number | 3ADT200007R0101 |
| Application | Data storage for ABB SDCS drive control systems |
| Memory Type | Non-volatile flash memory |
| Storage Capacity | 8 MB (megabytes) |
| Interface | Proprietary ABB SDCS memory interface |
| Operating Voltage | 5 V DC (typical) |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Data Retention | Minimum 10 years |
| Durability | Vibration and shock resistant |
| Dimensions | 90 x 60 x 10 mm |
| Weight | 0.04 kg |
| Certifications | CE, RoHS, UL (region dependent) |
Industry Applications
The SDCS-MEM-8 memory card is widely used in industrial sectors where data integrity and rapid access to configuration data are essential:
-
Metals and Mining: Drive system parameter storage for rolling mills and mining equipment
-
Pulp and Paper: Secure data management for paper machine drives
-
Oil and Gas: Memory for critical drive systems in refineries and offshore platforms
-
Marine and Offshore: Data storage for propulsion and auxiliary drive controllers
-
Power Generation: Configuration and firmware storage for turbine and generator drives
-
Industrial Automation: Backup and configuration memory for automated drive control systems
Product Advantages
-
Reliable Data Storage: Ensures critical drive parameters and firmware are safely retained
-
Fast Data Access: Enables rapid system boot-up and parameter retrieval
-
Compact and Rugged: Designed to withstand harsh industrial environments
-
Extended Data Retention: Preserves stored information for years without power
-
Easy Upgradeability: Supports seamless firmware and parameter updates
-
Enhanced System Reliability: Facilitates quick recovery and reduces downtime
-
Low Power Operation: Efficient power consumption contributes to overall system energy savings
-
Compatibility: Fully integrated with ABB SDCS control architecture
Frequently Asked Questions (FAQ)
1. What is the purpose of the ABB SDCS-MEM-8 memory card?
It stores critical system data, configurations, and firmware for ABB SDCS drive systems, ensuring reliable operation.
2. What is the storage capacity of the SDCS-MEM-8?
The memory card has an 8 MB storage capacity.
3. Is the memory card compatible with all ABB drives?
It is designed specifically for ABB SDCS drive control systems. Compatibility with other systems should be verified.
4. What operating temperatures can the memory card withstand?
The card operates reliably between -25°C and +70°C and can be stored between -40°C and +85°C.
5. How durable is the memory card in industrial environments?
It is vibration and shock resistant and built to endure harsh industrial conditions.
6. How long can data be retained without power?
Data retention is guaranteed for a minimum of 10 years.
7. Can the memory card be used for firmware updates?
Yes, it supports rapid firmware upgrades and parameter updates.
8. What are the physical dimensions of the SDCS-MEM-8?
Dimensions are approximately 90mm x 60mm x 10 mm.
9. Does the memory card require maintenance?
No regular maintenance is required due to its solid-state design.
10. What certifications does the SDCS-MEM-8 have?
It holds CE, RoHS, and UL certifications, depending on regional regulations.
Related Models from the Same Series
| Model | Description |
|---|---|
| SDCS-MEM-4 3ADT200005R0101 | ABB Memory Card with 4 MB Storage Capacity |
| SDCS-MEM-16 3ADT200008R0101 | ABB Memory Card with 16 MB Storage Capacity |
| SDCS-COM-1 3BSE006292R0001 | ABB Communication Interface Module |
| SDCS-IOB-1 3BSE004084R1 | ABB Interface Board for I/O Connections |
| SDCS-FEX-1 3BSE006389R0001 | ABB Field Expansion Module for SDCS Systems |
| SDCS-FEP-1 3BSE006309R1 | ABB On-site Protection Device for Drive Systems |
