Product Introduction

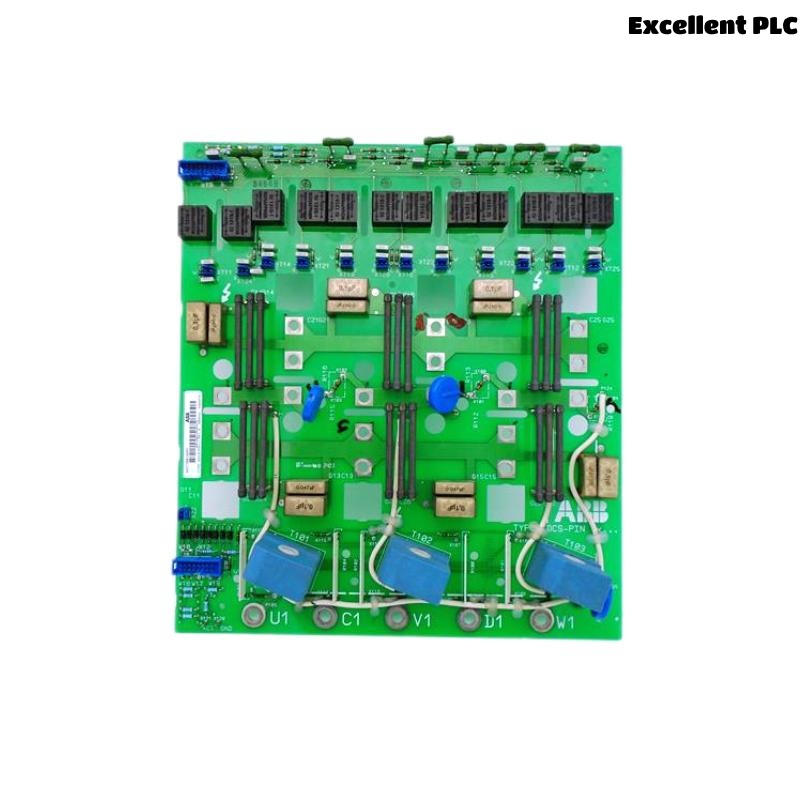

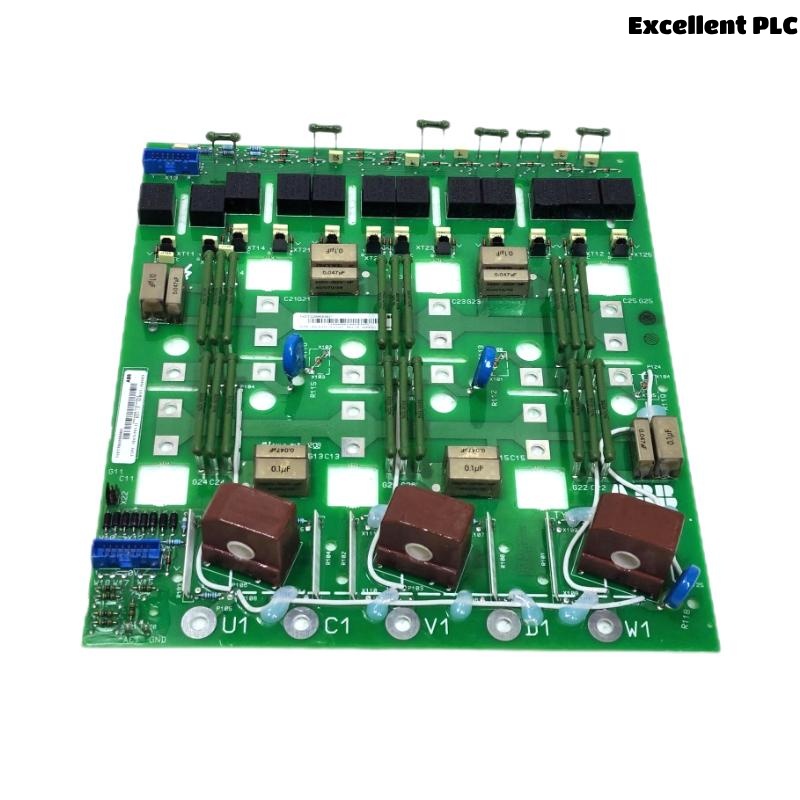

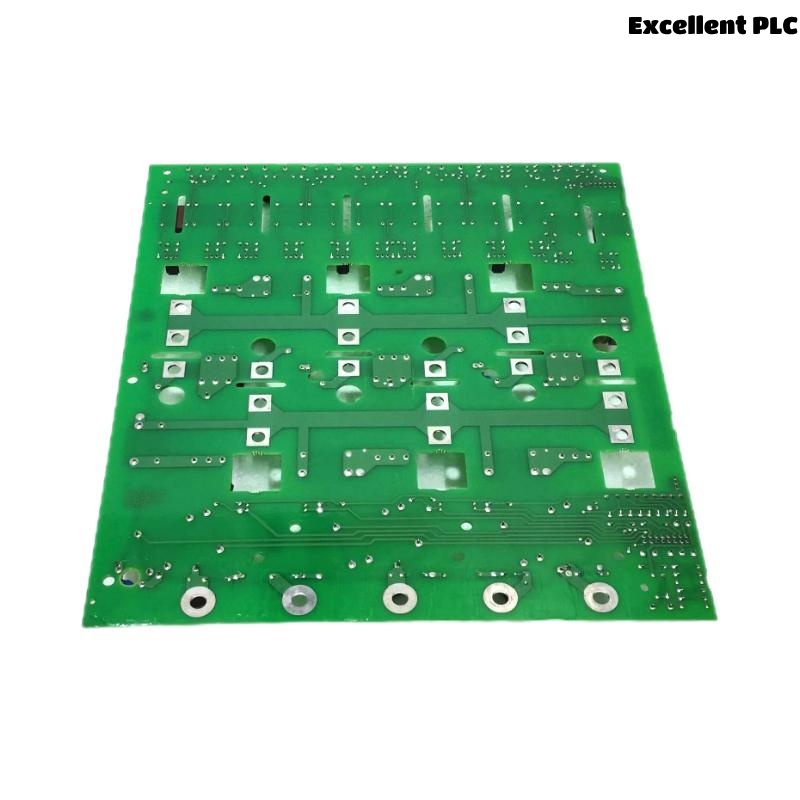

The ABB SDCS-PIN-11 3ADT220090R0027 is a high-performance power interface board designed to provide reliable and efficient electrical connections within industrial control systems. This module plays a crucial role in ensuring stable power distribution and seamless integration of power supply systems into ABB’s automation equipment.
With its advanced design and robust construction, the SDCS-PIN-11 facilitates optimal performance in demanding industrial environments. It is typically used to interface power supplies to control systems, providing necessary electrical isolation and protection. The power interface board ensures proper power distribution to other modules, preventing potential damage to sensitive components due to power surges or faults.
Designed for easy integration and high reliability, this power interface board supports various ABB automation systems and is ideal for industrial applications that require precise and stable power management.
Product Parameters
The technical specifications of the ABB SDCS-PIN-11 3ADT220090R0027 Power Interface Board are as follows:
| Parameter | Details |
|---|---|
| Dimensions | 265 x 282 x 40 mm |
| Weight | 0.422 kg |
| Power Supply Input | 24V DC ± 10% |
| Power Supply Output | 24V DC |
| Mounting | DIN rail mounting |
| Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Input Voltage Range | 24V DC ± 10% |
| Power Consumption | 3W |
| Maximum Current | 2A |
Product Applications
The ABB SDCS-PIN-11 3ADT220090R0027 Power Interface Board is designed for use in a wide range of industrial applications that require reliable and efficient power management. Some common applications of this power interface board include:
-
Automation Systems: The power interface board is used in control systems, ensuring reliable power distribution to different modules in automation setups.
-
Factory Automation: Used in factory automation systems to manage power supply for control panels and automated machinery.
-
Process Control: Integrated into process control systems for maintaining stable power inputs and preventing interruptions or failures in sensitive processes.
-
Energy Monitoring Systems: Provides reliable power supply management to energy monitoring equipment, ensuring precise tracking of power usage and system optimization.
-
Industrial Control Systems: Ensures stable and continuous power distribution to various I/O modules, sensors, and actuators within industrial control systems.
-
Test Systems: The module can be used in test setups where power management is critical to the accurate performance of test equipment.
Product Advantages
-
Reliable Power Distribution: The SDCS-PIN-11 ensures stable and efficient power delivery to connected components, providing reliable operation and reducing the risk of power-related faults.
-
Compact Design: With dimensions of 265 x 282 x 40 mm and a weight of 0.422 kg, the module’s compact design allows for easy integration into space-constrained control panels.
-
Wide Temperature Range: The board operates within a temperature range of -20°C to +60°C, ensuring reliable performance even in harsh industrial environments.
-
Easy Installation: The power interface board is designed for DIN rail mounting, making it simple and convenient to install within control systems.
-
Low Power Consumption: With only 3W of power consumption, the module is energy-efficient and helps reduce overall operational costs.
-
Enhanced Protection: Provides electrical isolation and protection to prevent damage from power surges, ensuring the longevity and stability of other components in the system.
-
Flexible Power Supply Input: Accepts 24V DC ± 10% input voltage, providing flexibility for integration into a wide range of systems.
FAQs
-
What is the purpose of the ABB SDCS-PIN-11 3ADT220090R0027 Power Interface Board?
The power interface board ensures efficient power distribution and provides electrical isolation and protection in industrial control systems. -
What is the input voltage range for the SDCS-PIN-11?
The module accepts a 24V DC input voltage with a tolerance of ± 10%. -
How is the SDCS-PIN-11 mounted?
The module is designed for DIN rail mounting, making it easy to install and integrate into control systems. -
What is the operating temperature range for the SDCS-PIN-11?
The board operates within a temperature range of -20°C to +60°C, allowing it to function in harsh industrial environments. -
What is the maximum current supported by the SDCS-PIN-11?
The maximum current supported by the power interface board is 2A. -
What power supply output does the SDCS-PIN-11 provide?
The board provides a 24V DC power output, ensuring proper power distribution to connected components. -
What is the weight of the SDCS-PIN-11?
The module weighs 0.422 kg, which makes it easy to handle and integrate into existing control systems. -
Can the SDCS-PIN-11 be used in factory automation systems?
Yes, the module is ideal for use in factory automation systems, providing stable power to control panels and automated machinery. -
How much power does the SDCS-PIN-11 consume?
The power interface board consumes only 3W of power, making it an energy-efficient solution for power management. -
Is the SDCS-PIN-11 suitable for use in process control systems?
Yes, the board is well-suited for process control applications, ensuring reliable power management for continuous monitoring and control.
