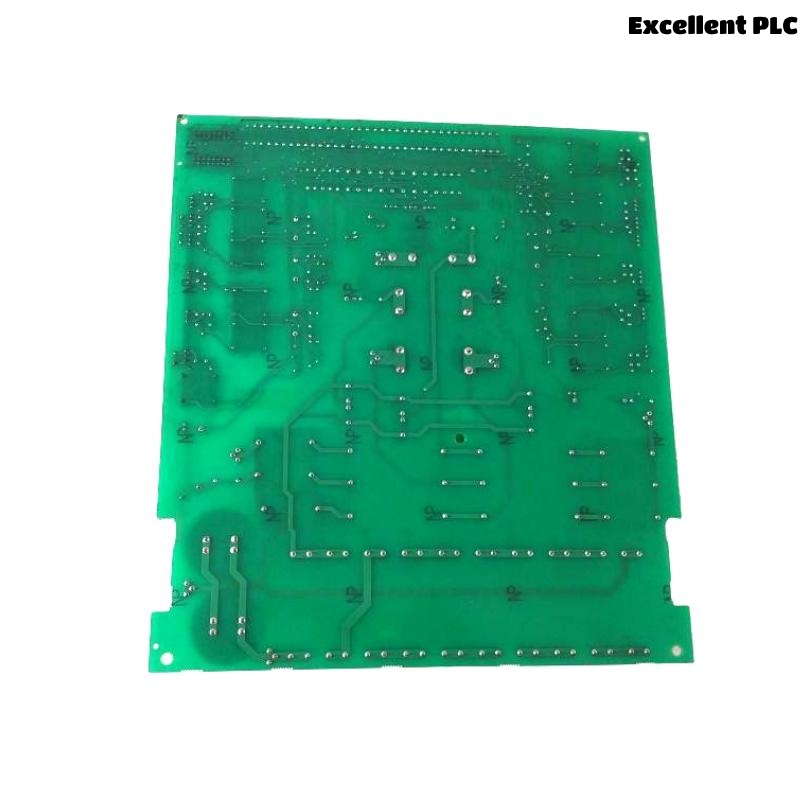

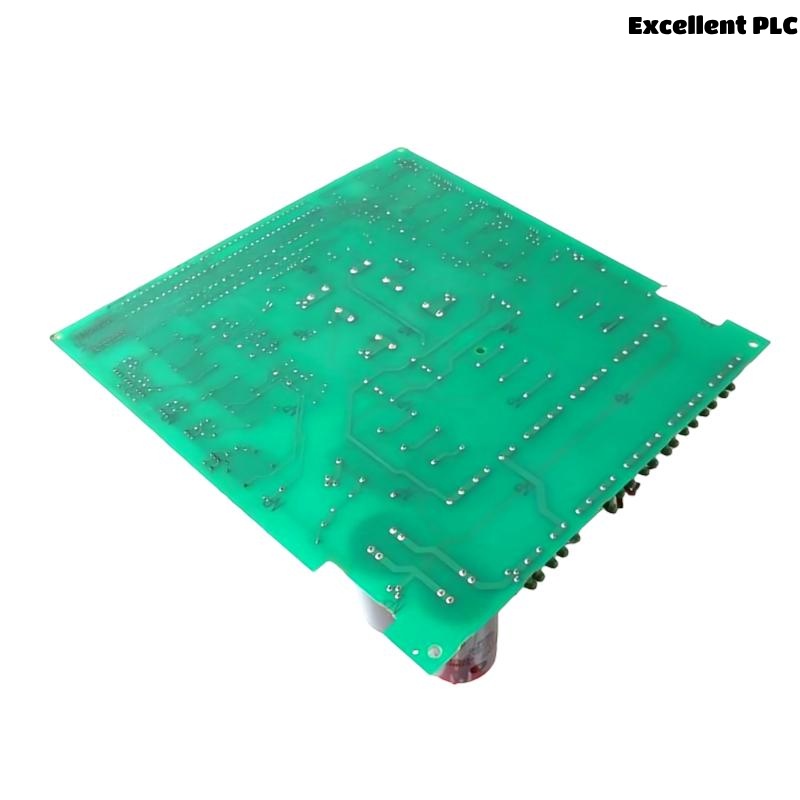

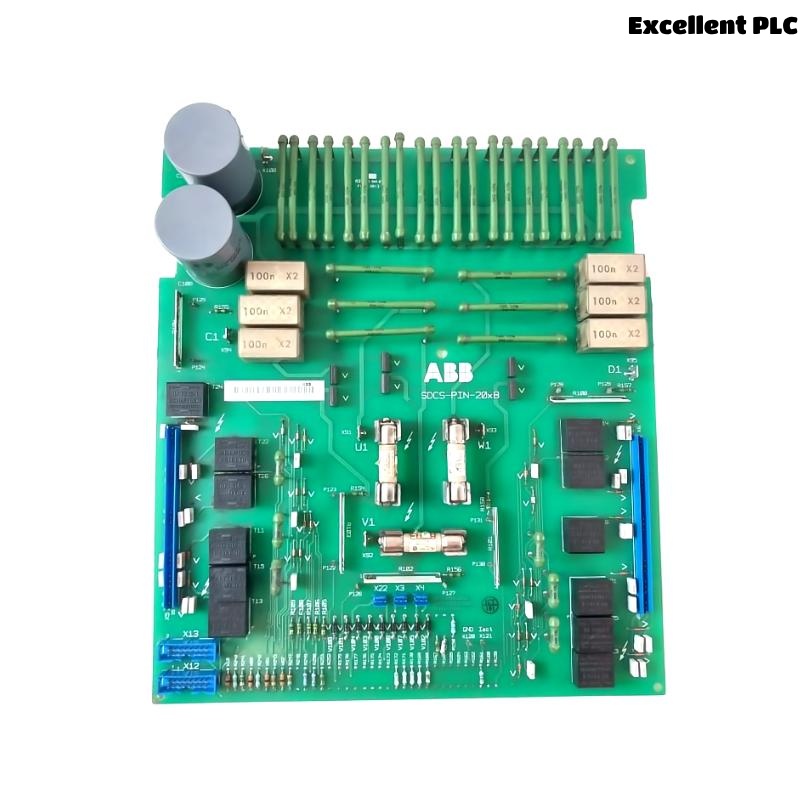

ABB SDCS-PIN-205B 3ADT220090R0035 Power Interface Board

Product Introduction

The ABB SDCS-PIN-205B (Part No: 3ADT220090R0035) is a dedicated power interface board used primarily in ABB’s DCS500 and DCS600 DC drive systems. Acting as a critical link between the control module and the power section of the drive, this board is responsible for signal routing, logic processing, and electrical isolation between power and control layers.

This version of the SDCS-PIN-205B is optimized for robust electrical performance in harsh industrial environments, including high-temperature and high-noise conditions. The board supports both analog and digital I/O signals, provides integrated status indication via LEDs, and is designed to ensure maximum compatibility with existing ABB SDCS systems.

The 3ADT220090R0035 variant of the 205B board is widely used in retrofit applications and OEM configurations, offering stability, long lifecycle, and seamless integration with legacy control hardware in critical drive installations.

Technical Specifications

Applications

The SDCS-PIN-205B 3ADT220090R0035 is designed for applications requiring stable DC drive interface control. It is widely used in:

• DC Motor Control Systems – Integration with ABB DCS500/DCS600 drives in high-demand environments.

• Metals and Steel Processing – Reliable performance in variable torque and high-load drive systems.

• Pulp and Paper Plants – Ensures smooth control of large-format DC motors in paper machines.

• Retrofitting Legacy ABB Drives – Replacement for aging interface boards in older control cabinets.

• Automation Control Panels – Used by OEMs for embedded drive management in integrated systems.

• Material Handling Systems – Helps in precise motor coordination in cranes, hoists, and conveyors.

Product Advantages

• High Compatibility – Tailored for seamless operation with DCS500/DCS600 systems, with zero modification required.

• Stability Under Load – Provides consistent interface performance even in demanding industrial conditions.

• Diagnostic Functionality – Integrated LED indicators offer real-time troubleshooting capability.

• Compact Form Factor – Fits into tight enclosures, ideal for control panel retrofits and compact layouts.

• Improved Electrical Isolation – Enhanced design ensures safety and signal integrity between control and power paths.

• Long Product Lifecycle – Engineered for extended uptime with minimal maintenance needs.

Frequently Asked Questions (FAQ)

1. Is the SDCS-PIN-205B 3ADT220090R0035 a drop-in replacement for other 205B boards?
   Yes, it can replace older 205B boards if the drive firmware supports the same interface logic.

2. How do I know if the board is faulty?
   Indicators include absence of LED signals, inconsistent motor control behavior, or interface signal loss.

3. Is this board plug-and-play?
   It requires no software setup but should be installed following proper grounding and ESD safety protocols.

4. Can this board be used in multi-drive cabinet setups?
   Yes, it works reliably in synchronized multi-motor applications with proper isolation and wiring.

5. Does the board include surge or overvoltage protection?
   Internal protections are provided, but external line protection is still recommended in noisy environments.

6. What is the typical failure cause in harsh environments?
   Overheating due to poor ventilation or damage from unfiltered voltage spikes.

7. Can I clean the board if it’s dusty?
   Use dry compressed air or ESD-safe brushes. Never use liquids or conductive materials.

8. What cabling is recommended for connecting external I/O?
   Shielded twisted-pair industrial signal cables are ideal to avoid interference.

9. Should I update firmware when replacing the board?
   No firmware resides on the board. Compatibility depends on the existing drive system software.

10. What’s the lifespan of this board under normal use?
    Typically 10–15 years in standard industrial conditions.
