Product Overview

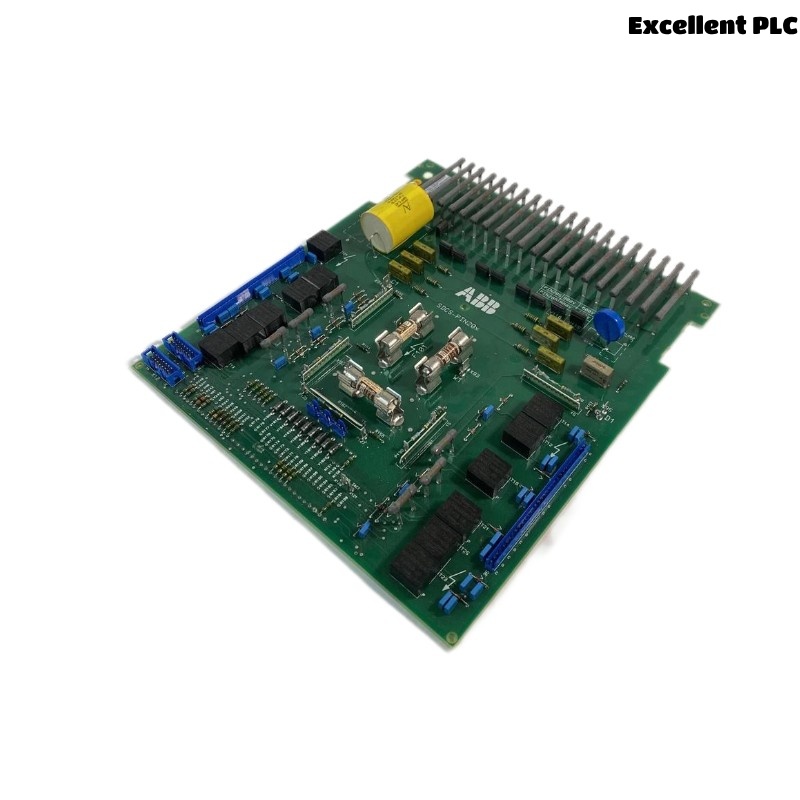

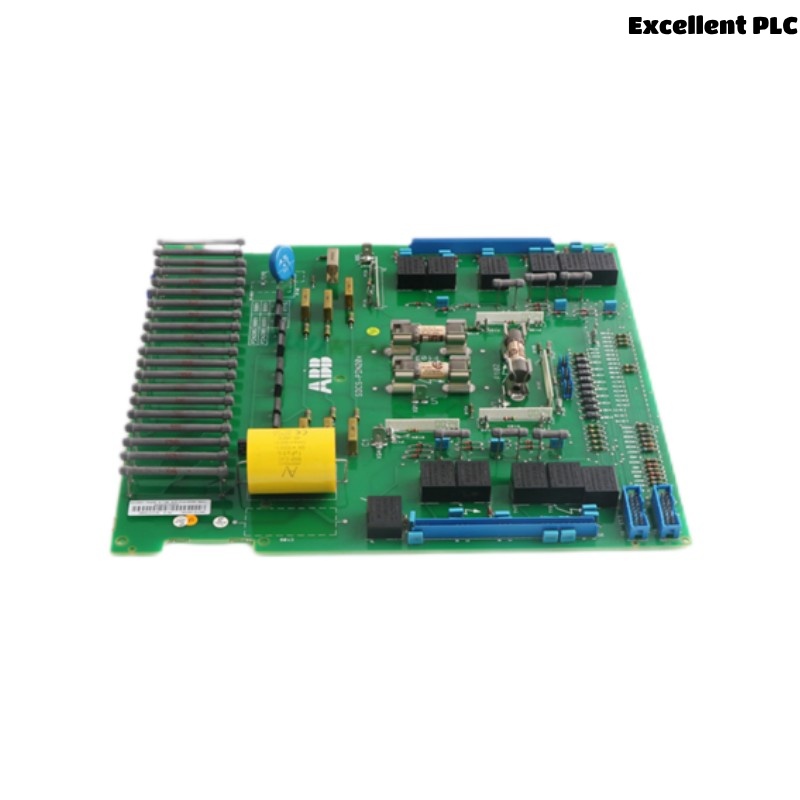

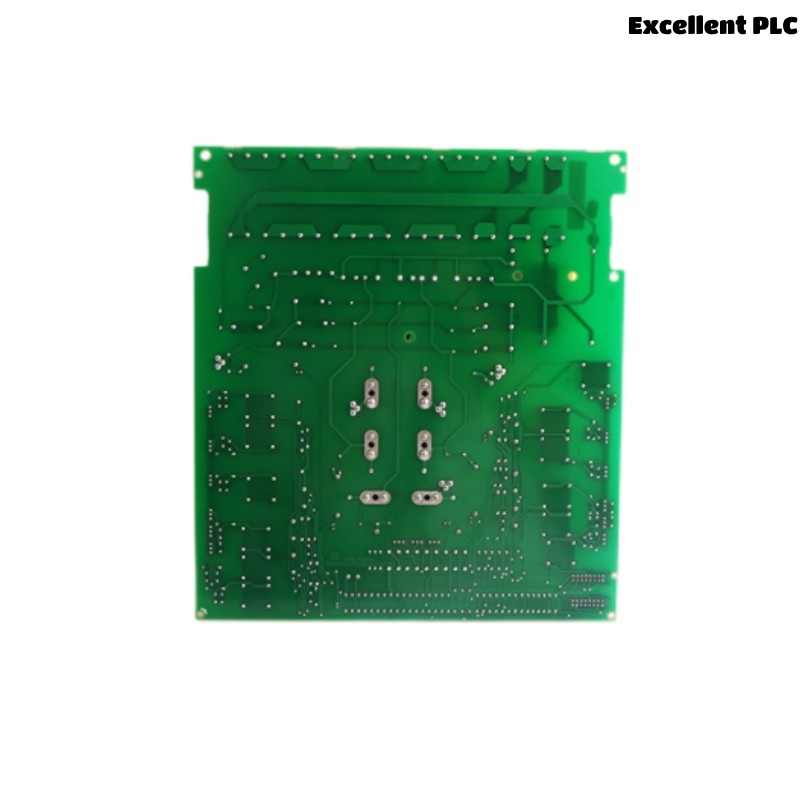

The ABB SDCS-PIN-205C 64351141 Power Interface Board is a high-performance power interfacing solution designed for ABB DC drive systems based on the Static Drive Control System (SDCS) platform. This board acts as a critical link between the power components and control electronics, providing safe, reliable, and efficient power signal interfacing, monitoring, and protection.
The SDCS-PIN-205C offers robust electrical insulation, enhanced durability, and seamless compatibility with ABB’s SDCS architecture, making it suitable for demanding industrial environments. With precise signal transmission and integrated protection mechanisms, it ensures stable operation of DC drives and optimizes system safety.
Key Features
-
High-reliability power interface for ABB SDCS-based DC drives
-
Ensures safe connection between power circuits and control systems
-
Provides electrical isolation for system safety and signal integrity
-
Supports real-time power signal transmission and monitoring
-
Compact, modular design for efficient space utilization
-
Conformal coated for protection against dust, moisture, and harsh environments
-
Integrated diagnostic features for easy fault detection
-
Proven durability in demanding industrial applications
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ABB SDCS-PIN-205C Power Interface Board |
| Model Number | 64351141 |
| Application | Power interfacing for ABB SDCS DC drive systems |
| Compatible Systems | ABB SDCS-based drive control platforms |
| Function | Electrical signal interface between power and control circuits |
| Insulation Class | High-grade industrial insulation |
| Environmental Protection | Conformal coated for dust and moisture resistance |
| Diagnostics | LED indicators for system status and fault detection |
| Power Supply Requirement | 24 V DC typical (control circuit) |
| Operating Voltage (Power Circuits) | Up to 1000 V DC (system dependent) |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Certifications | CE, RoHS, UL (region dependent) |
| Dimensions | 265 x 282 x 40 mm |
| Weight | 0.4 kg |
Industry Applications
The ABB SDCS-PIN-205C 64351141 Power Interface Board is widely used in industries where reliable power interfacing and control signal integrity are critical:
-
Metals Industry: Power interfacing for DC drives in rolling mills, wire drawing, and processing lines
-
Pulp & Paper: Safe power transmission for drive systems in paper manufacturing equipment
-
Oil & Gas: Power interface solutions for refineries, offshore platforms, and pumping systems
-
Marine & Offshore: Electrical signal interfacing for propulsion and auxiliary drive systems
-
Power Generation: Secure power communication for turbines, generators, and control equipment
-
Industrial Automation: Power-to-control signal interfacing for automated production machinery
Product Advantages
-
Safe Power Interfacing: Provides reliable electrical isolation between high-power and control circuits
-
Enhanced System Protection: Integrated diagnostics support real-time fault detection and system safety
-
Compact and Robust Design: Space-saving form factor with durable industrial construction
-
Conformal Coating Protection: Resistance to dust, moisture, and corrosive environments for extended service life
-
Seamless Integration: Fully compatible with ABB SDCS architecture for drive control systems
-
Optimized Performance: Ensures stable and accurate transmission of critical power signals
-
High Durability: Designed to withstand harsh operating conditions, including vibration and temperature extremes
-
Reduced Downtime: Simplifies maintenance with accessible diagnostics and fault indicators
Frequently Asked Questions (FAQ)
1. What is the function of the ABB SDCS-PIN-205C Power Interface Board?
It serves as the interface between power circuits and control electronics in ABB DC drive systems, ensuring safe signal transmission and electrical isolation.
2. Is the SDCS-PIN-205C compatible with all ABB DC drive systems?
It is specifically designed for ABB SDCS-based platforms. Compatibility with other systems should be confirmed through technical assessment.
3. What voltage levels does the board handle?
The control side operates at 24 V DC, while the power circuit interface supports voltages up to 1000 V DC (system dependent).
4. Does the board provide environmental protection?
Yes, it features a conformal coating to protect against dust, moisture, and corrosion.
5. How does the board improve system safety?
It provides electrical isolation between high-voltage power circuits and control electronics, reducing the risk of faults and system damage.
6. What diagnostic features are included?
Integrated LED indicators provide real-time status updates and fault detection.
7. What are the physical dimensions and weight of the SDCS-PIN-205C?
It measures 265mm x 282mm x 40 mm and weighs approximately 0.4 kg.
8. Is the board suitable for harsh industrial environments?
Yes, it operates reliably within a temperature range of -25°C to +70°C and features robust construction for demanding applications.
9. What certifications does the SDCS-PIN-205C hold?
It is certified to CE, RoHS, and UL standards, depending on regional regulations.
10. Can the board be used in marine or offshore environments?
Yes, its durable design and environmental protection make it suitable for marine and offshore applications.
Related Models from the Same Series
| Model | Description |
|---|---|
| SDCS-PIN-4 3BSE004939R1 | ABB Power Interface Board for SDCS DC drives |
| SDCS-PIN-41A 3BHE031562R0001 | ABB Power Interface Board with enhanced insulation |
| SDCS-PIN-85A 3BSE004938R1 | ABB Advanced Power Interface Board for large drives |
| SDCS-PIN-3A 3BSE004939R2 | ABB Compact Power Interface for SDCS systems |
| SDCS-POW-1 3BSE004939R3 | ABB Power Interface and Distribution Module |
| SDCS-PIN-205A 64351140 | ABB Power Interface Board, standard version |
