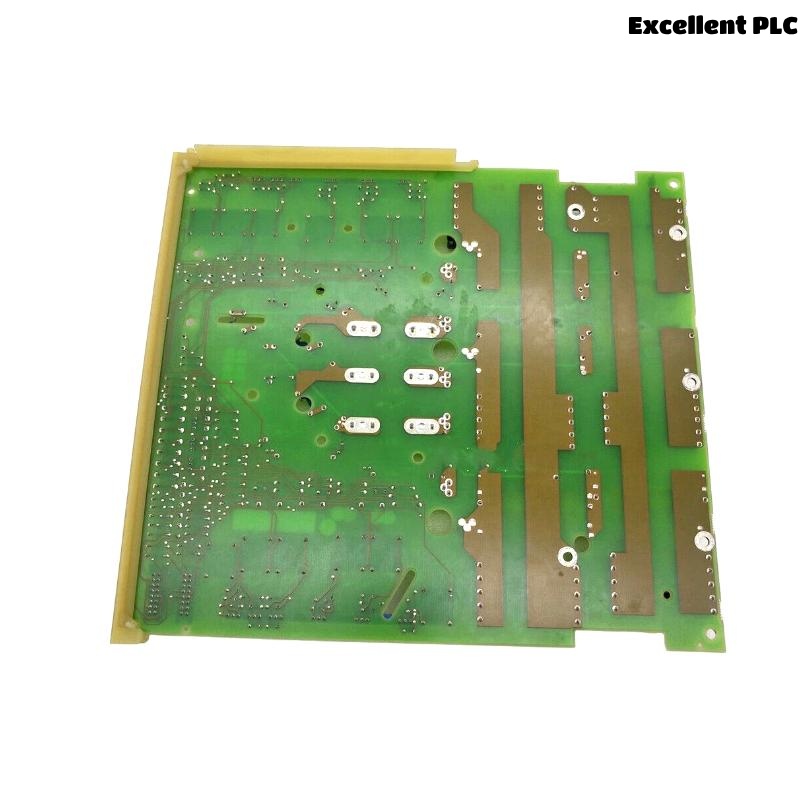

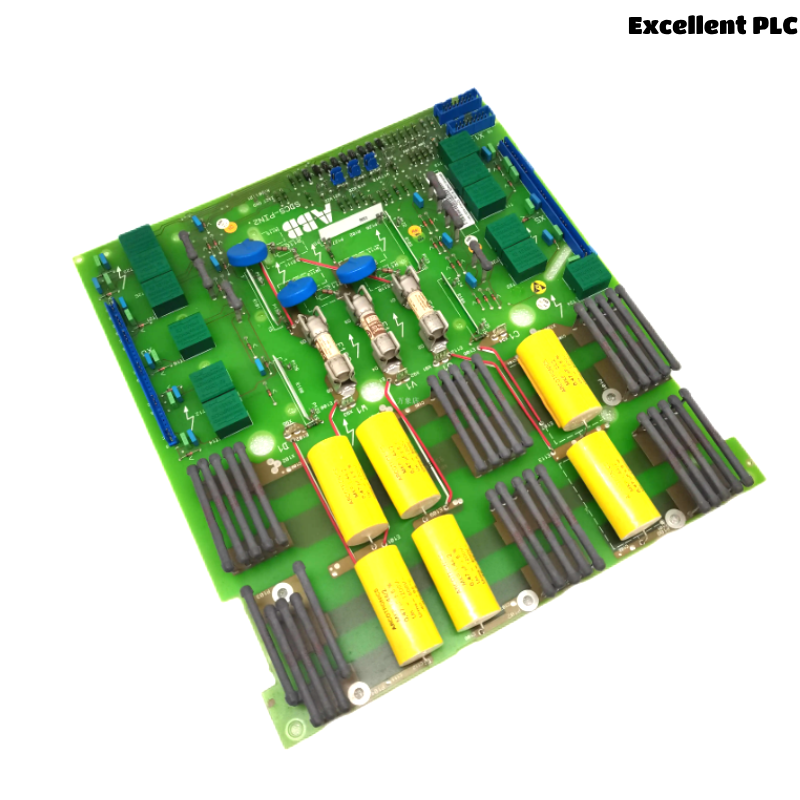

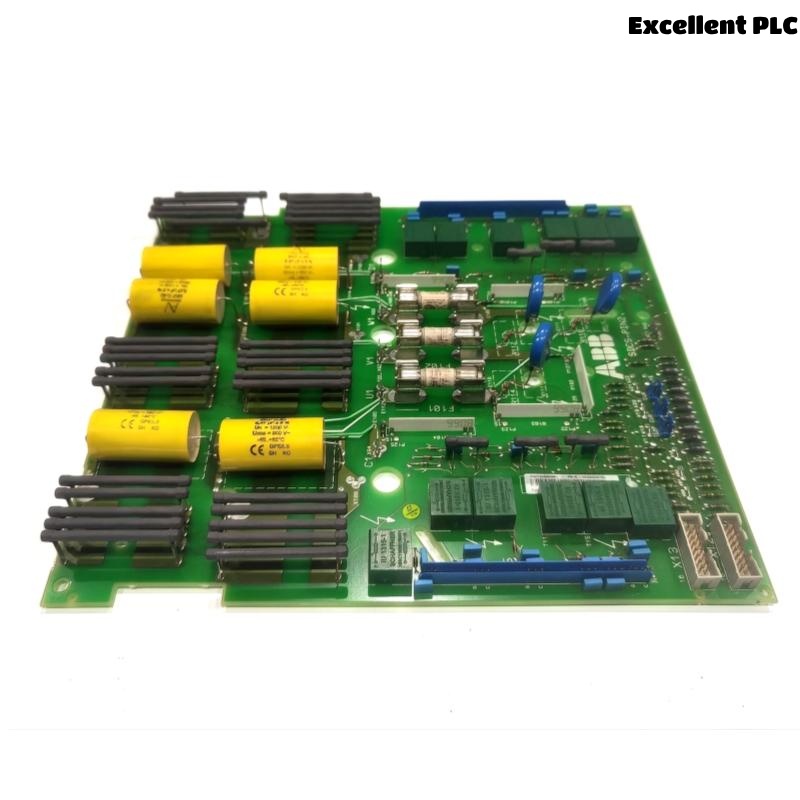

ABB SDCS-PIN-21 3ADT306200R1 Power Interface Board

Product Introduction

The ABB SDCS-PIN-21 (Part Number: 3ADT306200R1) is a power interface board developed for ABB’s legacy DCS series of DC drives, particularly in the DCS500 and DCS600 platforms. As a key member of the SDCS (Speed Drive Control System) family, this board is used to manage the critical signal transmission between control logic and power sections of the drive system. It ensures accurate analog/digital signal flow, coordination of I/O interfaces, and stable electrical operation of the DC drive under varying load conditions.

The SDCS-PIN-21 is designed with a robust PCB layout, high-tolerance components, and screw-type terminal blocks for industrial-grade reliability. It supports a wide range of operating environments and is often used in drive retrofits, system expansions, and OEM panel builds. With no onboard firmware, the board offers consistent operation through pure hardware-level interfacing, making it an essential part of many heavy-duty industrial control architectures.

Technical Specifications

Applications

The ABB SDCS-PIN-21 3ADT306200R1 is widely used in industrial DC drive systems, especially where a robust signal and power interface is required. Typical applications include:

• Steel & Rolling Mills – Precise motor control for cutting, rolling, and coil applications.

• Pulp & Paper Processing – Regulates large-format DC drives in continuous process machines.

• Industrial Automation Panels – Integrated in OEM panels for embedded DC drive control.

• Mining and Heavy Equipment – Used in hoisting, conveyors, and crushers requiring durable control electronics.

• Crane Systems – Enables accurate motor actuation in lifting and positioning systems.

• Legacy Drive System Upgrades – Ideal for retrofitting older DCS systems with updated components.

Product Advantages

• Highly Compatible – Seamlessly integrates with existing ABB DCS500/DCS600 platforms.

• Signal Stability – Offers precise analog and digital signal management under variable load.

• Diagnostic LEDs – Provides real-time feedback on status and error conditions.

• Maintenance-Friendly Design – Plug-and-play architecture for easy installation or field replacement.

• Industrial Reliability – Built to withstand vibration, temperature fluctuations, and electrical noise.

• Long-Term Availability – Continued support by ABB for legacy systems ensures investment protection.

Frequently Asked Questions (FAQ)

1. Is the SDCS-PIN-21 interchangeable with SDCS-PIN-205B or 206B?
   No, while functionally similar, the PIN-21 is an older model with different pin configurations and dimensions.

2. What are the most common fault indicators on this board?
   LED status lights that show no power, signal loss, or fault state during drive diagnostics.

3. Does the board require firmware updates?
   No, this board operates purely on hardware; no firmware updates are applicable.

4. Can this board operate outside of a sealed cabinet?
   No. It must be installed within a closed electrical enclosure (IP-rated) to protect from dust and moisture.

5. Is special software required to configure the board?
   No configuration is needed. It functions automatically within the drive’s logic architecture.

6. How is the board secured during installation?
   It uses a plug-in slot and screw terminals to fasten securely onto the control rack.

7. What should I do if the drive loses communication with the board?
   Check terminal connections, ensure correct board seating, and verify 24V supply voltage.

8. Can I test the board independently of the drive?
   Only partially, using multimeters to check continuity and basic signal voltage. Full diagnostics require system integration.

9. What kind of cabling should be used with this board?
   Use shielded twisted-pair industrial control cables for analog and digital signal lines.

10. What is the average service life of the SDCS-PIN-21?
    10–15 years under normal industrial conditions with proper ventilation and electrical protection.
