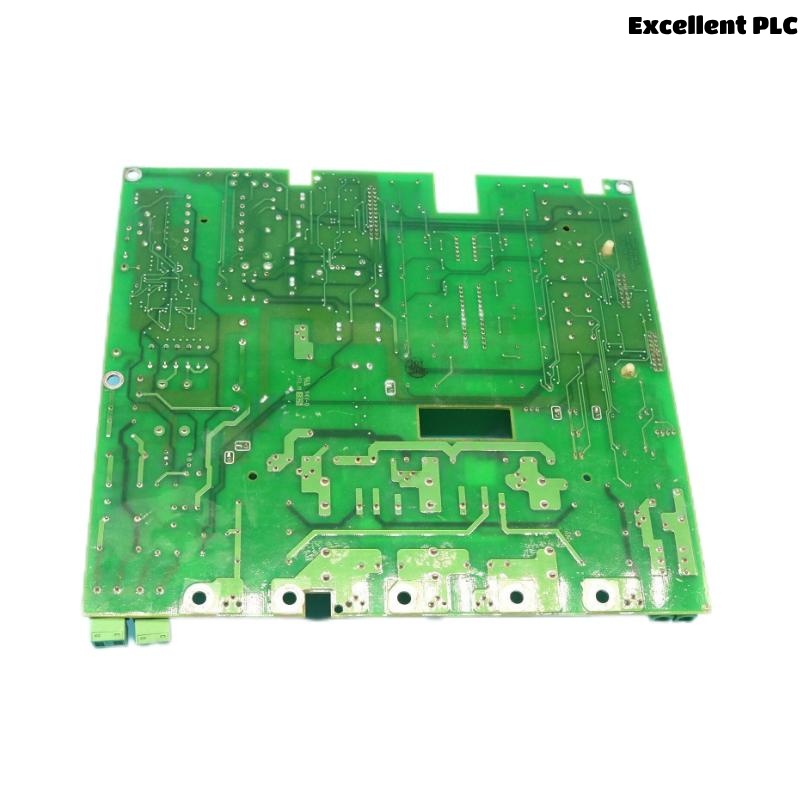

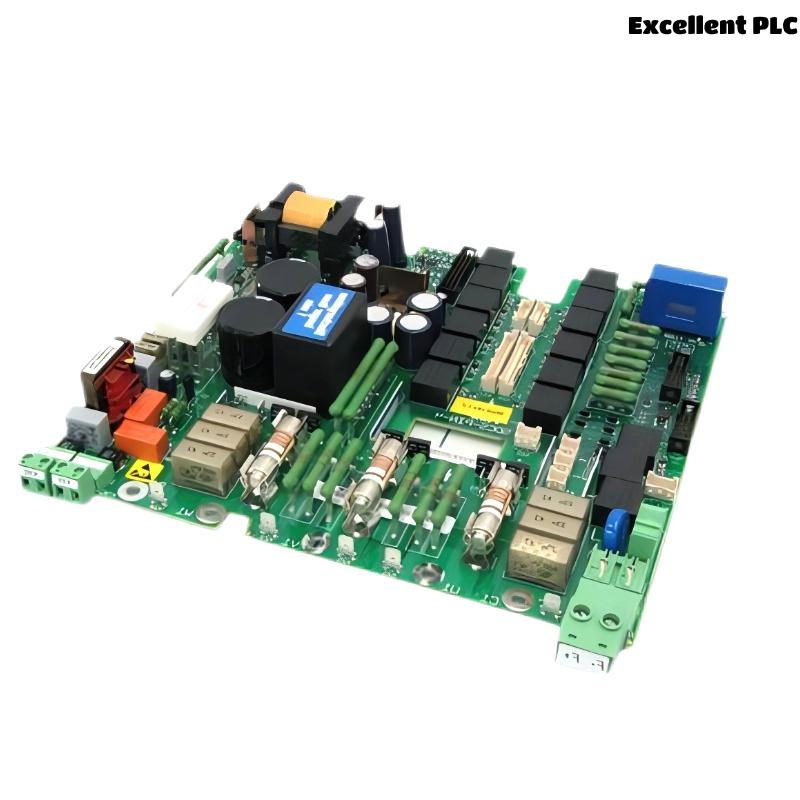

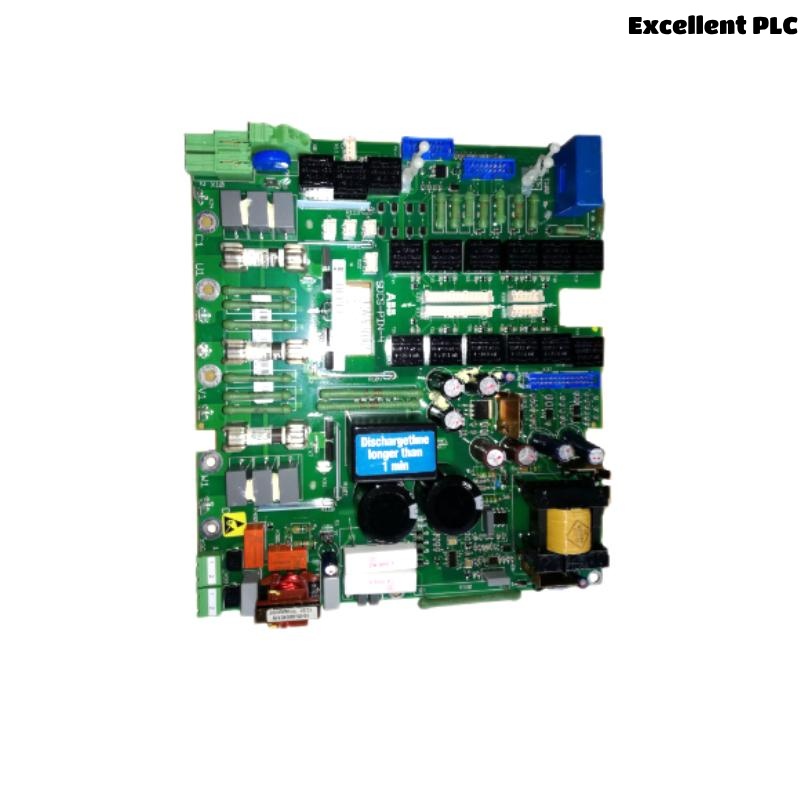

ABB SDCS-PIN-4 3ADT314100R1001 Power Interface Board

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB SDCS-PIN-4 3ADT314100R1001 is a high-performance power interface board designed for use in ABB DC drive systems, specifically within the DCS400, DCS500, and DCS600 series. This board acts as the central power interface, connecting the control electronics with the power section of the drive. It plays a critical role in distributing power, managing signals, and ensuring reliable operation of the entire drive unit.

As part of ABB’s robust drive technology portfolio, the SDCS-PIN-4 is engineered for long-term stability and performance in demanding industrial environments. It is equipped with high-grade electronic components that support the communication, signal processing, and protection functionalities necessary for safe and efficient motor control.

Its modular design ensures ease of integration, replacement, and system scalability, allowing for cost-effective maintenance and reduced downtime. Built to ABB’s stringent quality standards, the SDCS-PIN-4 provides unmatched reliability for high-load applications in manufacturing, metallurgy, mining, paper processing, and more.

---

Product Specifications

---

Product Applications

The SDCS-PIN-4 is a vital component in various industrial sectors that rely on ABB DC drive systems for high-precision motor control and energy-efficient drive solutions. Typical application areas include:

• Metals Industry (Steel and Aluminum Processing)
  Used in rolling mills and furnaces where precise speed and torque control are essential.

• Pulp and Paper Manufacturing
  Supports DC motor-driven conveyor systems, rollers, and processing equipment.

• Mining and Minerals
  Enables reliable operation of hoists, crushers, and mills in rugged environments.

• Marine and Port Automation
  Used in propulsion systems, cranes, and winches for smooth control and torque handling.

• Material Handling Systems
  Integrated into conveyor systems, stackers, and sorters requiring fine-tuned motor response.

• Textile Industry
  Provides synchronized motor control for spinning, weaving, and processing lines.

• Test Stands and R&D Facilities
  Ensures stability and safety in experimental setups needing precise current and voltage regulation.

---

Product Advantages

The ABB SDCS-PIN-4 power interface board delivers a wide range of operational and maintenance benefits that support long-term system efficiency and reliability:

• Robust Power Management
  Ensures smooth and stable power distribution between the control and power sections of the drive.

• Optimized for ABB Drives
  Fully compatible with DCS400, DCS500, and DCS600 series, ensuring seamless integration.

• Durable and Industrial-Grade
  Constructed using high-quality multilayer PCB for extended operational life even in harsh environments.

• Compact Design
  Its dimensions (265 × 282 × 40 mm) and lightweight structure (0.8 kg) make it easy to install and replace.

• Minimized Downtime
  Modular and easily replaceable design helps reduce service time during maintenance or upgrades.

• Improved System Stability
  Acts as a central stabilizing unit for the power section, filtering electrical noise and surges.

• Long Service Life
  ABB’s proven reliability and stringent testing ensure years of stable performance with minimal failure rate.

• Safety Compliant
  Designed to meet international standards including IEC, CE, and RoHS, ensuring safe deployment in industrial environments.

• Simplified Diagnostics
  Enables straightforward fault tracing and system diagnostics when used in conjunction with ABB control tools.

• Global Support and Availability
  ABB’s global presence ensures timely replacement parts, technical support, and service assistance.

---

Frequently Asked Questions (FAQ)

1. What is the primary function of the SDCS-PIN-4 board?
   It serves as a power interface between the control electronics and power circuits in ABB’s DC drive systems.

2. Which ABB drive systems is it compatible with?
   It is designed for use with DCS400, DCS500, and DCS600 DC drives.

3. What are the dimensions and weight of the board?
   The board measures 265 x 282 x 40 mm and weighs 0.8 kg.

4. How is the SDCS-PIN-4 cooled during operation?
   It uses the drive’s internal air-cooling system, requiring no separate cooling mechanism.

5. Is the SDCS-PIN-4 RoHS compliant?
   Yes, it is compliant with RoHS and CE standards.

6. Can I use the SDCS-PIN-4 in high-humidity environments?
   Yes, it supports a non-condensing humidity range of 5% to 95%, making it suitable for most industrial environments.

7. Is this board user-replaceable?
   Yes, the module is designed for easy installation and replacement, reducing service downtime.

8. Does it require software configuration?
   The board itself does not require software configuration but interacts with ABB’s drive control software.

9. How is it mounted inside the drive enclosure?
   It can be mounted using standard rack or enclosure chassis mounting methods.

10. Is this part still actively supported by ABB?
    Yes, as of now it is actively supported, with availability of spare parts and technical documentation.

---
