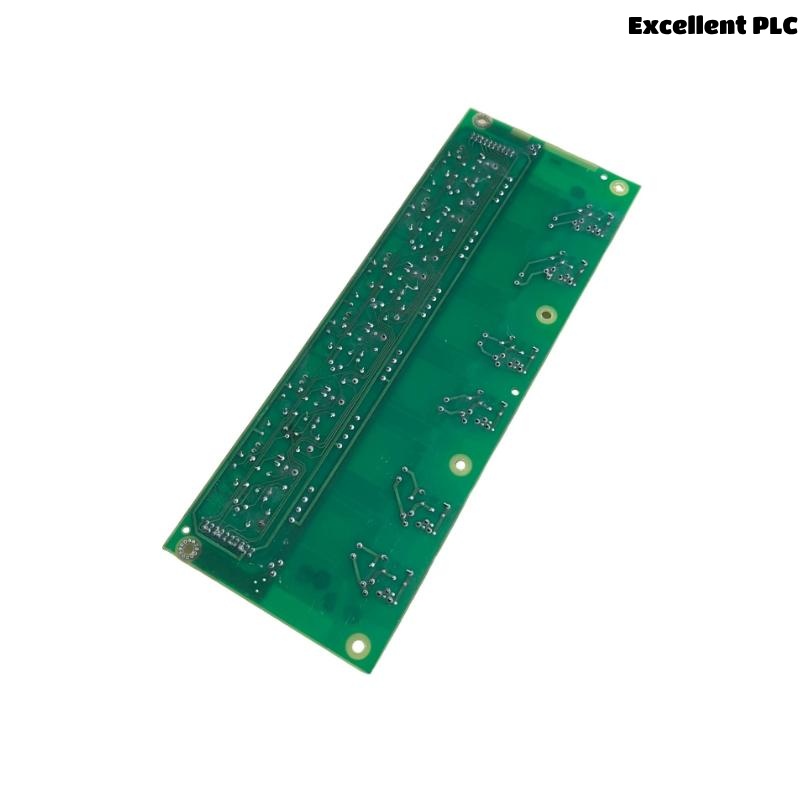

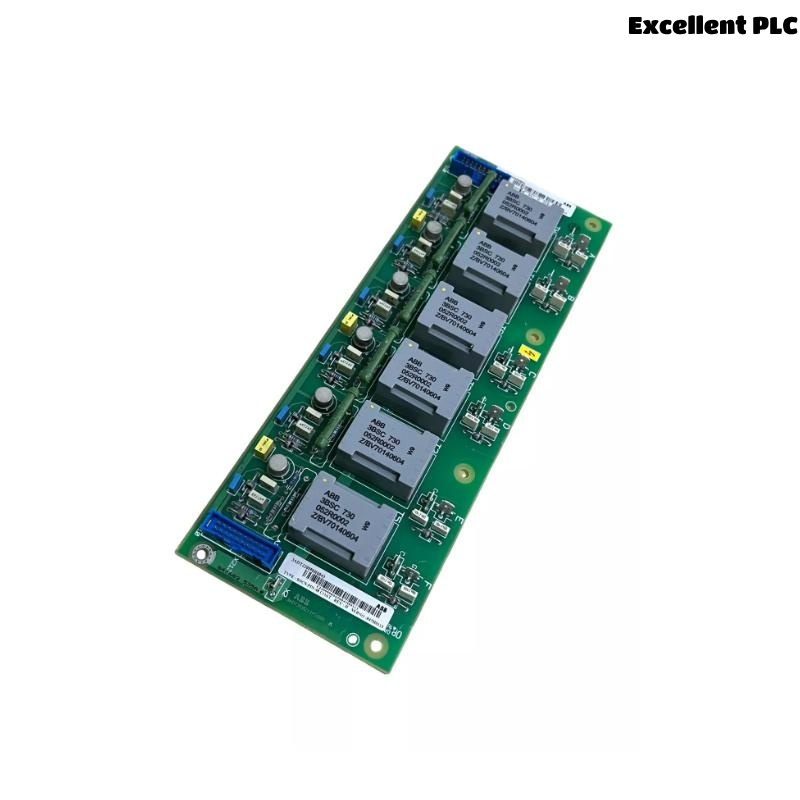

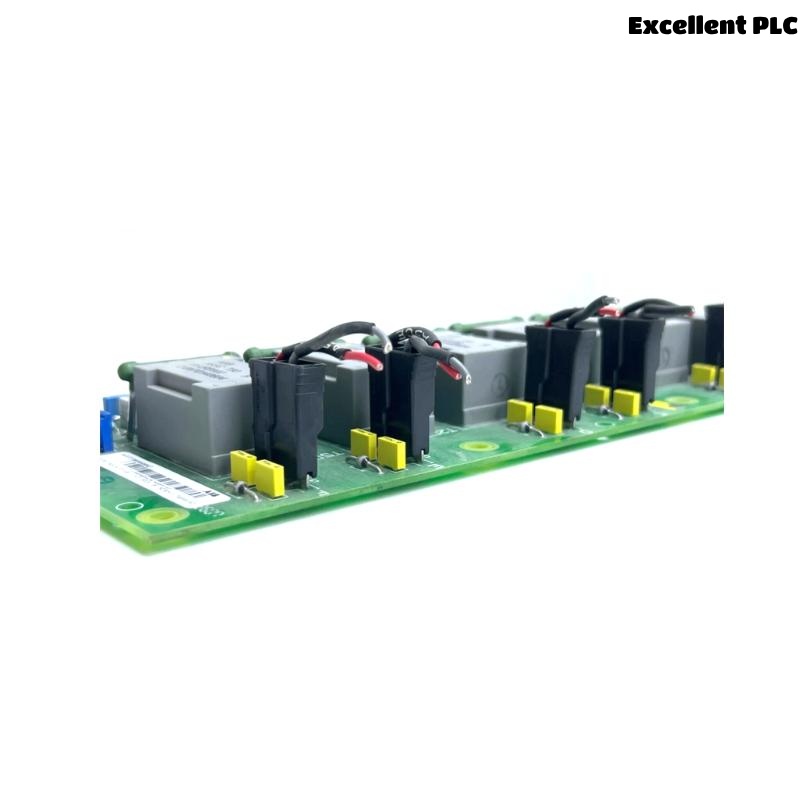

ABB SDCS-PIN-48 3ADT220090R0043 Pulse Transformer Board

Manufacturer:ABB

Product Number:SDCS-PIN-48 3ADT220090R0043

Product Type:Pulse Transformer Board

Origin:Sweden

Dimensions:265 x 282 x 40 mm

Weight:0.328 kg

Views:117

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB SDCS-PIN-48 3ADT220090R0043 Pulse Transformer Board

Product Introduction

The ABB SDCS-PIN-48 (Part No: 3ADT220090R0043) is a dedicated pulse transformer interface board used in ABB’s DC drive systems, particularly within the DCS400 series. It plays a critical role in transmitting galvanically isolated gate pulses from the control unit to power semiconductor devices such as thyristors and IGBTs. Its high-isolation design allows for safe and reliable signal transmission in electrically noisy industrial environments.

By ensuring separation between the low-voltage control circuitry and high-power switching components, the SDCS-PIN-48 enhances operational safety and equipment durability. It is built with robust industrial-grade components and designed to operate in demanding applications, such as steel mills, paper manufacturing, marine drives, and mining machinery, where precision and fault tolerance are non-negotiable.


Product Specifications

Parameter Details
Model SDCS-PIN-48
Part Number 3ADT220090R0043
Product Type Pulse Transformer Interface Board
System Compatibility ABB DCS400 Series DC Drives
Primary Function Isolated pulse signal transmission to thyristor/IGBT gate terminals
Galvanic Isolation > 2.5 kV between control and power circuits
Input Voltage 24 VDC logic level (from control section)
Pulse Type Digital firing pulses
Mounting Type Rack-mounted, plug-in modular board
Operating Temperature 0°C to +70°C (32°F to 158°F)
Storage Temperature -40°C to +85°C (-40°F to 185°F)
Humidity 5–95% RH, non-condensing
Certifications CE, RoHS (when used in ABB-certified systems)
Connector Type Proprietary ABB backplane slot
Dimensions (L×W×H) 265 x 282 x 40 mm
Weight 0.328 kg

Applications

The SDCS-PIN-48 is widely used in DC drive control systems, providing isolated gate pulse signals to power modules. Its performance is particularly crucial in high-load environments that demand reliable and consistent power switching.

Typical applications include:

  • Steel and Metal Processing – Drives in rolling mills and metallurgical control systems

  • Paper and Pulp Industry – DC drives in paper processing and winders

  • Marine and Offshore Systems – Motor control in ship propulsion and hoisting systems

  • Cranes and Hoists – Lift and material handling systems requiring smooth operation

  • Mining Equipment – Conveyor belt drives, crushers, and winches

  • Energy Sector – Power converters in substations and renewable installations


Product Advantages

  • High-Fidelity Signal Isolation
    Provides galvanic isolation up to 2.5 kV to prevent signal interference and protect critical circuitry.

  • Durable Industrial Construction
    Designed for continuous operation in harsh conditions with vibration, heat, and electrical noise.

  • Plug-and-Play Integration
    Easily installed in compatible ABB DCS drive systems with no need for special tools or software.

  • Maintenance-Free Operation
    No moving parts or calibration required—minimal downtime and service effort.

  • Fault-Tolerant Design
    Reduces the risk of component failure due to voltage spikes or ground loop issues.

  • Compact and Modular
    Fits cleanly into ABB system enclosures without requiring extra panel space.


Frequently Asked Questions (FAQ)

  1. What does the SDCS-PIN-48 board do?
    It transmits isolated gate firing pulses from the control module to thyristors or IGBTs in a DC drive system.

  2. Can the board be used in systems other than DCS400?
    It is optimized for the DCS400 series but may work with other ABB systems that support the same interface.

  3. What kind of isolation does it provide?
    It offers galvanic isolation of over 2.5 kV between the control and power sides.

  4. Is this board hot-swappable?
    While modular, it is recommended to power down the drive system before replacing it to avoid damage.

  5. Does it require firmware or configuration?
    No. It is a hardware-only module and does not require software configuration.

  6. What causes this board to fail?
    Excessive voltage, improper handling, or short-circuiting of connected power components may cause faults.

  7. What’s the installation process?
    Slide the board into the designated rack slot and secure it using standard ABB retention guides.

  8. Does it require periodic maintenance?
    No scheduled maintenance is required under normal operating conditions.

  9. What environment is it designed for?
    Industrial control cabinets with proper ventilation and protection against dust/moisture.

  10. What voltage is used to power the board?
    Typically 24 VDC from the drive’s control system.


Related Models (Same Series or Function)

Model Number Part Number Description
SDCS-PIN-46 3BSE004939R1003 Standard pulse transformer board for DCS400 systems
SDCS-PIN-51 3BSE004939R0002 Enhanced version with higher immunity to electrical noise
SDCS-PIN-26 3BSE004939R0012 Compact design for restricted cabinet spaces
SDCS-IOB-3 3BSE004939R0007 Input/output board for signal interface in DCS drives
SDCS-CON-4 3BSE004939R0004 Main control board for the DCS400 DC drive system
SDCS-POW-1 3BSE004939R0005 Power supply interface board used within the same system

Popular ABB Models (Same Brand)

Model Number Part Number Function
PM864AK01 3BSE018161R1 High-performance CPU module for AC800M controller systems
CI854AK01 3BSE030220R1 PROFIBUS-DP communication interface module
AI810 3BSE008516R1 8-channel analog input module from the S800 I/O family
DO810 3BSE008510R1 16-channel digital output module
PM861AK01 3BSE018157R1 Mid-range CPU controller for industrial process control
IMMFP12 3BHT300010R1 Multifunction processor module for Advant OCS/800xA systems
