Product Introduction

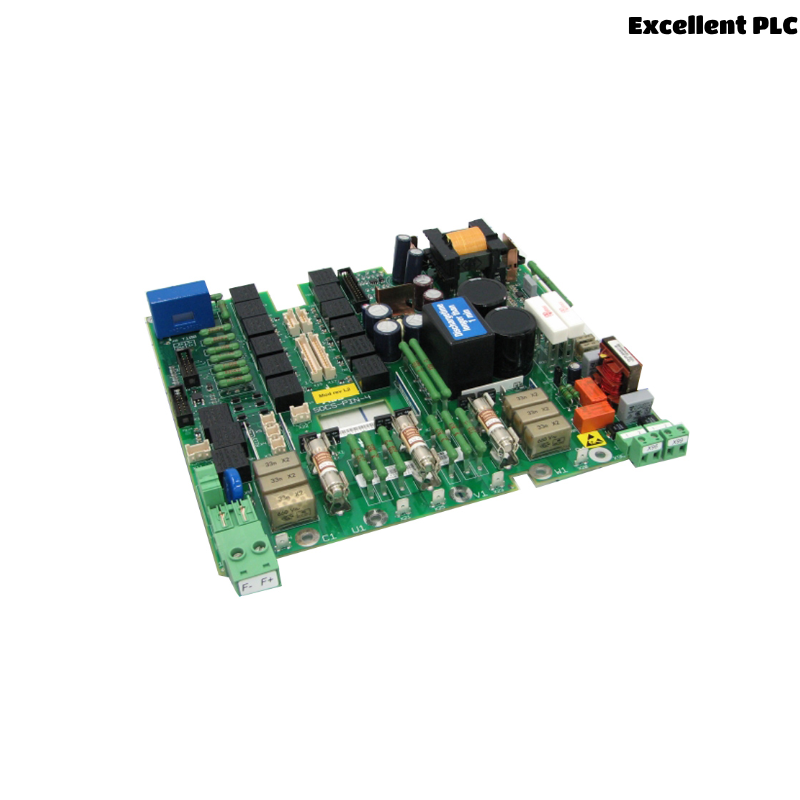

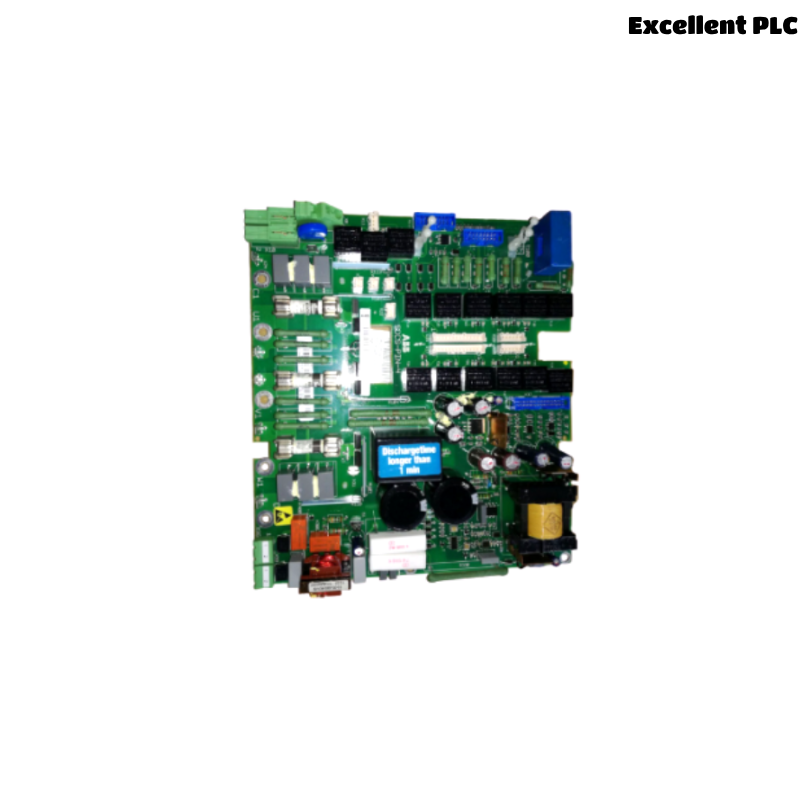

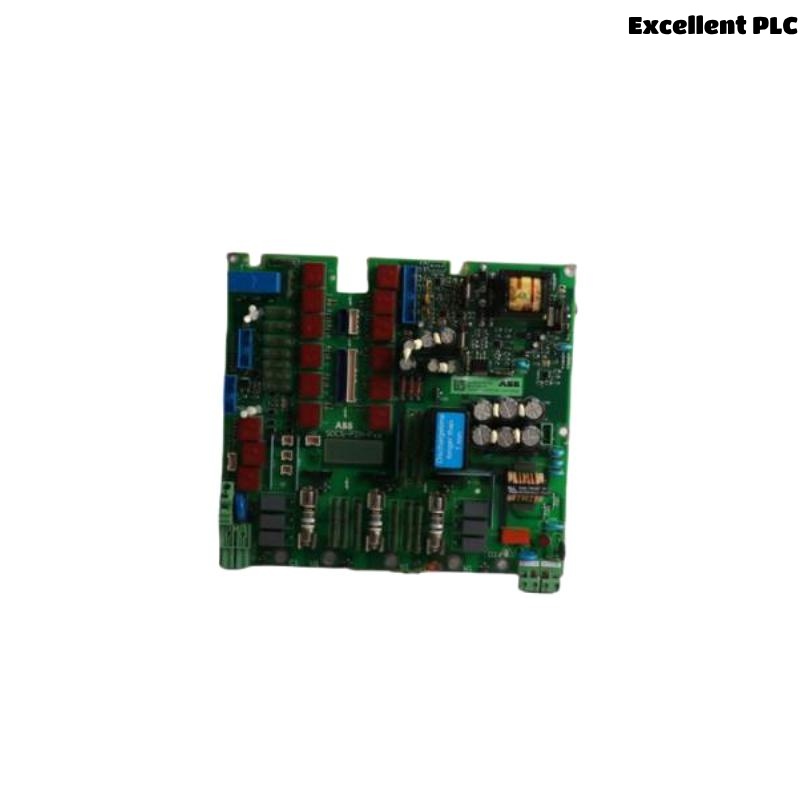

The ABB SDCS-PIN-4B 3ADT316300R1510 is a Pulse Encoder Interface Board, designed for integration within ABB’s Direct Torque Control (DTC) drive systems, especially those involving the DCS400, DCS500, and DCS600 series. This module acts as a communication interface that allows pulse encoders to relay precise motor feedback to the drive control unit. It ensures accurate position and speed detection, which is essential for closed-loop motor control applications.
As a robust component of ABB’s modular DC drive architecture, the SDCS-PIN-4B is highly valued in automation sectors requiring high reliability and accuracy in motion control.
Product Advantages
-
High Compatibility: Seamlessly integrates with multiple ABB DCS drives including DCS400, DCS500, and DCS600 systems.
-
Precision Feedback: Offers high-fidelity signal conversion for pulse encoders, ensuring accurate motor control.
-
Compact Design: Small footprint allows installation in tight industrial control cabinets.
-
Reliable Performance: Manufactured using industrial-grade components, providing stable operation in harsh environments.
-
Plug-and-Play Capability: Simple wiring and plug-in mounting allow for quick installation and commissioning.
-
Reduced Downtime: Enhances system diagnostic capability, enabling faster fault detection and corrective action.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SDCS-PIN-4B |
| Product ID | 3ADT316300R1510 |
| Function | Pulse Encoder Interface Module |
| Compatible Drive Systems | DCS400, DCS500, DCS600 |
| Input Signal Type | TTL / HTL Encoder Signals |
| Output Interface | RS-485 / Parallel Encoder Channels |
| Operating Voltage | 24 VDC |
| Power Consumption | < 2 W |
| Mounting Type | Plug-in module |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Dimensions | 265 x 282 x 40 mm |
| Weight | 0.36kg |
| Certifications | CE, RoHS compliant |
Applications
-
Industrial Automation: Precision control in large manufacturing setups.
-
Pulp and Paper Industry: Integration in speed-critical DC motor applications.
-
Metals Industry: Used in rolling mills and heavy-duty drives for closed-loop control.
-
Textile Manufacturing: High-speed motor synchronization.
-
Robotics and Assembly Lines: Precise positioning via pulse feedback encoders.
-
Crane and Hoisting Systems: Ensures smooth start/stop and accurate positioning.
Installation Instructions
-
Power Down: Disconnect all drive power supplies before handling.
-
Identify Slot: Locate the dedicated encoder interface slot on the drive controller.
-
Insert Module: Plug the SDCS-PIN-4B board into the slot ensuring firm contact.
-
Connect Encoder: Wire the encoder signal cables to the input terminal block of the board.
-
Configure Parameters: Through drive control panel, set encoder parameters (pulses/rev, signal type).
-
Perform Diagnostics: Use built-in diagnostics to verify signal reception and encoder rotation.
-
Close Panel: Ensure safety covers are reinstalled and power is restored.
10 Frequently Asked Questions (FAQs)
Q1: What type of encoders are compatible with the SDCS-PIN-4B?
A1: The SDCS-PIN-4B supports both TTL and HTL type incremental encoders with differential signal outputs.
Q2: Can this module be used with non-ABB drives?
A2: It is specifically engineered for ABB DCS400, DCS500, and DCS600 drives. Use with non-ABB systems is not supported.
Q3: How do I know if the encoder is connected correctly?
A3: The drive system will show encoder signal diagnostics. Also, an incorrect wiring often results in encoder error alarms.
Q4: Is this board hot-swappable?
A4: No. Always power down the drive before inserting or removing the SDCS-PIN-4B.
Q5: What happens if the encoder signal fails?
A5: The drive enters fault mode and may stop motor operation depending on safety settings.
Q6: How many encoder channels does it support?
A6: It supports dual-channel encoder signals (A/B) and index (Z) if needed.
Q7: Does it provide galvanic isolation?
A7: Yes, there is galvanic isolation between the encoder input and the drive communication interface.
Q8: How often does this module need maintenance?
A8: Virtually maintenance-free, but it is good practice to check signal integrity annually.
Q9: Can the module be mounted externally from the drive?
A9: No, it is designed to be installed directly inside the drive controller.
Q10: What are signs of a failing encoder interface module?
A10: Common symptoms include intermittent speed feedback, random motor behavior, and encoder fault alarms.
6 Related Models (Same Series / Compatible)
-
SDCS-PIN-41 – Advanced encoder interface for SSI encoders.
-
SDCS-CON-4 – Control extension module for DCS drives.
-
SDCS-IOE-2 – Digital/analog I/O expansion module.
-
SDCS-FEX-1 – Fieldbus extension board for Profibus/Modbus.
-
SDCS-PIN-2 – Basic encoder interface for older ABB drive models.
-
SDCS-PIN-1 – First generation pulse interface board for legacy DCS500 systems.
6 Popular ABB Models (Same Brand)
| Model Number | Description | Voltage Support | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| SDCS-PIN-41 | SSI Encoder Interface Board | 24 VDC | 180 x 100 x 25 | 0.32 |
| SDCS-CON-4 | Drive Control Extension Board | 24 VDC | 160 x 95 x 20 | 0.28 |
| SDCS-FEX-1 | Fieldbus Communication Interface | 24 VDC | 185 x 100 x 30 | 0.35 |
| SDCS-IOE-2 | Input/Output Extension Module | 24 VDC | 180 x 105 x 25 | 0.34 |
| RDCO-01 | Pulse Encoder Option Module for ACS800 | 24 VDC | 145 x 100 x 22 | 0.25 |
| SDCS-PIN-2 | TTL Encoder Interface Board | 24 VDC | 180 x 100 x 25 | 0.30 |
