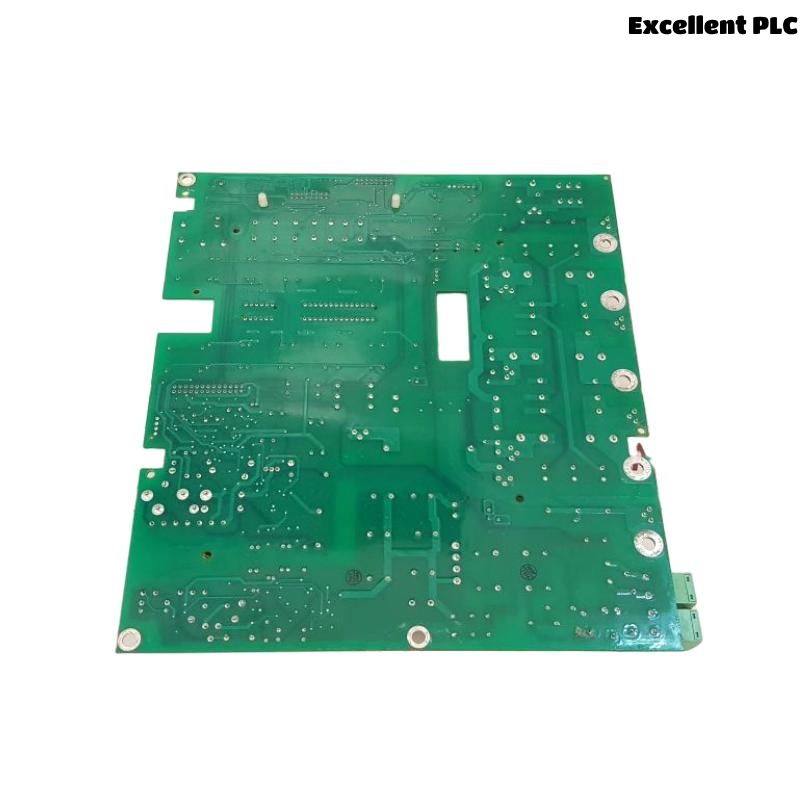

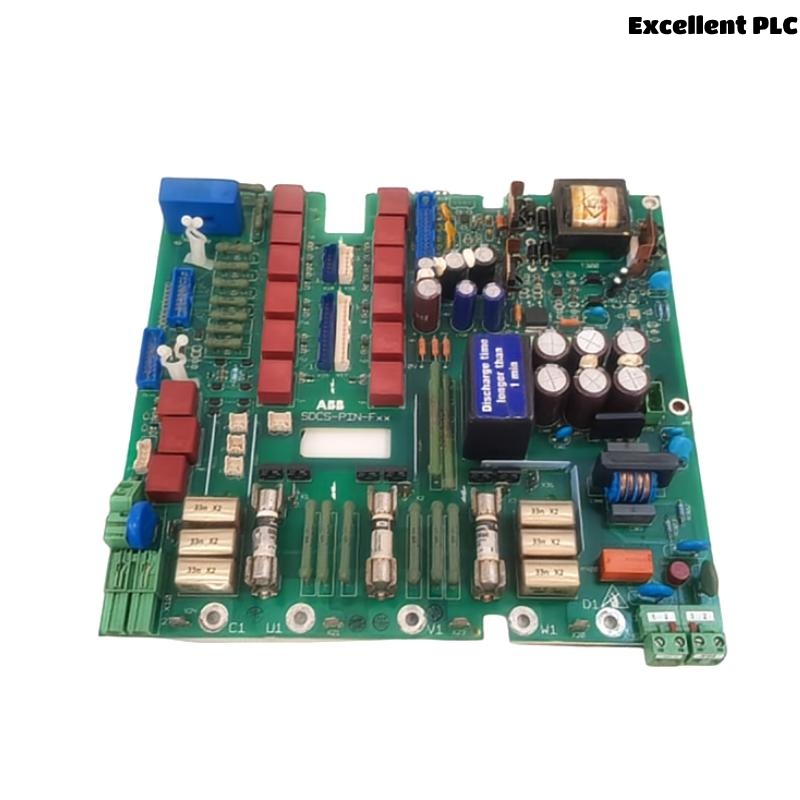

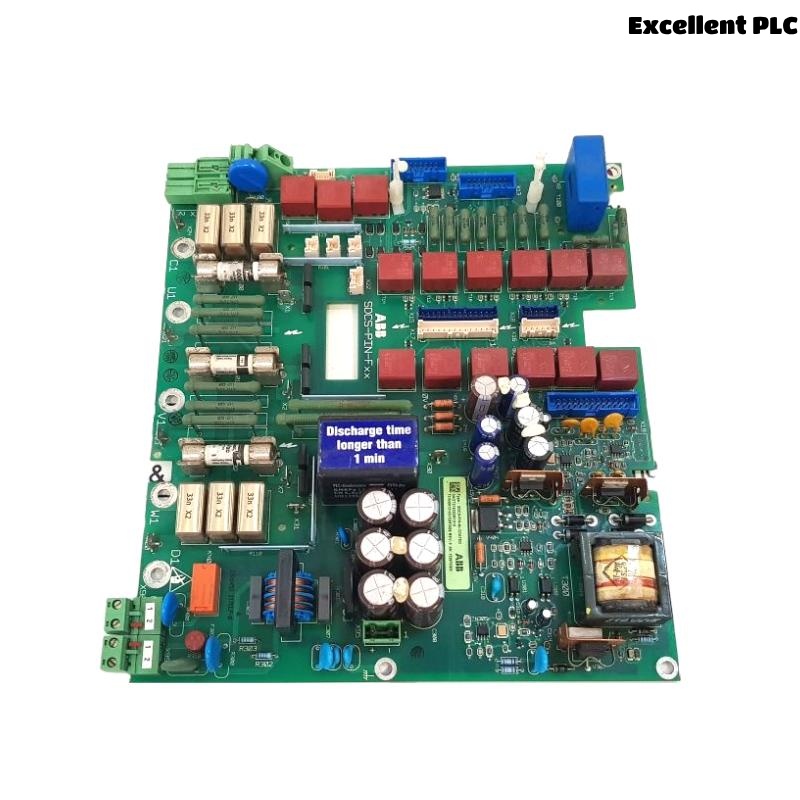

ABB SDCS-PIN-F01 3ADT316300R1502 Power Interface Board

Product Introduction

The ABB SDCS‑PIN‑F01 (Part No. 3ADT316300R1502) is a rugged power interface board built for the DCS‑series drive family. Its primary function is to seamlessly relay power and control signals between the main drive controller and power semiconductors, ensuring synchronized operation and offering essential protection.

Engineered for demanding industrial environments, this board provides reliable connectivity inside DPR (Drive Power Rack) systems, facilitating secure power distribution to gate driver modules and monitoring circuits. Its design prioritizes stability, safety, and extended service life.

Product Specifications

Applications

The SDCS‑PIN‑F01 board is utilized wherever robust DC bus power distribution is required in ABB’s modular drive designs. It features prominently in:

• Industrial Drive Cabinets: Feeding power to thyristor and IGBT gate drivers

• HVDC and Traction Drives: Supplying high-voltage power to traction converters and control modules

• Renewable Converters: Power stage for solar and wind plant inverters

• Marine & Offshore Propulsion: Reliable power bus interconnect in ship drives

• Mining & Heavy Machinery: Heavy-duty power delivery in shovels, mills, and crushers

• OEM Power Modules: Reference design for custom genset or UPS systems

Product Advantages

• High-Bus Reliability: Designed for harsh transient and fault conditions with high current capability

• Electrical Safety: Provides galvanic isolation between high-voltage bus and logic/control circuits

• Precision Power Distribution: Pin-compatible layout ensures consistent alignment with ABB DPR logic module slots

• Durable Construction: Industrial-grade materials and surface treatments resist corrosion & vibration

• Serviceable by Design: Slot-mounted with clear labeling, enabling quick replacement and system diagnostics

• Integrated Overload Protection: Helps reduce the risk of cascading failures during short circuits

Frequently Asked Questions (FAQ)

1. What is the specific role of the SDCS-PIN-F01 board in ABB’s drive systems?
   The SDCS-PIN-F01 serves as a power interface, transferring high-voltage DC bus power to various internal modules, including gate drivers and monitoring circuits. It helps ensure stable power distribution within DCS-series drive racks.

2. Can this board be used in drive cabinets with non-ABB components?
   No, the SDCS-PIN-F01 is engineered exclusively for ABB DCS-series systems. Its connectors and control logic are proprietary, making it incompatible with third-party platforms.

3. What are the signs that the board is starting to fail or degrade?
   You might notice irregular gate triggering, power distribution interruptions, or sudden system shutdowns. In diagnostics, error codes may point to bus voltage loss or internal short circuit conditions.

4. Is the SDCS-PIN-F01 board hot-swappable during maintenance?
   No. For safety reasons and to avoid electrical damage, the entire drive system must be powered off and safely isolated before removing or inserting this board.

5. How is electrical isolation achieved on this interface board?
   The board includes built-in galvanic isolation circuitry rated up to 1500V. This ensures no direct electrical path between control and power circuits, reducing the risk of ground loops or electrical noise propagation.

6. What is the expected service life of the SDCS-PIN-F01?
   When used within rated conditions, the board can last over 10 years. Factors like ambient temperature, vibration, and dust accumulation may influence its actual life span.

7. Can the board be repaired in case of component failure?
   While minor repairs are theoretically possible, ABB strongly recommends full replacement with an original spare to ensure compliance with system safety and performance standards.

8. Is there a way to test the board outside the drive cabinet?
   No standalone testing method is officially supported. Functional testing must be performed within a live drive rack using ABB diagnostics or via power distribution behavior during startup.

9. What installation conditions must be ensured before use?
   The cabinet must be free of dust and moisture, ambient temperature should be within operating range (–20°C to +70°C), and proper grounding must be in place to avoid electrical interference.

10. How do I prevent premature failure of the board in high-load environments?
    Ensure sufficient cabinet ventilation, avoid overcurrent spikes through proper system configuration, and perform periodic inspections for dust, corrosion, or connector wear. Keeping drive firmware updated may also help prevent triggering errors linked to voltage events.
