ABB SYN 5202a-Z,V221 3BHB006715R0221 Synchronization Device

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

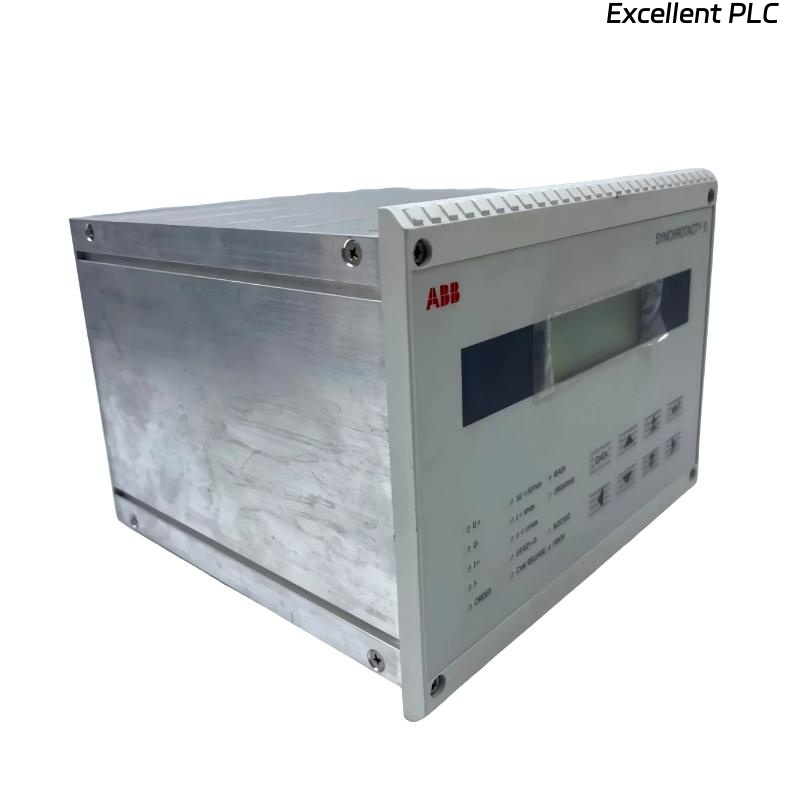

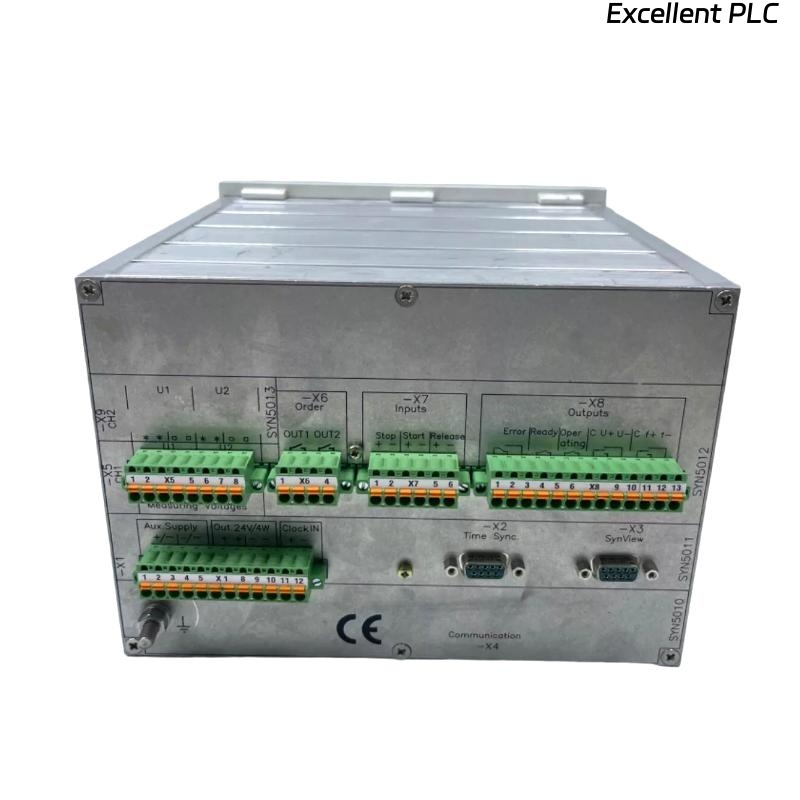

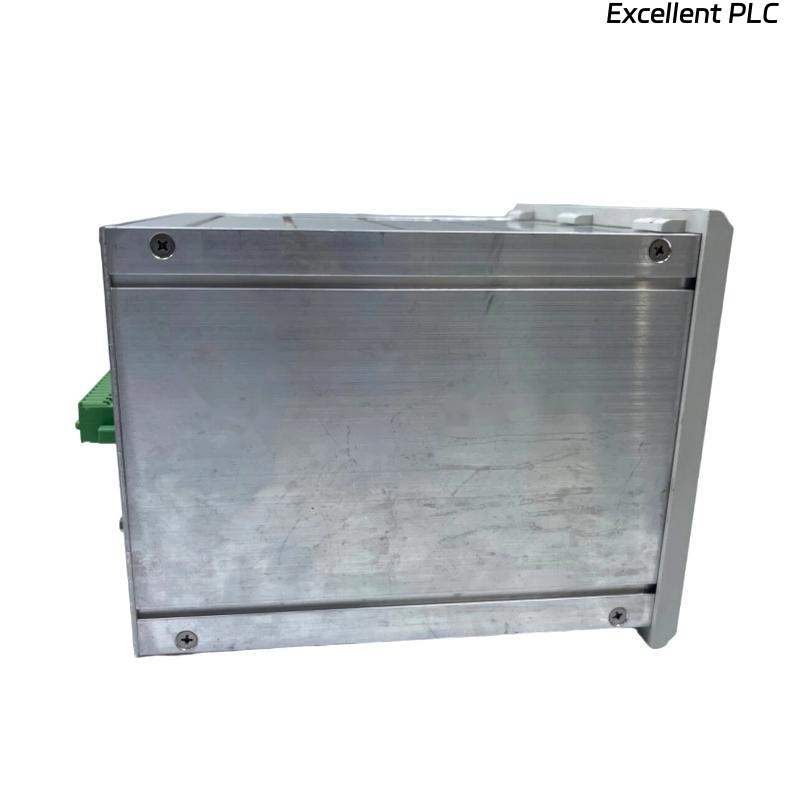

The ABB SYN 5202a-Z, V221 Synchronization Device (3BHB006715R0221) is a precision-engineered synchronization controller designed to ensure seamless connection of generators to power grids or parallel operation with other generators. Built on ABB’s advanced control platform, this model delivers outstanding reliability, fast response, and high accuracy in phase, voltage, and frequency matching.

The SYN 5202a-Z, V221 is part of ABB’s SYN 5200 series, developed to provide optimal synchronization performance across a wide range of industrial, marine, and utility applications. It integrates modern analog and digital communication interfaces, enabling smooth connection with supervisory systems such as PLCs, DCS, or SCADA networks. Its modular design and compact construction allow flexible installation in both panel-mounted and rack-based configurations.

This device ensures generator protection and system stability by automatically adjusting generator speed and excitation before synchronization, minimizing mechanical and electrical stress during grid connection.

---
