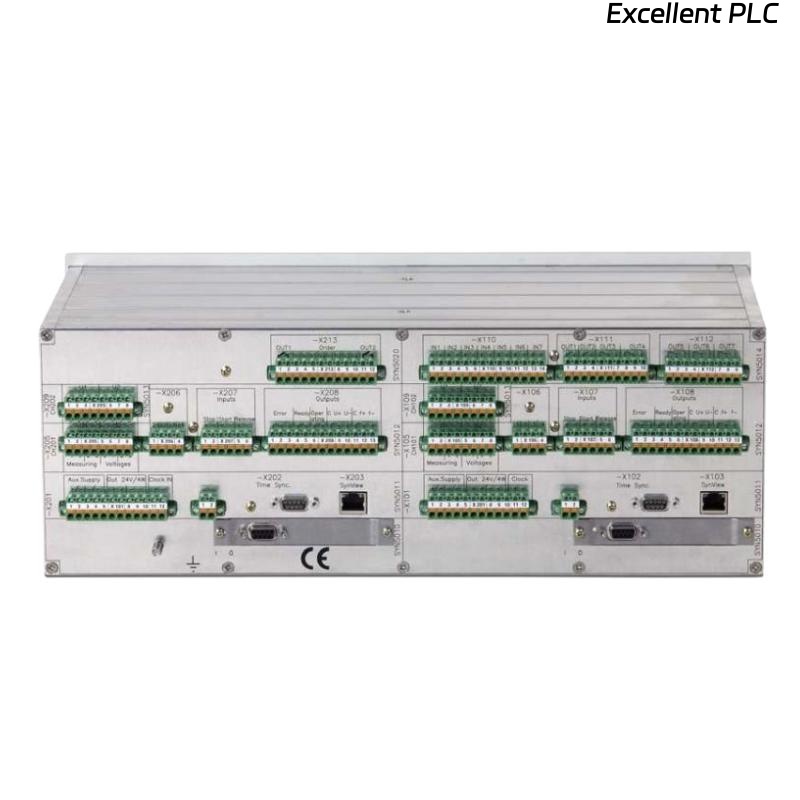

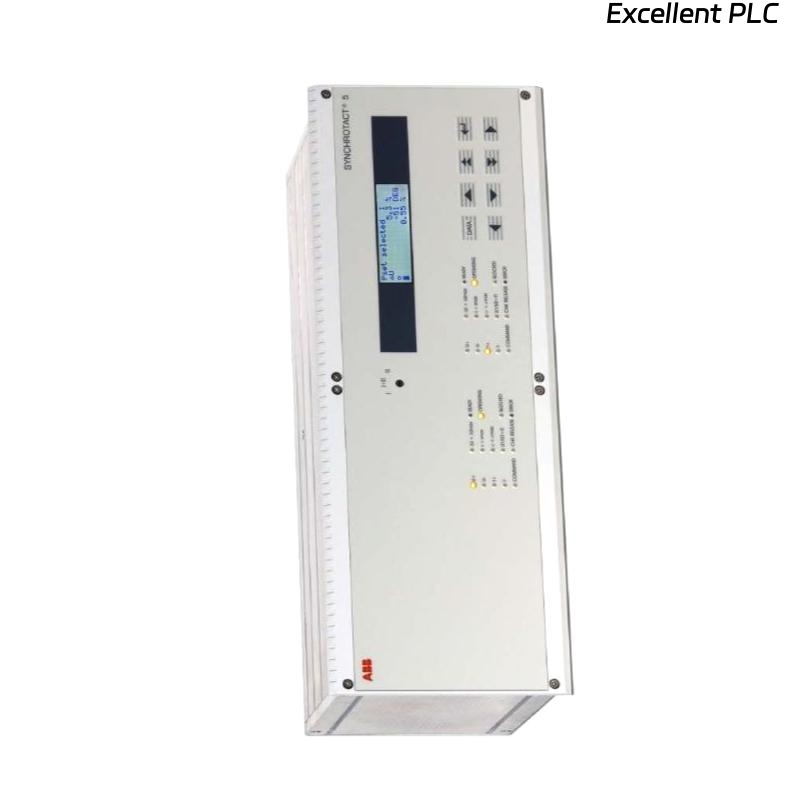

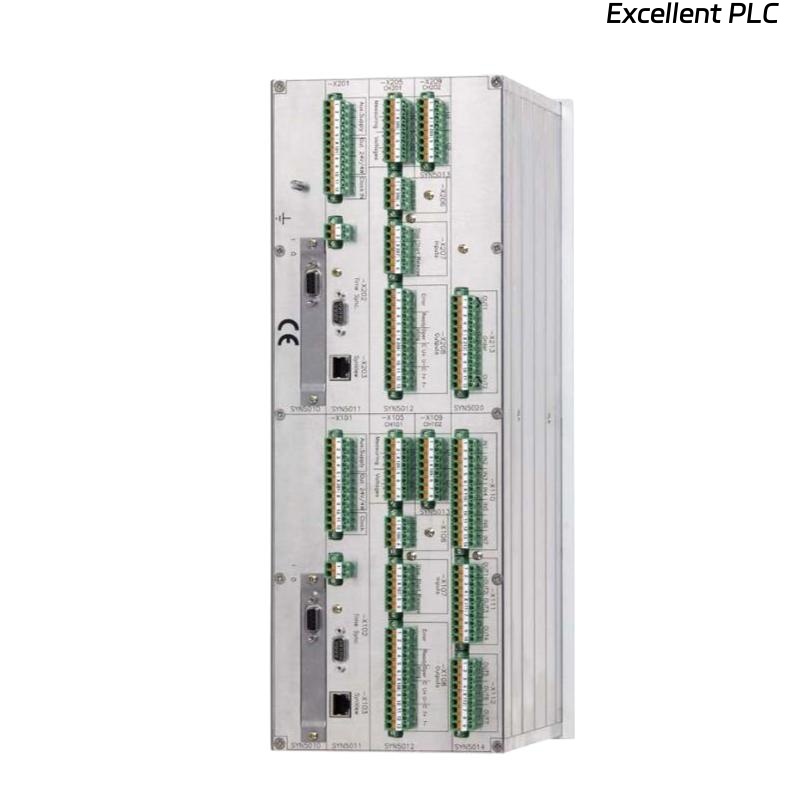

ABB SYN5302-0277 Synchronizing Device

Product Introduction

The ABB SYN5302-0277 Synchronizing Device is part of the ABB SYNCHROTACT® 5 series, designed for high-precision synchronization of electrical generators, motors, and power grids. This device ensures safe and reliable parallel operation by accurately matching phase, voltage, and frequency across multiple power sources. Equipped with ABB’s advanced control algorithms and rugged electronic components, the SYN5302-0277 offers fast response, real-time monitoring, and comprehensive fault detection to maintain system stability and protect equipment. Its modular and compact design allows for seamless integration into industrial substations, power plants, and automation panels. Widely deployed in hydro, thermal, and renewable energy installations, as well as microgrid and backup power systems, this device minimizes mechanical stress on generators, reduces energy losses, and ensures efficient power transfer under dynamic load conditions.

Technical Specifications

Applications

The ABB SYN5302-0277 is designed for a wide range of industrial and power generation applications:

• Power Plants: Synchronization of multiple generators in hydro, thermal, and combined-cycle plants.

• Industrial Substations: Coordinated operation of transformers and generators to ensure safe parallel connection.

• Renewable Energy Systems: Integration of wind, solar, and hybrid power sources into the grid.

• Motor Synchronization: Accurate control of large industrial motors for heavy-duty applications.

• Microgrid Management: Maintaining phase, voltage, and frequency balance in isolated or hybrid grids.

• Emergency Backup Systems: Smooth transfer between main supply and standby generators.

Product Advantages

• High Precision: Maintains precise phase, voltage, and frequency matching for stable parallel operation.

• Fast Response: ≤ 50 ms response time minimizes mechanical and electrical stress on generators.

• Robust Protection: Comprehensive safeguards against over/under voltage, frequency deviations, and phase loss.

• Flexible Connectivity: Supports Modbus RTU, Profibus DP, and Ethernet/IP for seamless system integration.

• Real-Time Monitoring: Displays live voltage, phase, and frequency data, along with alarms and event history.

• Field-Upgradable Firmware: Enables easy updates without device removal, reducing downtime.

• Durable Design: Reliable operation in harsh industrial environments with wide temperature and humidity tolerance.

• Optimized System Efficiency: Reduces energy losses and mechanical wear during synchronization operations.

FAQ

1. Which types of power systems can the SYN5302-0277 synchronize?
   It synchronizes generators, motors, and electrical grids, including hydro, thermal, renewable, and industrial networks.

2. What is the phase accuracy of this device?
   The SYN5302-0277 maintains phase accuracy within ±0.1°, ensuring stable and safe parallel operation.

3. Can it operate with variable frequency inputs?
   Yes, it reliably works across 45–65 Hz, accommodating various grid conditions.

4. How are monitoring and diagnostics performed?
   Real-time voltage, phase, and frequency displays are available, along with alarm and event logging for operational safety.

5. Does the device offer protection against abnormal voltage or frequency?
   Yes, it includes over/under voltage, over/under frequency, and phase loss protections.

6. Which communication protocols are supported?
   Modbus RTU, Profibus DP, and Ethernet/IP are fully supported for integration with automation and control systems.

7. Can the firmware be updated on-site?
   Yes, the device supports firmware upgrades via Ethernet or USB without removal.

8. What is the typical response time for synchronization?
   Response is ≤ 50 ms, allowing rapid and smooth connection of power sources.

9. Is the SYN5302-0277 suitable for harsh environmental conditions?
   Yes, it operates from -10 °C to +50 °C and tolerates 5–95% non-condensing humidity.

10. Can it be mounted in both panel and rack configurations?
    Yes, the device supports both panel and rack installation for flexible deployment.

Recommended Related Models (Same Series or Similar)

Popular ABB Models (Same Brand)
