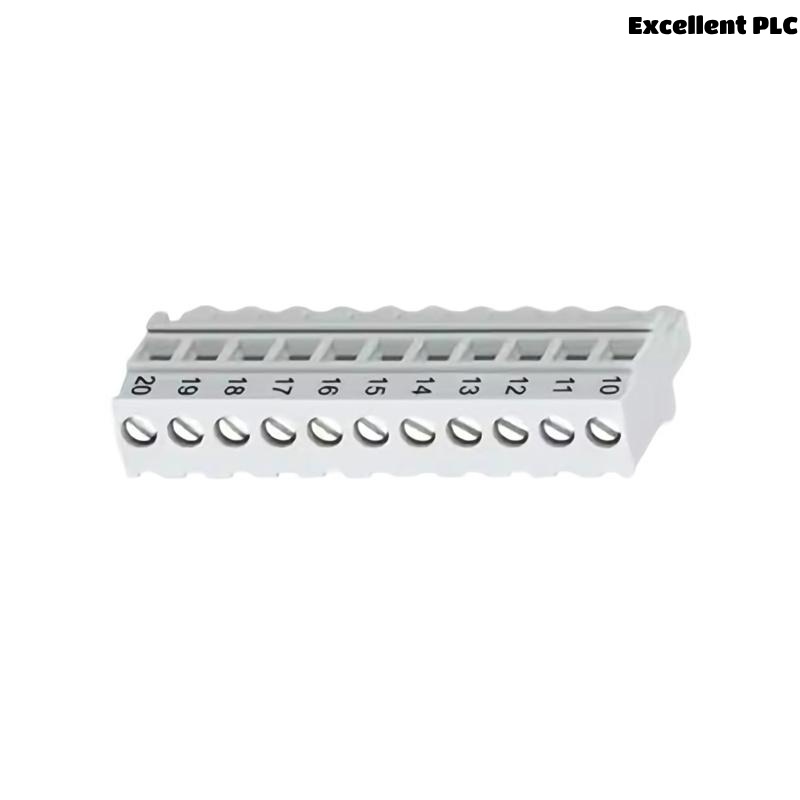

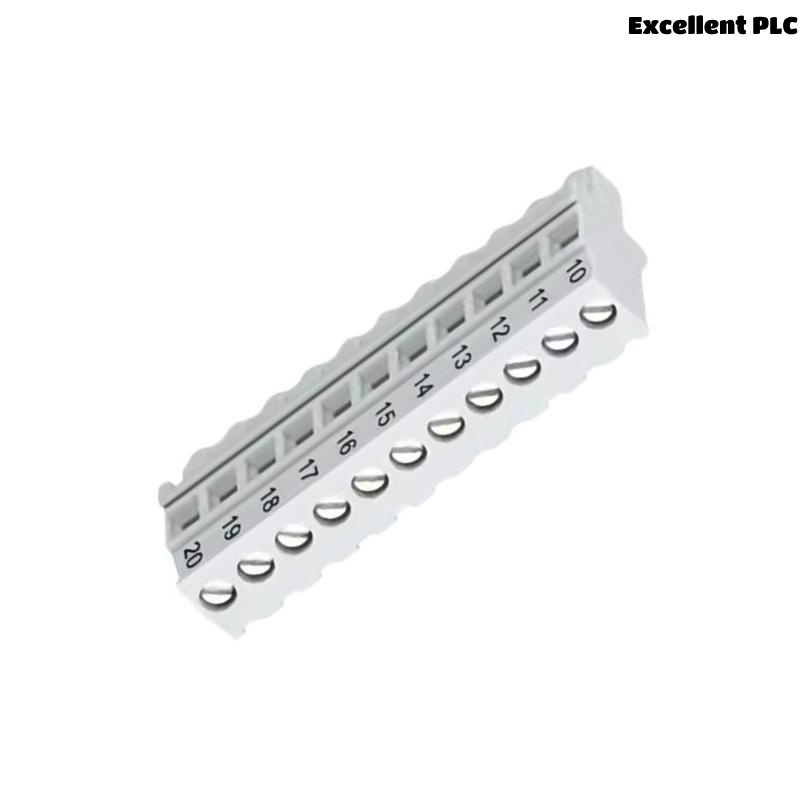

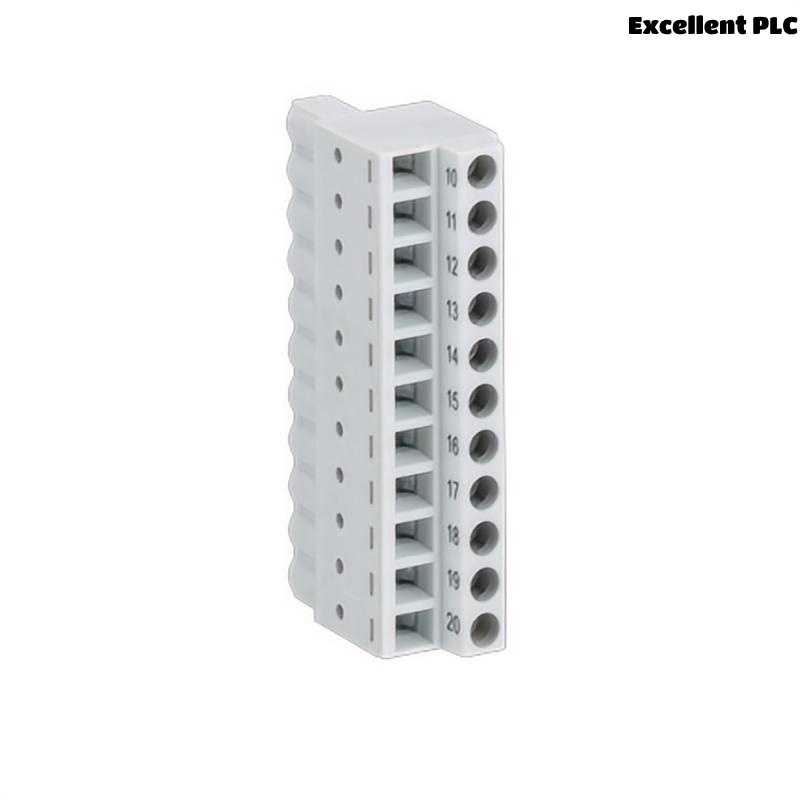

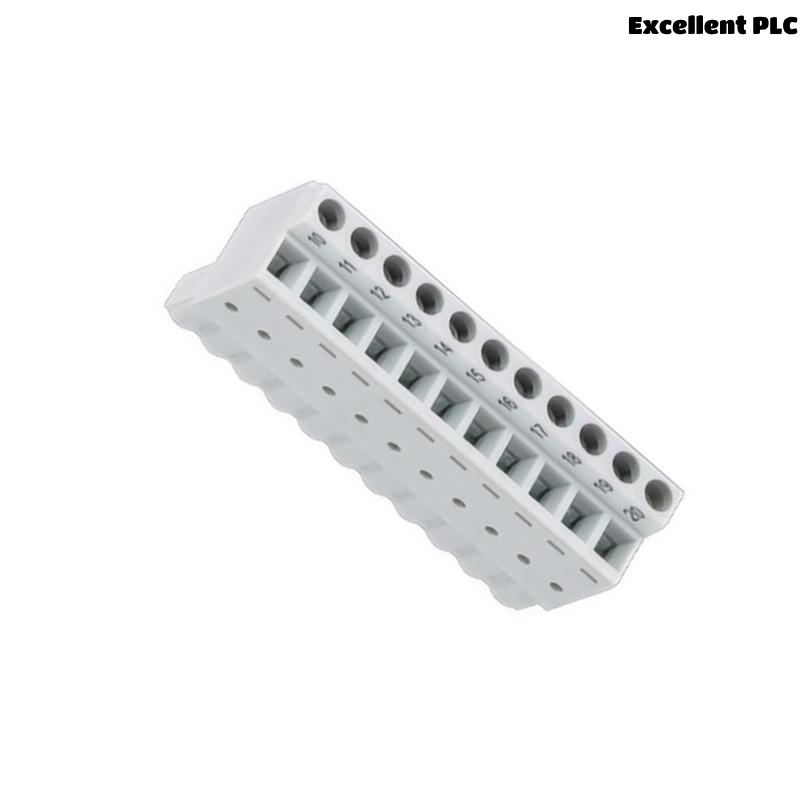

ABB TA564-11 1TNE968901R3104 Terminal Block

Product Introduction

The ABB TA564-11 Terminal Block (Part Number: 1TNE968901R3104) is a high-quality electrical connection component designed for industrial control systems and power distribution applications. This terminal block provides a reliable, safe, and easy-to-install solution for connecting wiring in ABB control cabinets, switchgear, and automation equipment.

Manufactured to meet rigorous industrial standards, the TA564-11 supports secure electrical contact and ensures stable signal and power transmission even in demanding environments. Its modular design facilitates quick wiring and maintenance, making it an indispensable element for engineers and technicians working in automation and power sectors.

Product Specifications

Product Applications

The TA564-11 terminal block is widely used in various industrial sectors and applications, including:

• Control Panels and Switchgear – For wiring and signal distribution in electrical cabinets.

• Automation Systems – Connecting sensors, actuators, and controllers in manufacturing lines.

• Power Distribution – Safe and organized wiring in low- and medium-voltage distribution systems.

• Renewable Energy Installations – Used in solar and wind power systems for reliable electrical connections.

• Transportation Infrastructure – Signal and power connections in rail, marine, and vehicle control systems.

• Building Management Systems – Wiring for HVAC, lighting, and safety control circuits.

Product Advantages

• Reliable Electrical Connection
  Screw clamp terminals ensure firm contact and minimize risk of loosening due to vibration or thermal cycling.

• Wide Wire Compatibility
  Supports a broad range of wire sizes, accommodating diverse wiring needs.

• Compact and Space-Saving
  Slim design allows high-density mounting on standard DIN rails, optimizing cabinet space.

• Durability Under Harsh Conditions
  Materials and design resist corrosion, high temperature, and mechanical stress.

• Ease of Installation and Maintenance
  Modular and clear labeling reduces wiring errors and simplifies troubleshooting.

• Compliance with International Standards
  Certified to meet global safety and quality requirements for industrial electrical components.

Frequently Asked Questions (FAQ)

1. What wire sizes can the TA564-11 terminal block accommodate?
   It supports wires from 0.5 mm² to 4 mm² (AWG 20 to 12).

2. How is this terminal block mounted?
   It is designed for quick installation on standard 35 mm DIN rails.

3. Is the connection type screw or spring clamp?
   This model uses screw clamp technology for secure wiring.

4. What is the maximum current rating?
   The TA564-11 is rated for up to 32 Amperes per pole.

5. Can it handle both AC and DC voltages?
   Yes, it supports voltages up to 600 V in both AC and DC applications.

6. What temperature range can it operate in?
   It operates reliably between -40°C and +105°C.

7. Is this terminal block suitable for outdoor installations?
   It can be used outdoors only when installed within a suitable enclosure protecting it from direct environmental exposure.

8. How many poles does the block have?
   The TA564-11 has 11 poles, suitable for multiple circuit connections.

9. Are spare parts or accessories available?
   ABB offers compatible end covers, marking tags, and jumpers for this terminal block series.

10. What certifications does this terminal block hold?
    It complies with IEC 60947-7-1, UL, CSA, and RoHS standards, ensuring high safety and environmental quality.
