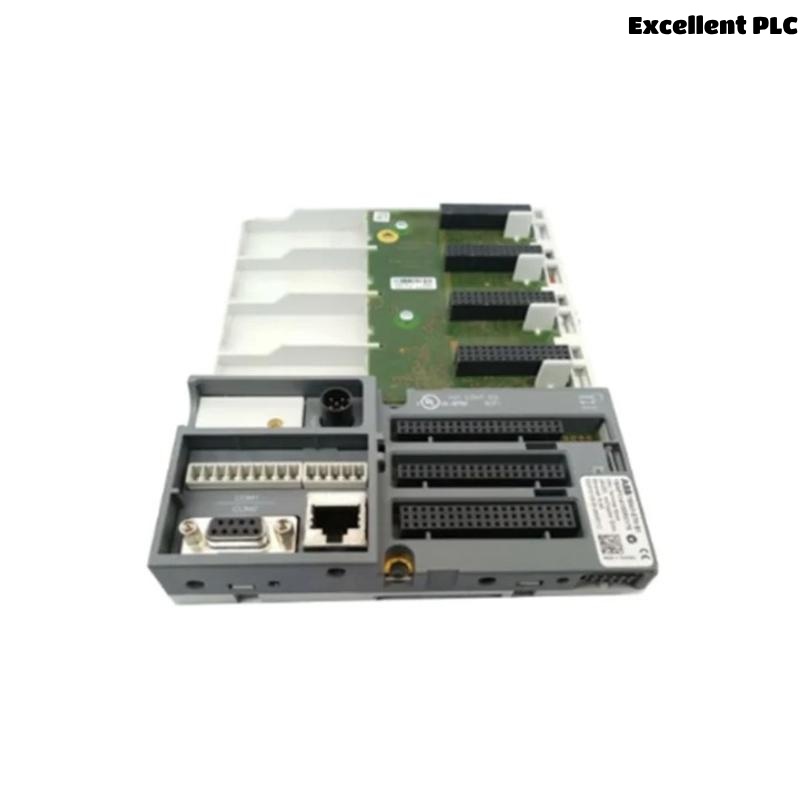

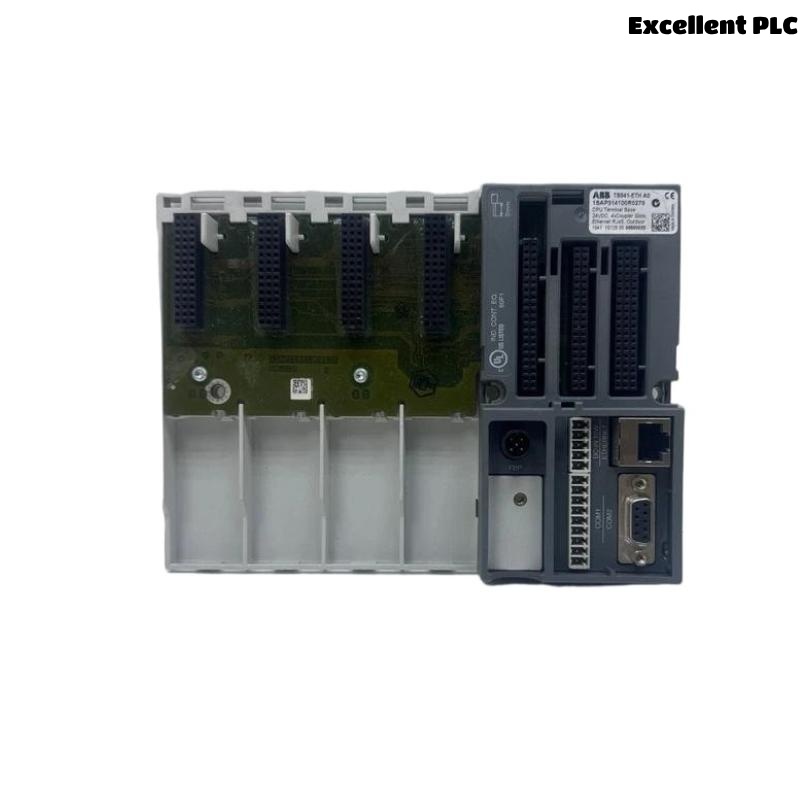

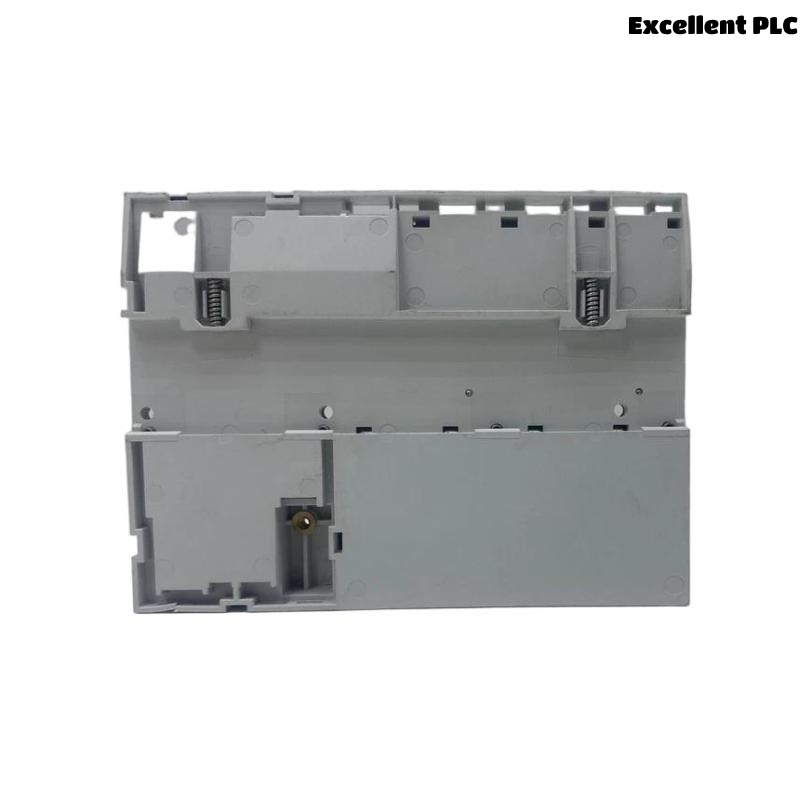

ABB TB541-ETH 1SAP114100R0270 Terminal Base/Base Plate

Product Overview

The ABB TB541-ETH (1SAP114100R0270) is a terminal base specifically designed for use with AC500 and AC500-eCo automation platforms. This model is engineered to serve as both a mechanical mounting base and electrical interface, supporting Ethernet-enabled communication modules and ensuring robust integration with distributed I/O systems.

It forms the backbone of modular system design, allowing hot-swappable module connectivity, clean cable routing, and consistent field wiring. The TB541-ETH provides a standardized, DIN rail-compatible form factor, helping reduce installation complexity and panel layout inconsistencies.

Key Features

• Supports Ethernet-based communication modules

• DIN rail mounting for rapid installation

• Enables efficient power and signal distribution

• Designed for AC500-eCo and AC500-XC series

• Suitable for compact and modular I/O systems

• Durable industrial-grade housing material

• Plug-and-play functionality for fast module replacement

• Improves wiring consistency and reduces setup time

• Works in harsh industrial environments

• Compatible with various digital/analog I/O modules

Technical Specifications

Industry Applications

• Industrial machinery and automation

• Packaging lines and conveyors

• HVAC and building management systems

• Water treatment plants and pumping stations

• Food and beverage processing automation

• Textile and paper machinery

• Material handling systems

• Renewable energy systems

Product Advantages

• Mechanical and electrical integration in one compact base unit

• Simplifies system expansion and modular upgrades

• DIN-rail mounting minimizes installation time and panel space

• Robust signal transmission via internal backplane bus

• Standardized dimensions ease panel layout and design planning

• Field wiring remains fixed during module replacement

• IP20-rated safety for cabinet-based applications

• Compatible with wide range of I/O and communication modules

• No special tools required for mounting or connection

• Engineered by ABB for seamless system performance

Frequently Asked Questions (FAQ)

1. What modules can be installed on the TB541-ETH?
   It supports ABB AC500 series modules including CPUs, Ethernet modules, and I/O units.

2. Does the base plate include Ethernet ports?
   No, Ethernet functionality is provided by the module installed on the base.

3. Can the terminal base be used in outdoor environments?
   Not directly—it’s IP20 rated and must be installed inside a control panel.

4. How is it mounted?
   It mounts on a standard 35 mm DIN rail.

5. What voltage does it support for I/O power?
   Typically 24 V DC, depending on the installed module.

6. Is the part number 1SAP114100R0270 a variant of TB541-ETH?
   Yes, it is a specific ordering code for the TB541-ETH terminal base.

7. What is the physical size of the unit?
   45 mm (W) x 100 mm (H) x 75 mm (D)

8. Is the base hot-swappable?
   Modules can be hot-swapped if the system design supports it; base wiring remains fixed.

9. Can this base be reused if modules are replaced?
   Yes, the terminal base can be reused when swapping modules.

10. Does ABB offer configuration software for modules on TB541-ETH?
    Yes, ABB’s Automation Builder software is used for configuration.
