Product Overview

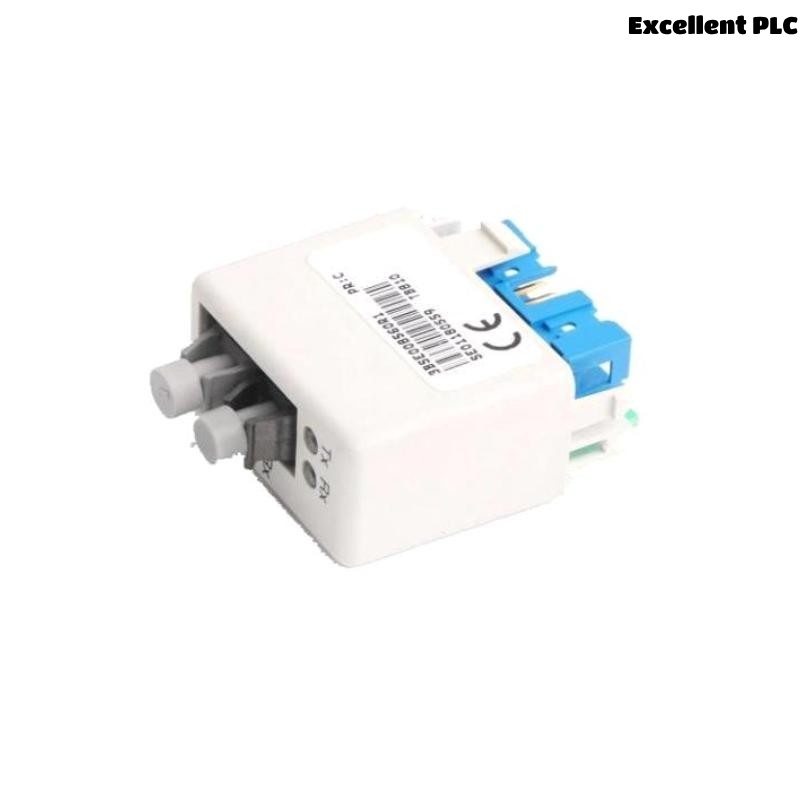

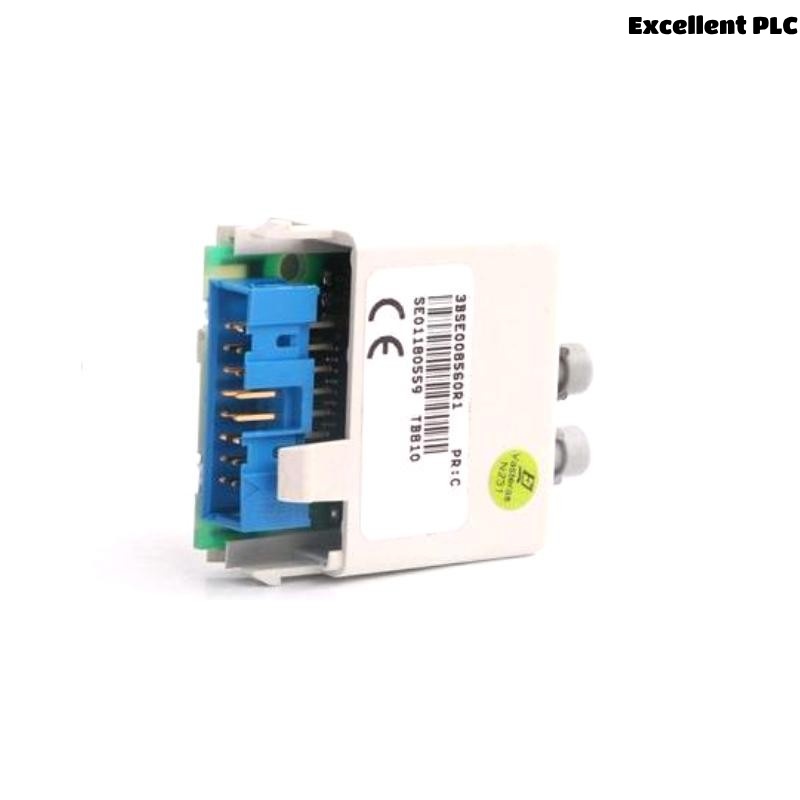

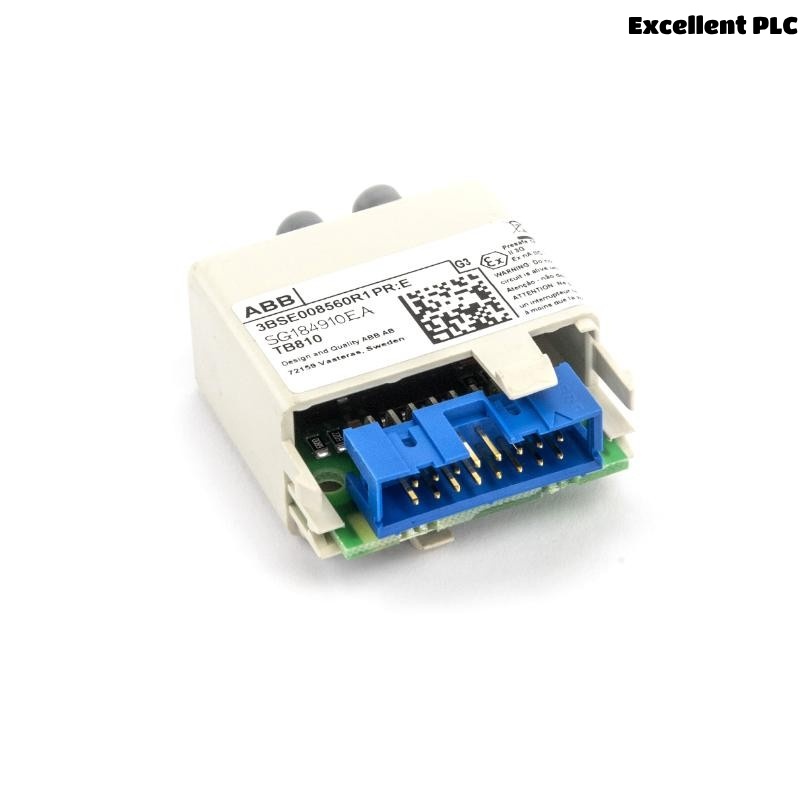

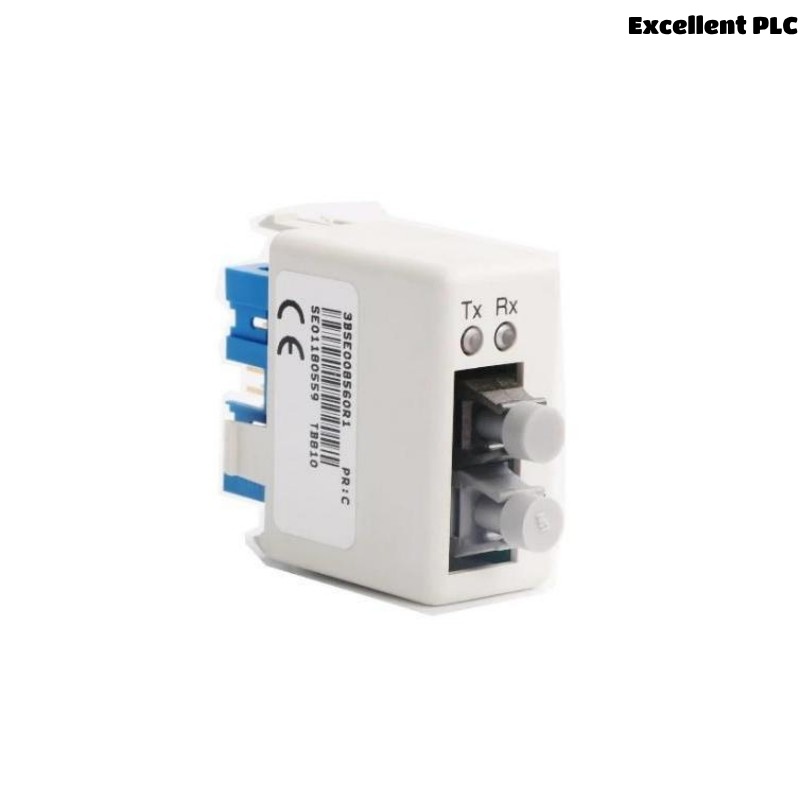

The ABB TB810 Modulebus Optical Port is a compact and reliable optical interface used in the S800 I/O system. It enables fiber-optic communication between I/O modules and controllers, ensuring high-speed data transmission with minimal signal interference. Designed for harsh industrial environments, the TB810 supports flexible installation options and reliable optical isolation.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | TB810 |
| Product Code | 3BSE008560R1 |
| Function | Modulebus Optical Port |
| System | S800 I/O |
| Communication | Optical |
| Power Supply | 24 VDC (19.2 – 30 V) |
| Protection Class | IP20 |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Compliance | CE, UL508, ATEX Zone 2, RoHS, WEEE |
| EMC Standards | EN 61000-6-2 / EN 61000-6-4 |
| Dimensions (mm) | 20 x 40 x 40 |
| Weight | 0.035 kg |
Applications
-
Optical communication interface for ABB S800 I/O modules
-
Industrial automation systems requiring fiber-optic links
-
Factory environments with electromagnetic noise
-
Process industries such as oil & gas, power, water treatment
Advantages
-
Robust optical communication for interference-free transmission
-
Compact and lightweight for flexible installation
-
Supports system expansion and long-distance connectivity
-
Compliant with industry safety and electromagnetic standards
-
Hot-swappable, reducing downtime during maintenance
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the TB810?
A1: It serves as an optical port for Modulebus communication within the S800 I/O system.
Q2: Can TB810 be used in hazardous locations?
A2: Yes, it is certified for ATEX Zone 2 and cULus C1 Div 2/Zone 2 environments.
Q3: What type of fiber does the TB810 support?
A3: It supports polymer optical fiber (POF) and can be used in optical Modulebus applications.
Q4: Is TB810 compatible with redundancy configurations?
A4: It can be part of redundant setups when combined with appropriate modules like CI820 and TB815.
Q5: What is the maximum operating temperature?
A5: The maximum operating temperature is +55 °C.
Q6: How is the TB810 mounted?
A6: It is mounted on DIN rails within the S800 I/O system configuration.
Q7: Does it support hot swapping?
A7: Yes, the TB810 allows for hot swapping without shutting down the system.
Q8: What is the typical application industry for TB810?
A8: Commonly used in oil & gas, power generation, water treatment, and process automation.
Q9: What standards does it comply with for EMC?
A9: It meets EN 61000-6-2 (immunity) and EN 61000-6-4 (emission) standards.
Q10: Is the module RoHS compliant?
A10: Yes, it complies with RoHS Directive EN 50581:2012.
Related or Similar Models from Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| TB811 | Modulebus Optical Port (variant) | 20 x 40 x 40 | 0.035 |
| TB815 | Electrical & Optical Interface Unit | 58 x 127.5 x 162 | 0.160 |
| TB825 | Optical Media Converter (1000 m) | 58.5 x 86 x 136 | 0.200 |
| TB826 | Long Range Optical Converter (5000 m) | 58.5 x 86 x 136 | 0.210 |
| TB820V2 | Optical Cluster Modem | 58 x 127.5 x 162 | 0.170 |
| TB840A | Redundant Optical Cluster Modem | 132 x 58 x 194 | 0.240 |
