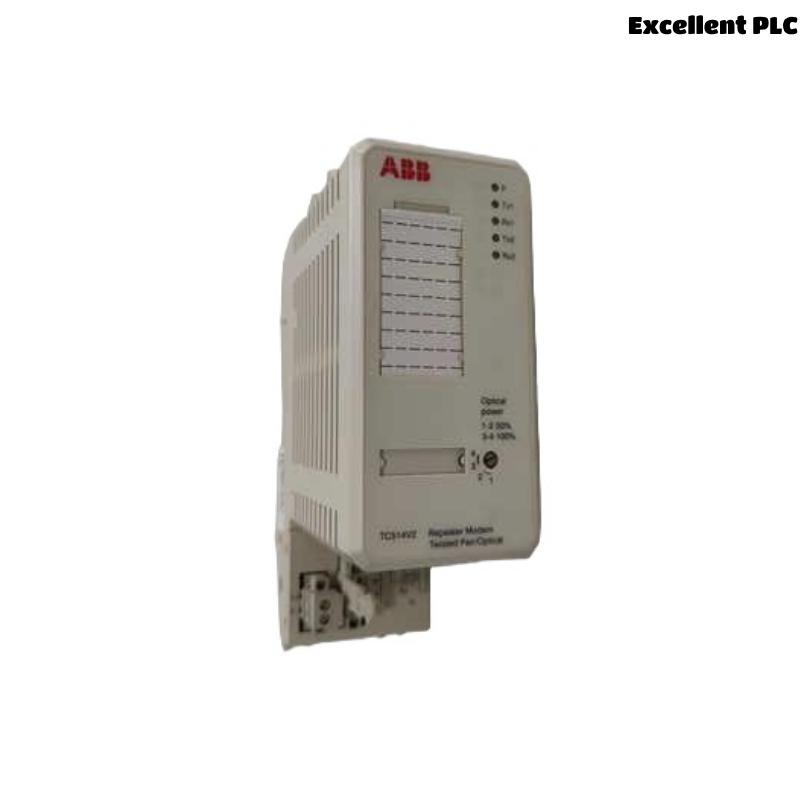

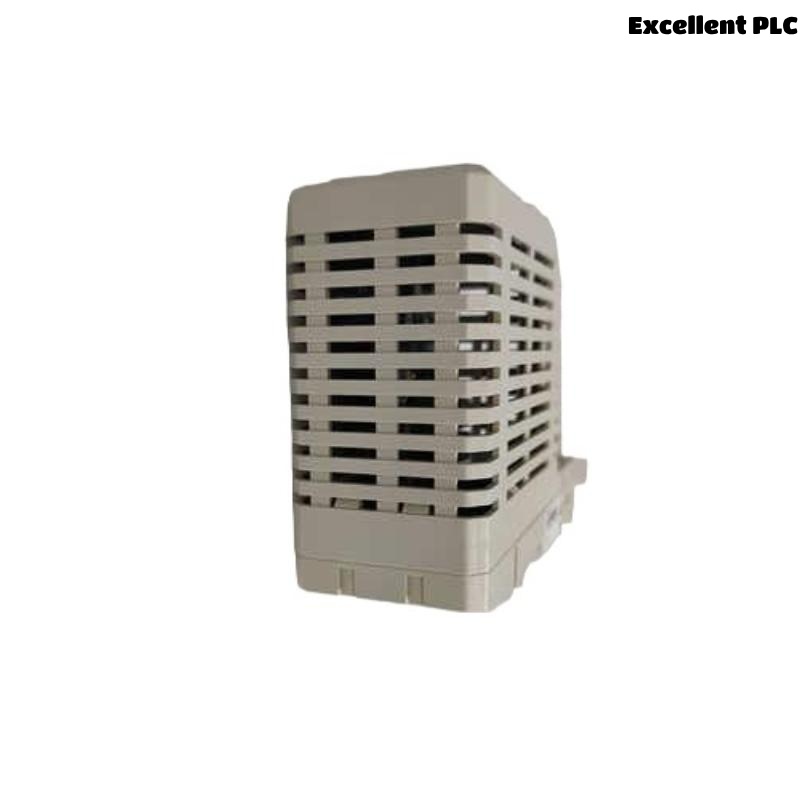

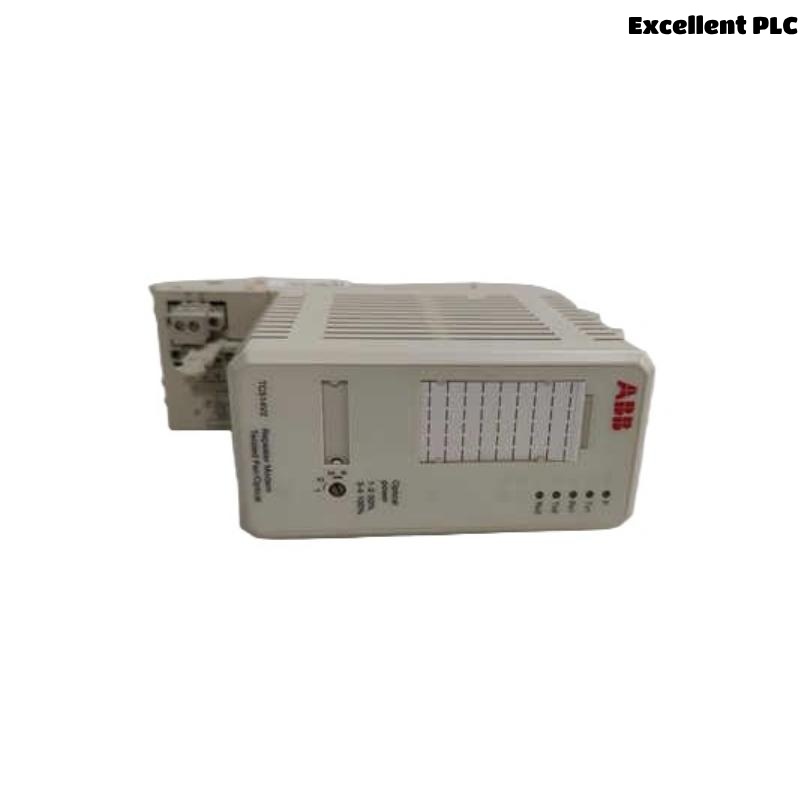

ABB TC514V2 3BSE013281R1 Twisted Pair To Optical Repeater

Product Overview

The ABB TC514V2 (3BSE013281R1) is an industrial-grade signal repeater designed to convert and extend twisted pair electrical signals to optical fiber signals and vice versa. It is typically used in distributed control systems (DCS) or PLC networks to isolate, protect, and extend communication lines.

This unit plays a vital role in environments where electromagnetic interference (EMI) is present or where long-distance communication is required. By converting electrical signals into optical ones, it ensures data integrity, signal reliability, and network stability across harsh industrial environments.

As part of ABB’s control system accessory portfolio, the TC514V2 is optimized for integration with ABB’s Advant Master, 800xA, and other industrial automation systems.

Key Features

• Converts twisted pair signals to optical and vice versa

• Supports duplex optical fiber communication

• Galvanic isolation between copper and fiber segments

• Enhances network signal integrity and EMI immunity

• Compatible with ABB Advant, 800xA, and third-party systems

• Supports long-distance communication via fiber

• Industrial-grade housing and robust environmental protection

• DIN rail mountable for easy cabinet integration

• LED indicators for power and communication status

• Designed for continuous 24/7 operation in automation networks

Technical Specifications

Industry Applications

• Distributed control systems (DCS) in process automation

• Industrial Ethernet and fieldbus extension

• EMI-prone environments like power plants and substations

• Long-distance data transmission in large facilities

• Manufacturing plants with high voltage equipment

• Oil & gas and petrochemical sites

• Utility substations and power generation stations

• Railway signaling and transportation control

• Data acquisition systems requiring isolation and repeaters

Product Advantages

• Reliable signal conversion from copper to fiber

• EMI protection ensures uninterrupted communication

• Flexible installation via DIN rail inside cabinets

• Long-distance transmission without signal degradation

• Industrial-grade isolation protects equipment and systems

• Status LEDs allow quick diagnostics and monitoring

• Compact footprint optimizes cabinet space

• Low power consumption with passive cooling design

• Seamless integration with ABB systems and third-party devices

• Ideal for legacy system upgrades or modern fiber transitions

Frequently Asked Questions (FAQ)

1. What is the primary function of the TC514V2?
   It converts electrical RS-485 (twisted pair) signals to optical signals and vice versa.

2. Can the unit be used with ABB 800xA systems?
   Yes, it is fully compatible with ABB 800xA and Advant control systems.

3. Does the unit support full duplex communication?
   Yes, it supports full duplex over duplex fiber optic cables.

4. What is the maximum transmission distance supported?
   Up to 2 km for multi-mode fiber and more for single-mode (varies by version).

5. Is it suitable for high-noise industrial environments?
   Absolutely—it isolates signals and protects against EMI.

6. What fiber connectors does it use?
   Typically ST or SC connectors (depends on factory configuration).

7. How is it mounted?
   The unit is DIN rail mountable (35 mm standard).

8. What voltage does it require?
   24 V DC ±10% power supply.

9. Are the copper and fiber sections electrically isolated?
   Yes, with high galvanic isolation (over 1 kV).

10. Can I monitor communication status?
    Yes, LED indicators show power, transmit, and receive activity.
