Product Introduction

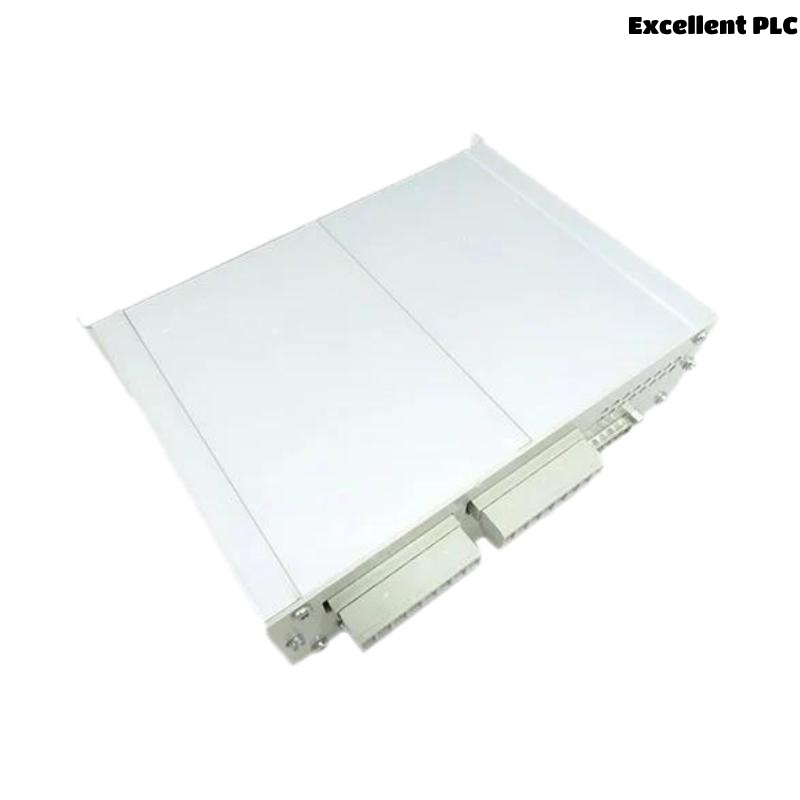

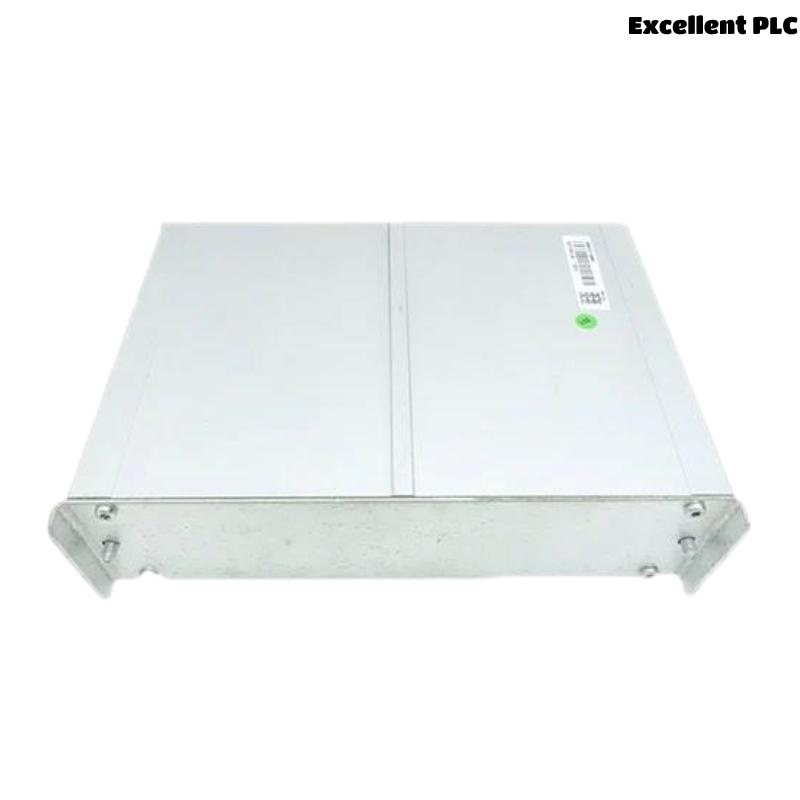

The ABB TC570 3BSE001458R1 Fieldbus Coupler Unit is a high-performance communication device designed for seamless integration into industrial automation systems. It acts as a bridge between field devices and higher-level control systems, enabling reliable data transfer and real-time communication across industrial networks. This unit supports multiple communication protocols, making it an essential component for fieldbus systems that require flexibility, scalability, and fast data exchange.
The TC570 Fieldbus Coupler is specifically designed to work within ABB’s System 800xA architecture, connecting field devices such as sensors, actuators, and controllers to the broader automation infrastructure. Its robust design ensures that it can handle the demands of industrial environments, providing continuous, high-speed communication with minimal downtime.
The module is easy to install and maintain, offering a plug-and-play solution for various industrial applications. Its compact size and light weight make it suitable for tight spaces in control cabinets, making it an excellent choice for systems where space is a premium.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | TC570 Fieldbus Coupler Unit |
| Product Code | 3BSE001458R1 |
| Module Type | Fieldbus Coupler Unit |
| Dimensions | 216 x 54 x 144 mm |
| Weight | 0.75 kg |
| Supply Voltage | 24 VDC |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail |
| Communication Protocols | Profibus DP, Modbus, DeviceNet, CANopen |
| Response Time | < 10 ms for real-time data processing |
| Redundancy Support | Yes (for high availability applications) |
| Compatibility | ABB System 800xA |
| Interface Ports | 2 x Ethernet ports, 1 x Profibus, 1 x Modbus |
| Safety Standards | CE, UL, and UL Listed |
Product Applications
The ABB TC570 3BSE001458R1 Fieldbus Coupler Unit is highly versatile and can be used across various industries for a wide range of applications. Some of the key areas where the TC570 excels include:
-
Process Automation: The TC570 is widely used in process control environments where reliable communication between sensors, actuators, and control systems is critical. It ensures seamless integration with System 800xA for monitoring and control of processes in industries such as chemical, pharmaceutical, and oil & gas.
-
Manufacturing Automation: In automated manufacturing lines, the TC570 enables real-time data exchange between robots, PLCs, and other control systems. This contributes to improved operational efficiency and flexibility in manufacturing plants, including those in automotive, electronics, and food processing industries.
-
Energy & Utilities: The module is used in power generation, distribution, and renewable energy applications to monitor and control devices such as turbines, generators, and switchgear. It helps in integrating SCADA systems with field devices in power plants and substations.
-
Building Automation: The TC570 plays a crucial role in integrating heating, ventilation, air conditioning (HVAC), lighting, and security systems. It enables efficient communication and control of systems within building management systems (BMS), ensuring energy savings and optimal comfort.
-
Water and Wastewater Management: The unit enables communication between field devices such as pumps, valves, and sensors, and central control systems for water treatment plants and wastewater management facilities. This contributes to efficient monitoring and operation of critical infrastructure.
-
Transportation & Infrastructure: The TC570 is also applied in transportation infrastructure, helping to control systems in railways, airports, and highway networks. It allows for smooth communication between traffic management systems and field equipment, such as gates, lights, and sensors.
Product Advantages
-
Multi-Protocol Compatibility: The TC570 supports a range of communication protocols, including Profibus DP, Modbus, DeviceNet, and CANopen, making it highly flexible for use in diverse industrial networks.
-
Compact and Robust Design: With compact dimensions of 216 x 54 x 144 mm and a weight of only 0.75 kg, the module is well-suited for installation in space-limited control cabinets, without compromising on performance or durability.
-
Easy Integration: The plug-and-play design simplifies integration into existing automation systems. It is fully compatible with ABB System 800xA, providing a straightforward connection to field devices and higher-level control systems.
-
High Availability: The TC570 supports redundancy, ensuring high availability and minimal downtime in mission-critical applications.
-
Real-Time Data Processing: With a response time of less than 10 ms, the TC570 enables fast and efficient real-time communication, essential for time-sensitive industrial processes.
-
Flexible Installation: The module is designed for DIN rail mounting, ensuring ease of installation and a secure fit in control panels.
-
Wide Operating Temperature Range: The TC570 can operate in environments with temperatures ranging from -25°C to +60°C, making it suitable for harsh industrial environments.
-
Safety and Compliance: The module adheres to safety standards such as CE, UL, and UL Listed, ensuring safe operation in various industrial settings.
Frequently Asked Questions (FAQs)
-
What communication protocols does the TC570 support?
The TC570 supports Profibus DP, Modbus, DeviceNet, and CANopen, making it compatible with various industrial networks. -
What are the dimensions of the TC570 module?
The TC570 module measures 216 x 54 x 144 mm, offering a compact design for space-constrained environments. -
Can the TC570 module be used in high-temperature environments?
Yes, the TC570 can operate in temperatures ranging from -25°C to +60°C, making it suitable for harsh industrial environments. -
What is the power consumption of the TC570 module?
The TC570 consumes approximately 5 W, ensuring energy-efficient operation in industrial systems. -
How is the TC570 mounted?
The TC570 is designed for DIN rail mounting, allowing easy installation in control panels. -
Is redundancy supported in the TC570?
Yes, the TC570 supports redundancy for high availability in critical applications, ensuring continuous communication. -
What industries can benefit from using the TC570?
The TC570 is ideal for industries such as process automation, manufacturing, energy, building automation, and water treatment. -
Does the TC570 support integration with ABB’s System 800xA?
Yes, the TC570 is fully compatible with ABB System 800xA and integrates seamlessly into automation systems. -
What is the weight of the TC570 module?
The TC570 weighs approximately 0.75 kg, making it lightweight for easy handling and installation. -
Can the TC570 be used for real-time communication?
Yes, the TC570 provides real-time data processing with a response time of less than 10 ms, ensuring fast and accurate communication.
Related Models from the Same Series
| Model | Description |
|---|---|
| TC580 | Advanced fieldbus coupler for high-performance applications |
| TC590 | Fieldbus coupler with additional network support |
| TC600 | Enhanced communication module for extended industrial networks |
| TC700 | Fieldbus coupler with integrated redundancy support |
| TC800 | Compact fieldbus interface for modular automation systems |
| TC1000 | Fieldbus coupler designed for large-scale distributed control |
