Product Introduction

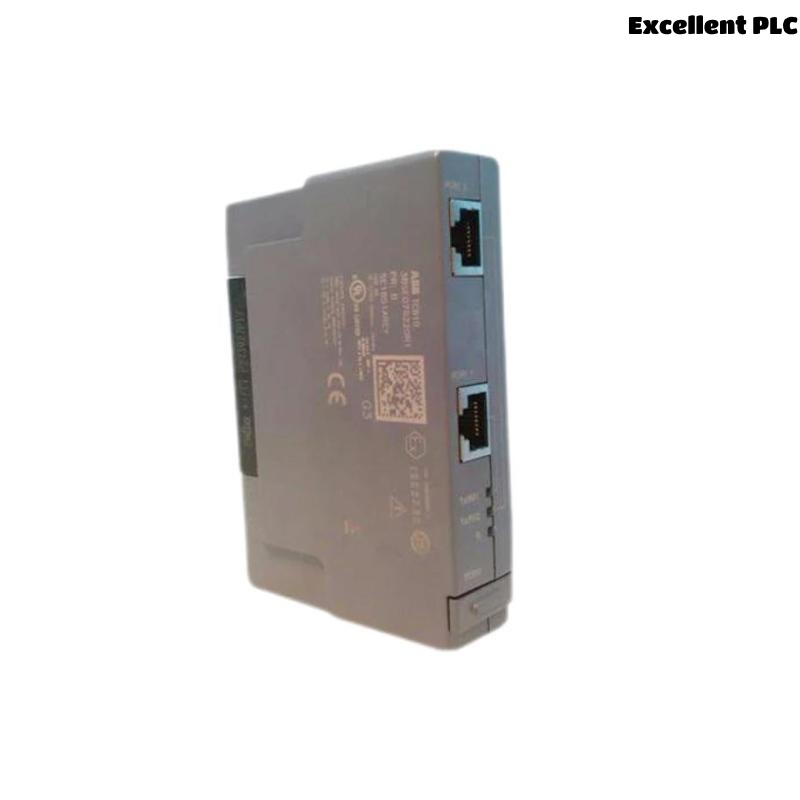

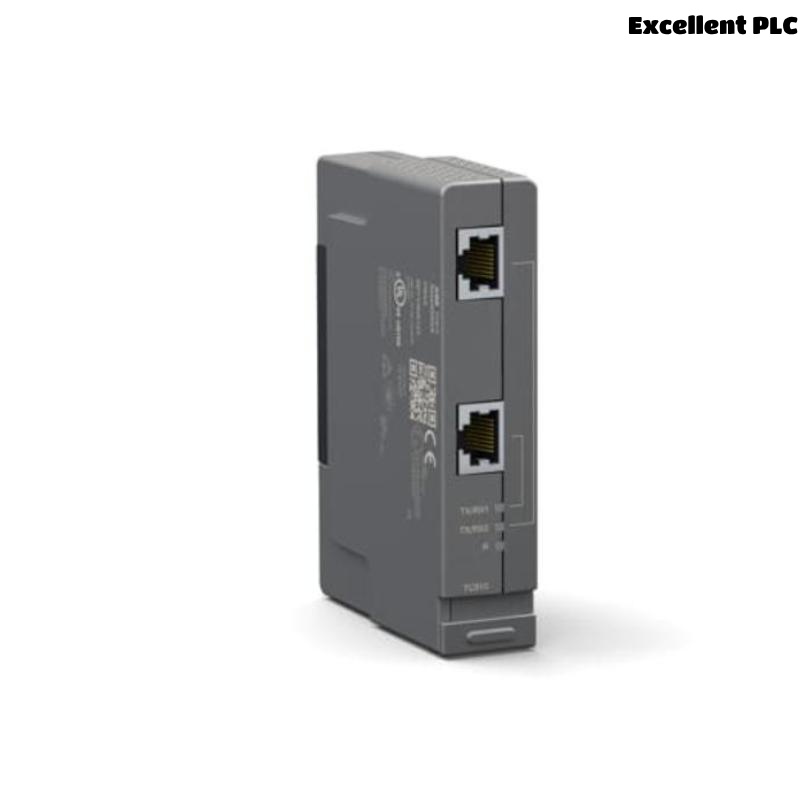

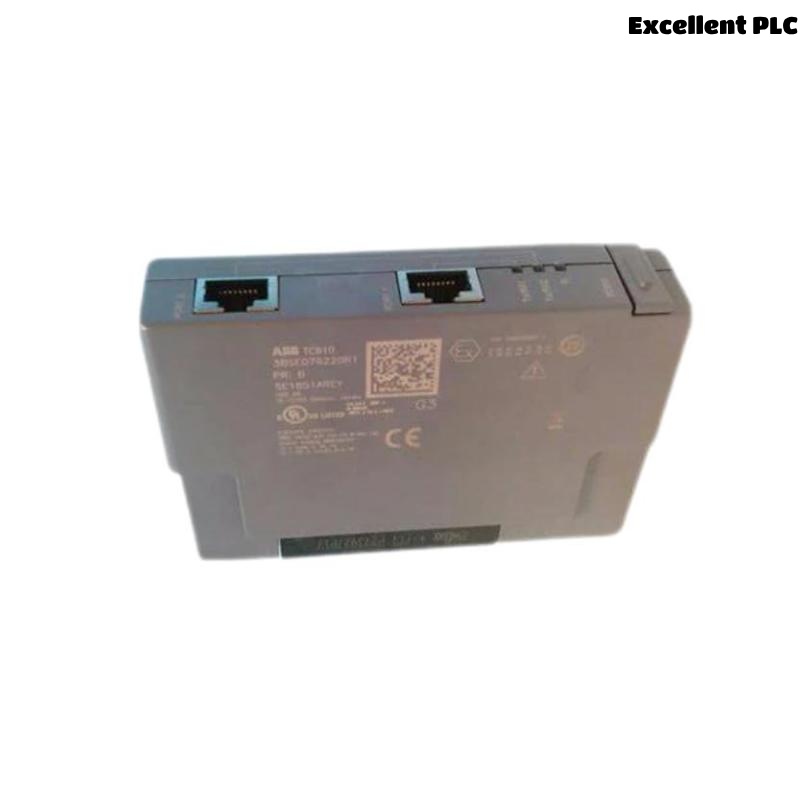

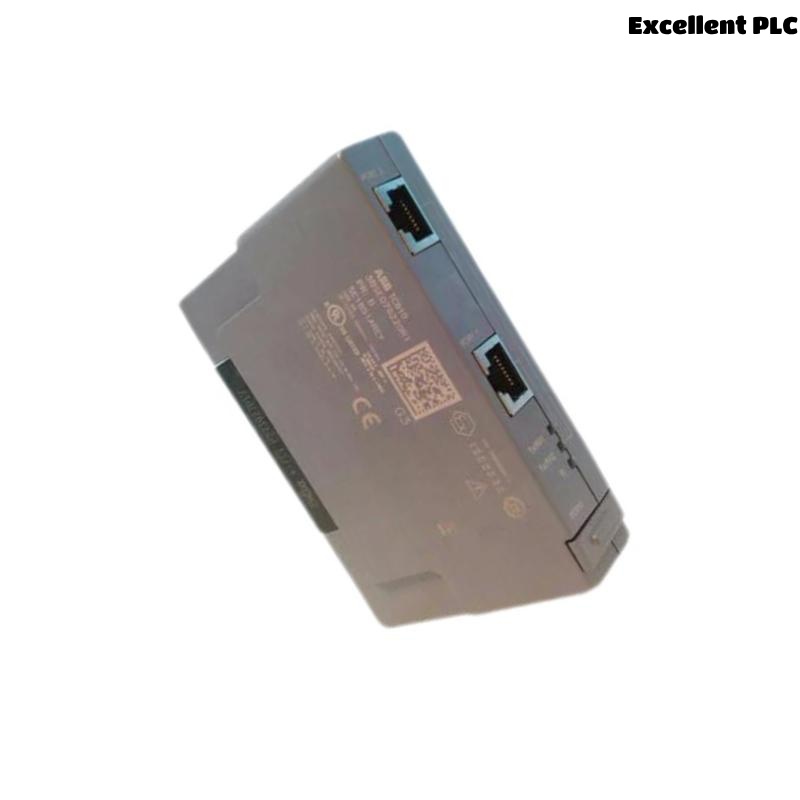

The ABB TC810 3BSE076220R1 Ethernet Adapter is a state-of-the-art communication device that provides seamless integration between industrial control systems and Ethernet-based networks. This adapter allows devices in automation systems to communicate over Ethernet, facilitating efficient data transfer, control, and monitoring across various industrial applications. Designed with high-performance features, the TC810 Ethernet Adapter ensures secure and fast communication, making it an essential component in industrial Ethernet solutions.
The TC810 module is designed for use with ABB’s System 800xA automation system, ensuring smooth and reliable integration with other system components. Its compact and rugged design, coupled with versatile Ethernet connectivity, allows for simple installation and hassle-free operation even in demanding environments.
With its high data transfer rates and robust communication protocols, the TC810 is ideal for mission-critical industrial operations that require real-time data communication and seamless system connectivity.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | TC810 Ethernet Adapter |
| Product Code | 3BSE076220R1 |
| Module Type | Ethernet Adapter |
| Dimensions | 77 x 110 x 24.5 mm |
| Weight | 0.102 kg |
| Supply Voltage | 24 VDC |
| Power Consumption | Approx. 2 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail |
| Communication Protocols | Ethernet/IP, TCP/IP, UDP/IP |
| Ethernet Ports | 1 x Ethernet port |
| Transmission Speed | 10/100 Mbps |
| Response Time | < 1 ms for real-time communication |
| Safety Standards | CE, UL, and UL Listed |
Product Applications
The ABB TC810 3BSE076220R1 Ethernet Adapter is suitable for a wide variety of industrial applications, providing fast, secure, and reliable Ethernet communication across different sectors. Some of its key applications include:
-
Industrial Automation: The TC810 enables devices in industrial automation systems to connect to Ethernet networks, allowing real-time control and monitoring in manufacturing plants, production lines, and assembly facilities.
-
Process Control: In process industries such as chemicals, oil and gas, and pharmaceuticals, the TC810 Ethernet Adapter facilitates data exchange between distributed control systems (DCS), programmable logic controllers (PLCs), and other field devices, improving process efficiency and system reliability.
-
Energy and Utilities: The TC810 is widely used in power generation plants, substations, and grid systems to monitor and control equipment, such as turbines, transformers, and circuit breakers. It enables fast and secure communication between the control room and field devices, helping to optimize energy production and distribution.
-
Building Automation: In building management systems (BMS), the TC810 allows for seamless communication between HVAC systems, lighting controls, security devices, and centralized control systems, improving energy efficiency and reducing operational costs.
-
Smart Cities and Infrastructure: The TC810 is ideal for applications in smart cities, connecting a wide array of devices in transportation, water management, and public safety systems. It ensures reliable data transmission and real-time monitoring, making infrastructure management more efficient.
-
Manufacturing and Robotics: The module enables connectivity between robots, sensors, and control systems, facilitating real-time data exchange and process automation in manufacturing plants, automotive production lines, and electronics assembly.
Product Advantages
-
Fast and Secure Communication: With 10/100 Mbps Ethernet speeds and Ethernet/IP, TCP/IP, UDP/IP protocols, the TC810 ensures fast and secure communication across industrial networks, enhancing operational efficiency.
-
Compact and Robust Design: The TC810 is designed with a compact footprint of 77 x 110 x 24.5 mm and a lightweight of 0.102 kg, making it easy to install in control panels with limited space while maintaining high performance in demanding industrial environments.
-
Wide Compatibility: The TC810 supports a wide range of industrial protocols and can be integrated into ABB’s System 800xA, making it highly compatible with various other field devices and control systems, enabling seamless network integration.
-
High Reliability: The module provides reliable, real-time communication, ensuring minimal downtime and optimal performance in industrial environments that demand continuous operation.
-
Easy Installation: The module can be conveniently mounted on a DIN rail, which simplifies the installation process and ensures secure placement within control panels.
-
Wide Operating Temperature Range: The TC810 can operate in environments with temperatures ranging from -25°C to +70°C, ensuring reliable performance even in harsh industrial conditions.
-
Low Power Consumption: With a power consumption of approximately 2 W, the TC810 is energy-efficient and ideal for systems where energy savings are critical.
-
Safety Certified: The TC810 adheres to important safety standards, including CE and UL, ensuring safe operation in industrial environments.
Frequently Asked Questions (FAQs)
-
What communication protocols does the TC810 support?
The TC810 supports Ethernet/IP, TCP/IP, and UDP/IP, providing flexibility in various industrial applications. -
What are the dimensions of the TC810 Ethernet Adapter?
The TC810 has a compact size of 77 x 110 x 24.5 mm, making it suitable for installation in tight spaces. -
What is the power consumption of the TC810?
The TC810 consumes approximately 2 W, making it an energy-efficient solution for industrial systems. -
How is the TC810 mounted?
The TC810 is designed for DIN rail mounting, which ensures easy installation and secure fitting in control panels. -
Can the TC810 operate in high-temperature environments?
Yes, the TC810 can operate in temperatures ranging from -25°C to +70°C, making it suitable for use in harsh industrial conditions. -
What is the weight of the TC810?
The TC810 weighs only 0.102 kg, making it lightweight and easy to handle during installation. -
What industries can benefit from the TC810 Ethernet Adapter?
The TC810 is suitable for industries such as industrial automation, process control, energy, building automation, and smart infrastructure. -
Can the TC810 be used for real-time data communication?
Yes, the TC810 provides real-time communication with a response time of < 1 ms, ensuring fast and reliable data exchange. -
Is the TC810 compatible with ABB System 800xA?
Yes, the TC810 is designed for seamless integration with ABB System 800xA and other field devices in automation systems. -
What are the Ethernet speeds supported by the TC810?
The TC810 supports Ethernet speeds of 10/100 Mbps, ensuring fast and efficient communication across industrial networks.
