Product Introduction

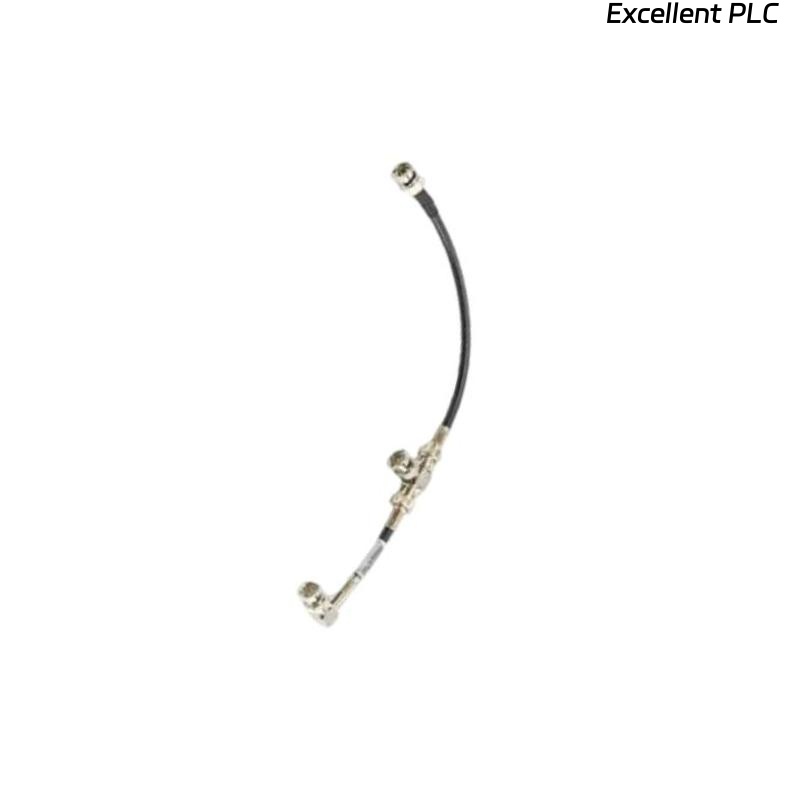

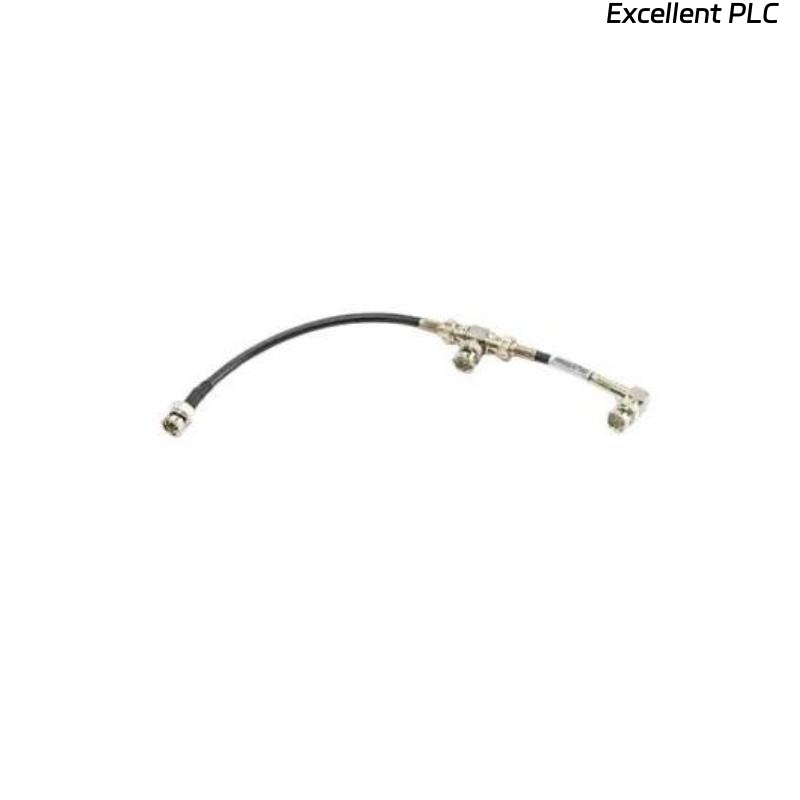

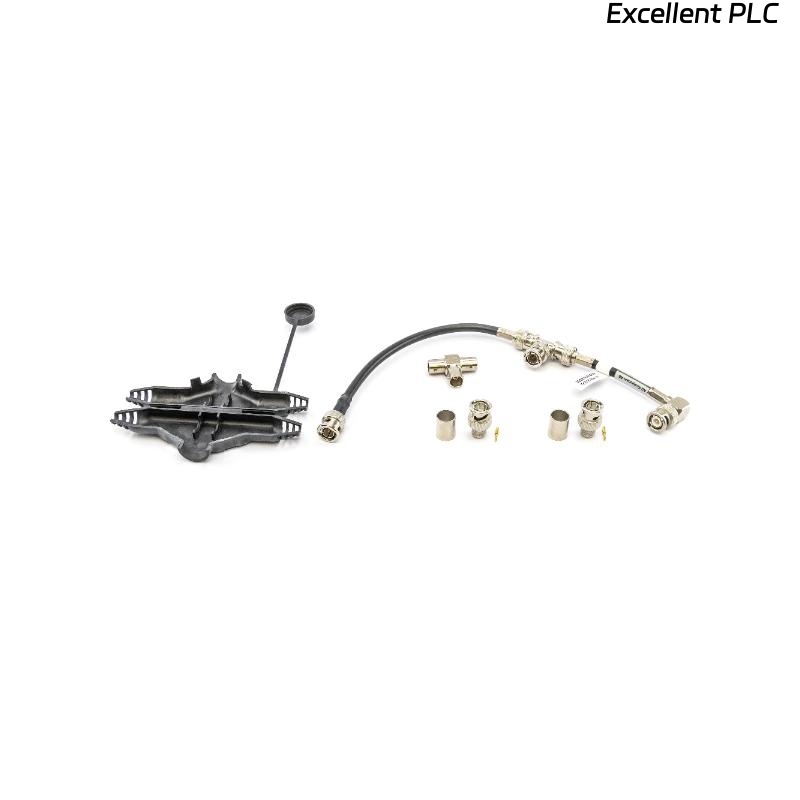

The ABB TK518 3BSE003787R1 coaxial cable assembly is an essential component for high-performance industrial communication systems. Designed for precision data transmission, this coaxial cable ensures reliable and stable signal transfer over long distances. It is specifically built for use in ABB automation and control systems, offering robust performance in demanding environments. The cable is suitable for a wide range of applications where reliable and high-speed communication is critical, including industrial automation, process control, and monitoring systems.
Product Parameters
| Parameter | Value |
|---|---|
| Cable Length | Optional |
| Weight | 0.08 kg |
| Connector Type | Coaxial BNC/SMB |
| Impedance | 50 Ω |
| Material | High-quality PVC |
| Operating Temperature | -20°C to 80°C |
| Frequency Range | 0 to 6 GHz |
| Compliance | CE, RoHS |
Product Applications
The ABB TK518 coaxial cable assembly is widely used in various industrial and automation applications:
-
Industrial Communication Systems: For high-speed and reliable data transmission between devices, controllers, and monitoring systems.
-
Process Control: Facilitates real-time communication for process control systems, ensuring smooth operation and data synchronization.
-
Monitoring Systems: Used in advanced monitoring systems to transmit data between sensors, controllers, and analytical tools.
-
Signal Processing: In systems requiring high-frequency signal transmission, such as RF applications, this cable ensures minimal loss and distortion.
Product Advantages
-
High-Speed Data Transmission: The coaxial cable supports high-frequency signals with minimal loss, ensuring rapid data transfer even in complex systems.
-
Reliable Signal Integrity: Designed to provide excellent shielding against external interference, ensuring the integrity of signals during transmission.
-
Wide Operating Temperature: The cable can operate in temperatures ranging from -20°C to 80°C, making it suitable for use in various environments, from industrial to more extreme conditions.
-
Durability: Made with high-quality PVC, the cable is resistant to wear and tear, making it highly durable and suitable for industrial applications.
-
Flexible Configuration: Available in different lengths, the cable can be customized to fit various system configurations and installation requirements.
FAQ
-
What is the impedance of the ABB TK518 coaxial cable?
The ABB TK518 coaxial cable has an impedance of 50 Ω, which is ideal for high-frequency signal transmission. -
What is the frequency range of the ABB TK518 coaxial cable?
The frequency range of this cable is from 0 to 6 GHz, making it suitable for applications involving high-frequency signals. -
Is the ABB TK518 cable compatible with all types of equipment?
The cable is designed for use with ABB automation systems and compatible equipment that require coaxial connectors, such as BNC or SMB connectors. -
Can the cable be used outdoors?
The ABB TK518 cable is designed for industrial environments and can be used outdoors, provided it is installed in a controlled environment that ensures protection against extreme weather conditions. -
What is the maximum operating temperature for the cable?
The maximum operating temperature for the ABB TK518 cable is 80°C, making it suitable for a wide range of industrial applications. -
What materials is the ABB TK518 cable made from?
The cable is made from high-quality PVC, which provides excellent durability and resistance to wear. -
Does the ABB TK518 cable provide shielding against external interference?
Yes, the coaxial design provides effective shielding, ensuring that external electrical interference does not affect the signal integrity. -
Is the cable customizable in length?
Yes, the ABB TK518 cable is available in different lengths, depending on the specific requirements of the installation. -
What is the weight of the ABB TK518 coaxial cable?
The weight of the ABB TK518 cable is 0.08 kg, making it lightweight and easy to handle during installation. -
Is the ABB TK518 cable compliant with international standards?
Yes, the cable complies with CE and RoHS standards, ensuring it meets European safety and environmental regulations.
