Product Overview

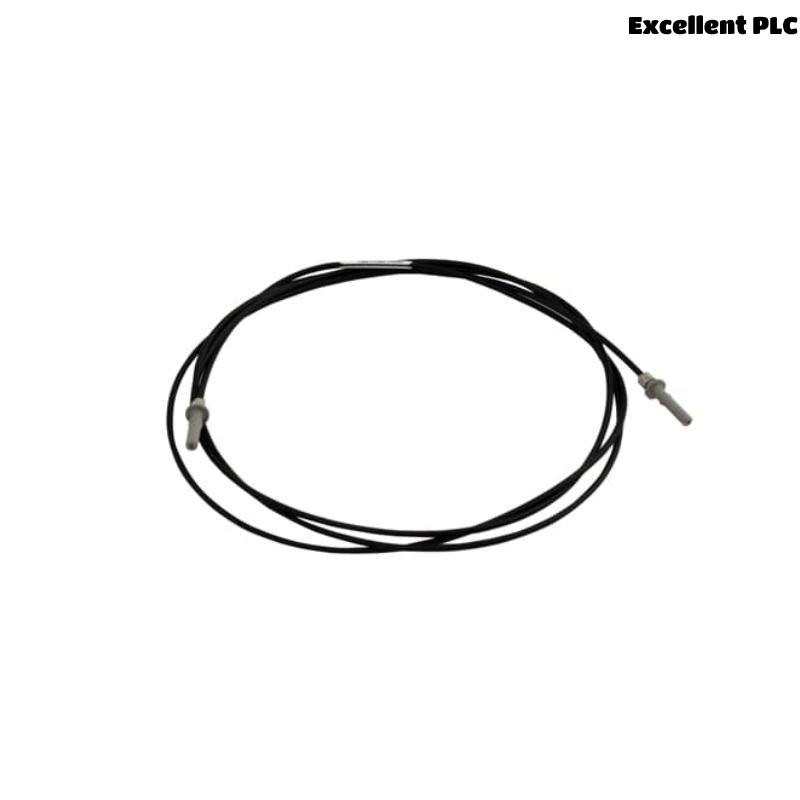

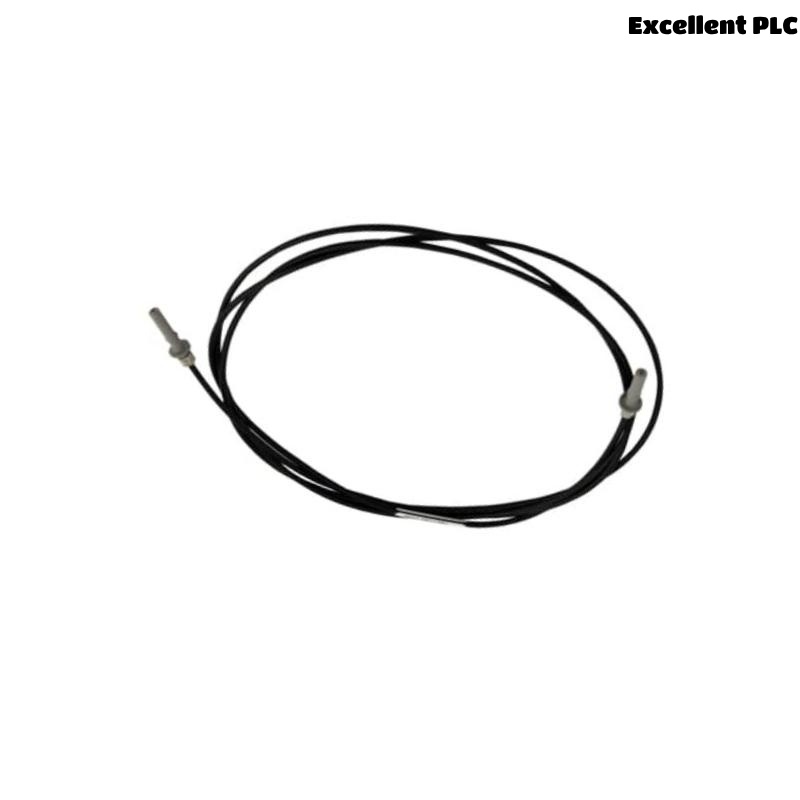

The ABB TK812V015 (3BSC950118R1) is a Simplex Plastic Optical Fiber (POF) cable, designed for high-reliability optical communication between modules in ABB’s System 800xA and S800 I/O systems. It serves as a medium for fast and interference-free signal transmission, typically used to connect redundant communication interfaces, fieldbus modules, or I/O bus links in distributed automation systems.
The TK812V015 features plastic core fiber construction encased in a durable, flexible jacket, offering excellent flexibility, lightweight design, and easy routing in control cabinets or between enclosures. With a length of 1.5 meters, it is suited for short-range, high-speed data transmission within control environments that demand electromagnetic immunity and fast installation.
Key Features
-
Simplex plastic optical fiber cable (POF) for ABB automation networks
-
1.5-meter standard length for short-range communication links
-
High-speed, noise-immune optical signal transmission
-
Factory-terminated with ABB-compatible optical connectors
-
Lightweight, flexible, and easy to route
-
Immune to electromagnetic interference (EMI)
-
Compatible with ABB’s System 800xA and S800 I/O products
-
Durable sheath with high resistance to wear and bending
-
Ideal for redundant and point-to-point optical communication
-
Plug-and-play installation for fast deployment
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Simplex Plastic Optical Fiber Cable |
| Model Number | TK812V015 |
| Ordering Code | 3BSC950118R1 |
| Fiber Type | Simplex POF (Plastic Optical Fiber) |
| Core Diameter | 1.0 mm |
| Cable Length | 1.5 meters |
| Connector Type | Pre-assembled optical connectors (ABB compatible) |
| Transmission Method | Light signal (optical data transfer) |
| Data Rate | Up to 100 Mbps (depending on transceiver) |
| Attenuation | Typically 0.15 dB/m at 650 nm wavelength |
| Operating Wavelength | 650 nm (red LED light source) |
| Jacket Material | Halogen-free plastic (typically PE or TPU) |
| Color | Typically orange or black |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Bending Radius | ≥ 25 mm |
| Dimensions | Length:1.5 m |
| Weight | 0.015 kg |
| Standards Compliance | CE, RoHS, IEC 60793-2-40, EN 50173 |
| Installation | Plug-and-play; no splicing or field termination required |
Industry Applications
The ABB TK812V015 is optimized for environments where noise immunity, fast communication, and compact routing are required:
-
Process Automation (System 800xA) – optical communication between I/O modules
-
Power Plants – control network fiber link for EMI-prone areas
-
Chemical Industry – data transmission in explosive or electrically noisy zones
-
Oil & Gas Facilities – fiber interconnects for critical safety and control modules
-
Pharmaceuticals & Food – clean environments requiring non-conductive links
-
Automotive/Manufacturing – fast signal transfer in modular production cells
Product Advantages
-
Immune to electromagnetic interference, making it ideal for high-EMI environments
-
Compact and lightweight, allowing flexible installation in control cabinets
-
Easy to install with pre-terminated connectors and no need for field splicing
-
Improved safety through electrical isolation—no ground loops or current leakage
-
Fast and reliable data communication between ABB system modules
-
Long-term durability in harsh industrial environments
-
Compliant with key standards for industrial optical fiber cabling
-
Supports redundancy and system uptime by enabling reliable optical links
-
Non-conductive material ideal for electrically sensitive areas
-
Backed by ABB’s industrial quality assurance
Frequently Asked Questions (FAQ)
1. What is the ABB TK812V015 cable used for?
It is used to establish optical data communication between ABB modules in System 800xA and S800 I/O systems.
2. What type of fiber does it use?
It uses Plastic Optical Fiber (POF) with a 1 mm core, suitable for short-range high-speed communication.
3. Is the cable shielded?
Shielding is not necessary—optical fibers are inherently immune to electrical noise and EMI.
4. What is the maximum data rate supported?
The cable supports up to 100 Mbps, depending on the transceiver used.
5. What connectors are included?
The cable is factory-terminated with ABB-compatible optical connectors, ready for plug-and-play use.
6. Can the cable be field-trimmed or spliced?
No, it is not recommended. The pre-terminated cable should not be altered to ensure signal integrity.
7. Is this cable halogen-free and flame-retardant?
Yes, it is made from halogen-free materials and complies with flame-retardant standards.
8. Can I use this outdoors?
It is designed for indoor industrial use; outdoor use requires additional protection or conduit.
9. Does it support redundancy?
Yes, it can be used in redundant optical communication loops within ABB systems.
10. What is the minimum bending radius?
The recommended bending radius is ≥ 25 mm to ensure optimal signal performance.
