Product Introduction

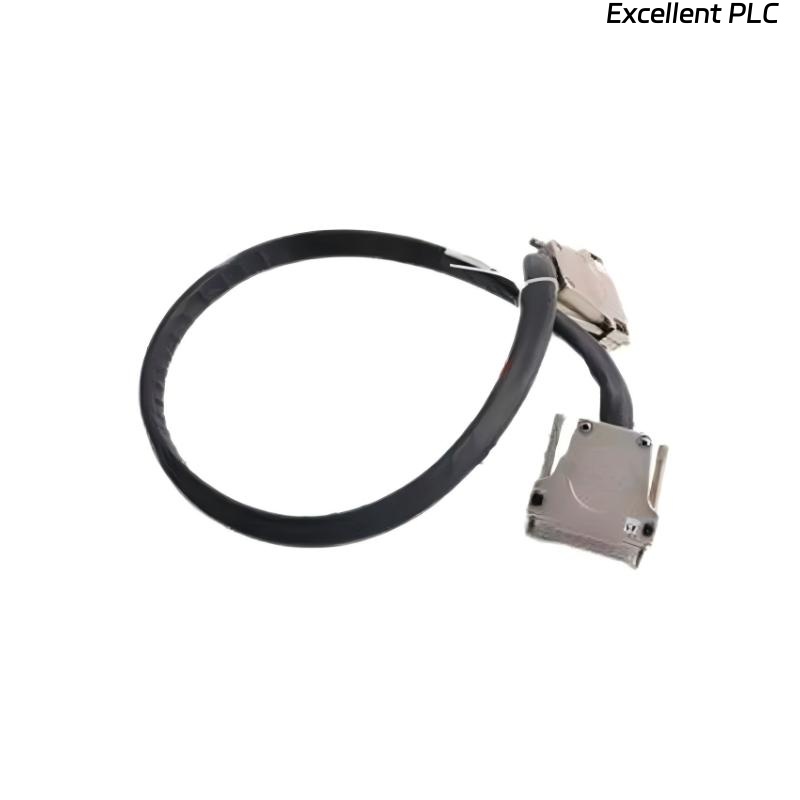

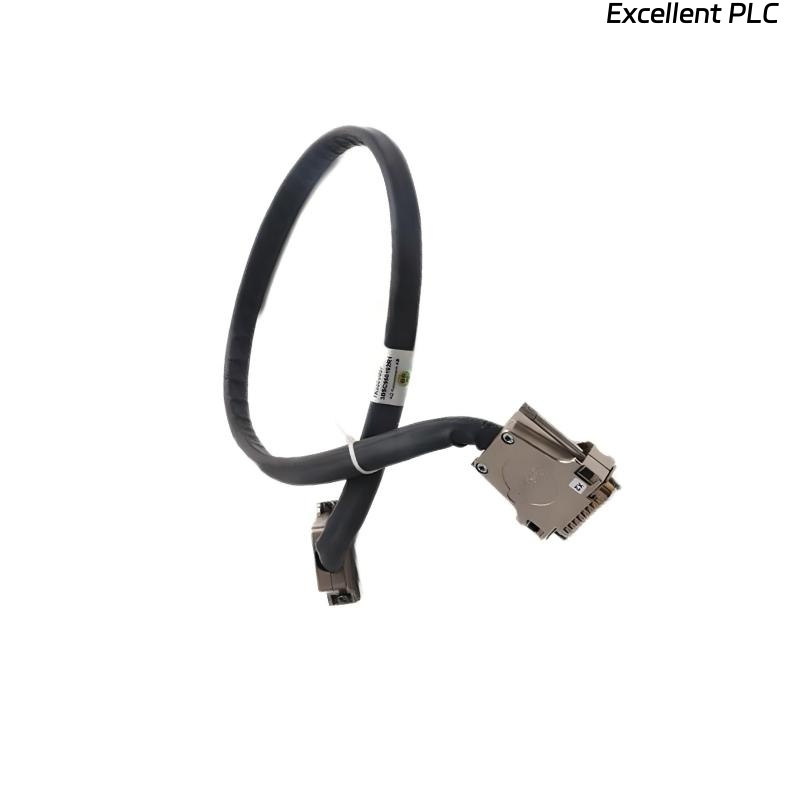

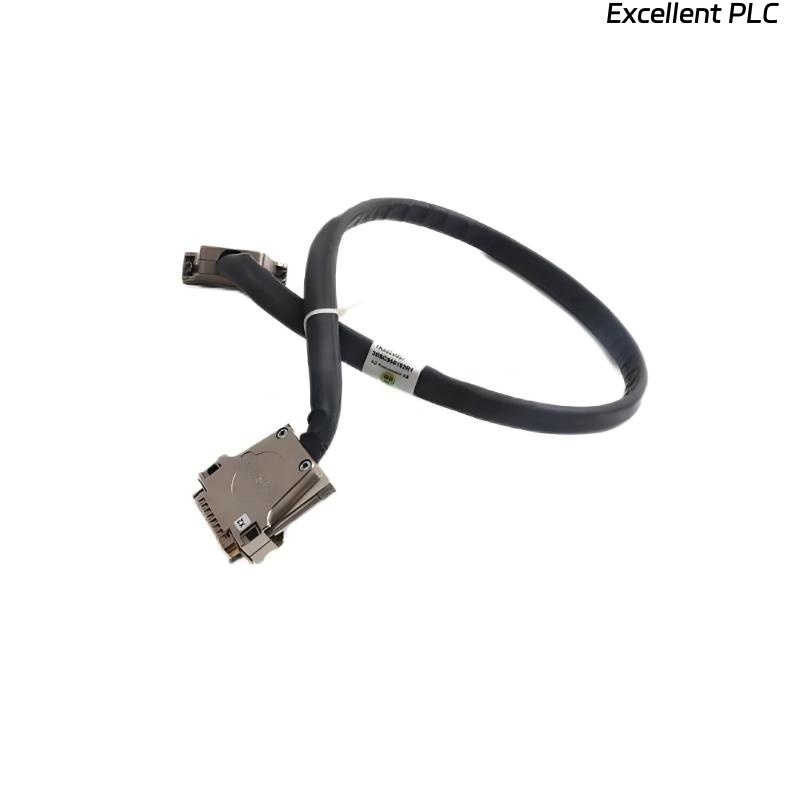

The ABB TK855 3BSC950356R1 is a high-performance data link cable specifically designed to support seamless communication between devices in industrial automation systems. This cable is engineered to ensure the reliable transfer of signals in high-speed data applications, facilitating the efficient operation of automation equipment in various industries, including power, manufacturing, and process automation.
Constructed with high-quality materials, the TK855 3BSC950356R1 cable is designed to meet the stringent requirements of industrial environments, offering enhanced protection against interference, vibrations, and harsh conditions. It is compatible with ABB’s automation systems and provides robust connectivity for devices such as controllers, sensors, and actuators.
With a 1-meter length, this data link cable is the perfect choice for short-distance communication and can be easily integrated into existing systems for optimal performance.
Parameters
| Parameter | Description |
|---|---|
| Cable Type | Data Link Cable |
| Cable Length | 1 meter |
| Weight | 0.01 kg |
| Conductor Material | Copper |
| Insulation Material | PVC |
| Temperature Range | -20°C to +70°C |
| Shielding | Foil and Braided Shielding |
| Transmission Speed | Up to 10 Mbps |
| Voltage Rating | 300V |
| Connector Type | Standard industrial connectors |
Applications
The TK855 3BSC950356R1 data link cable is commonly used in a variety of applications where high-speed, reliable communication is essential:
-
Industrial Automation: This cable is integral to industrial automation systems, enabling reliable data transmission between controllers, I/O devices, and sensors in real-time.
-
Power Systems: The cable is also used in power systems for communication between monitoring and control devices, ensuring smooth operation of critical power generation equipment.
-
Robotics and Actuators: In robotic systems, the cable supports the seamless transfer of control signals between the main controller and robotic arms or actuators.
-
Control Systems: The cable is used in control systems where data transmission must be both fast and secure, ensuring that signals from controllers reach machinery components without delay.
-
Sensor Networks: Used for data exchange between various sensors in a distributed sensor network, this cable supports high-speed data transfer while minimizing signal interference.
Advantages
-
High-Speed Data Transfer: Capable of supporting up to 10 Mbps transmission speed, the TK855 3BSC950356R1 cable ensures that large amounts of data can be transmitted quickly and efficiently, minimizing delays in industrial processes.
-
Strong Signal Integrity: The combination of foil and braided shielding offers superior protection against electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring clear and uninterrupted communication even in noisy environments.
-
Durable and Reliable: With robust construction and high-quality materials, this cable is built to withstand the harsh conditions of industrial environments, including exposure to vibrations, extreme temperatures, and chemicals.
-
Flexible and Easy to Install: The 1-meter length of the cable makes it suitable for a variety of installations, particularly in systems with limited space or short-distance connectivity requirements. It is lightweight and flexible, allowing for easy routing and installation.
-
Versatile Compatibility: Designed for use with industrial automation systems, the cable is also compatible with a wide range of other industrial equipment, making it a versatile choice for different applications.
-
Temperature Resistance: The cable can operate in temperatures ranging from -20°C to +70°C, ensuring reliability even in extreme environmental conditions.
FAQ
1. What is the maximum data transfer speed supported by the TK855 3BSC950356R1 cable?
The TK855 3BSC950356R1 cable supports a maximum data transfer speed of 10 Mbps, ensuring fast and reliable communication between devices.
2. What kind of insulation does the cable use?
The cable uses PVC insulation, which provides excellent protection against environmental factors and ensures durability in industrial applications.
3. Can the TK855 3BSC950356R1 cable be used in outdoor applications?
While the cable is durable and temperature-resistant, it is primarily designed for indoor use. If used outdoors, additional protective measures may be needed to shield it from harsh environmental elements.
4. What is the maximum operating temperature of the cable?
The TK855 3BSC950356R1 cable can operate within a temperature range of -20°C to +70°C, making it suitable for various industrial environments.
5. Does the cable support high-frequency signal transmission?
Yes, the cable features foil and braided shielding, which minimizes interference and ensures high-quality signal transmission, even at high frequencies.
6. Is the cable compatible with industrial automation systems?
Yes, the TK855 3BSC950356R1 is specifically designed for use with industrial automation systems, making it ideal for communication between controllers, sensors, and actuators.
7. What kind of connectors does the cable use?
The cable is equipped with standard industrial connectors, which are widely compatible with most industrial equipment.
8. Can this cable be used for long-distance communication?
The 1-meter length of this cable is designed for short-distance communication. For longer distances, a different cable with a longer length would be more appropriate.
9. What materials are used in the construction of the cable?
The TK855 3BSC950356R1 cable is constructed with copper conductors and PVC insulation, with additional foil and braided shielding to protect against EMI and RFI.
10. Is the cable resistant to physical wear and tear?
Yes, the robust construction of the cable, combined with its PVC insulation and shielding, ensures resistance to physical wear and environmental factors, making it suitable for industrial use.
