Product Description

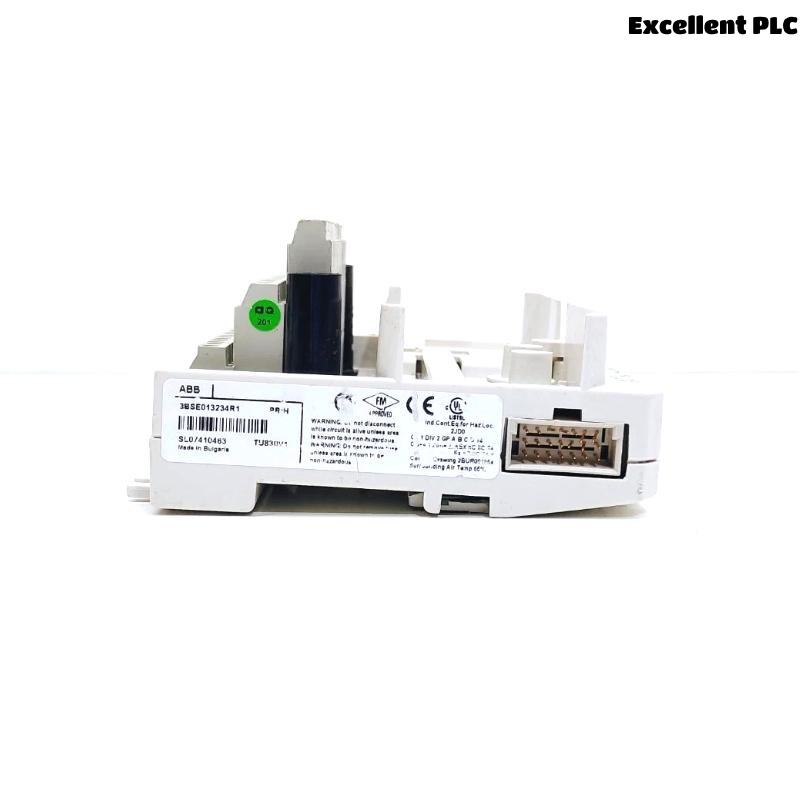

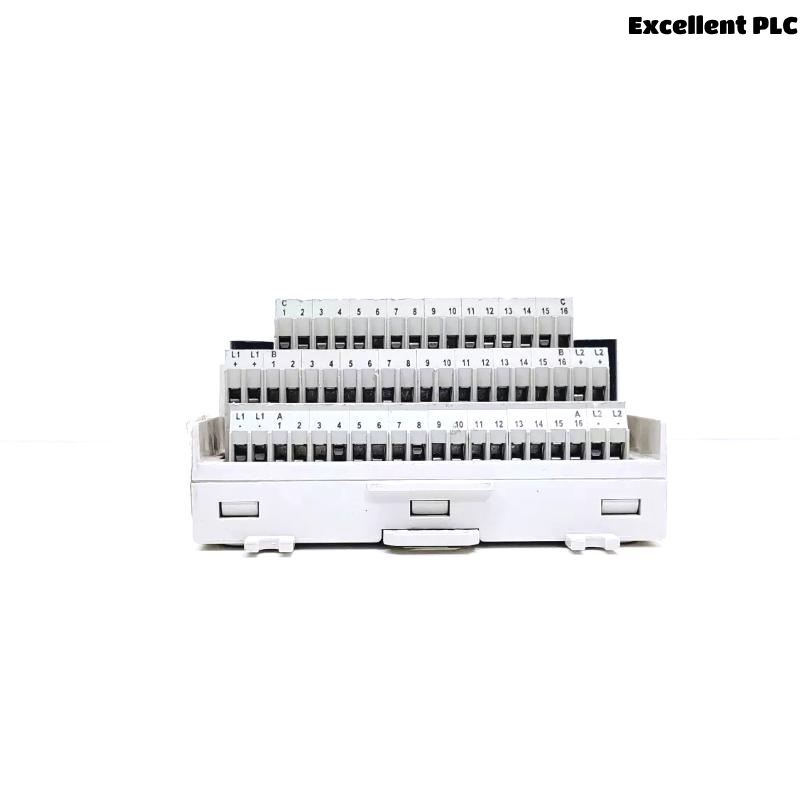

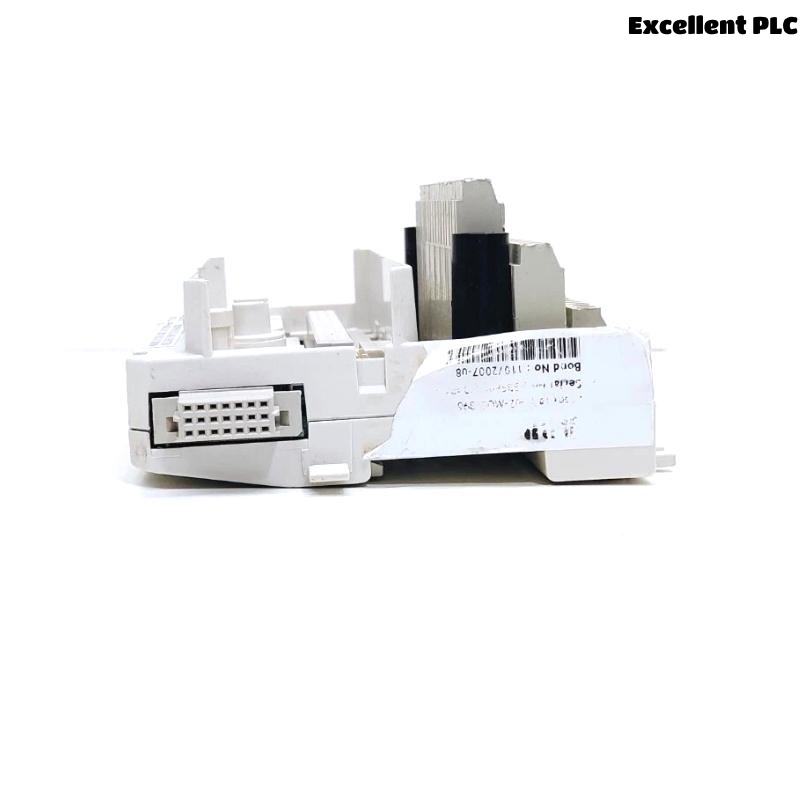

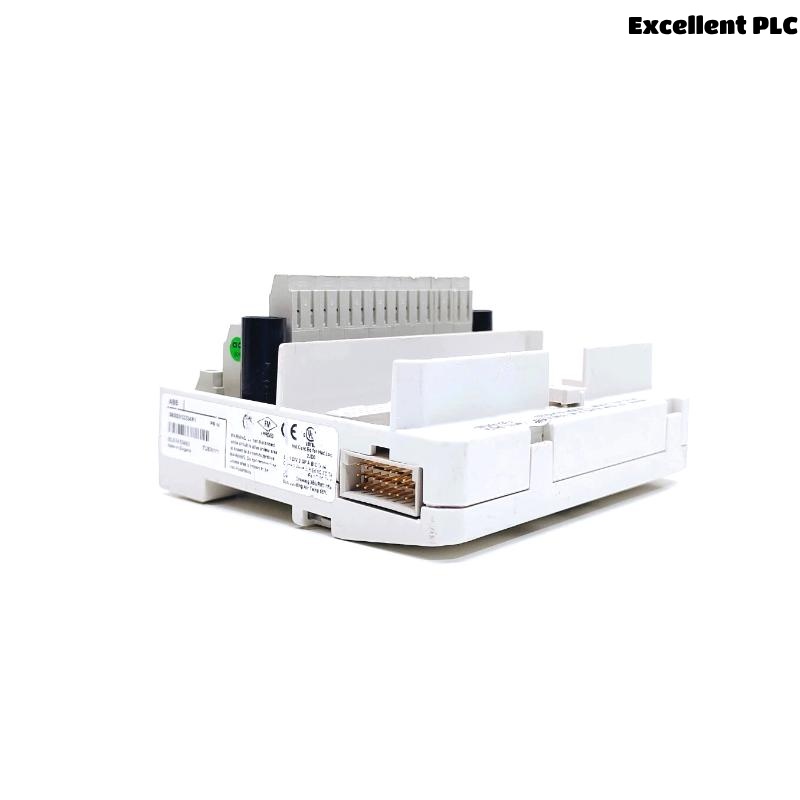

The ABB TU830V1 is an Extended Module Termination Unit (MTU) designed for the S800 I/O System. It provides connection for up to 16 field I/O channels, including process voltage connections, and forms part of the ModuleBus. The MTU ensures safe and reliable wiring of field signals to the I/O modules, with features like mechanical keying, field power distribution, and DIN rail mounting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Article Number | 3BSE013234R1 |
| Type | Extended |
| Channels | 16 |
| Connection | Terminal block |
| Voltage | 50 V |
| Maximum Current per Channel | 2 A |
| Maximum Process Connection | 5 A |
| Mounting | DIN rail, both directions |
| Dielectric Test Voltage | 500 V a.c. |
| Dimensions (W×D×H) | 64 × 120.5 × 110 mm |
| Weight | 0.28 kg |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Protection Class | IP20 |
| Certification | CE, UL, ATEX Zone 2, Marine (ABS, DNV-GL) |
| Compliance | RoHS, WEEE |
Applications
-
Connection of field wiring to I/O modules in process automation.
-
Use in single or redundant I/O configurations.
-
Suitable for hazardous locations (Zone 2) and marine environments.
-
Compatible with various ABB S800 modules such as AI, AO, DI, DO, and DP types.
Advantages
-
Supports up to 16 field signal channels with fuses and field power.
-
Mechanical keying to prevent incorrect module insertion.
-
Compact design with DIN rail mounting for flexible installation.
-
Certified for industrial and marine use with high environmental resilience.
-
Supports both single and redundant I/O configurations.
FAQ
Q1: How many channels does the TU830V1 support?
A1: It supports up to 16 field I/O channels.
Q2: What type of mounting does this unit use?
A2: It is designed for DIN rail mounting in both directions.
Q3: Is the TU830V1 suitable for hazardous areas?
A3: Yes, it is certified for ATEX Zone 2 and UL Class 1 Division 2.
Q4: Which I/O modules are compatible with TU830V1?
A4: It works with ABB S800 modules such as AI810, AO810, DI810, DO810, DP820, and many others.
Q5: What is the protection class of this unit?
A5: It has IP20 protection according to IEC 60529.
Q6: Does it support redundant I/O?
A6: Yes, it can be used in single or redundant configurations.
Q7: What is the maximum current per channel?
A7: The maximum rated current per channel is 2 A.
Q8: Can it operate in marine environments?
A8: Yes, it is certified by ABS, DNV-GL, BV, and LR for marine use.
Q9: What is the operating temperature range?
A9: It operates from 0 °C to +55 °C.
Q10: What mechanical feature prevents incorrect module insertion?
A10: It uses mechanical keying to prevent wrong module insertion.
Recommended Related Models
| Model | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| TU810V1 | Compact MTU | 8 | 64×120.5×110 | 0.2 |
| TU811V1 | Compact MTU with shield | 8 | 64×120.5×110 | 0.2 |
| TU812V1 | Extended MTU with shield | 16 | 64×120.5×110 | 0.2 |
| TU833 | Extended MTU for redundant I/O | 16 | 64×120.5×110 | 0.3 |
| TU842 | Extended MTU with relay outputs | 8 | 64×120.5×110 | 0.25 |
| TU890 | High integrity MTU | 8 | 64×120.5×110 | 0.22 |
