Product Overview

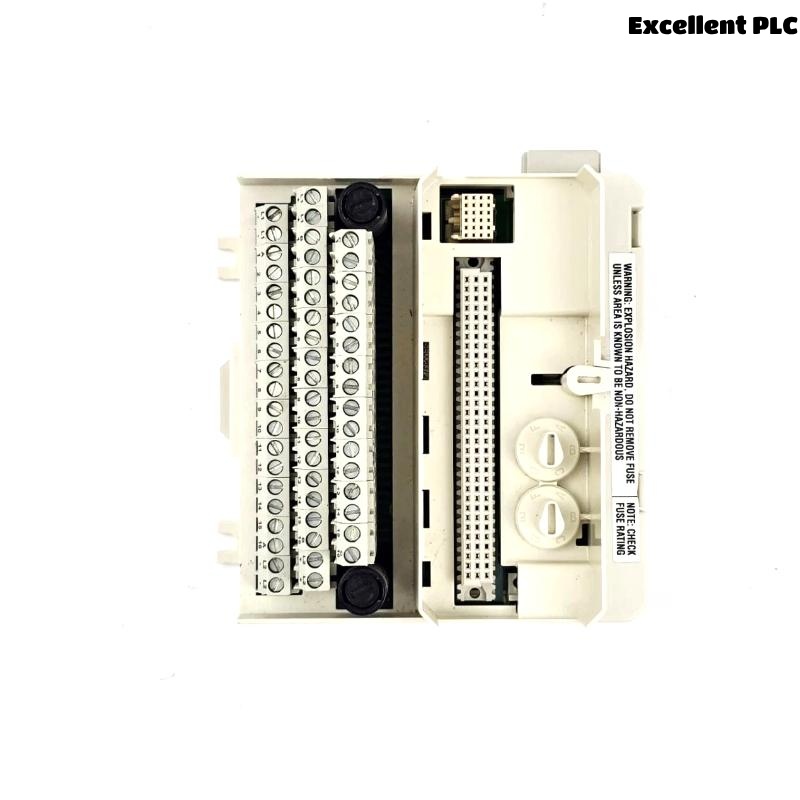

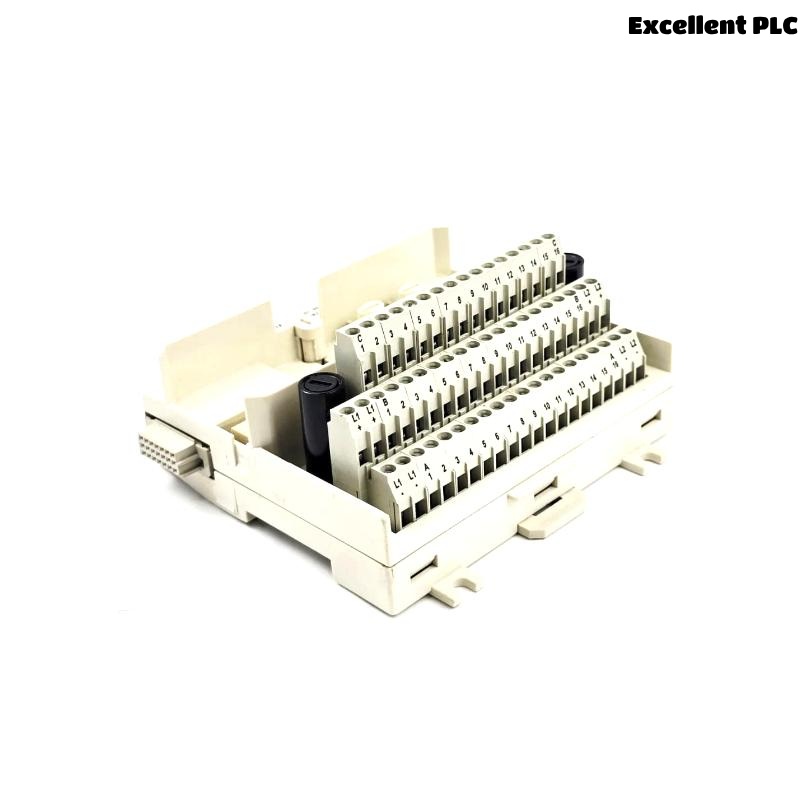

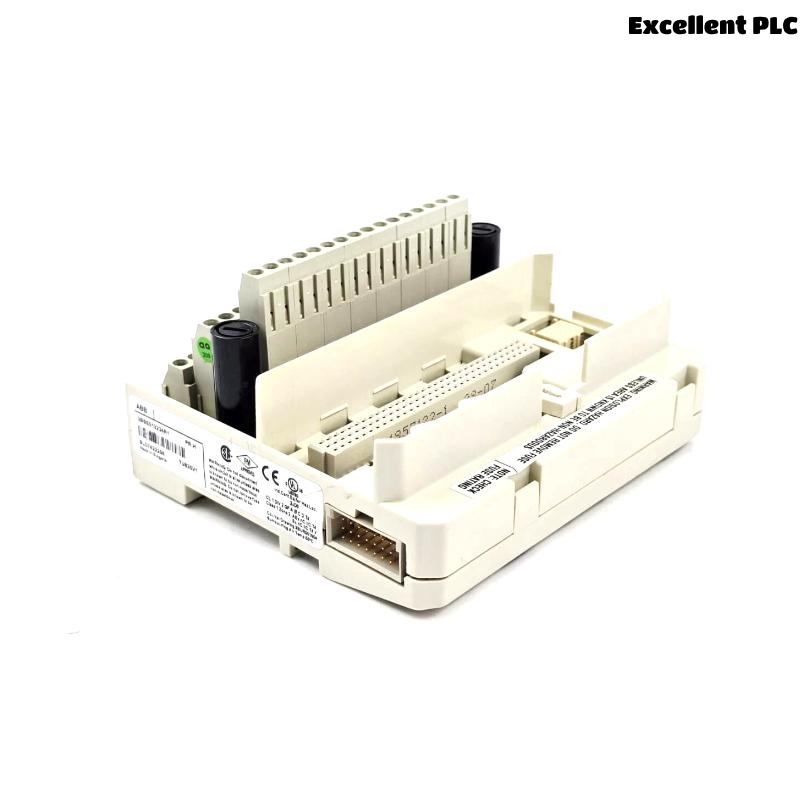

The ABB TU830V1 Extended Module Termination Unit (MTU) is a passive connection interface for the ABB S800 I/O system. It accommodates up to 16 I/O channels, with field wiring, fuses, and process power connections. The MTU provides mechanical keying for error prevention and supports DIN rail mounting with grounding.
Technical Specifications
| Parameter | Value |
|---|---|
| Article Number | 3BSE013234R2 |
| Type | Extended Module Termination Unit |
| I/O Channels | 16 |
| Process Connections | 56 |
| Voltage Rating | 50 V |
| Maximum Current per Channel | 2 A |
| Maximum Current Process Conn. | 5 A |
| Dimensions (W×D×H) | 64 × 120.5 × 110 mm |
| Weight | 0.28 kg |
| Mounting | DIN rail |
| Protection Class | IP20 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Certifications | CE, UL, ATEX, Marine (ABS, BV, DNV-GL, LR) |
| Dielectric Test Voltage | 500 V AC |
| EMC Standards | EN 61000-6-4, EN 61000-6-2 |
Applications
-
Field wiring interface for ABB S800 I/O modules
-
Industrial automation systems
-
Redundant and single I/O systems
-
Process industries such as oil & gas, power generation, and marine applications
Advantages
-
Supports up to 16 channels with 3-wire connections
-
Simplifies installation with integrated field power distribution
-
Mechanical keying prevents incorrect module insertion
-
DIN rail mounting with latching device for secure grounding
-
Certified for hazardous and marine environments
-
Compact and lightweight design
FAQ
Q1: How many I/O channels does the TU830V1 support?
A1: It supports up to 16 I/O channels.
Q2: Is the TU830V1 an active or passive unit?
A2: It is a passive unit used for field wiring connections.
Q3: What is the maximum rated voltage of the unit?
A3: The maximum rated voltage is 50 V.
Q4: Can it be used in hazardous locations?
A4: Yes, it is certified for ATEX Zone 2 and UL Class 1 Div 2.
Q5: What are the mounting options?
A5: It can be mounted on a DIN rail in either direction.
Q6: Which ABB I/O modules are compatible with TU830V1?
A6: Compatible modules include AI810, AO810, DI810, DO810, among others.
Q7: Does it include fuses?
A7: Yes, each isolated group includes a 6.3 A fuse.
Q8: What are its dimensions and weight?
A8: Dimensions are 64 × 120.5 × 110 mm and weight is 0.28 kg.
Q9: What is the maximum current per channel?
A9: The maximum current per I/O channel is 2 A.
Q10: Does it comply with RoHS and WEEE?
A10: Yes, it is compliant with EN 50581 and WEEE Directive 2012/19/EU.
Related Models (Same Series or Application)
| Model | Description | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| TU810V1 | Compact MTU for S800 I/O | 8 | 64×120.5×110 | 0.25 kg |
| TU811V1 | Extended MTU with shield connections | 8 | 64×120.5×110 | 0.26 kg |
| TU812V1 | MTU for redundant I/O | 16 | 64×120.5×110 | 0.29 kg |
| TU814V1 | MTU with isolation for S800 I/O | 8 | 64×120.5×110 | 0.27 kg |
| TU833V1 | MTU with high-density connections | 16 | 64×120.5×110 | 0.30 kg |
| TU835V1 | MTU with extra grounding options | 16 | 64×120.5×110 | 0.31 kg |
