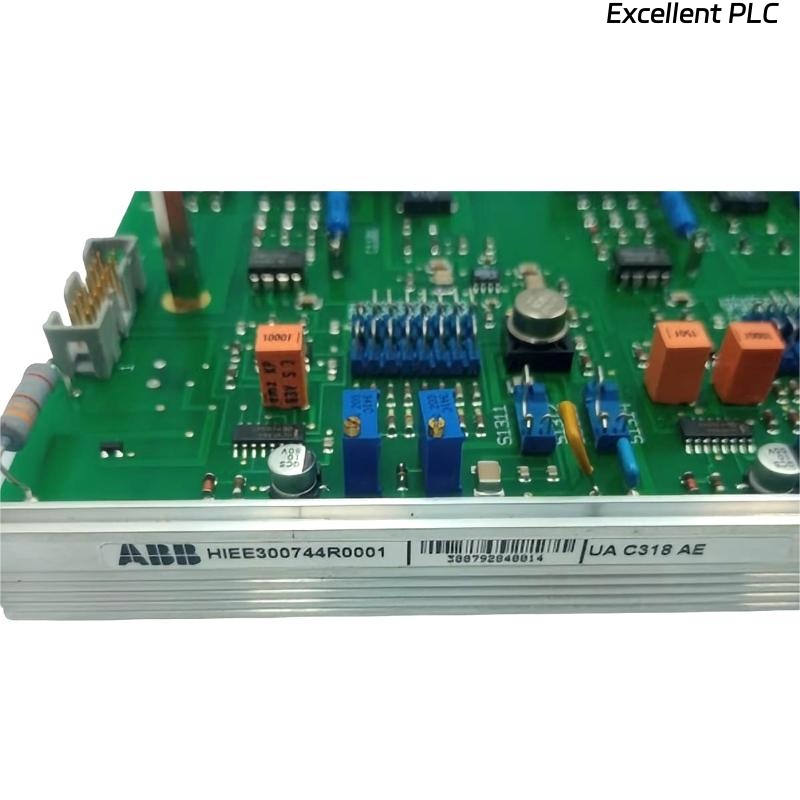

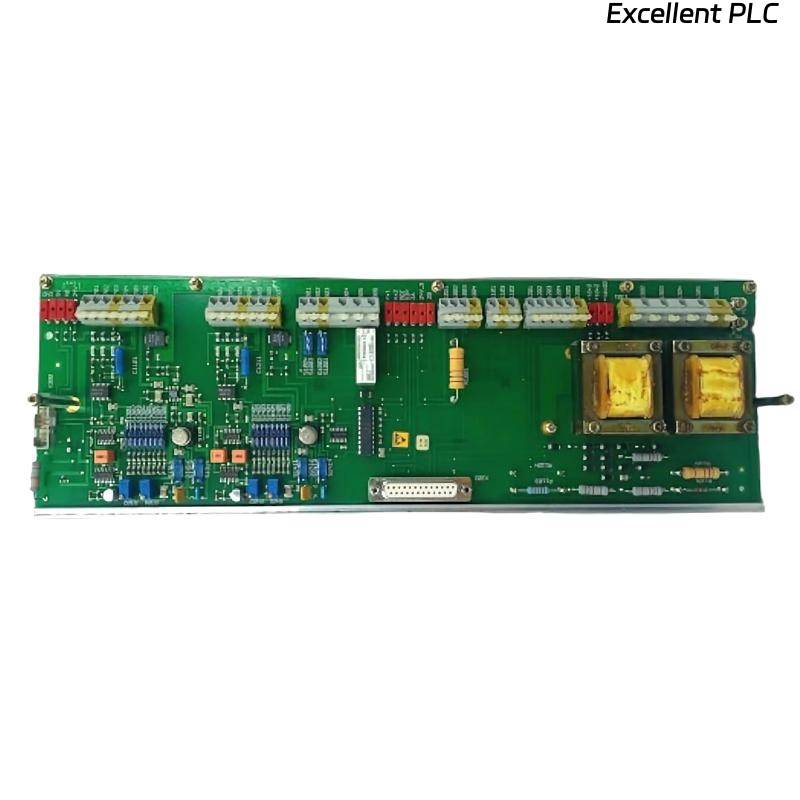

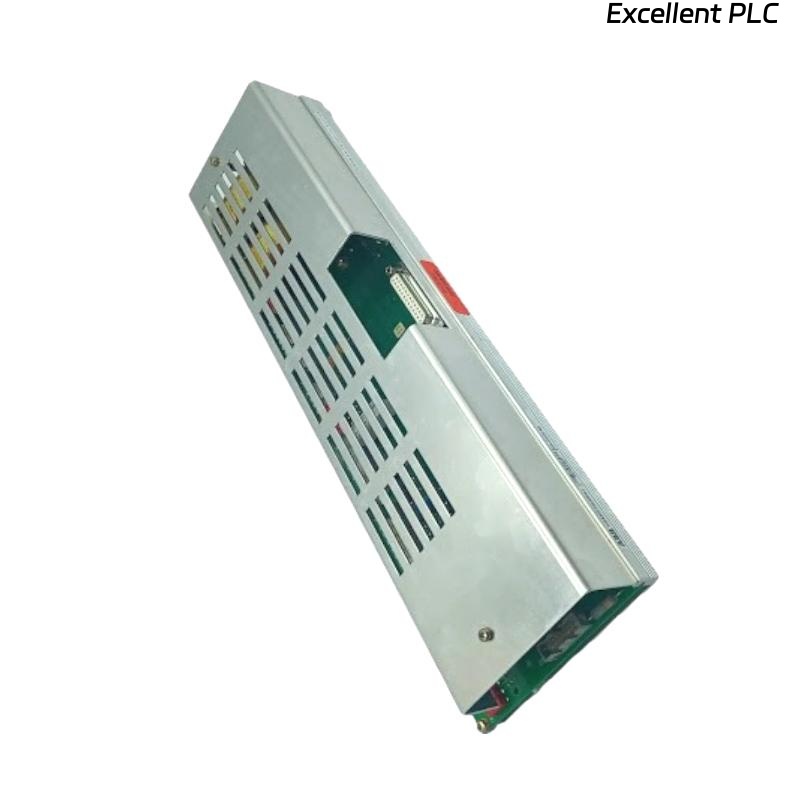

ABB UA C318 AE HIEE300744R0001 Inverter Motherboard

Product Introduction

The ABB UA C318 AE HIEE300744R0001 Inverter Motherboard is an industrial-grade control board engineered for ABB’s high-performance drive and inverter systems. Acting as the core logic platform of the inverter, it manages power conversion, signal processing, and communication between peripheral modules. Designed for heavy-duty industrial environments, the motherboard integrates advanced semiconductor components, high-speed communication interfaces, and multi-layer PCB architecture to ensure stable operation under demanding conditions such as variable loads, fluctuating voltages, and continuous 24/7 duty cycles.

Its design emphasizes precise motor control, energy efficiency, and robust diagnostics. The board’s embedded control firmware supports real-time data acquisition and rapid response to changes in process parameters, allowing plant operators to maintain productivity and reduce downtime.

Technical Specifications

Applications

• Variable-Frequency Drives (VFDs): Provides precise motor speed control for pumps, compressors, and fans.

• Renewable Energy Systems: Integrates with solar or wind inverter units to manage DC-AC conversion.

• Process Automation: Controls conveyor belts, mixers, and other motion equipment in manufacturing plants.

• HVAC Systems: Enhances efficiency of large-scale heating, ventilation, and air-conditioning units.

• Water Treatment Facilities: Ensures stable operation of high-power pumping systems.

• Heavy Industry: Suitable for mining, steel production, and chemical processing environments.

Advantages

• High Reliability: Rigorously tested to withstand industrial temperature ranges and high vibration.

• Advanced Communication: Multiple industrial protocols for easy integration with PLCs and SCADA systems.

• Energy Efficiency: Optimized DSP algorithms reduce switching losses and improve power factor.

• Enhanced Diagnostics: Built-in fault logging and real-time monitoring simplify maintenance.

• Scalability: Modular design supports future firmware updates and expansion of I/O.

• Protective Features: ESD, surge, and over-current protections increase lifespan and operational safety.

FAQ

1. What communication protocols are supported by this motherboard?
   It supports RS-485, CANopen, Modbus RTU, and optional fiber-optic links.

2. Can firmware be updated in the field?
   Yes, on-board flash updates can be performed through the maintenance port or via RS-485.

3. What is the recommended control power supply?
   A stable 24 V DC ±10 % power supply with less than 50 mV ripple is recommended.

4. How does the board handle electromagnetic interference (EMI)?
   A 6-layer PCB with dedicated ground planes, shielding, and conformal coating minimizes EMI impact.

5. Is it compatible with ABB ACS800 and ACS880 series drives?
   Yes, it integrates seamlessly with both ACS800 and ACS880 drive families.

6. What are the protection mechanisms for over-current conditions?
   Hardware current sensing combined with firmware-based shutdown protects against over-current.

7. How is heat dissipation managed?
   Passive convection is standard, with optional forced-air cooling if enclosure conditions require it.

8. What diagnostic tools are available?
   Built-in self-test routines, error LEDs, and data logging accessible via ABB DriveWindow or similar software.

9. Is there support for redundant communication paths?
   Dual-channel RS-485 and optional fiber redundancy are available for critical applications.

10. What is the maximum switching frequency supported by the onboard DSP?
    The DSP supports PWM switching frequencies up to 20 kHz depending on configuration.
