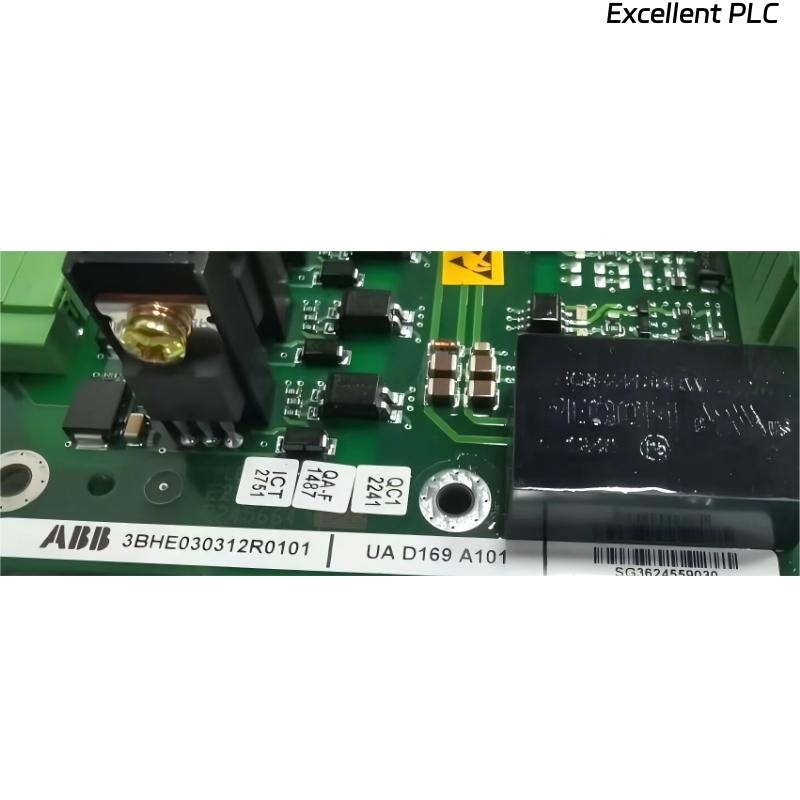

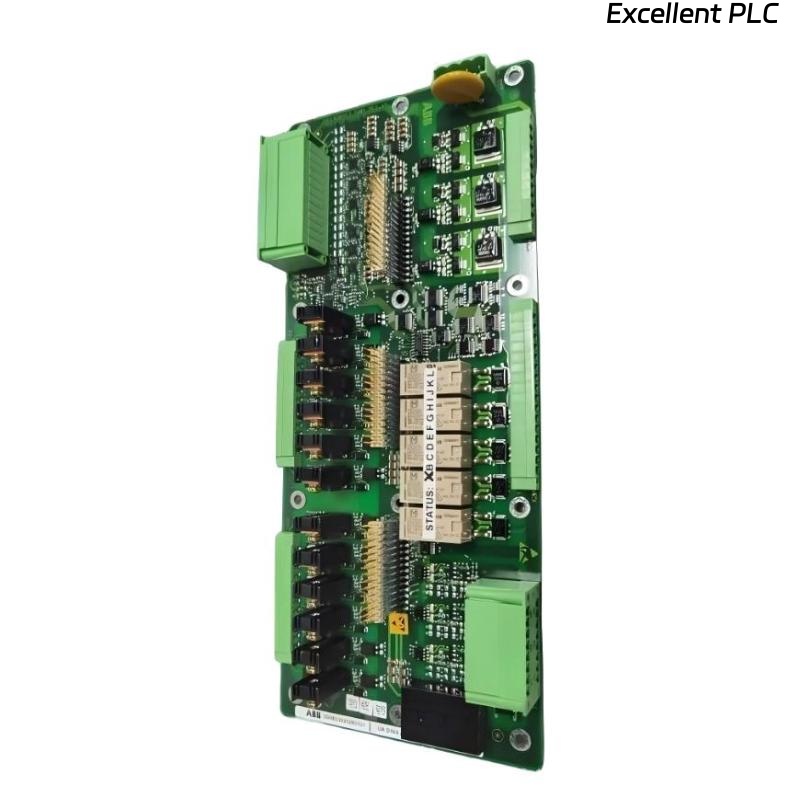

ABB UA D169 A101 3BHE030312R0101 Control Board

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB UA D169 A101 3BHE030312R0101 Control Board is a high-performance electronic control module designed for ABB UA series automation systems. This board serves as a central interface for processing control signals, managing communication between field devices and the main control unit. It supports both digital and analog control functions, ensuring precise and reliable operation in industrial environments.

Engineered with industrial-grade components, the UA D169 A101 Control Board features overvoltage protection, EMI shielding, and conformal coating, providing resistance against electrical noise, moisture, and dust. Its modular design allows for quick installation, replacement, and system scalability, making it ideal for distributed control systems (DCS), process automation, and critical industrial applications.

This control board is widely used in ABB UA systems for monitoring, processing, and controlling multiple input and output signals, ensuring seamless operation of industrial machinery, process instrumentation, and automated systems.

---
