Product Overview

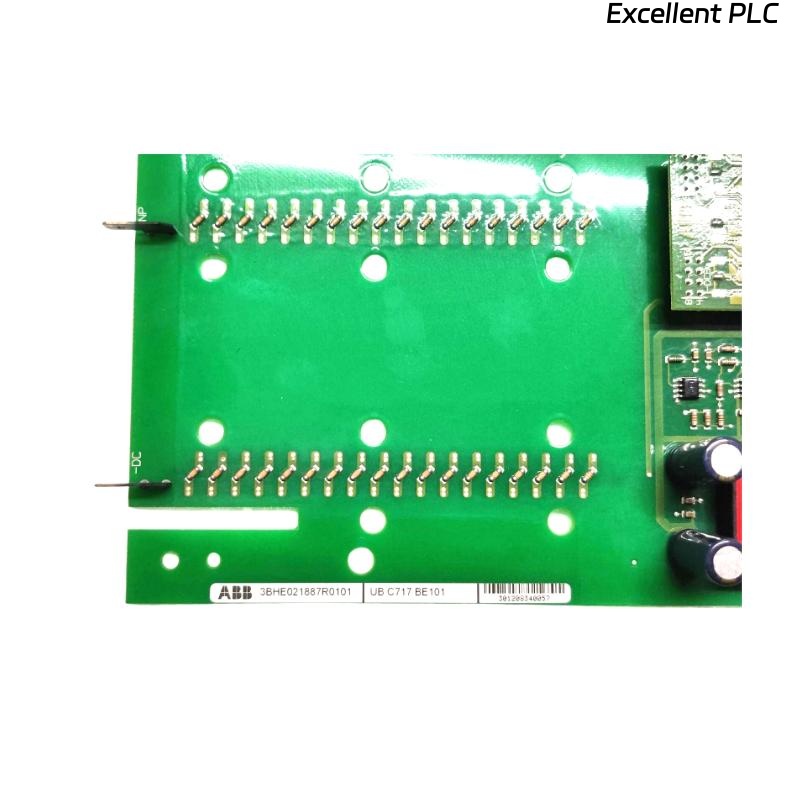

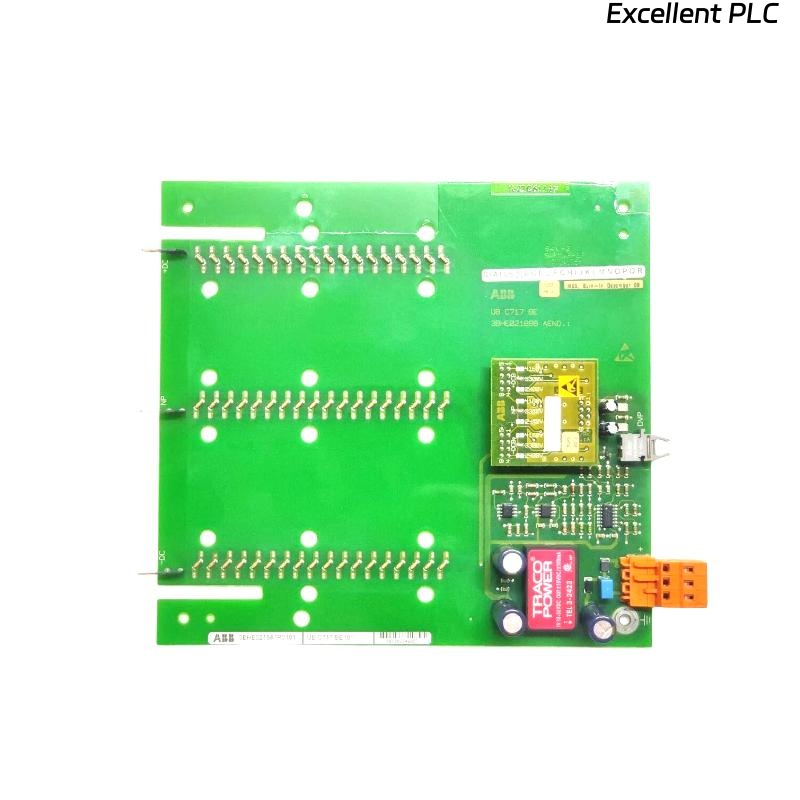

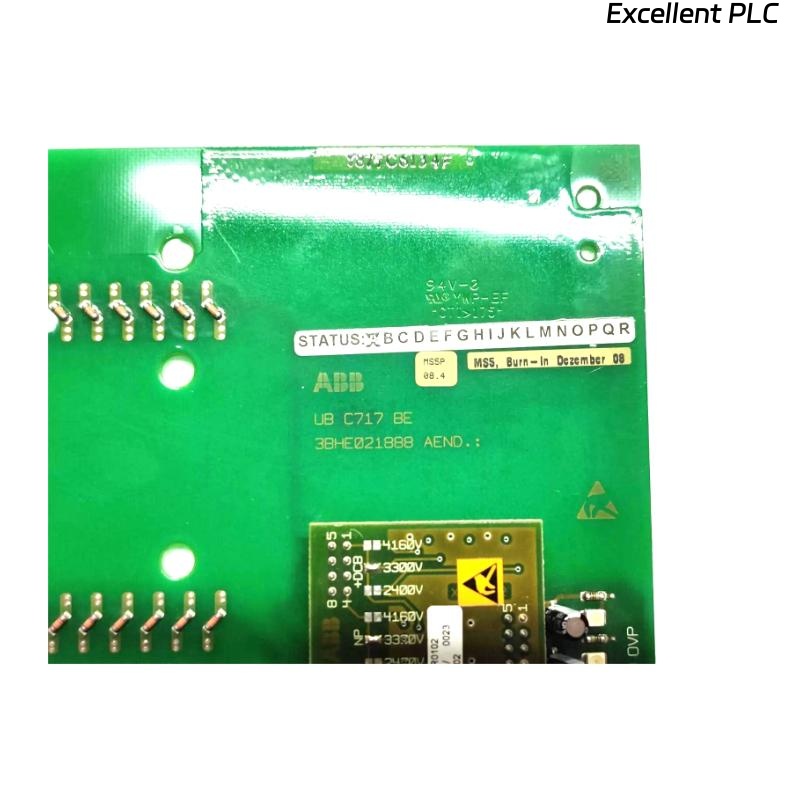

ABB UBC717BE101 (3BHE021887R0101) OVVP-Board Coated is a high-reliability over-voltage protection board designed for ABB industrial automation systems. It is primarily used to detect and prevent over-voltage faults in sensitive control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | UBC717BE101 |
| Part Number | 3BHE021887R0101 |
| Function | Over-Voltage Protection Board |
| Input Voltage | 24 V DC (typical) |
| Maximum Output Voltage | 27 V DC |
| Trip Voltage Threshold | 27 V DC |
| Response Time | ≤ 10 ms |
| Reset Method | Manual reset |
| Dimensions | 225 × 122 × 25 mm |
| Weight | 0.3 kg |
| Coating | Yes (Protective Coated) |
| Mounting Type | PCB Rack Mounted |
| Application Category | Industrial Automation, Power Systems |
Applications
-
Power generation and transmission control systems
-
Industrial automation and PLC cabinets
-
Oil, gas, and chemical process industries
-
Transportation control and railway systems
-
Distributed control systems (DCS) for heavy industries
Advantages
-
Fast response time ensures minimal system exposure
-
Compact, lightweight design for efficient cabinet integration
-
Coated for environmental protection and extended durability
-
Reliable trip mechanism safeguards expensive automation equipment
-
Compatible with various ABB PLC and DCS systems
FAQs
1. What is the main function of the UBC717BE101 module?
The module provides over-voltage protection in industrial control systems by tripping when voltage exceeds safe limits.
2. What voltage will trigger the protection mechanism?
The board typically trips at or above 27 V DC.
3. How fast does it respond to an over-voltage event?
The trip response time is within 10 milliseconds.
4. Is the board coated for protection?
Yes, it is conformally coated for enhanced durability in industrial environments.
5. How is the module reset after tripping?
The module includes a manual reset function for restoring operation.
6. Can it be used with other ABB control modules?
Yes, it is designed to integrate with a wide range of ABB DCS and PLC components.
7. What is the typical installation method?
The board is mounted on a PCB rack within control cabinets.
8. What kind of environments is this module suited for?
It is suited for harsh industrial environments, including those with voltage fluctuation risks.
9. Is this module suitable for use in environments with electrical noise or interference?
Yes, the module is designed with protective coatings and robust circuitry to perform reliably in environments with high electrical noise or EMI (Electromagnetic Interference).
10. What is the weight and size of the UBC717BE101?
It measures 225 × 122 × 25 mm and weighs 0.3 kg.
Related or Similar Models
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| UBC717BE102 | Variant of the same OVVP board family | 225 × 122 × 25 | 0.3 kg |
| 3BHE021888R0101 | Next series OVVP-Board | 230 × 120 × 26 | 0.32 kg |
| XV C722 AE102 | Voltage control board | 215 × 110 × 25 | 0.28 kg |
| 3BHB002751R0102 | ABB I/O Interface Board | 225 × 120 × 25 | 0.3 kg |
| UFC760BE142 | ABB controller PCB module | 220 × 120 × 25 | 0.3 kg |
| UBC717BE100 | Early model of same OVVP board family | 225 × 122 × 25 | 0.3 kg |
