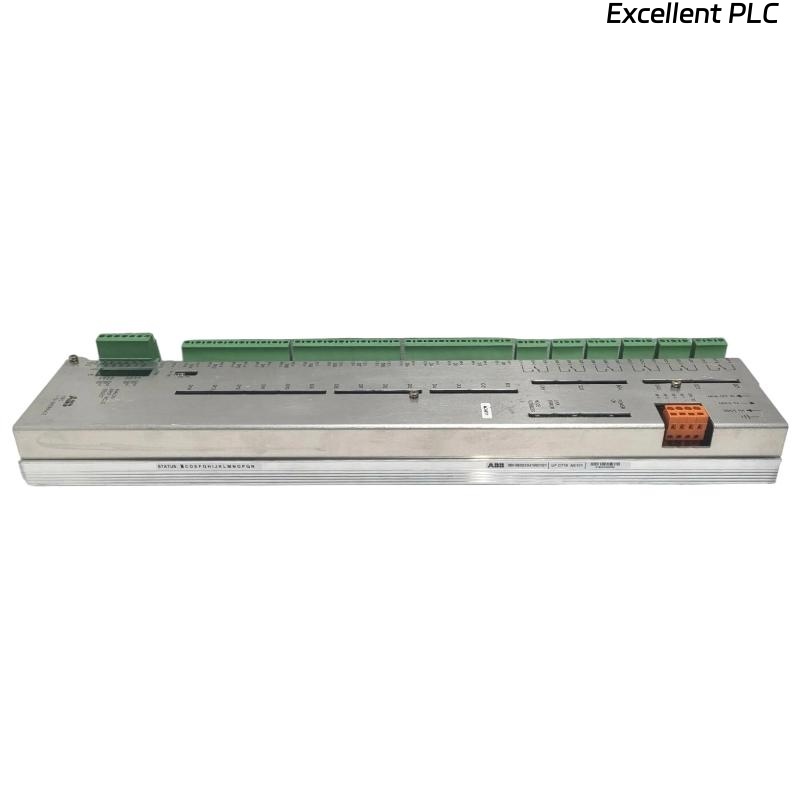

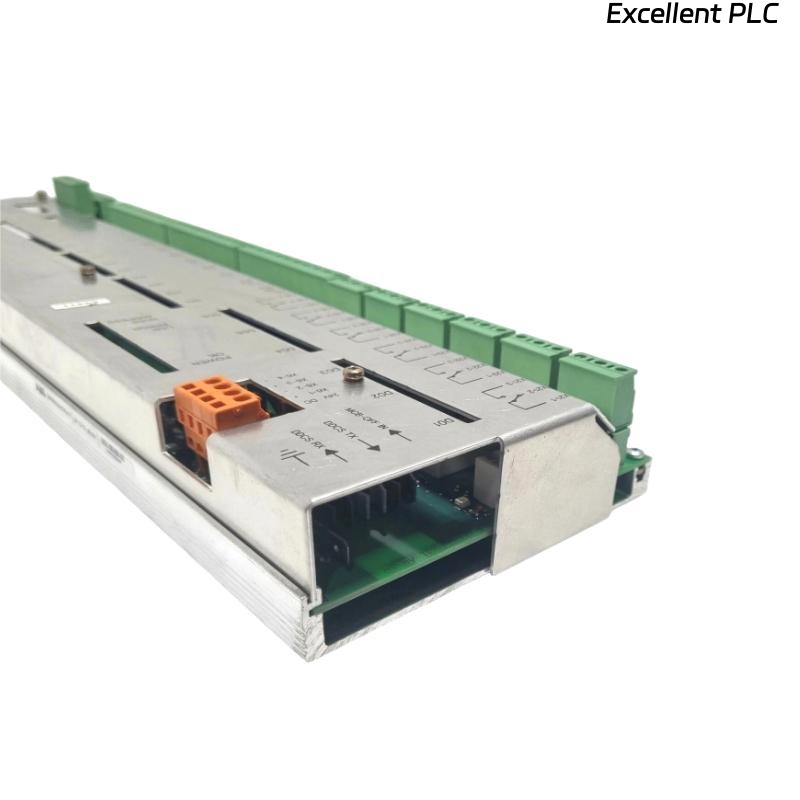

ABB UF C719 AE 3BHB003041R0001 I/O Control Board

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB UF C719 AE (3BHB003041R0001) I/O Control Board is a high-precision industrial interface module developed for advanced automation and control systems. As part of ABB’s well-established process automation family, this module serves as a vital link between the central processing controller and the field devices, ensuring reliable signal communication and efficient process control across industrial applications.

The UF C719 AE board supports both analog and digital input/output operations, combining multiple channels for flexible system configuration. Designed to handle fast data acquisition and stable signal transmission, it integrates advanced signal conditioning, electrical isolation, and diagnostic features to enhance system safety and uptime.

Its robust circuit architecture enables high immunity against electrical noise and transient disturbances, making it suitable for harsh industrial and power generation environments. The module can be installed within ABB control systems such as Advant, Symphony Plus, or AC800M, and supports direct communication with distributed control networks.

---

Technical Specifications

---

Applications

The ABB UF C719 AE (3BHB003041R0001) is specifically designed for high-reliability process control systems that demand stable, real-time data communication and precise signal handling. Its flexible input/output configuration allows it to support a wide range of industrial applications, including:

• Process control and automation systems in oil, gas, and chemical industries.

• Power generation and turbine control systems for real-time synchronization and protection logic.

• Manufacturing plants requiring distributed control and data acquisition.

• Marine automation systems, where durability and noise immunity are essential.

• Renewable energy plants for monitoring and control of wind and solar operations.

• Building automation and HVAC systems for centralized signal management.

The UF C719 AE is often installed as a part of redundant control architectures, ensuring continuous operation even in the event of partial hardware failure.

---

Advantages

The UF C719 AE I/O Control Board offers a combination of reliability, precision, and flexibility that makes it a cornerstone in ABB’s automation solutions. Its design focuses on operational safety, fast response, and long-term system stability.

• High precision analog and digital signal processing with configurable channel types.

• Fast data response for real-time monitoring and control loops.

• Integrated protection features guard against short circuits, overvoltage, and reverse polarity.

• Built-in diagnostics provide early fault detection and system health monitoring.

• Strong electrical isolation ensures signal integrity and prevents ground loops.

• Wide environmental tolerance suitable for industrial and marine installations.

• Flexible configuration supporting multiple control system topologies.

• Compact and lightweight design allowing easy installation and maintenance.

• Low power consumption, reducing energy requirements for control panels.

• Full compatibility with ABB DCS and PLC platforms, ensuring easy integration and scalability.

---

FAQ

1. What type of I/O channels does the UF C719 AE support?
   It supports both analog and digital inputs and outputs, configurable for different voltage and current ranges.

2. Can this module be used in ABB Advant or Symphony Plus systems?
   Yes, it is fully compatible with ABB Advant, Symphony Plus, and AC800M platforms.

3. How does the board communicate with the main processor?
   Communication occurs through the ABB system bus or via RS-485 serial communication interfaces.

4. Is channel configuration adjustable by software?
   Yes, channels can be configured through ABB’s engineering tools to meet specific process requirements.

5. Does it provide electrical isolation between field and logic circuits?
   Yes, with a 1500 V RMS isolation rating to ensure signal stability and safety.

6. How does the UF C719 AE handle fault detection?
   It includes built-in diagnostics that monitor input/output signal integrity, short circuits, and communication errors.

7. What is the maximum data acquisition speed per channel?
   Each analog channel can sample signals at rates up to 1 kHz.

8. Can multiple UF C719 AE modules operate within one control rack?
   Yes, multiple boards can be installed in the same rack for system expansion or redundancy.

9. How does the board protect against voltage transients?
   It uses surge suppression and transient filtering to protect circuits from industrial voltage spikes.

10. Can firmware be updated in the field?
    Yes, firmware updates can be performed via ABB configuration software without removing the module.

---
