Product Description

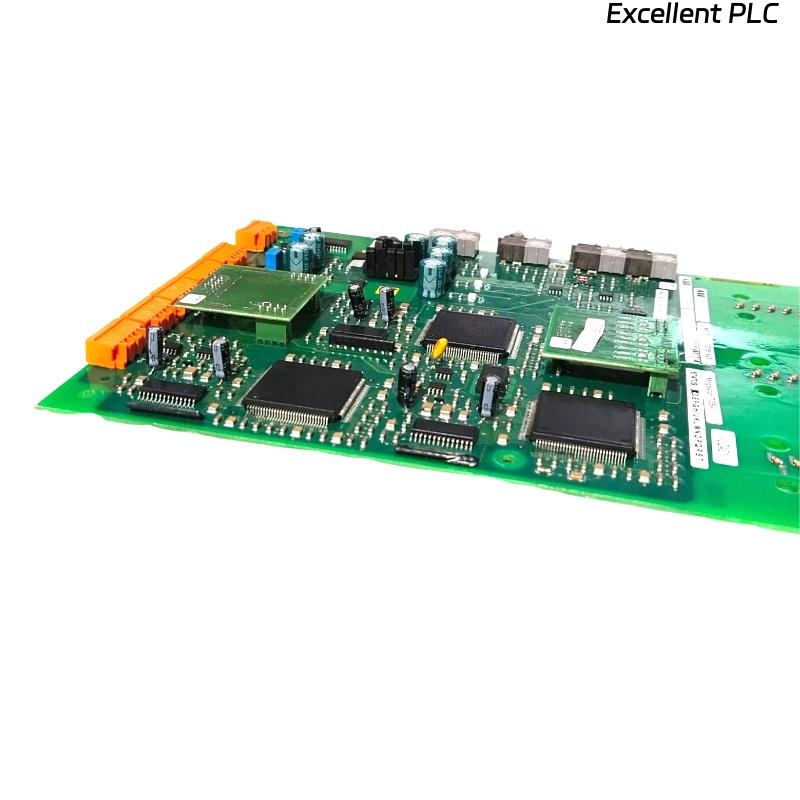

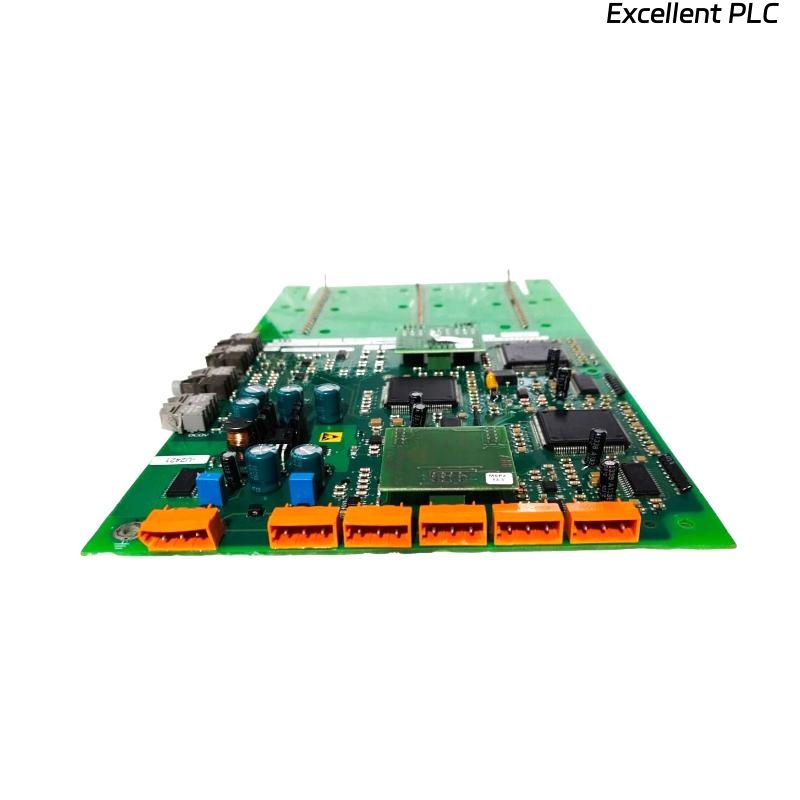

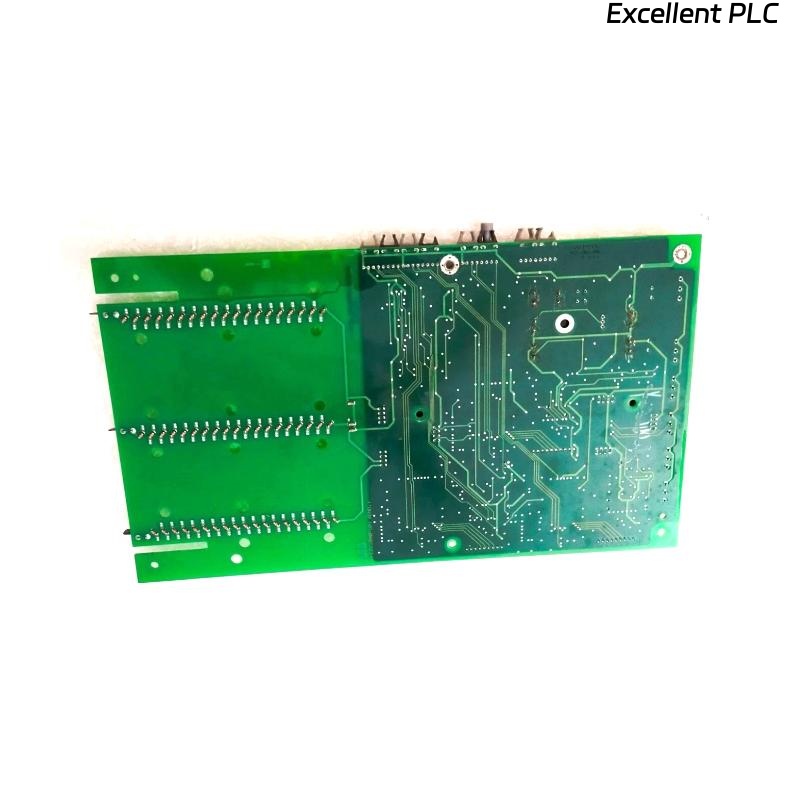

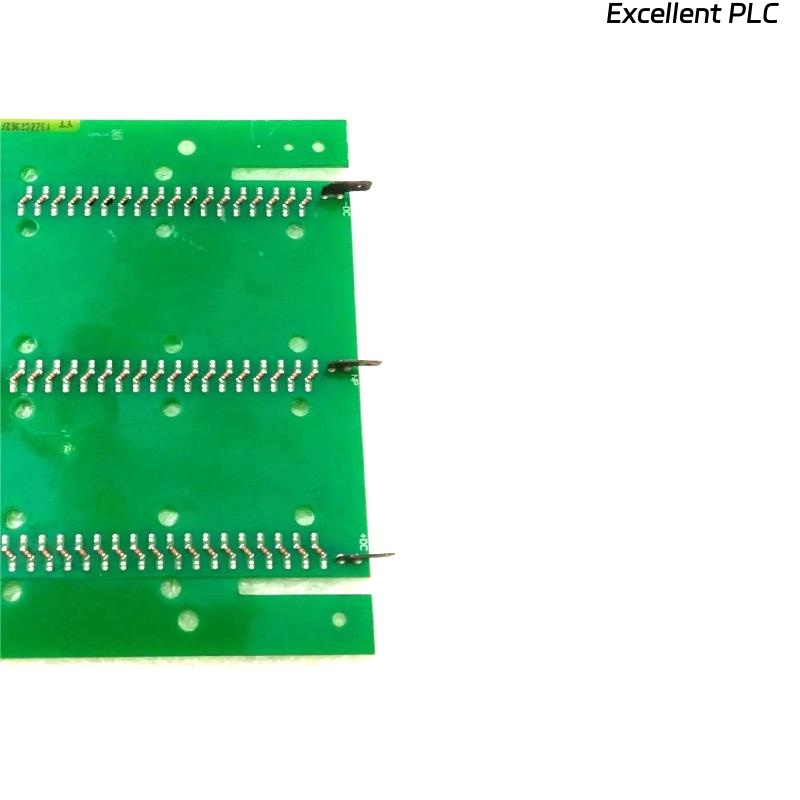

The ABB UFC721BE101 (3BHE021889R0101) is a high-performance ADCVI-Board designed for industrial control systems. It provides precision analog-to-digital conversion for monitoring and control processes, ensuring stable and reliable signal handling in automation applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | UFC721BE101 |
| Part Number | 3BHE021889R0101 |
| Product Type | ADCVI-Board |
| Input Type | Analog Signal |
| Output Type | Digital Signal |
| Communication | Internal Control Bus |
| Operating Voltage | 24 VDC |
| Power Consumption | < 5 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions | 170 × 100 × 20 mm |
| Weight | 0.2 kg |
Applications
-
Industrial automation systems
-
Process control units
-
Data acquisition systems
-
Power plant control systems
-
Oil & gas, chemical, and manufacturing industries
Advantages
-
High accuracy analog-to-digital signal conversion
-
Stable performance under industrial conditions
-
Compact size with lightweight design
-
Easy integration with ABB control platforms
-
Low power consumption and high durability
Frequently Asked Questions (FAQ)
1. What is the main function of the UFC721BE101 ADCVI-Board?
The main function is to convert analog signals into digital signals for further processing in control systems.
2. Is this board compatible with ABB’s AC800M series?
Yes, it is designed for compatibility with several ABB control systems including the AC800M.
3. Can the board operate in high-temperature environments?
It operates reliably within 0°C to +60°C.
4. What is the power requirement of this board?
It requires less than 5 watts at 24 VDC.
5. How is the board mounted in the system?
It is typically mounted inside control cabinets or DCS backplanes.
6. Does it require any cooling system?
No additional cooling system is required under normal operating conditions.
7. Is the UFC721BE101 hot-swappable?
No, it should be powered down before replacement or maintenance.
8. What type of signals can it process?
It handles a wide range of analog signals from sensors and field instruments.
9. How is data transmitted from the board?
Data is transmitted via internal control or communication buses.
10. Can this board be used in hazardous environments?
It is recommended to check system enclosure compliance for hazardous environments.
