Product Overview

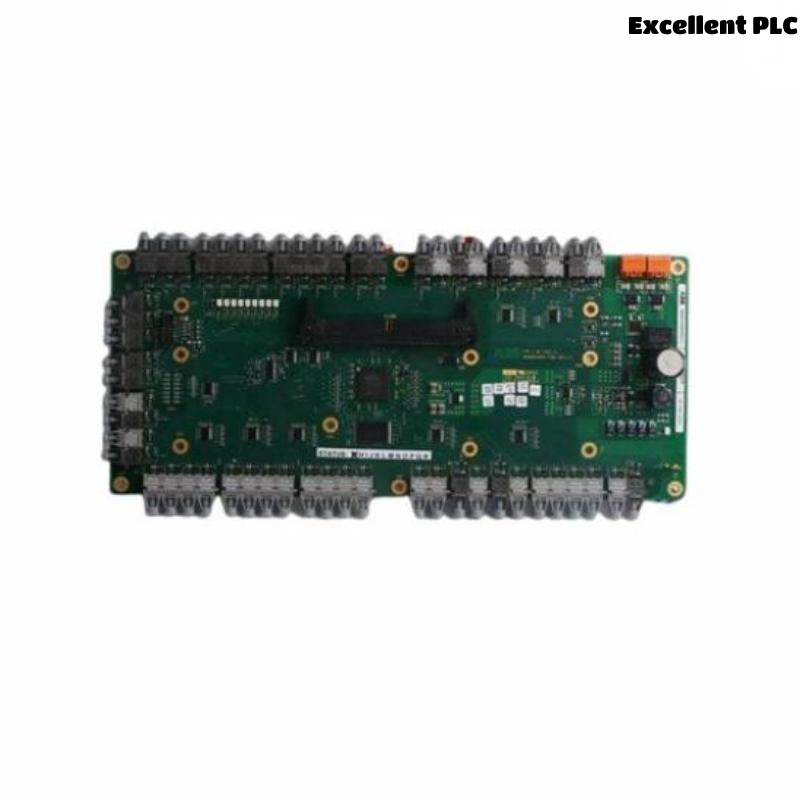

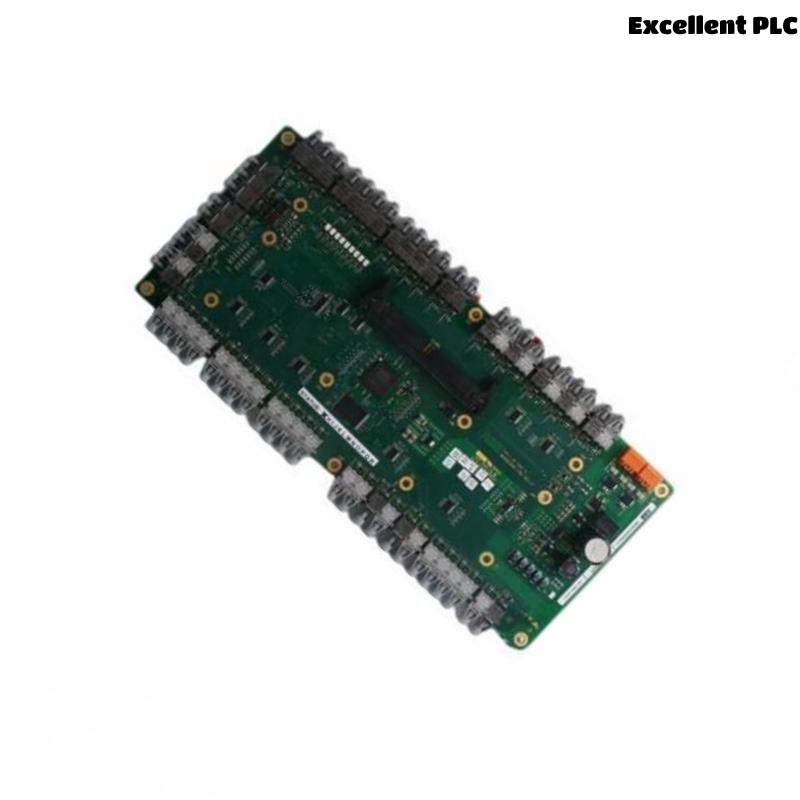

The ABB UFC760BE143 3BHE004573R0143 is a high-quality Green Board (control PCB) designed for advanced ABB drive systems and industrial automation applications. This board provides essential signal routing, control logic integration, and interface support within ABB’s power electronics and process control architecture.
Optimized for long-term reliability and robust performance, the UFC760BE143 ensures precise electronic control and is an integral part of the ABB power conversion and control platform.
Key Features
-
High-performance signal processing and control board
-
Designed for compatibility with ABB industrial drives and converters
-
Ensures reliable communication between control units and peripheral modules
-
Built with industrial-grade components for extended service life
-
Compact PCB design for easy integration into control cabinets
-
Fully compliant with ABB engineering standards
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Green Board (Control PCB) |
| Model Number | UFC760BE143 |
| Ordering Code | 3BHE004573R0143 |
| Application | ABB drive systems and power control platforms |
| Board Type | Signal interface/control board |
| PCB Material | Multi-layer industrial-grade FR4 |
| Communication | Integrated signal interface with control processors |
| Voltage Compatibility | System-dependent (typically low-voltage control logic) |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Mounting Type | Plug-in/module slot |
| Dimensions | 150 x 120 x 50 mm |
| Weight | 1.2 kg |
| Certifications | CE, RoHS, UL (component level) |
Note: Exact specifications may vary depending on system version and firmware compatibility.
Industry Applications
-
Metals and Mining – Drives and motor control systems
-
Power Generation – Turbine and generator excitation systems
-
Oil & Gas – Control panels and frequency converters
-
Marine Propulsion – Electric drive regulation and signal processing
-
HVDC & FACTS – Power electronics management in grid control systems
-
Industrial Automation – Integration with PLC and DCS frameworks
Advantages
-
Enhanced Signal Integrity: Optimized PCB layout minimizes noise and EMI
-
Seamless Integration: Tailored for ABB control and drive configurations
-
Long-Term Durability: Built for industrial environments and 24/7 operation
-
Fast Replacement: Designed as a plug-in board for ease of service
-
ABB Quality Assurance: Factory-tested for compatibility and reliability
-
Space Efficient: Small form factor maximizes panel space usage
Frequently Asked Questions (FAQ)
-
What is the main function of the UFC760BE143 Green Board?
It facilitates signal interfacing and control processing in ABB drive systems. -
Which systems is it compatible with?
Compatible with ABB converters, motor control units, and power electronics platforms. -
Is it suitable for high-temperature environments?
It operates reliably in standard industrial temperatures up to +60°C. -
Can the board be field-replaced?
Yes, it is designed for easy plug-in installation and maintenance. -
Does it support communication with other modules?
Yes, it handles communication between control CPUs and I/O subsystems. -
Is it RoHS compliant?
Yes, the board meets RoHS and other industrial environmental standards. -
Is this product still supported by ABB?
Yes, it is part of ABB’s ongoing support inventory and legacy system components. -
What is the board’s form factor?
It uses a compact rectangular form suitable for cabinet or rack installation. -
Is documentation available for system integration?
Yes, ABB provides manuals and datasheets for integration and configuration. -
What is the ordering code for this product?
The ordering code is 3BHE004573R0143.
