Product Introduction

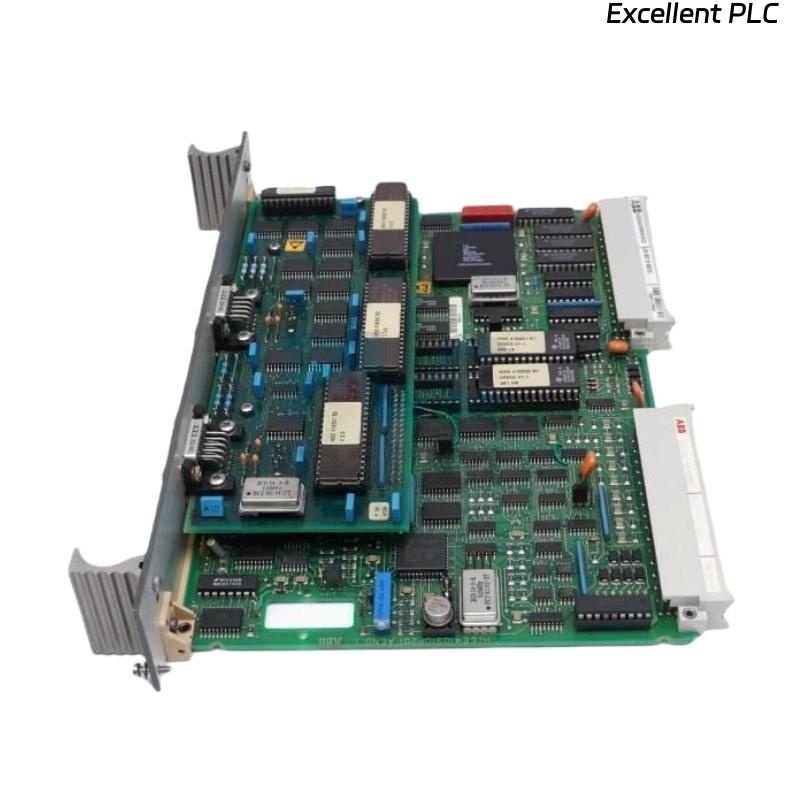

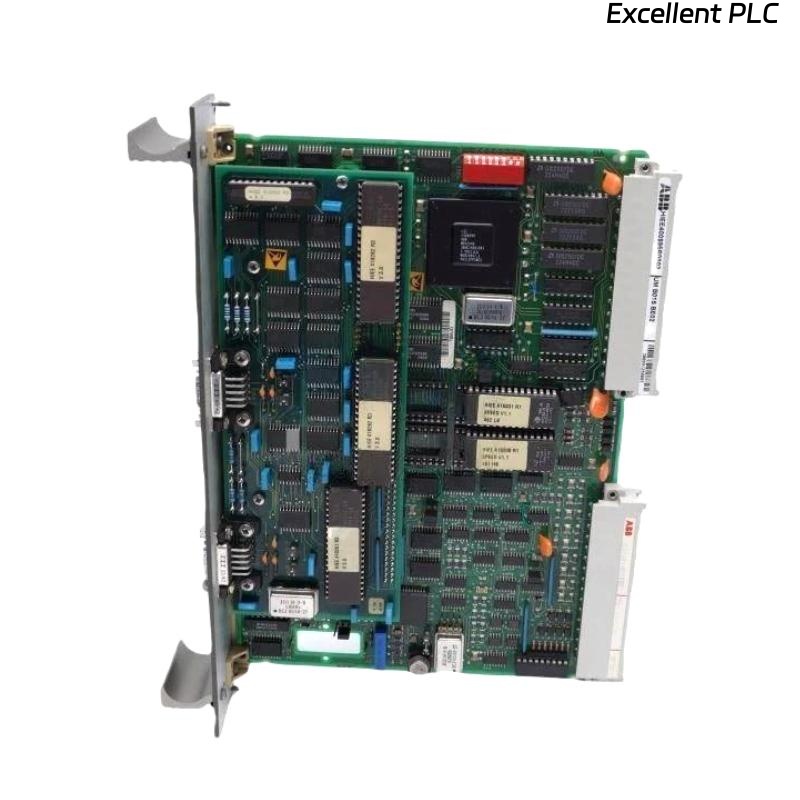

The ABB UM B015 BE02 HIEE400995R0002 Control Module is a high-performance industrial controller designed to serve as the core logic and communication platform within ABB’s distributed control systems. It manages critical tasks such as real-time process control, high-speed signal processing, and secure communication with field devices and supervisory networks.
Engineered with a robust multi-layer PCB and advanced microprocessor technology, the module ensures deterministic response times and exceptional reliability, even in environments subject to vibration, electrical noise, and extended operating hours. Its modular form factor allows easy integration into ABB control cabinets or third-party enclosures, enabling seamless scalability and simplified maintenance.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | UM B015 BE02 HIEE400995R0002 |
| Brand | ABB |
| Product Type | Industrial Control Module |
| Processor/MCU | 32-bit high-speed industrial processor with hardware floating point |
| System Memory | 512 MB DDR3 SDRAM |
| Non-Volatile Memory | 256 MB Flash for firmware and configuration storage |
| Input Voltage | 24 V DC (18–36 V DC range) |
| Typical Power Consumption | <15 W |
| Communication Interfaces | Ethernet (10/100/1000 Mbps), RS-485, CANbus, Modbus TCP/RTU |
| Supported Protocols | OPC UA, Modbus, Profinet, EtherNet/IP |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| PCB Layers | 6-layer FR-4, lead-free |
| Protection Features | ESD suppression, surge protection, conformal coating |
| Cooling Method | Passive convection; optional forced-air compatible |
| Dimensions (L × W × H) | 180 × 120 × 35 mm |
| Weight | 0.9 kg |
| Compliance | CE, UL, RoHS, IEC 61131-2 |
| MTBF | >100,000 hours under recommended conditions |
Applications
-
Distributed Control Systems (DCS): Primary controller for ABB 800xA and similar automation platforms.
-
Process Industries: Regulates chemical, pharmaceutical, and food-processing operations with high precision.
-
Power Generation: Coordinates turbine, boiler, and generator controls in power plants.
-
Manufacturing Automation: Supervises robotics, conveyor lines, and complex motion systems.
-
Oil & Gas: Manages drilling, refining, and pipeline monitoring with real-time responsiveness.
-
Water Treatment & Utilities: Maintains continuous control of pumping stations and filtration systems.
Advantages
-
High Reliability: Industrial-grade components and conformal coating withstand harsh environments.
-
Real-Time Performance: Fast 32-bit processor ensures deterministic control cycles.
-
Flexible Integration: Multiple industrial communication protocols simplify connectivity with PLCs, HMIs, and SCADA.
-
Secure Operation: Built-in encryption and user authentication for Ethernet interfaces safeguard critical data.
-
Energy Efficiency: Low power draw reduces cabinet heat load and operating costs.
-
Scalability: Modular architecture supports easy expansion and firmware upgrades.
FAQ
-
Which industrial communication protocols are supported?
OPC UA, Modbus TCP/RTU, Profinet, and EtherNet/IP are all supported. -
Can firmware be upgraded without removing the module?
Yes, firmware can be updated via Ethernet using ABB’s maintenance tools. -
What is the recommended power supply specification?
A regulated 24 V DC source within 18–36 V range and ripple below 50 mV. -
How does the module protect against electromagnetic interference?
Six-layer PCB design with ground planes and conformal coating provides robust EMI immunity. -
Does it support redundant network configurations?
Yes, dual Ethernet ports allow ring or star redundancy for high availability. -
What diagnostic features are available?
Built-in self-test routines, status LEDs, and detailed event logs accessible through ABB engineering software. -
Is real-time clock synchronization supported?
Yes, it supports NTP and IEEE 1588 Precision Time Protocol for accurate time stamping. -
Can the module be integrated into third-party DCS or PLC systems?
Yes, with standard Ethernet/IP and Modbus compatibility, third-party integration is straightforward. -
What is the maximum data update rate on Ethernet?
Up to 1 ms cycle time depending on network topology and load. -
How is heat dissipation managed?
The unit uses passive convection and is compatible with optional forced-air cooling if needed.
