Product Introduction

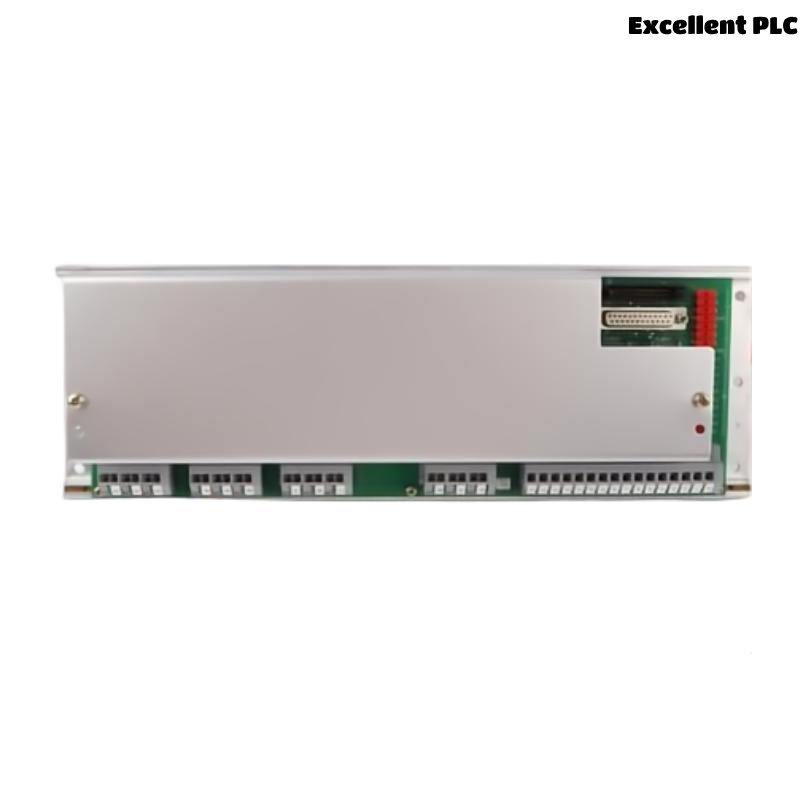

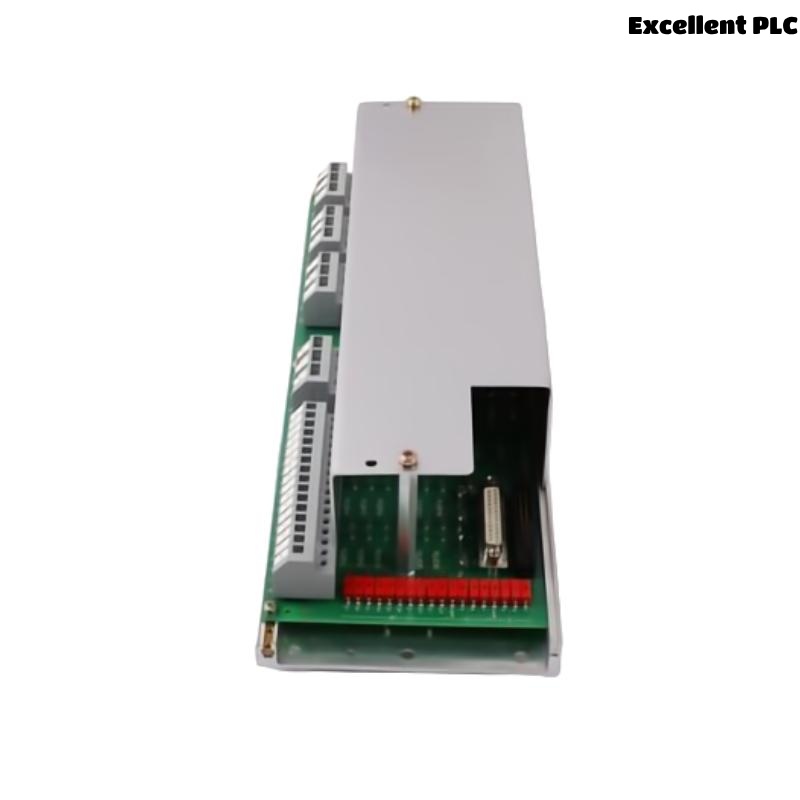

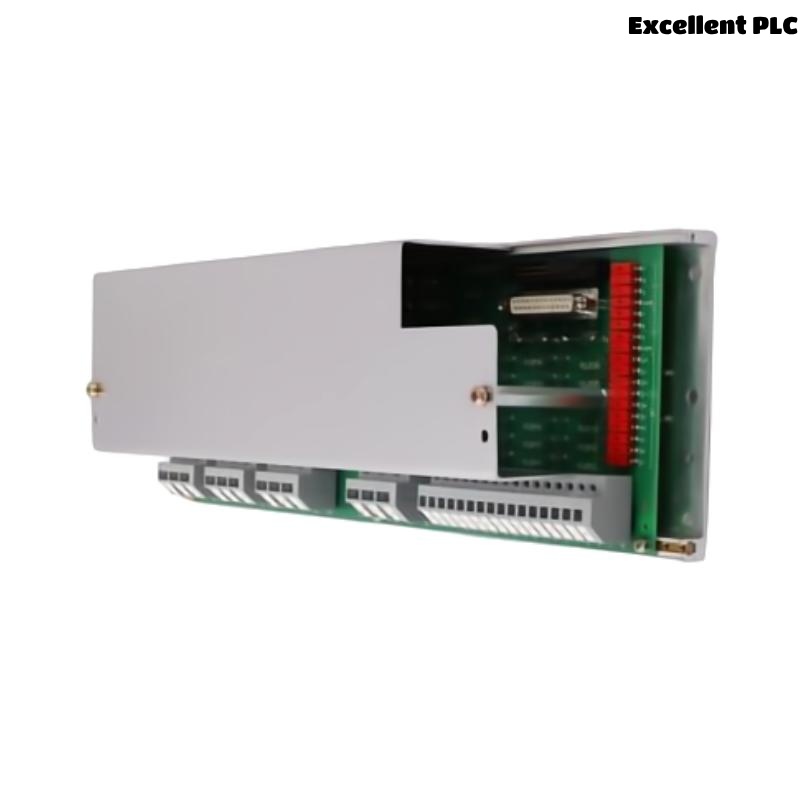

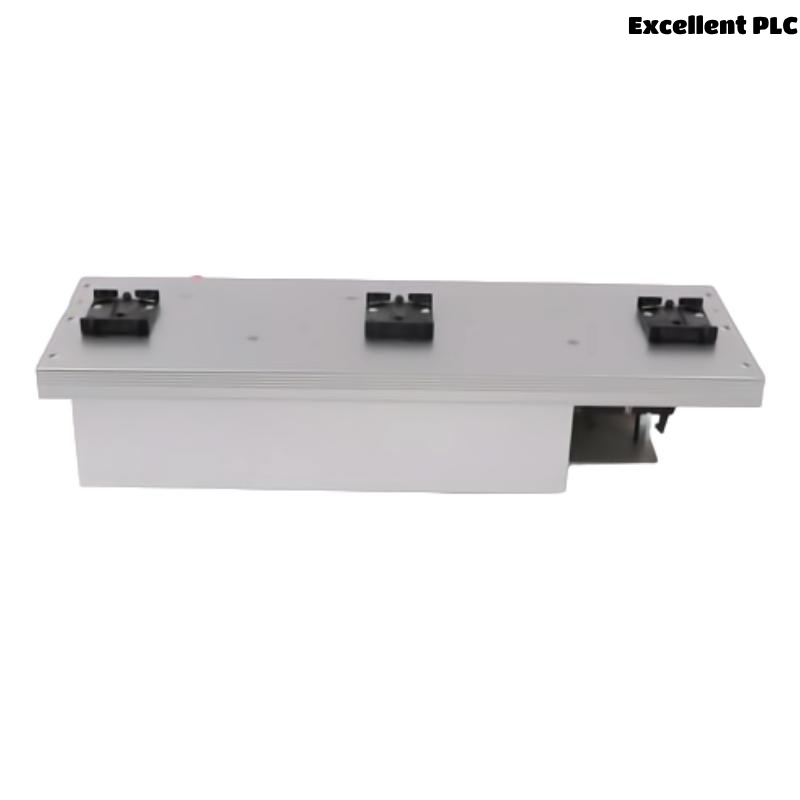

The ABB UNC 4672A,V1 HIEE205012R0001 is an industrial-grade analog measuring card designed to deliver accurate, real-time analog signal acquisition and processing within complex automation and control systems. As part of ABB’s robust lineup of measurement and monitoring modules, this card plays a vital role in capturing analog process variables such as temperature, pressure, flow, and voltage.
Used primarily in distributed control systems (DCS), process automation environments, and SCADA applications, the UNC 4672A,V1 is engineered to deliver high-precision measurement, long-term stability, and efficient signal isolation. This module allows seamless integration with ABB’s process control platforms, enhancing performance monitoring and enabling responsive control decisions in real time.
With its sturdy construction, electromagnetic compatibility, and extended temperature tolerance, this analog measuring card is suitable for installation in harsh industrial environments. It supports multiple input channels, offers superior resolution, and ensures low noise interference—critical factors for maintaining data integrity and operational safety.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Analog Measuring Card |
| Model Number | UNC 4672A,V1 |
| Part Number | HIEE205012R0001 |
| Manufacturer | ABB |
| Function | Analog signal acquisition and conversion |
| Number of Analog Inputs | 8 channels (typical configuration) |
| Input Signal Type | Current / Voltage (configurable) |
| Input Range | 0–20 mA / 4–20 mA / 0–10 V / ±10 V |
| Resolution | 12-bit or higher (depending on configuration) |
| Isolation | Galvanic isolation per channel |
| Sampling Rate | Up to 1 kHz per channel |
| Power Supply | 24 VDC |
| Power Consumption | Approx. 8 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Method | Rack-mounted (standard ABB racks) |
| Interface | Terminal block or backplane connector |
| EMI/EMC Compliance | Yes (Industrial Standards) |
| Dimensions (W × H × D) | 400 x 190 x 210 mm |
| Weight | 2.5 kg |
| Certifications | CE, RoHS, UL, IEC/EN compliant |
Applications
The ABB UNC 4672A,V1 HIEE205012R0001 is widely used across various industrial sectors for monitoring, diagnostics, and control. Key application areas include:
-
Distributed Control Systems (DCS): For accurate field signal acquisition from analog sensors.
-
SCADA Systems: Collecting analog data for supervisory control and data visualization.
-
Process Automation: Real-time monitoring of physical parameters such as pressure, temperature, and flow.
-
Energy and Utilities: Measurement of electrical signals for grid management and power quality analysis.
-
Oil and Gas: Monitoring wellhead pressure, tank levels, and flow rates.
-
Water Treatment Plants: Capturing flow, pH, and chemical dosing metrics.
-
Industrial Manufacturing: Machine condition monitoring, production quality feedback, and predictive diagnostics.
Product Advantages
-
High Precision Measurement: Delivers stable and accurate analog input readings for process optimization.
-
Channel-Level Isolation: Ensures galvanic isolation between channels, protecting sensitive circuits and improving safety.
-
Flexible Input Configuration: Supports both voltage and current signals across multiple industry-standard ranges.
-
Compact Form Factor: Optimized for installation in standard ABB system racks with minimal space requirements.
-
Extended Temperature Range: Built to operate reliably in both indoor and rugged field environments.
-
EMC/EMI Resilience: Compliant with industrial standards for electrical noise immunity, ensuring data integrity.
-
Easy Integration: Seamlessly connects to ABB’s existing DCS and automation platforms.
-
Durable Design: Built with industrial-grade components to ensure long service life and reduced maintenance.
-
Rapid Signal Processing: High sampling rates enable responsive monitoring and fast control feedback loops.
-
Simplified Maintenance: Modular design allows easy replacement and serviceability in the field.
Frequently Asked Questions (FAQ)
1. What does the ABB UNC 4672A,V1 analog card do?
It captures and processes analog signals such as current and voltage from field instruments and converts them into digital data for use in control systems.
2. How many input channels are supported?
The standard version typically supports 8 analog input channels.
3. What input signal types can be connected?
It accepts standard industrial signals including 0–20 mA, 4–20 mA, 0–10 V, and ±10 V.
4. Is the module compatible with ABB’s DCS platforms?
Yes, it is designed to work with ABB’s DCS such as Symphony Plus and Advant systems.
5. Does the card provide isolation for each input channel?
Yes, it features galvanic isolation per channel to prevent interference and protect the system.
6. Can this card be used in high-temperature environments?
Yes, it supports operating temperatures from -20°C to +60°C, making it suitable for industrial use.
7. What kind of mounting does it support?
It is rack-mounted and fits into standard ABB control system chassis.
8. Does the module meet EMI/EMC industrial standards?
Yes, it complies with IEC/EN requirements for electromagnetic compatibility.
9. What are typical industries using this module?
It is used in process industries such as power generation, oil & gas, water treatment, and chemical processing.
10. Is it hot-swappable?
No, the system should be powered down before installing or removing the card for safety.
Related Models (Same Series or Similar Function)
| Model | Part Number | Description |
|---|---|---|
| UNC 4671A | HIEE205011R0001 | Analog input card with standard resolution |
| UNC 4673A | HIEE205013R0001 | Enhanced analog measurement card |
| INFITINT | HIEE205092R0001 | Analog interface module for INFI 90 series |
| IMASI23 | Analog input module for INFI 90 system | |
| INAI01 | Analog input module with multipoint capability | |
| AI810 | 3BSE008516R1 | Analog input module for AC 800M systems |
