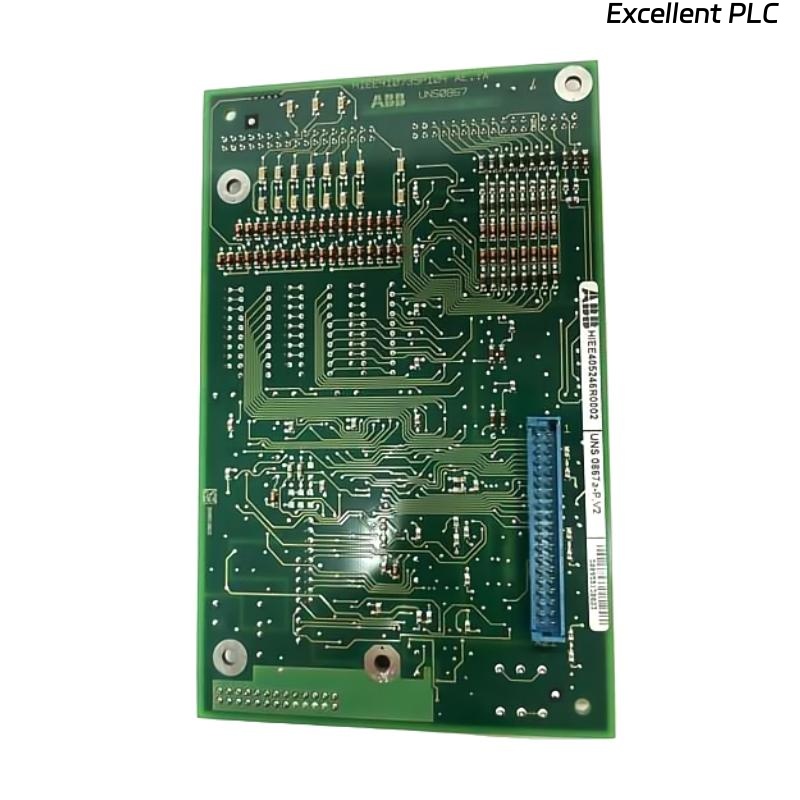

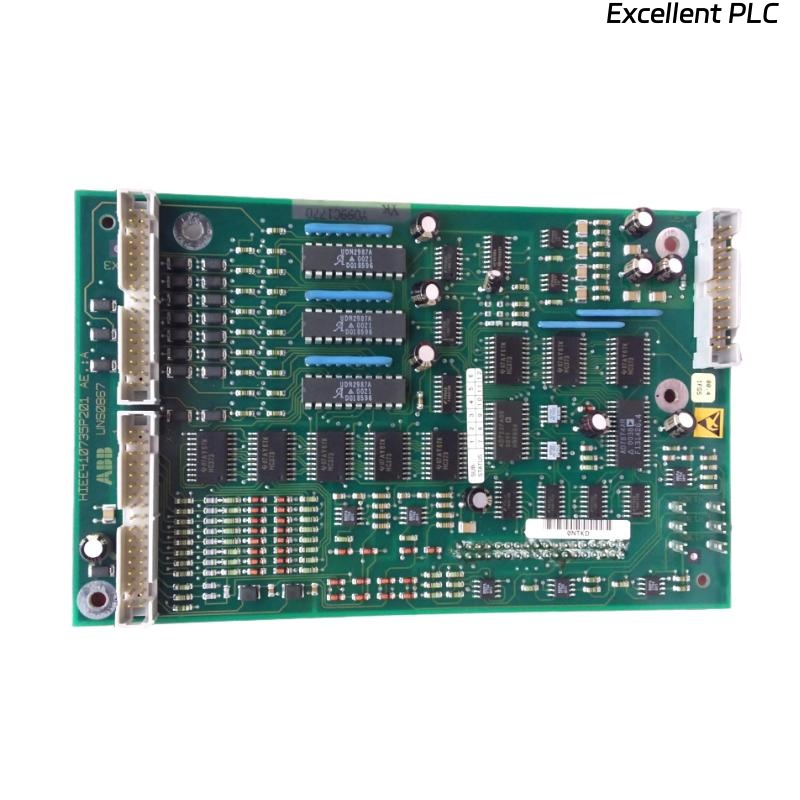

The ABB UNS 0867A-P,V2 HIEE405246R0002 Extension Card I/O is an industrial-grade expansion module designed to increase input/output capacity and improve control system flexibility. Built for ABB control platforms, this extension card enables seamless integration with process automation systems, ensuring precise signal processing and reliable communication between field devices and the main controller.
The UNS 0867A-P,V2 provides a stable interface for analog and digital signals, making it ideal for high-demand applications such as power generation, chemical processing, and heavy industrial automation. Its durable design and high-performance circuitry guarantee long-term reliability in harsh environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | UNS 0867A-P,V2 HIEE405246R0002 |
| Type | Extension Card I/O Module |
| Function | Adds digital and analog input/output channels |
| Supported Communication | Compatible with ABB distributed control systems (DCS) |
| Power Supply Voltage | 24 V DC nominal |
| Input Channels | Configurable, supports multiple analog and digital inputs |
| Output Channels | Configurable, supports multiple analog and digital outputs |
| Signal Type | Analog 4–20 mA, digital TTL/24 V |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Isolation Voltage | 1500 V RMS between field and logic circuits |
| Dimensions (W × H × D) | 165 × 23 × 37 mm |
| Weight | 0.22 kg |
| Mounting Method | DIN-rail or rack-mountable |
| Housing Material | Industrial-grade reinforced polymer |
Applications
The ABB UNS 0867A-P,V2 is engineered for a wide range of industrial automation scenarios:
-
Process Automation Systems: Expands I/O capabilities for chemical, oil & gas, and power generation plants.
-
Power Generation: Integrates with turbine and generator control systems for precise data acquisition.
-
Factory Automation: Supports complex production lines requiring reliable signal processing.
-
SCADA and DCS: Enhances distributed control systems by adding additional input/output points.
-
Heavy Industrial Equipment: Interfaces with motors, actuators, and sensors in demanding environments.
-
Infrastructure Control: Suitable for water treatment plants and large HVAC systems requiring robust I/O management.
Advantages
-
High Integration Flexibility: Easily expands the I/O capacity of ABB control systems without major hardware modifications.
-
Reliable Performance: Designed to operate in harsh environments with wide temperature and humidity ranges.
-
Robust Isolation: 1500 V RMS isolation ensures safety and signal integrity between field and logic circuits.
-
Versatile I/O Support: Handles both analog (4–20 mA) and digital signals for broad application use.
-
Industrial Durability: Built with reinforced materials for long service life under continuous operation.
-
Seamless Compatibility: Fully compatible with ABB DCS and related automation platforms.
FAQ
1. What is the primary function of the ABB UNS 0867A-P,V2 extension card?
It adds additional analog and digital input/output channels to ABB control systems, enabling more field devices to be connected and monitored.
2. What communication interfaces does it support?
The card integrates directly with ABB distributed control systems (DCS) and standard industrial fieldbus connections for seamless data exchange.
3. What power supply is required for operation?
It operates with a nominal 24 V DC power supply, with built-in protection for voltage fluctuations.
4. What is the signal range for analog inputs and outputs?
The module supports industry-standard 4–20 mA current loop for analog input and output signals.
5. How is electrical isolation handled?
It provides 1500 V RMS isolation between field wiring and internal logic to protect the system from electrical noise and surges.
6. What operating temperature range is supported?
The card functions reliably in environments from –20 °C to +70 °C, suitable for most industrial settings.
7. Can it be mounted in different configurations?
Yes, it supports both DIN-rail and rack-mount installations, offering flexibility for control cabinet layouts.
8. How many input and output channels can be configured?
The module supports multiple analog and digital I/O channels, with configuration depending on system requirements.
9. Is it compatible with third-party systems?
While optimized for ABB platforms, it can communicate with other systems through standard industrial protocols when properly configured.
10. Does it provide protection against electrical noise?
Yes, the design includes advanced shielding and filtering to minimize signal interference and ensure stable data transmission.
