Product Introduction

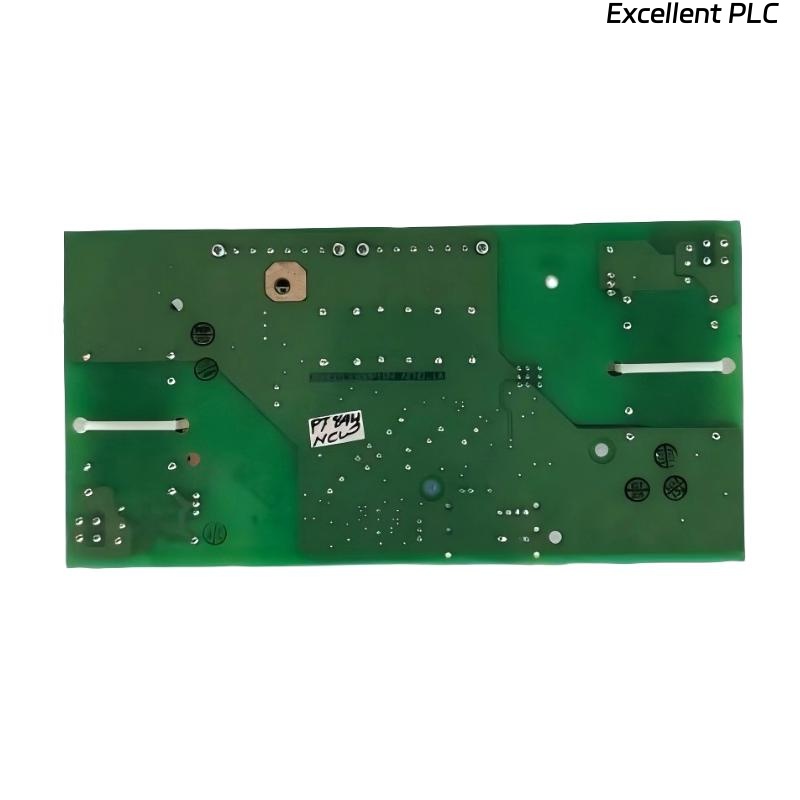

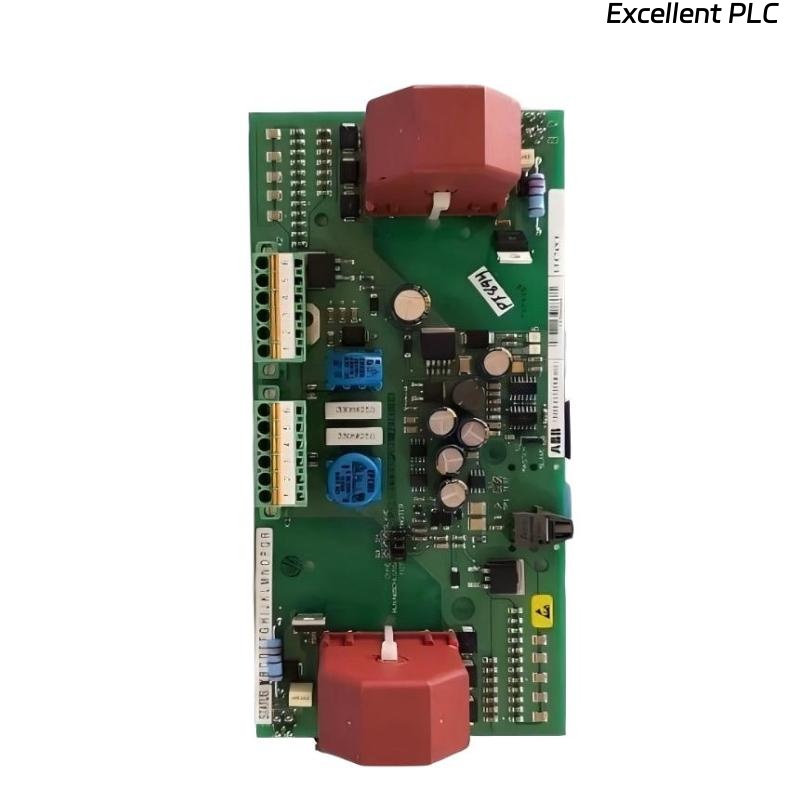

The ABB UNS0881 / UNS0881A-P 3BHB006338R0101 Control Board is a high-performance industrial control and interface module designed to provide reliable data acquisition, signal processing, and communication within ABB’s automation and drive systems. Built for critical control environments, this board functions as a central processing and signal coordination unit, ensuring real-time data exchange between field devices, drives, and supervisory control systems.
It belongs to ABB’s UNS series, known for their stability, precision, and compatibility with multiple generations of ABB process controllers. The UNS0881A-P is particularly designed for drive regulation, process synchronization, and communication management within distributed automation networks.
Constructed with industrial-grade components, this board guarantees high signal integrity, robust communication interfaces, and dependable performance under harsh operating conditions such as high temperature, vibration, and electrical noise. It is a core element in modern process control systems, offering flexible configuration, redundancy support, and simple maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | UNS0881 / UNS0881A-P 3BHB006338R0101 |
| Manufacturer | ABB |
| Product Type | Control Board / Interface Module |
| Power Supply Voltage | 24 VDC nominal (operating range: 18–30 VDC) |
| Power Consumption | ≤12 W typical |
| Processor Type | 32-bit Industrial Microcontroller |
| Clock Frequency | 66 MHz |
| Input Channels | 8 × Digital Inputs, optically isolated |
| Output Channels | 6 × Digital Outputs, transistor type |
| Analog I/O | 2 × Analog Inputs (0–10 V), 2 × Analog Outputs (4–20 mA) |
| Communication Ports | RS-485 / CAN / PROFIBUS-DP (configurable) |
| Communication Speed | Up to 1 Mbps |
| Isolation Voltage | 500 VDC between field and logic circuits |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Protection Level | IP20 |
| Cooling Method | Natural air convection |
| PCB Coating | Conformal coating for corrosion and moisture protection |
| Firmware Update | Supported through serial maintenance port |
| Mounting Type | DIN-rail or chassis mount |
| Diagnostic Indicators | LED indicators for power, communication, and fault status |
| Dimensions (L × W × H) | 175× 110 × 45 mm |
| Weight | 0.68 kg |
| Compliance | CE, UL, RoHS, ISO 9001 |
| Compatible Systems | ABB ACS, DCS, and drive series control platforms |
Product Applications
The ABB UNS0881 / UNS0881A-P 3BHB006338R0101 Control Board is widely applied in high-reliability industrial automation systems where communication precision and process stability are critical. It is engineered to operate as a central interface within ABB’s control architectures.
Common applications include:
-
Drive and Motor Control Systems – Regulates motor speed, torque, and synchronization across multi-axis control networks.
-
Process Automation – Integrates with ABB DCS systems for continuous production line monitoring and control.
-
Power Generation and Distribution – Coordinates data exchange between excitation control units, turbine controllers, and grid interfaces.
-
Oil & Gas and Petrochemical Plants – Handles process input/output signals, ensuring safe control of pumps, compressors, and valves.
-
Pulp, Paper, and Steel Manufacturing – Enables precision control for process timing, motion coordination, and fault diagnostics.
-
Marine Automation Systems – Manages propulsion control and auxiliary monitoring under high vibration environments.
-
Research and Test Stands – Provides real-time signal acquisition for laboratory or prototype control setups.
This board’s robust design and modular adaptability make it suitable for both new installations and retrofit projects requiring compatibility with legacy ABB automation infrastructure.
Product Advantages
-
High Processing Efficiency – The 32-bit microcontroller architecture ensures rapid data handling and precise control response.
-
Multi-Protocol Communication – Supports RS-485, CAN, and PROFIBUS for broad system integration flexibility.
-
Enhanced Electrical Isolation – Optical isolation on all I/O channels prevents interference and safeguards sensitive circuits.
-
Industrial Durability – Designed for continuous operation in harsh environments with temperature, humidity, and vibration resistance.
-
Low Power Design – Reduces energy consumption while maintaining stable signal transmission.
-
Compact and Modular – Fits easily into control cabinets, allowing quick replacement and reduced downtime.
-
Intelligent Diagnostics – Built-in LED indicators provide instant feedback for communication and fault conditions.
-
Firmware Upgradable – Extendable control logic and configurable parameters enhance adaptability to system changes.
-
Reliability Under Noise Conditions – Shielded circuit paths minimize EMI impact, ensuring uninterrupted control.
-
Global Compliance – Certified under international industrial safety and quality standards.
Frequently Asked Questions
-
What type of microcontroller is used in the UNS0881A-P board?
It utilizes a 32-bit industrial-grade microcontroller optimized for real-time control operations. -
Which communication interfaces are supported?
The board supports RS-485, CAN, and PROFIBUS-DP, selectable depending on configuration. -
How are digital inputs protected?
All digital input channels are optically isolated and protected from transient voltage spikes. -
Does the UNS0881A-P support analog I/O?
Yes, it provides two analog input channels (0–10 V) and two analog output channels (4–20 mA). -
Can the firmware be updated in the field?
Yes, firmware upgrades are supported through a serial maintenance port using ABB configuration tools. -
What happens during communication loss?
The system triggers an automatic fallback mode, maintaining safety states until communication is restored. -
Is the board compatible with ABB DCS and drive systems?
Fully compatible with ABB DCS, AC800M, and drive control architectures. -
What diagnostic information is available?
LED indicators provide real-time status of power, communication, and I/O faults. -
Can it operate in a redundant control configuration?
Yes, the UNS0881A-P can be configured for redundant or dual-channel operation for high-availability systems. -
What is the isolation rating between field and logic circuits?
The isolation is rated at 500 VDC, ensuring safe separation between field devices and control electronics.
