Product Introduction

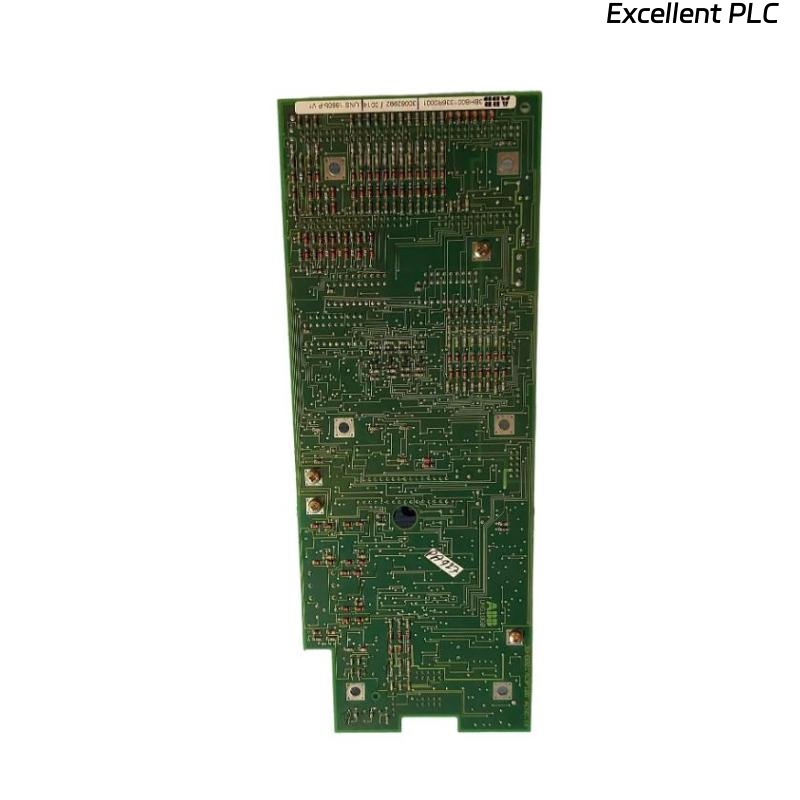

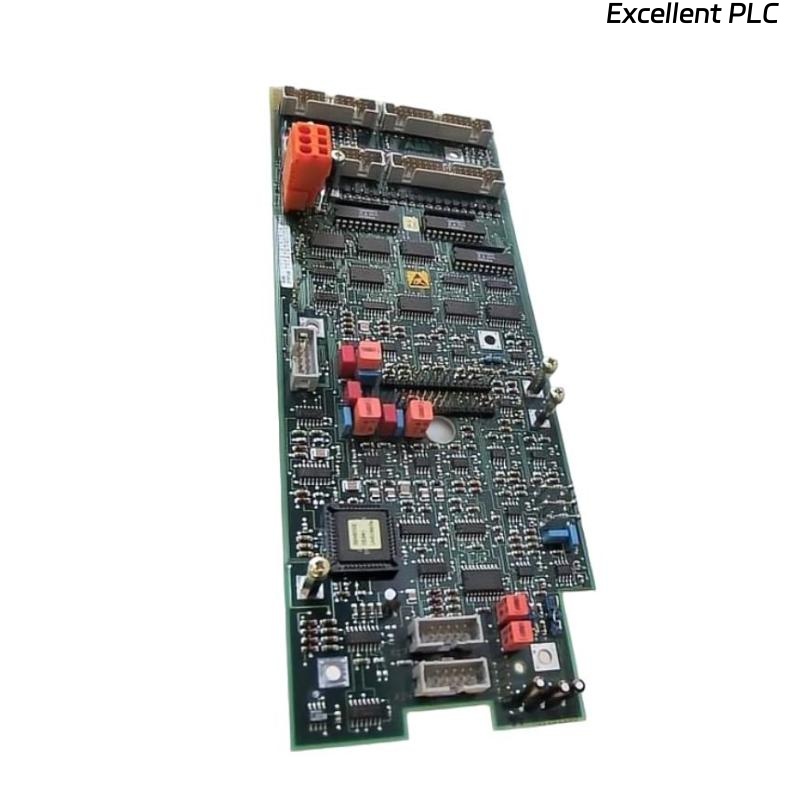

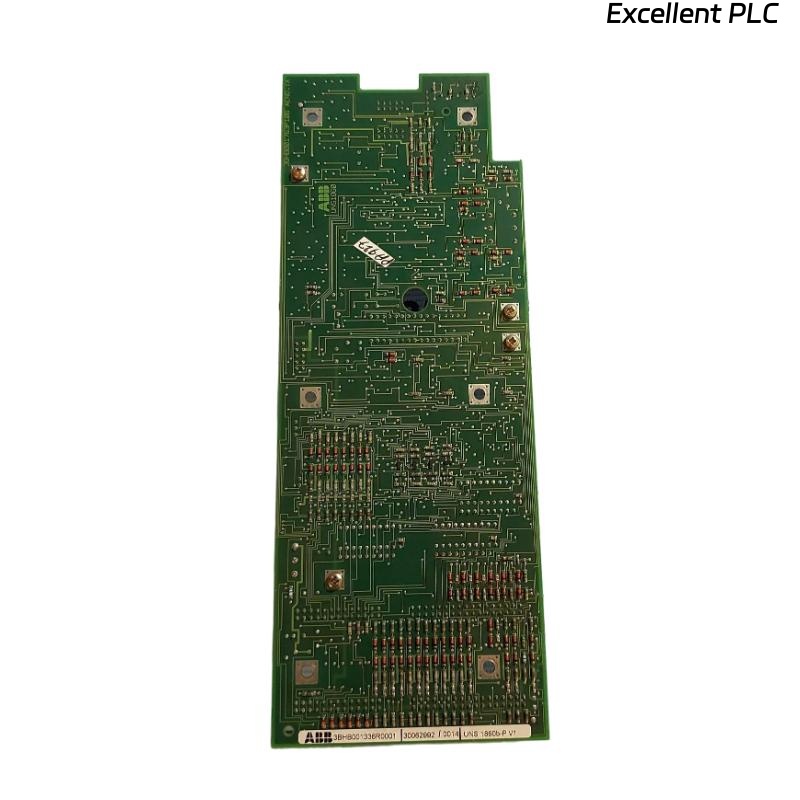

The ABB UNS1860B-P (Part No. 3BHB001336R0001) Board Measuring Interface is a high-precision signal acquisition and conditioning board designed to integrate field-level analog signals into ABB’s advanced automation and control systems. It reliably measures voltage, current, and frequency, converting these signals into clean, stable data for monitoring and process control.
Engineered for demanding industrial environments, the UNS1860B-P provides exceptional signal fidelity, robust electrical isolation, and rapid data sampling. Its rugged build and compact dimensions make it ideal for applications requiring continuous, real-time monitoring, such as power generation, heavy manufacturing, and energy distribution systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | UNS1860B-P |
| Part Number | 3BHB001336R0001 |
| Function | Precision measuring interface board for analog signal acquisition |
| Measurement Inputs | Voltage, current, and frequency |
| Input Voltage Range | ±10 V DC typical |
| Power Supply | 24 V DC nominal (±10% tolerance) |
| Sampling Rate | Up to 20 kS/s for high-resolution data |
| Galvanic Isolation | 1500 V RMS between field inputs and logic circuits |
| Communication Interface | ABB standard fieldbus/serial protocol |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 295 × 70 × 220 mm |
| Weight | 0.42 kg |
| Mounting Options | DIN-rail or panel mounting |
| Housing Material | Industrial-grade reinforced polymer |
Applications
-
Industrial Automation: Interfaces with PLC and DCS systems to provide precise analog signal acquisition.
-
Power Generation: Monitors generator voltage and current for stable grid operation.
-
Electrical Substations: Measures key electrical parameters to support power quality control.
-
Renewable Energy: Captures real-time sensor data for wind and solar energy systems.
-
Process Industries: Suitable for chemical, oil & gas, and manufacturing plants requiring high-accuracy signal input.
-
Research & Calibration Labs: Provides laboratory-grade measurement precision for testing and analysis.
Advantages
-
High Measurement Accuracy: Advanced signal filtering and conditioning minimize noise and ensure precise data.
-
Robust Isolation: 1500 V RMS galvanic isolation protects downstream systems and enhances safety.
-
Fast Sampling Rate: Supports high-resolution, real-time data acquisition up to 20 kS/s.
-
Seamless ABB Integration: Fully compatible with ABB control platforms and distributed control systems.
-
Compact and Durable Design: Space-efficient construction ideal for harsh industrial conditions.
-
Flexible Installation: Can be easily mounted on a DIN rail or directly on a control panel.
-
Low Maintenance: Factory-calibrated and engineered for long service life with minimal upkeep.
FAQ
1. What is the primary function of the ABB UNS1860B-P board?
It converts and conditions analog electrical signals from field sensors into stable digital data for ABB control and automation systems.
2. Which input signal types can it handle?
The board accepts voltage, current, and frequency inputs, as well as other low-level analog signals used in industrial monitoring.
3. How is electrical noise managed during measurement?
Advanced analog filtering and digital conditioning reduce electromagnetic interference and transient noise.
4. What isolation capability does the board provide?
It provides galvanic isolation up to 1500 V RMS, protecting both equipment and personnel from electrical hazards.
5. What is the maximum supported sampling rate?
The board supports high-resolution data capture up to 20 kS/s for dynamic industrial processes.
6. What power requirements does it have?
It operates on a 24 V DC supply with a tolerance of ±10% for consistent performance.
7. Can the UNS1860B-P integrate with non-ABB systems?
Yes, it can interface with third-party systems via standard fieldbus or serial communication protocols.
8. Does it include surge protection?
Yes, the board features built-in surge and transient protection to safeguard sensitive electronics.
9. How is calibration maintained?
Factory calibration is provided, and optional verification can be performed using ABB configuration tools.
10. Is it suitable for high-humidity environments?
Yes, it operates reliably in 5% to 95% non-condensing humidity conditions, making it suitable for harsh industrial sites.
