Product Introduction

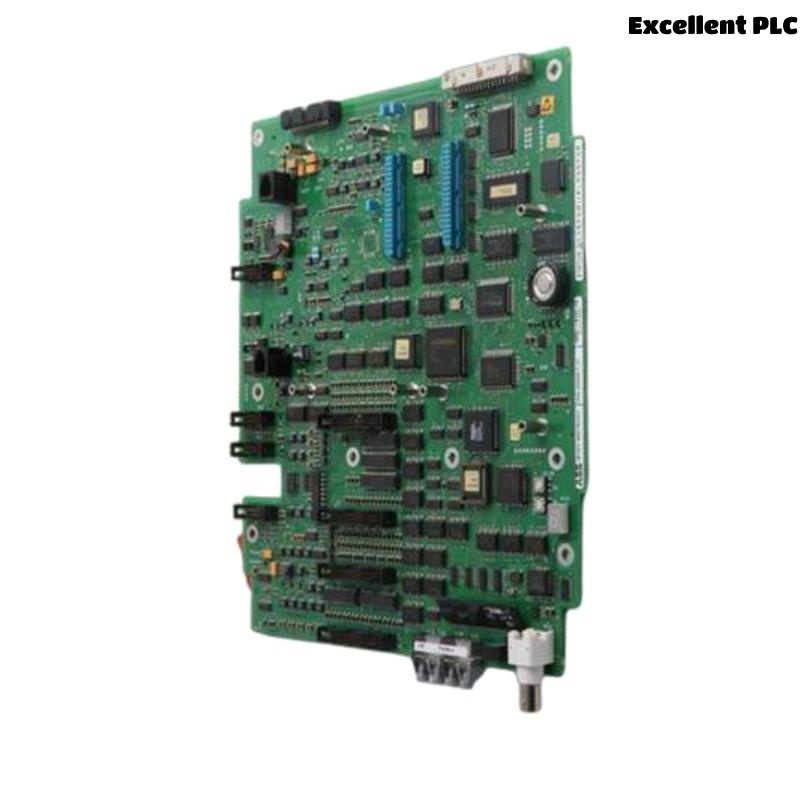

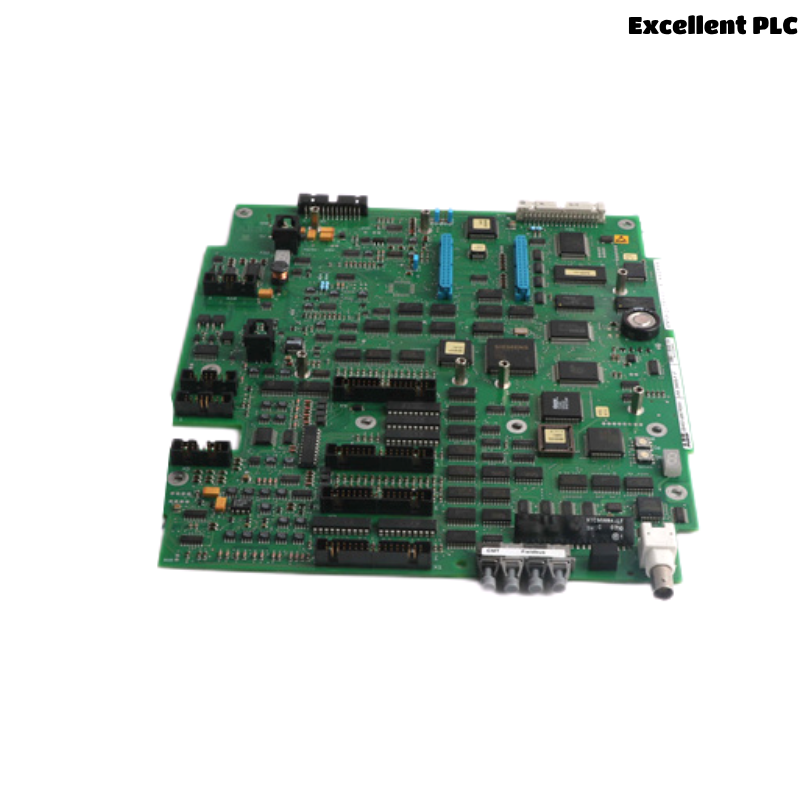

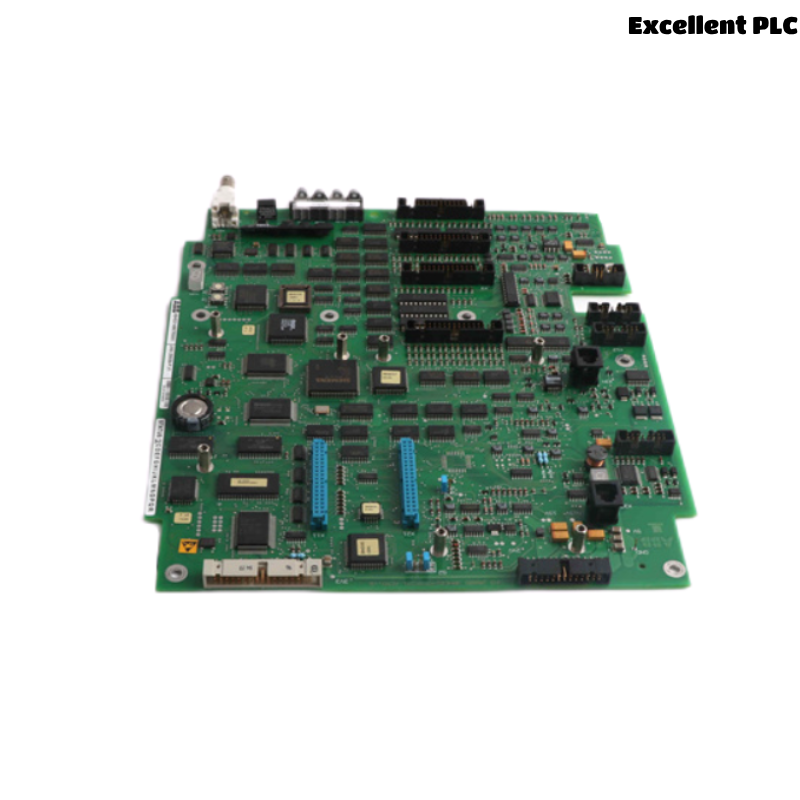

The ABB UNS2880B-P (3BHE014967R0001) is a high-performance communication processor module that is part of ABB’s robust line of industrial automation control systems. This module plays a critical role in ensuring real-time, deterministic communication between control layers, often within ABB’s Symphony Plus or Advant Master DCS platforms. It is designed to support essential fieldbus communication functions, acting as a bridge between field devices and the control processor, facilitating seamless data exchange, diagnostics, and process synchronization.
Its architecture ensures compatibility with a wide range of ABB systems and provides robust processing power and communication interfaces to meet demanding industrial applications, particularly in power generation, petrochemical, and process industries.
Product Advantages
-
High Reliability: Engineered for uninterrupted operation in mission-critical control systems, providing consistent communication performance even under harsh industrial conditions.
-
Seamless Integration: Fully compatible with ABB control systems, reducing engineering time and simplifying commissioning.
-
Efficient Data Handling: Supports high-speed communication and efficient data packet processing for real-time control.
-
Compact Design: Space-saving footprint allows easy installation in control cabinets with limited space.
-
Field Proven: Extensively used in power and automation sectors, ensuring field-proven durability and longevity.
-
Diagnostics Capability: Built-in features for status monitoring and troubleshooting, reducing maintenance downtime.
-
Industrial-Grade Durability: Designed to withstand wide temperature ranges, vibration, and electrical noise.
-
Long Lifecycle Support: As part of ABB’s lifecycle management program, ongoing support and spare availability are assured.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | UNS2880B-P |
| Part Number | 3BHE014967R0001 |
| Product Type | Communication Processor Module |
| System Compatibility | Symphony Plus, Advant Master, INFI 90, etc. |
| Communication Protocols | Serial (RS-232/RS-485), Fieldbus, Ethernet |
| Operating Voltage | 24 VDC (nominal) |
| Power Consumption | 8 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Mounting Type | DIN rail or rack-mountable |
| Housing Material | Industrial-grade aluminum alloy |
| Protection Class | IP20 |
| Dimensions | 103x 65x 150 mm |
| Weight | 0.3kg |
| Certifications | CE, RoHS, UL listed |
Applications
-
Power Generation Plants: Used in DCS for real-time monitoring, turbine control, and grid communication.
-
Chemical & Petrochemical Industry: Interfaces field devices in hazardous process environments with central control units.
-
Water & Wastewater Treatment: Ensures efficient communication across pumps, valves, and sensors.
-
Paper & Pulp Mills: Coordinates motor controls, drive systems, and process feedback loops.
-
Oil & Gas Facilities: Integrates SCADA systems with remote terminal units for safe, optimized operations.
-
Metals & Mining Automation: Used in process control for smelting, crushing, and material handling systems.
Compatible or Associated Models
The UNS2880B-P is compatible with a range of ABB control systems and can be integrated alongside:
-
ABB INNIS21
-
ABB INNPM22
-
ABB UNS0121A-P
-
ABB UNS0113A-P
-
ABB INPCI01
-
ABB INIIT13
These models provide functionality such as CPU processing, I/O handling, interface expansion, or redundant power integration.
Installation Instructions
-
Unpacking: Inspect the module for physical damage. Ensure anti-static precautions during handling.
-
Mounting: Install in a control cabinet using the DIN rail slot or rack mount provided.
-
Wiring: Connect power supply to the designated 24V DC terminals. Interface field devices via RS-485/Ethernet as required.
-
Configuration: Use ABB’s configuration software (e.g., Composer, Control Builder) to define node address, communication protocol, and data structure.
-
System Integration: Connect with master controller or CPU unit. Use ABB’s diagnostics tool for status and verification.
-
Testing: Run diagnostics and communication loop tests to ensure successful integration.
10 De-AI-Style FAQs (Realistic Q&A)
Q1: What system platforms is the UNS2880B-P primarily used with?
A1: It is designed for use with ABB’s Symphony Plus, Advant Master, and INFI 90 systems.
Q2: Can I install this module in a high-vibration environment?
A2: Yes, the module is built with rugged materials and complies with industrial vibration tolerance standards.
Q3: Does it support Ethernet communication?
A3: Yes, Ethernet connectivity is supported for modern network integration.
Q4: What is the power requirement for this module?
A4: The module operates on 24 VDC and typically consumes around 8 watts.
Q5: Is there any specific tool required for configuration?
A5: Configuration is typically done using ABB tools like Control Builder or Composer.
Q6: Can the module handle both analog and digital signals?
A6: While it primarily manages communication, it can indirectly interface with analog/digital I/O through other modules.
Q7: Is there onboard memory on the UNS2880B-P?
A7: It contains non-volatile memory for storing configuration and communication settings.
Q8: Is firmware upgradeable in the field?
A8: Yes, firmware can be updated via ABB’s software tools without removing the module.
Q9: Can it be used in redundant communication setups?
A9: Absolutely, it supports redundancy when configured properly within ABB’s redundant frameworks.
Q10: How do I know if the module is faulty?
A10: The module provides status LEDs and supports diagnostic feedback through the control system for easy fault detection.
Recommended Related Models (Same Series or Function Class)
-
ABB UNS2881B-P
-
ABB UNS2860B-P
-
ABB UNS0121A-P
-
ABB UNS0113A-P
-
ABB INPCI01
-
ABB INIIT13
These modules are either part of the same series or provide complementary functions like I/O interfacing, signal processing, or system expansion.
6 Popular ABB Modules (with Specifications)
| Model | Function | Dimensions (mm) | Weight (kg) | Voltage |
|---|---|---|---|---|
| UNS2880B-P | Communication Processor | 45 x 150 x 120 | 0.65 | 24 VDC |
| INNPM22 | Network Processing Module | 100 x 160 x 130 | 0.75 | 24 VDC |
| INFI90ACM02 | Analog Control Module | 120 x 180 x 120 | 0.90 | 24 VDC |
| INIIT13 | Input Termination Module | 80 x 160 x 120 | 0.60 | Passive |
| UNS0121A-P | Power Supply Interface | 50 x 140 x 120 | 0.55 | 24 VDC |
| INPCI01 | Control Interface Module | 120 x 160 x 140 | 0.88 | 24 VDC |
