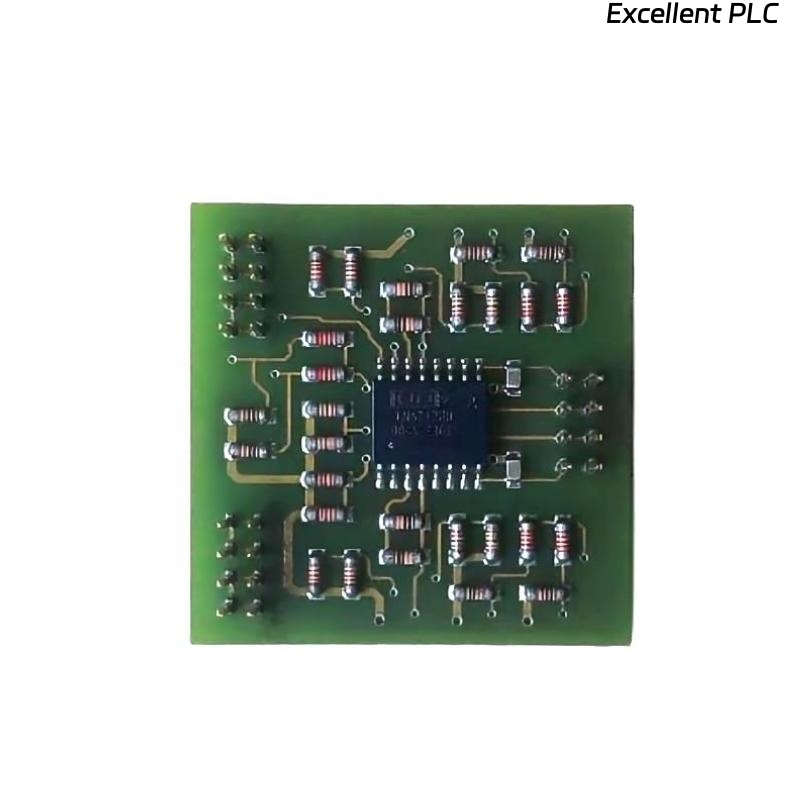

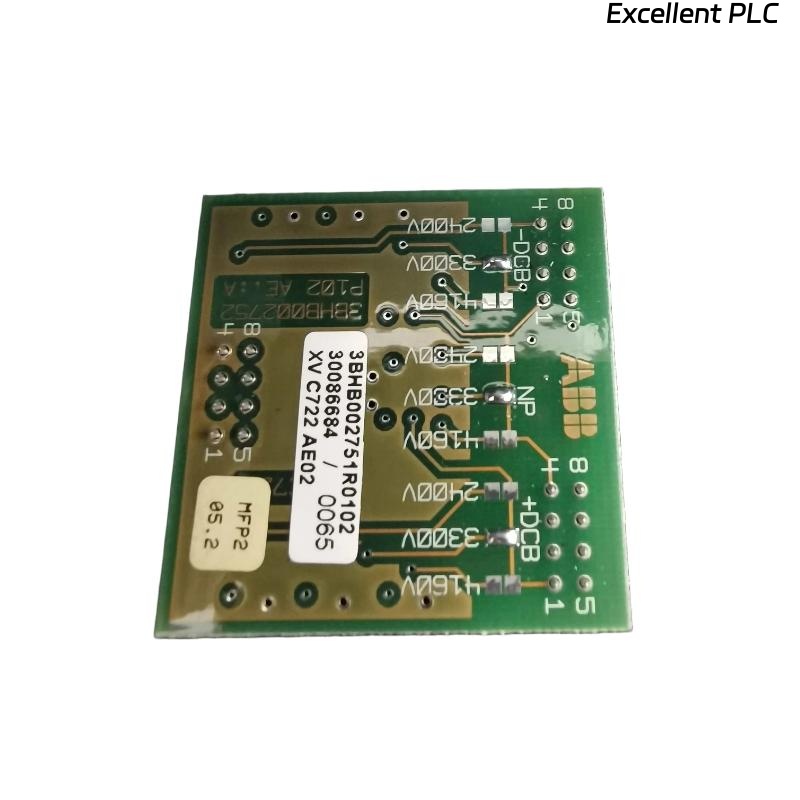

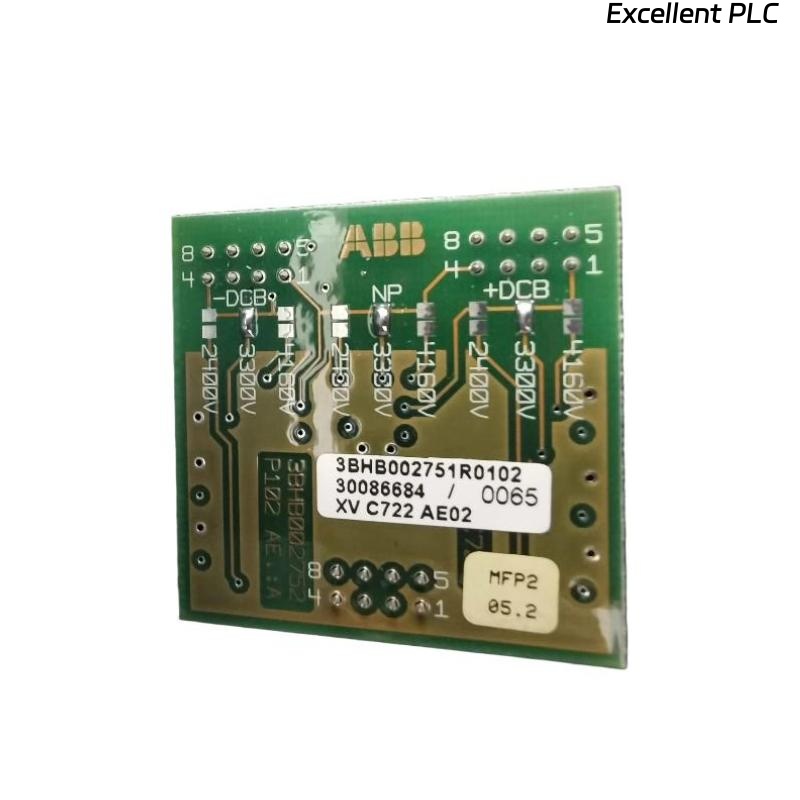

ABB XV C722 A02 3BHB002751R0102 Voltage Measurement Card

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB XV C722 A02 3BHB002751R0102 Voltage Measurement Card is a high-precision electronic module designed for voltage monitoring and measurement applications within ABB’s industrial drive and control systems. As part of ABB’s advanced converter and control architecture, this card plays a vital role in detecting, conditioning, and transmitting voltage signals from the power circuit to the control processor.

The module is engineered with exceptional accuracy and stability, allowing it to function reliably even in harsh industrial environments with high electrical noise or thermal fluctuations. It incorporates advanced analog front-end circuitry that ensures minimal distortion and superior linearity in voltage measurement.

The XV C722 A02 board is commonly integrated into ABB’s medium and high-power drive systems, where real-time voltage feedback is essential for closed-loop control, protection, and diagnostics. Its rugged PCB design, precise calibration, and reliable electrical isolation make it a preferred choice for industrial automation, motion control, and power regulation systems.

---

Technical Specifications

---

Product Applications

The ABB XV C722 A02 3BHB002751R0102 Voltage Measurement Card is an essential component in industrial systems requiring real-time, accurate voltage measurement and feedback. It is widely used across multiple industrial domains, including:

• Variable Speed Drives (VSDs): Provides precise voltage feedback for inverter and rectifier control in AC drive systems.

• Power Conversion Systems: Used to monitor phase voltages in DC link converters and inverter stages.

• Motor Control Applications: Assists in closed-loop vector control and ensures accurate voltage synchronization for motors.

• Process Automation: Enables real-time voltage monitoring for distributed control systems (DCS) and process regulators.

• Power Generation and Distribution: Facilitates accurate voltage sensing for generator excitation systems and transformer protection.

• Industrial Robotics: Provides voltage feedback for robotic motion drives requiring high accuracy and response speed.

This module’s compatibility with ABB’s industrial platforms makes it an integral part of power electronics systems demanding precision, reliability, and high operational stability.

---

Product Advantages

• High Measurement Accuracy: Delivers ±0.2% full-scale precision, ensuring reliable voltage readings for control and monitoring applications.

• Excellent Electrical Isolation: Offers 2500 V DC isolation between input and control sections to prevent signal interference and protect system electronics.

• Fast Sampling Rate: With a sampling rate of up to 10 kHz, it enables rapid data acquisition and fast system response.

• Robust EMC Protection: Designed to operate in environments with strong electromagnetic interference while maintaining signal integrity.

• Enhanced Reliability: Built with industrial-grade components capable of continuous operation in demanding environments.

• Compact Modular Design: Facilitates easy installation, replacement, and integration into ABB converter systems.

• Thermal Stability: Maintains consistent performance over a wide temperature range.

• Low Power Consumption: Efficient operation minimizes energy use and thermal stress.

• Seamless System Compatibility: Fully compatible with ABB ACS and DCS series drive systems.

• Optimized for Maintenance: Modular plug-in design reduces downtime and simplifies servicing.

---

FAQ

1. What is the main function of the ABB XV C722 A02 3BHB002751R0102 card?
   It measures phase-to-phase voltage in power converters and transmits precise feedback signals to the control processor for regulation and protection.

2. Which ABB systems is this voltage card compatible with?
   It is primarily designed for ABB drive and converter systems, including ACS600, ACS800, and DCS400 series.

3. What type of voltage signals does it measure?
   The card measures AC phase-to-phase voltages up to 690 V, converting them into low-level analog signals suitable for processing.

4. How does the card ensure measurement accuracy?
   It utilizes high-precision analog-to-digital conversion and calibrated reference circuitry to maintain consistent accuracy within ±0.2%.

5. What protection features are integrated into the card?
   The card includes overvoltage protection, electrical isolation, and surge suppression circuits to ensure system safety.

6. Can the module handle both single-phase and three-phase systems?
   Yes, it can be configured for either single-phase or three-phase voltage monitoring depending on system requirements.

7. What is the significance of its galvanic isolation?
   The 2500 V DC isolation ensures that control electronics are fully protected from high voltages and transient surges on the measurement side.

8. How does it communicate with the control system?
   It uses ABB’s proprietary analog communication channel, transferring conditioned voltage signals directly to the main converter control unit.

9. What is the response time of the measurement system?
   The card offers rapid signal acquisition with a typical response time of less than 1 millisecond, supporting high-speed control applications.

10. Can it be used as a replacement for older ABB voltage measurement cards?
    Yes, it is backward-compatible with certain earlier ABB voltage measurement modules, provided the connector interface and calibration match system specifications.

---
