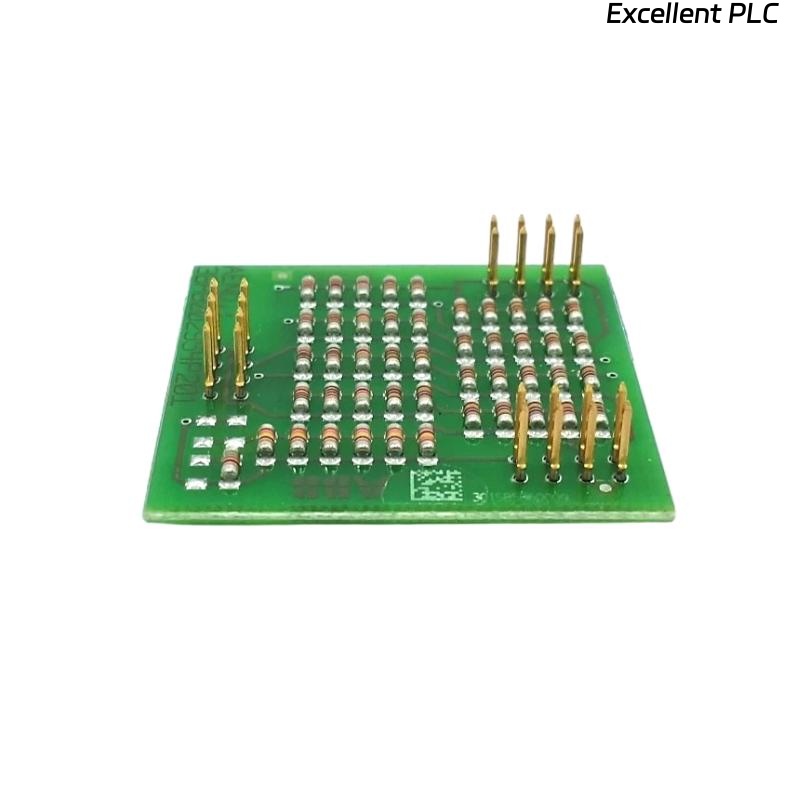

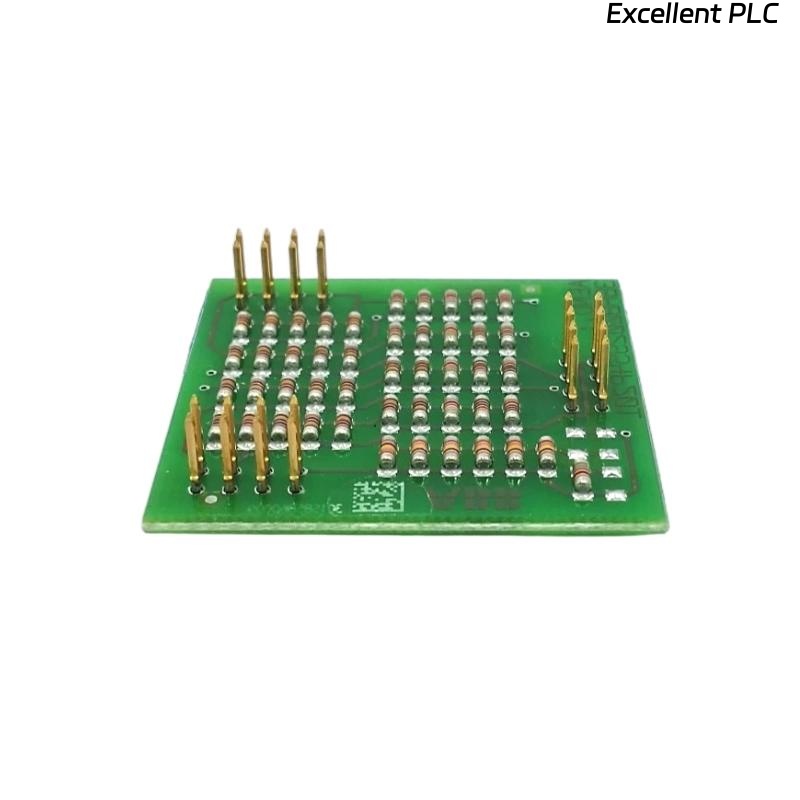

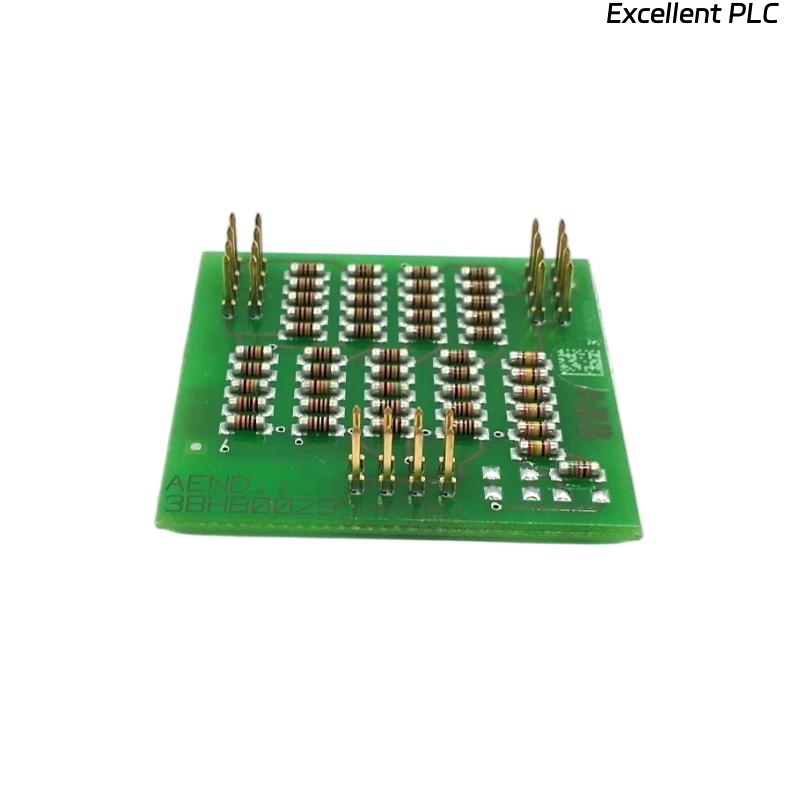

ABB XV C723 AE05 3BHB002953R0105 Current Measuring Instrument

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The ABB XV C723 AE05 3BHB002953R0105 Current Measuring Instrument is a precision current measurement module designed for integration in ABB high-performance industrial drive and control systems. This device plays a crucial role in monitoring, controlling, and protecting electrical circuits by providing accurate current sensing and feedback in real time. Engineered for high-voltage and high-current industrial applications, it ensures stable operation even under extreme environmental and electrical conditions.

The XV C723 AE05 module combines advanced analog and digital signal processing to deliver precise current measurement across a wide dynamic range. It features excellent linearity, low noise, and high immunity to electromagnetic interference (EMI), making it ideal for use in complex automation and power conversion systems. Built with ABB’s rigorous quality standards, it offers reliability, durability, and precision demanded by modern industries.

---

Technical Specifications

---

Product Applications

The ABB XV C723 AE05 is widely used in industrial systems that demand precise current monitoring and control. It is an integral component in applications requiring accurate feedback to ensure efficiency, safety, and reliability.

Typical applications include:

• Industrial Drives: For measuring motor current in variable frequency drives (VFDs) and servo systems.

• Power Conversion Systems: Used in DC/AC converters, inverters, and rectifiers for real-time current sensing.

• Energy Management Systems: Provides accurate current data for load balancing and energy optimization.

• Process Automation: Ensures correct current levels in distributed control systems (DCS) and PLC-based control networks.

• Power Generation & Distribution: Monitors current in high-voltage substations and turbine control systems.

• Protection Systems: Supports overcurrent detection and isolation in safety-critical applications.

---

Product Advantages

The ABB XV C723 AE05 3BHB002953R0105 offers superior measurement precision and robust operational reliability, ensuring consistent performance even in demanding industrial environments.

Main advantages include:

• High Measurement Accuracy: ±0.2% precision ensures dependable control performance and system feedback.

• Wide Dynamic Range: Capable of accurately sensing both small and large current variations without distortion.

• Excellent EMC Protection: Built to function in electrically noisy environments typical of industrial settings.

• Robust Isolation: High-voltage isolation safeguards control systems from electrical transients.

• Compact and Durable Design: Optimized for space-efficient installation with a lightweight, rugged housing.

• Maintenance-Free Operation: Reliable passive cooling and high-quality components reduce the need for servicing.

• Fast Response Time: Ensures real-time current measurement for high-speed automation systems.

• Seamless Integration: Fully compatible with ABB control modules and power electronics.

• Environmental Resilience: Resistant to humidity, vibration, and temperature fluctuations.

• Enhanced Safety: Protects sensitive electronics from faults and overloads.

---

FAQ

1. What measurement principle is used in the ABB XV C723 AE05 module?
   It uses a shunt-based differential measurement technique with precision amplification and filtering for high accuracy.

2. Can the module measure both AC and DC currents?
   Yes, it can measure both AC and DC currents, providing either RMS or average values depending on configuration.

3. How is electrical isolation achieved between the measurement and control circuits?
   Isolation is achieved using galvanic separation rated at 2.5 kV RMS to prevent electrical interference.

4. Does the module support calibration adjustments?
   Yes, the module supports factory and field calibration using ABB configuration tools to maintain measurement accuracy.

5. What is the response time for current changes?
   The typical response time is less than 1 millisecond, suitable for real-time control and protection applications.

6. How does the module handle noise and interference in industrial environments?
   It incorporates internal EMI filters, shielded components, and ground isolation to minimize signal distortion.

7. Can the output be interfaced with ABB DCS or PLC systems?
   Yes, it is designed for direct integration with ABB DCS systems and compatible PLC interfaces.

8. What happens if the current exceeds the rated measurement range?
   The module safely detects and limits overrange signals while maintaining isolation integrity, triggering alerts if necessary.

9. How is temperature stability maintained in this current measuring instrument?
   The device uses precision temperature-compensated components with low drift characteristics to ensure consistent readings.

10. Is there a built-in self-diagnostic or monitoring function?
    Yes, the module includes internal diagnostics for status monitoring, fault detection, and operational verification.

---
