Product Introduction

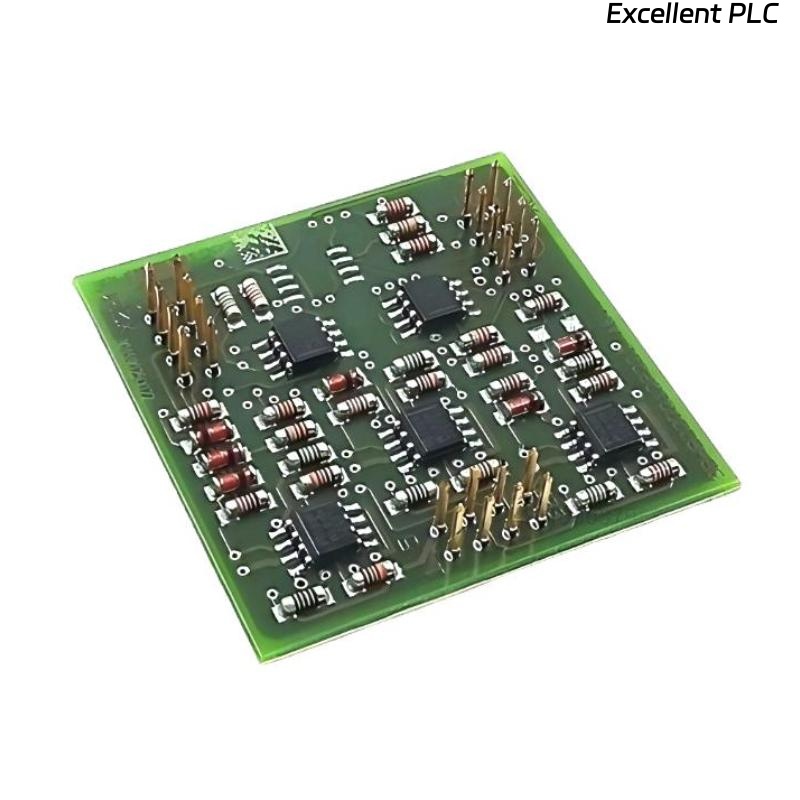

The ABB XV C768 115 3BHB0072R115 pulse output board is designed to convert measurement data from industrial systems into accurate pulse signals. It provides an essential role in industries such as energy monitoring, flow measurement, and automation systems, where real-time data transmission is critical. The device is engineered for reliability, precision, and fast response, making it an ideal solution for applications that demand continuous and precise control.
By generating standardized pulse outputs, the XV C768 115 enables seamless integration into monitoring and control systems. It facilitates data transfer for further processing, contributing to efficient operations in sectors such as energy management, metering, and industrial automation. This pulse output board’s compact design, ease of installation, and reliable performance make it a crucial component in modern industrial environments.
Product Parameters
The following table outlines the key technical specifications of the ABB XV C768 115 3BHB0072R115 pulse output board:
| Parameter | Specification |
|---|---|
| Model Number | XV C768 115 3BHB0072R115 |
| Input Voltage Range | 24V DC |
| Output Signal | Pulse (Standard Frequency) |
| Dimensions (L × W × H) | 70 × 65 × 20 mm |
| Weight | 0.2 kg |
| Operating Temperature | -10°C to +60°C |
| Response Time | 5 ms |
| Pulse Frequency | Up to 1 kHz |
| Mounting Type | Surface Mount |
| Protection Class | IP20 |
Product Applications
The ABB XV C768 115 pulse output board is used in various industrial applications that require precise signal conversion for monitoring and controlling systems. Common applications include:
-
Energy Metering Systems: It is used to convert energy consumption data into pulse signals for tracking and monitoring energy usage in real-time.
-
Flow Measurement Systems: The device outputs pulse signals corresponding to flow rates in fluid systems, enabling precise flow measurement in industries such as water treatment and oil and gas.
-
Automation Systems: The board is utilized in automation applications where pulse signals are used to control equipment or synchronize machinery in industrial settings.
-
Metering Systems (Electricity, Gas, Water): It is employed in utility metering systems, where pulse signals represent consumption data for easy collection, transfer, and analysis.
-
Industrial Control Systems: The XV C768 115 is used to monitor and control machinery, ensuring that processes and equipment operate efficiently and are synchronized in real-time.
-
Mechanical Systems: It is also useful for applications in mechanical systems like conveyors or motor tracking, where pulse signals help monitor operational states or positions.
Product Advantages
-
High Precision: The ABB XV C768 115 provides precise pulse signals, ensuring accuracy in applications that require reliable data transmission, such as energy monitoring and flow measurement.
-
Fast Response Time: With a response time of 5 ms, the device is capable of delivering real-time feedback, which is critical in industrial applications where fast data processing is essential.
-
Wide Pulse Frequency Range: The device can output pulse signals at frequencies up to 1 kHz, making it versatile for both low-speed and high-speed applications in automation and control systems.
-
Compact Design: With dimensions of 70 × 65 × 20 mm and a weight of just 0.2 kg, the device is compact and lightweight, making it easy to integrate into space-constrained systems.
-
Durable and Reliable: The device operates in a temperature range from -10°C to +60°C, and its IP20 protection class provides dust protection, making it ideal for harsh industrial environments.
-
Easy Integration: The surface mount design simplifies installation, allowing it to be integrated into existing systems quickly without major modifications.
-
Stable Pulse Output: The XV C768 115 delivers stable, consistent pulse signals, ensuring reliable data transmission for process control and monitoring tasks.
FAQ
1. What is the maximum pulse frequency the ABB XV C768 115 can output?
The ABB XV C768 115 can output pulses at frequencies of up to 1 kHz, making it suitable for high-speed applications that require precise control.
2. How fast is the response time of the ABB XV C768 115?
The device has a 5 ms response time, ensuring that it responds quickly to changes in the input signal for real-time data transmission.
3. What is the input voltage required for the ABB XV C768 115?
The ABB XV C768 115 operates with a 24V DC input, which is typical for most industrial control systems.
4. Can the device be used in energy monitoring systems?
Yes, the ABB XV C768 115 is ideal for energy metering systems, where pulse outputs represent energy consumption data for monitoring and analysis.
5. Is this device suitable for flow measurement applications?
Yes, the ABB XV C768 115 is designed for use in flow measurement systems, where pulse signals can represent flow rates in pipelines or fluid systems.
6. How is the ABB XV C768 115 mounted?
The ABB XV C768 115 is designed for surface mounting, making installation in control panels and industrial equipment straightforward.
7. What kind of output signal does the ABB XV C768 115 generate?
The ABB XV C768 115 generates pulse signals, which are commonly used in energy meters, flow meters, and automation systems for data transmission.
8. What is the protection class of the ABB XV C768 115?
The ABB XV C768 115 has an IP20 protection class, offering protection against dust ingress and ensuring reliability in industrial settings.
9. What is the operating temperature range for this device?
The device operates within a temperature range of -10°C to +60°C, allowing it to function effectively in a variety of industrial environments.
10. Can the ABB XV C768 115 be used in automation systems?
Yes, the ABB XV C768 115 is well-suited for automation systems, where pulse signals can be used for synchronization, monitoring, and control of industrial equipment.
