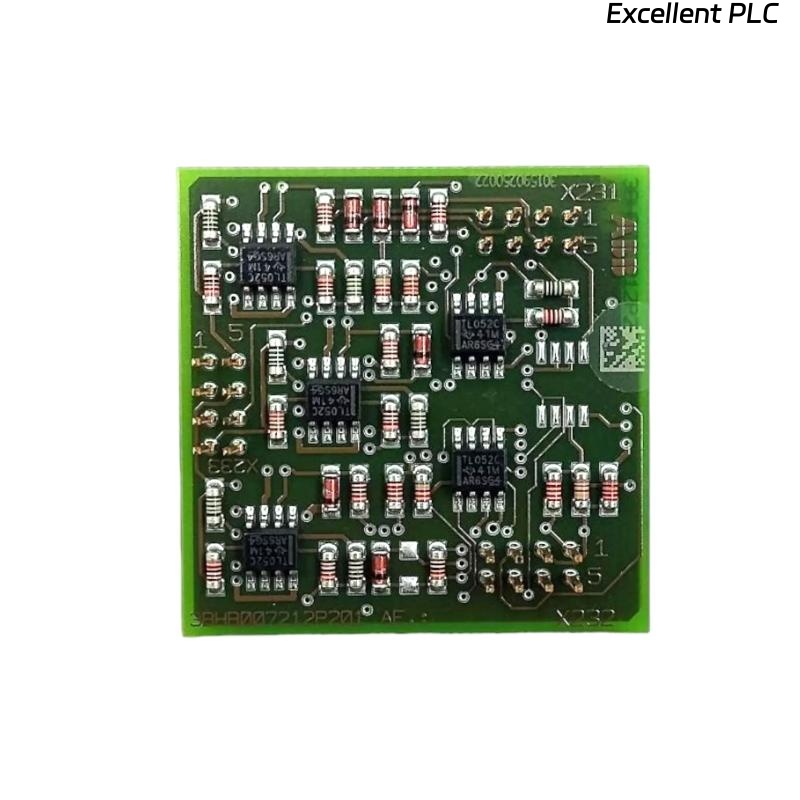

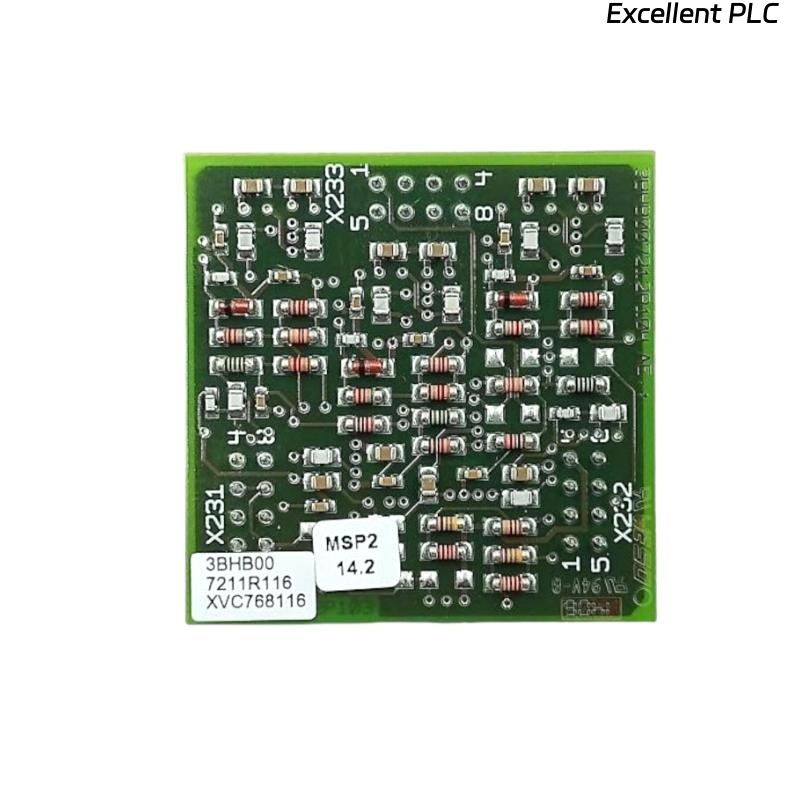

The ABB XV C768 116 3BHB007211R116 current monitoring board is an advanced component designed for precise measurement and control of electrical currents in industrial applications. By providing accurate and reliable current data, the device is essential for monitoring energy consumption, ensuring system protection, and optimizing performance in various automation and control systems. The XVC768 116 integrates seamlessly with existing industrial systems, offering real-time feedback to enhance operational efficiency.
This device is engineered for versatility, delivering precise readings and stable outputs even in demanding environments. With its compact design, it is well-suited for integration into tight spaces, making it ideal for both new installations and system upgrades. Whether used in energy metering, process control, or automation systems, the XVC768 116 offers unparalleled performance and reliability.
Product Parameters
The following table outlines the key technical specifications of the ABB XV C768 116 3BHB007211R116 current monitoring board:
| Parameter | Specification |
|---|---|
| Model Number | XV C768 116 3BHB007211R116 |
| Input Voltage Range | 24V DC |
| Output Signal | Analog or Digital |
| Dimensions (L × W × H) | 70 × 65 × 20 mm |
| Weight | 0.2 kg |
| Operating Temperature | -10°C to +60°C |
| Response Time | 5 ms |
| Accuracy | ±0.5% Full Scale |
| Mounting Type | Surface Mount |
| Protection Class | IP20 |
Product Applications
The ABB XV C768 116 current monitoring board is ideal for use in a wide range of industrial applications where accurate current measurement and monitoring are essential. Typical use cases include:
-
Energy Monitoring: The board can be used in energy monitoring systems, where it measures electrical currents to help track energy consumption and ensure efficient power usage.
-
Automation Systems: It is essential in automation systems, providing real-time current data to control and synchronize operations in industrial equipment.
-
Process Control: Used in various process control systems, it helps monitor currents in machinery, pumps, and motors, providing feedback for maintenance and performance optimization.
-
Motors and Drives: The device is used to monitor current in motors and drives, providing protection against overloads and ensuring that motors operate within safe parameters.
-
HVAC Systems: In heating, ventilation, and air conditioning systems, the board monitors currents in compressors, fans, and pumps, ensuring smooth operation and energy efficiency.
-
Electric Vehicles (EV) Charging Stations: The XVC768 116 can also be used in EV charging stations to monitor and manage the current flowing during the charging process, ensuring safe and efficient charging.
Product Advantages
-
High Precision: The ABB XV C768 116 offers high-accuracy current measurements with ±0.5% full-scale accuracy, ensuring reliable data for monitoring and control applications.
-
Fast Response Time: With a response time of just 5 ms, the device quickly captures changes in current, making it ideal for fast-paced industrial processes.
-
Wide Application Range: It supports both analog and digital output signals, allowing flexibility in integration into various systems, from simple monitoring to complex automation setups.
-
Compact Design: The 70 × 65 × 20 mm size and 0.2 kg weight make the XVC768 116 a highly space-efficient device that can be easily integrated into existing systems with limited space.
-
Robust Protection: The device features an IP20 protection class, safeguarding it from dust ingress and providing reliable operation in industrial environments.
-
Durability: The XVC768 116 can operate in a wide temperature range from -10°C to +60°C, ensuring its functionality in diverse industrial conditions.
-
Easy Integration: The surface mount design allows for seamless integration into control panels, reducing installation time and complexity.
FAQ
1. What is the maximum current measurement range of the ABB XV C768 116?
The ABB XV C768 116 is designed to measure currents accurately within a specified range, typically up to 100A depending on the application and configuration.
2. What type of output signal does the ABB XV C768 116 provide?
The ABB XV C768 116 offers both analog and digital output signals, giving users flexibility in system integration.
3. How accurate is the current measurement of the device?
The ABB XV C768 116 provides an accuracy of ±0.5% full scale, ensuring reliable and precise current measurements for critical applications.
4. Can the ABB XV C768 116 be used for monitoring energy consumption?
Yes, the XVC768 116 is ideal for use in energy monitoring systems, where it tracks electrical current to help monitor energy consumption and optimize efficiency.
5. What is the input voltage range required for the device?
The ABB XV C768 116 operates with a 24V DC input, which is typical for most industrial control and automation systems.
6. Is the ABB XV C768 116 suitable for use in automation systems?
Yes, the XVC768 116 is widely used in automation systems, providing real-time current data to synchronize and control industrial equipment.
7. What is the protection class of the ABB XV C768 116?
The device has an IP20 protection class, which protects it from dust ingress, making it suitable for most industrial environments.
8. How fast is the response time of the device?
The ABB XV C768 116 features a 5 ms response time, allowing it to capture current changes rapidly and support fast industrial processes.
9. What is the operating temperature range for the ABB XV C768 116?
The device operates within a temperature range of -10°C to +60°C, making it suitable for various industrial environments.
10. Can the ABB XV C768 116 be used in motor protection applications?
Yes, the device is often used in motor protection applications, where it monitors current to prevent motor overloads and ensure safe operation.
