Product Introduction

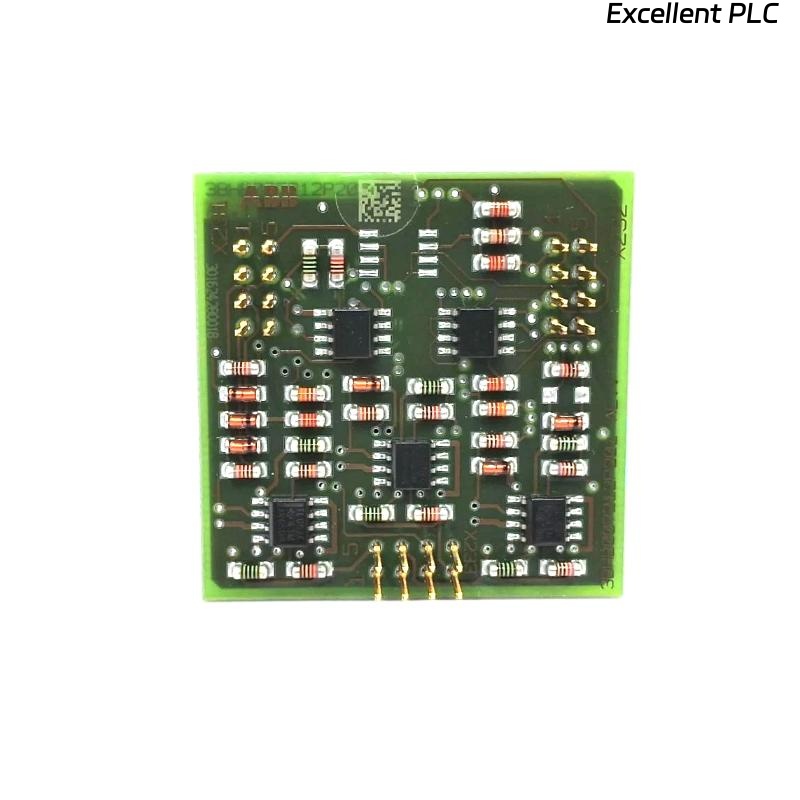

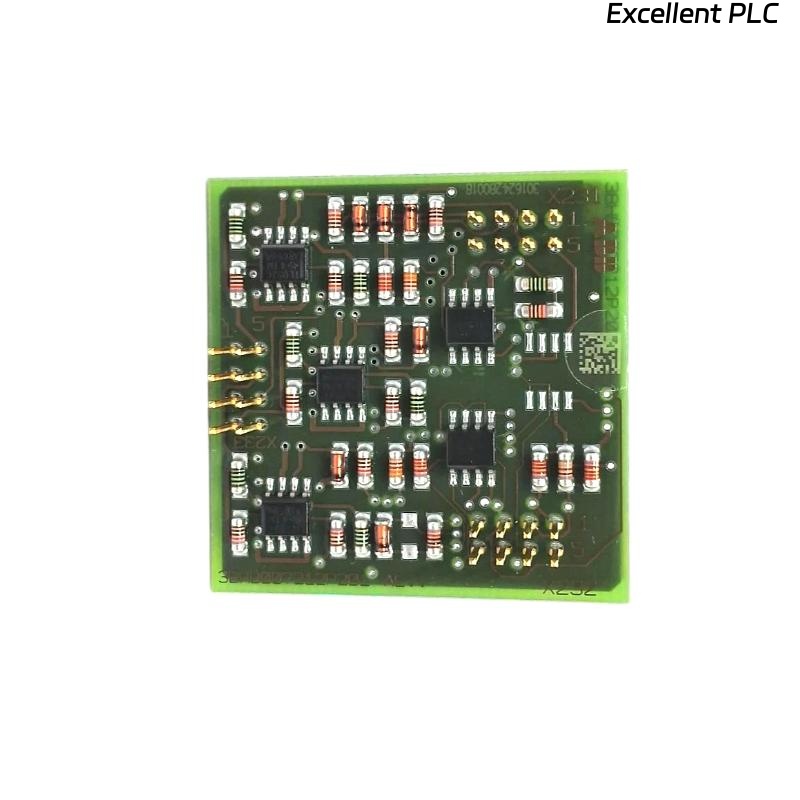

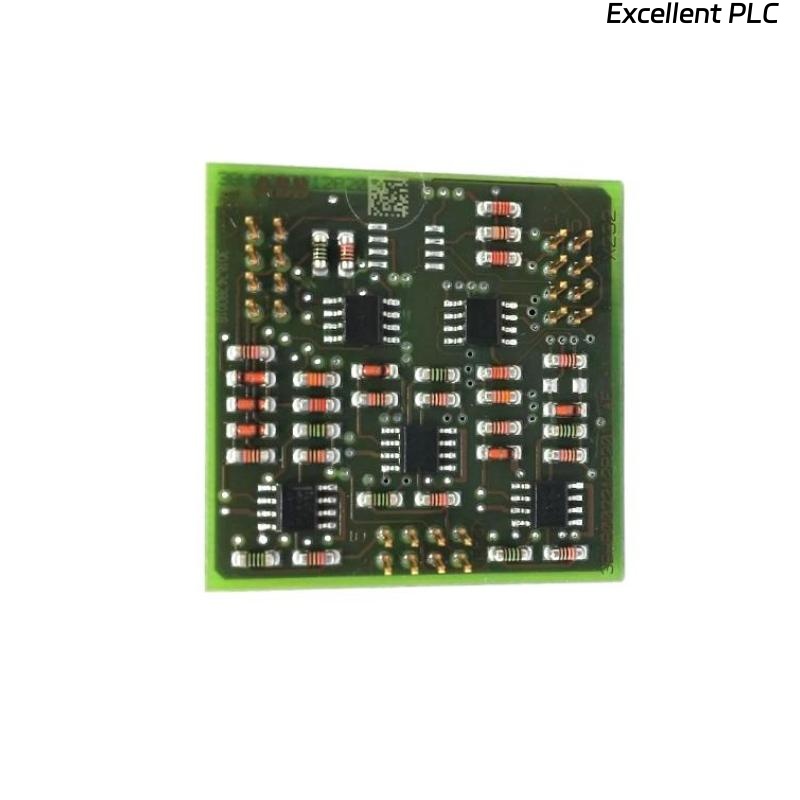

The ABB XV C768 AE102 3BHB007211R0102 current measurement board is a highly accurate and reliable device designed to measure and monitor electrical currents in industrial environments. This board plays a critical role in energy management, industrial automation, and process control by providing real-time current data, which is essential for monitoring system health and optimizing performance.
The XV C768 AE102 integrates seamlessly with various automation and control systems, offering an easy-to-implement solution for accurate current monitoring. Its compact design ensures that it can be mounted in tight spaces without sacrificing performance, making it a versatile choice for numerous industrial applications.
By converting electrical current data into measurable signals, the XV C768 AE102 helps operators make informed decisions regarding energy usage, equipment performance, and operational efficiency, while ensuring that all systems remain within safe operational limits.
Product Parameters
The following table outlines the key technical specifications of the ABB XV C768 AE102 3BHB007211R0102 current measurement board:
| Parameter | Specification |
|---|---|
| Model Number | XV C768 AE102 3BHB007211R0102 |
| Input Voltage Range | 24V DC |
| Output Signal | Analog (4-20mA, 0-10V) |
| Dimensions (L × W × H) | 70 × 65 × 20 mm |
| Weight | 0.2 kg |
| Operating Temperature | -10°C to +60°C |
| Response Time | 5 ms |
| Accuracy | ±0.5% Full Scale |
| Mounting Type | Surface Mount |
| Protection Class | IP20 |
Product Applications
The ABB XV C768 AE102 current measurement board can be applied in various industries where accurate and real-time measurement of electrical currents is critical. Some of the common applications include:
-
Energy Monitoring: The device is ideal for monitoring electrical currents in energy management systems. It helps track energy consumption and optimize power usage in industrial facilities.
-
Industrial Automation: In automation systems, the board monitors current to ensure smooth operation of machines and processes, preventing overloading and ensuring optimal performance.
-
Motor Protection: The XV C768 AE102 is used in motor protection systems to monitor current levels and prevent motor damage caused by overloads.
-
HVAC Systems: The board is employed to measure current in HVAC systems, ensuring that compressors, pumps, and fans operate within their rated current limits.
-
Flow Measurement: It is used in systems that require precise flow measurement, such as water treatment plants or pipelines, by converting current data into pulse signals corresponding to flow rates.
-
Battery Management Systems: The XV C768 AE102 can be used in battery-powered systems to monitor current levels, ensuring that the batteries operate within safe and optimal limits.
Product Advantages
-
High Accuracy: The ABB XV C768 AE102 provides a ±0.5% full-scale accuracy, ensuring reliable and precise measurements in various industrial and energy systems.
-
Fast Response Time: With a response time of just 5 ms, the device quickly responds to changes in current, making it suitable for real-time monitoring applications.
-
Wide Output Signal Range: The board offers flexible output options, including analog signals such as 4-20mA and 0-10V, providing compatibility with a wide range of monitoring systems and controllers.
-
Compact Design: At just 70 × 65 × 20 mm and weighing 0.2 kg, the XV C768 AE102 is compact and space-efficient, making it ideal for installations in areas with limited space.
-
Durable: With an IP20 protection class, the device is designed to withstand harsh environments, offering protection from dust and ensuring long-term reliability.
-
Temperature Range: The board operates in a broad temperature range of -10°C to +60°C, making it suitable for a wide variety of industrial and outdoor applications.
-
Easy Integration: The surface mount design allows for quick and easy integration into existing systems, reducing installation time and increasing operational efficiency.
FAQ
1. What is the output signal type for the ABB XV C768 AE102?
The ABB XV C768 AE102 provides analog output signals, including 4-20mA and 0-10V, for easy integration into various monitoring systems.
2. What is the accuracy of the ABB XV C768 AE102 current measurement?
The XV C768 AE102 offers an accuracy of ±0.5% full-scale, ensuring precise and reliable current measurements for critical industrial applications.
3. How fast is the response time of the device?
The ABB XV C768 AE102 has a 5 ms response time, making it suitable for real-time monitoring and control in dynamic industrial environments.
4. Can the ABB XV C768 AE102 be used for energy monitoring?
Yes, the XV C768 AE102 is ideal for energy monitoring applications, where it measures electrical currents to track energy consumption and optimize usage.
5. What is the input voltage required for the ABB XV C768 AE102?
The device operates on a 24V DC input, which is typical for many industrial control systems and automation equipment.
6. What is the protection class of the ABB XV C768 AE102?
The ABB XV C768 AE102 has an IP20 protection class, providing protection from dust ingress and ensuring durability in most industrial settings.
7. What is the operating temperature range for the device?
The XV C768 AE102 operates in a temperature range from -10°C to +60°C, making it suitable for use in a variety of industrial environments.
8. Can the ABB XV C768 AE102 be used in HVAC systems?
Yes, the device is used to measure the current in HVAC systems, ensuring that compressors, fans, and pumps operate within their rated current limits for optimal performance.
9. What is the mounting type for the ABB XV C768 AE102?
The XV C768 AE102 features a surface mount design, allowing for quick and easy installation in control panels or other systems.
10. How does the ABB XV C768 AE102 contribute to motor protection?
The XVC768 AE102 is used in motor protection applications to monitor current and prevent damage caused by overloads, ensuring the safety and longevity of motors.
