Product Description

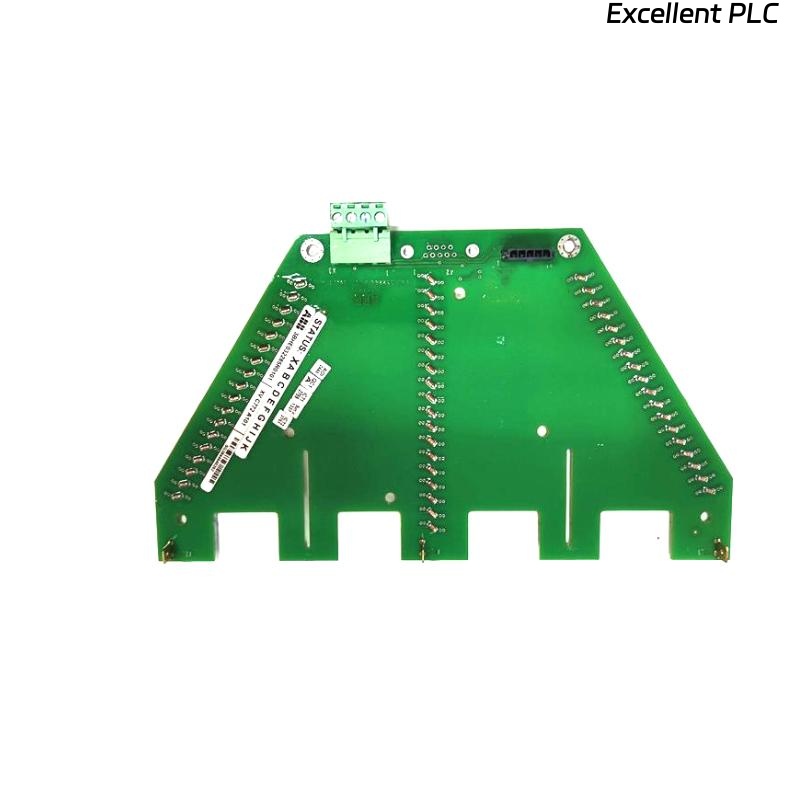

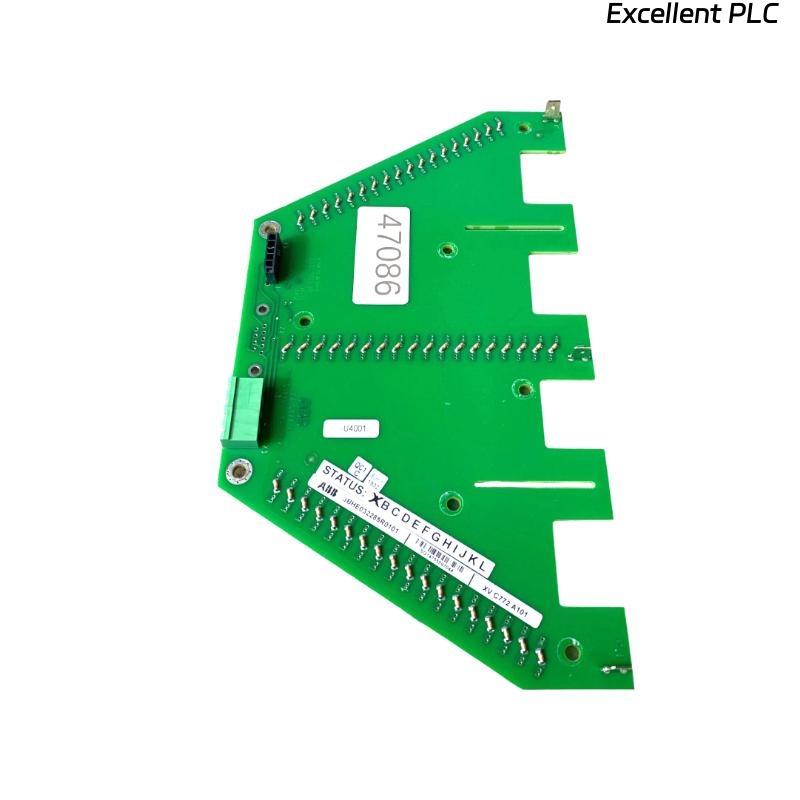

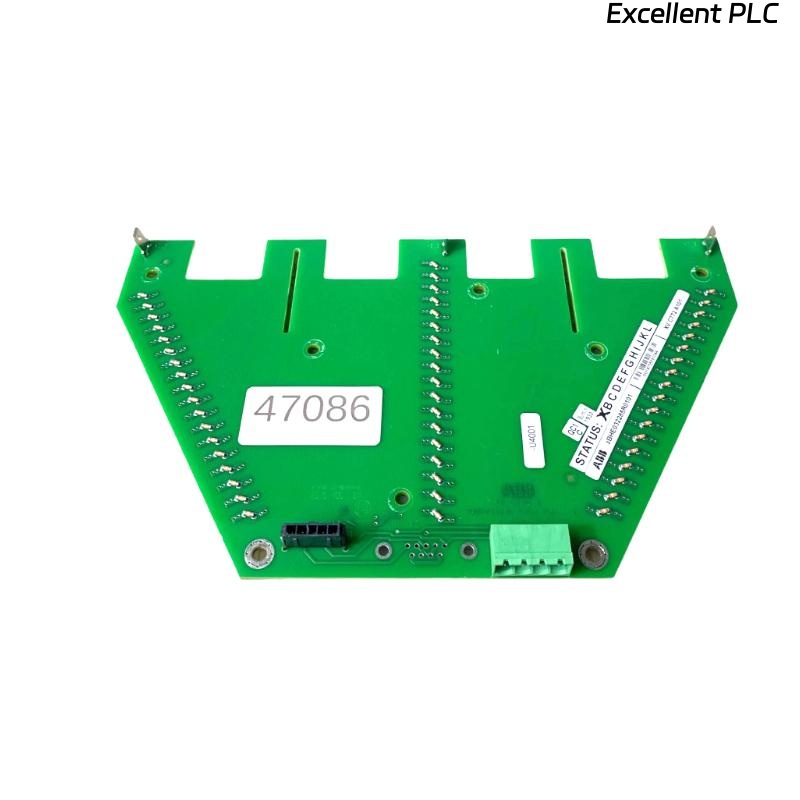

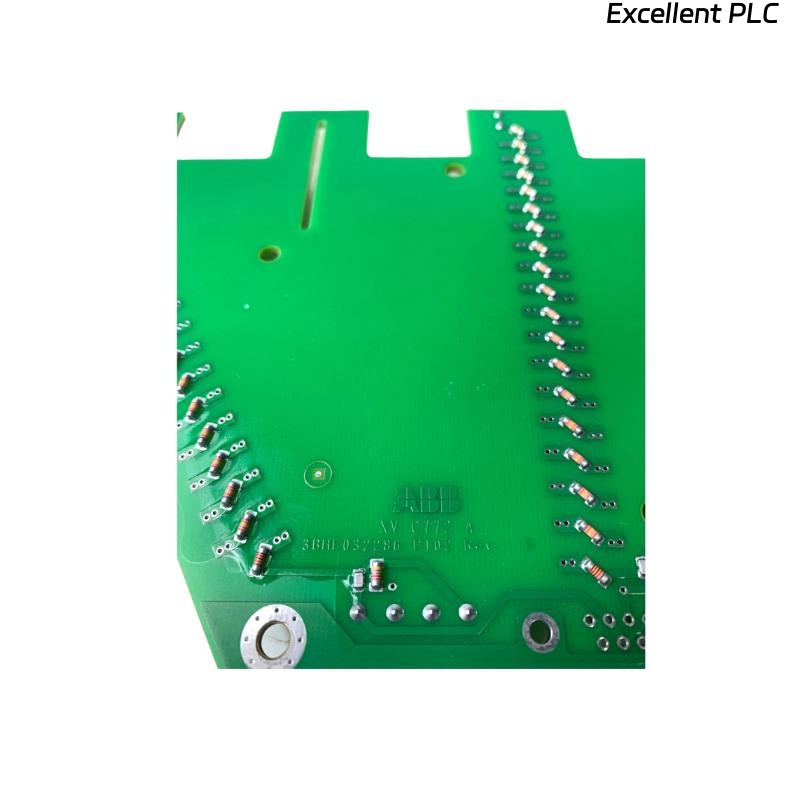

The ABB XV C772 A101 3BHE032285R0101 HVD Board is a high-voltage interface module designed for precise signal control and monitoring in ABB industrial systems. It provides stable electrical isolation, accurate data transfer, and reliable performance in demanding automation and process control applications. This board is built with robust components to ensure durability and long-term stability under industrial operating conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | XV C772 A101 |
| Part Number | 3BHE032285R0101 |
| Function | High Voltage Detection / Interface Board |
| Dimensions (W × L × H) | 130 × 228 × 14 mm |
| Weight | 0.25 kg |
| Operating Voltage | High-voltage signal range (factory-specified) |
| Communication Interface | System bus compatible |
| Mounting Type | Rack / Slot mounting |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Applications
Used in industrial automation and process control systems.
-
High-voltage signal monitoring in ABB drive and control systems
-
Power plant automation and monitoring systems
-
Electrical protection and diagnostics in HV equipment
-
Interface control between high-voltage modules and system processors
Advantages
Designed for reliability and performance in demanding environments.
-
High-accuracy voltage detection and monitoring
-
Robust electrical isolation for enhanced safety
-
Long service life with industrial-grade components
-
Easy integration into ABB control systems
-
Compact form factor suitable for dense system layouts
FAQ
Q1: What is the main function of the ABB XV C772 A101 HVD Board?
A1: It detects and processes high-voltage signals for ABB control and automation systems.
Q2: Is this board compatible with all ABB systems?
A2: It is primarily designed for specific ABB control platforms; compatibility should be confirmed with the system manual.
Q3: Can it operate in high-temperature environments?
A3: Yes, it supports operation from -20°C to +70°C.
Q4: Does it provide electrical isolation?
A4: Yes, it features built-in isolation to protect the system from voltage surges.
Q5: What is the weight of the board?
A5: The board weighs 0.25 kg.
Q6: How is the board installed?
A6: It is mounted in a compatible ABB system rack or slot.
Q7: Is maintenance required for this board?
A7: Minimal maintenance is needed; periodic inspection for dust and secure connections is recommended.
Q8: Can it be replaced without shutting down the whole system?
A8: Hot-swap capability depends on the specific ABB system configuration.
Q9: Does it require special calibration?
A9: No routine calibration is required, but it must be configured according to system parameters during installation.
Q10: What industries use this board?
A10: Power generation, heavy industry, manufacturing automation, and high-voltage equipment control.
Related Models (Same Series / Function)
| Model Number | Function | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| XV C771 A101 3BHE032284R0101 | High Voltage Detection Board | 130 × 228 × 14 | 0.25 |
| XV C773 A101 3BHE032286R0101 | HV Interface Board | 130 × 228 × 14 | 0.25 |
| XV C774 A101 3BHE032287R0101 | HV Measurement Board | 130 × 228 × 14 | 0.25 |
| XV C775 A101 3BHE032288R0101 | HV Signal Conditioning Board | 130 × 228 × 14 | 0.25 |
| XV C776 A101 3BHE032289R0101 | HV Data Processing Board | 130 × 228 × 14 | 0.25 |
| XV C777 A101 3BHE032290R0101 | HV Isolation Board | 130 × 228 × 14 | 0.25 |
