Product Description

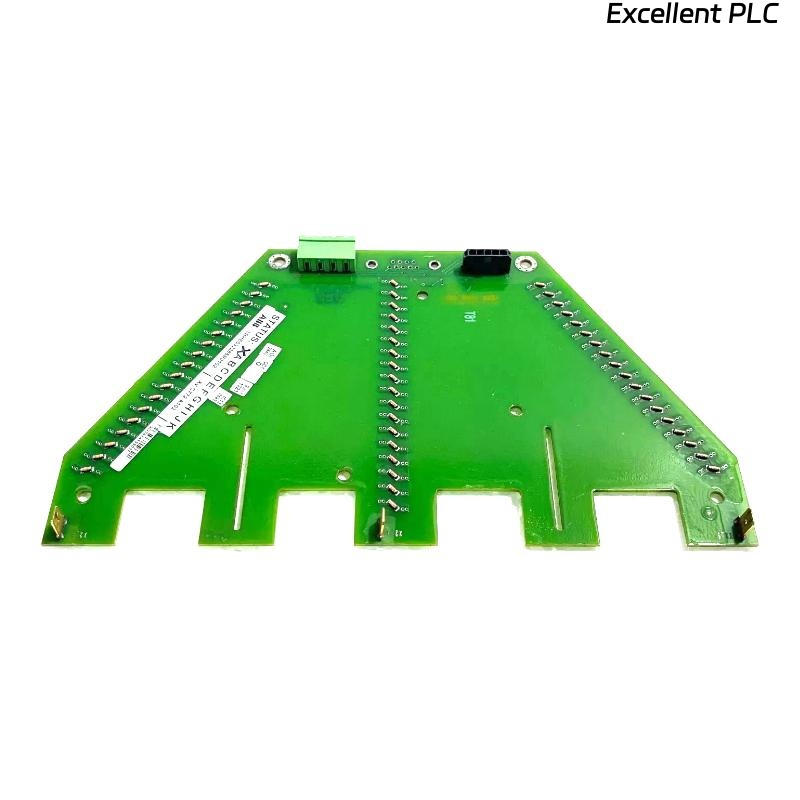

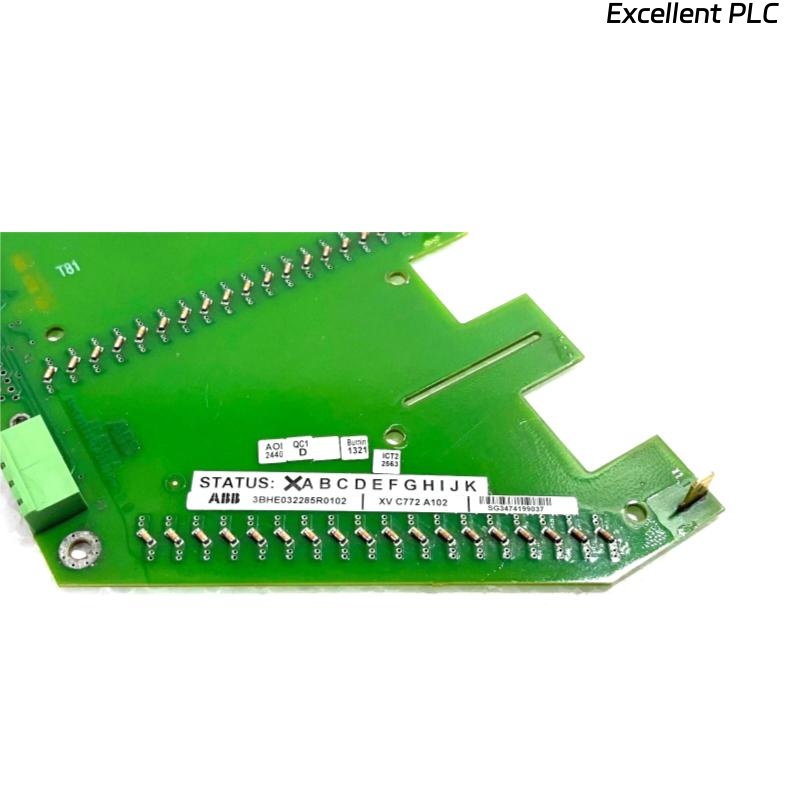

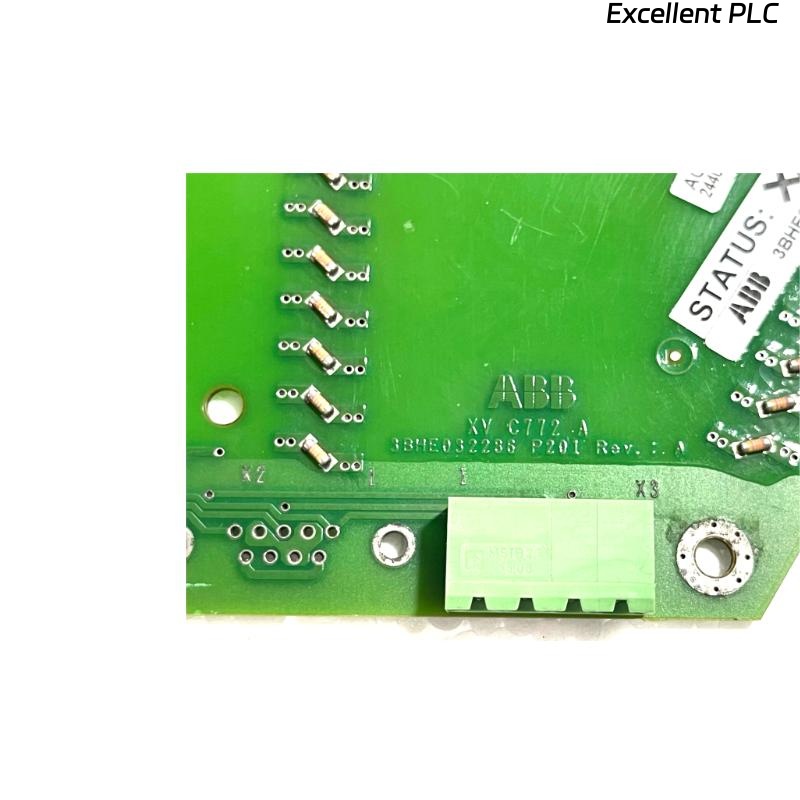

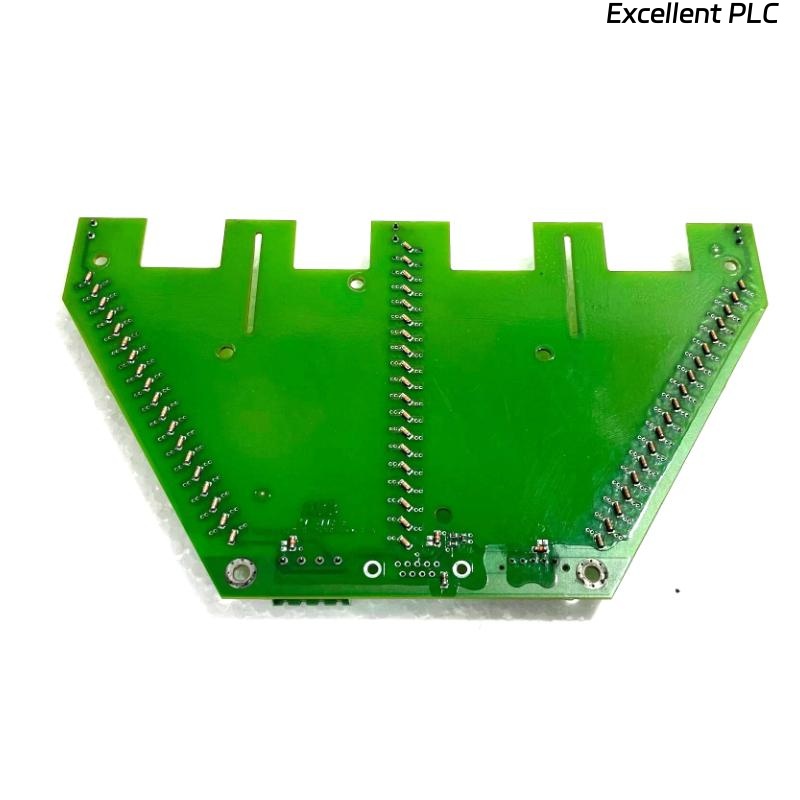

The ABB XV C772 A102 3BHE032285R0102 High Voltage Divider (HVD) Board is a precision-engineered component designed for accurate voltage division and measurement in high-voltage systems. With a varnished protective coating, it ensures enhanced durability against environmental factors such as moisture, dust, and contaminants. The board is specifically used in ABB industrial automation and power control systems, delivering reliable and stable performance in demanding operational environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | XV C772 A102 |
| Part Number | 3BHE032285R0102 |
| Product Type | High Voltage Divider Board |
| Protective Coating | Varnished |
| Operating Voltage | High Voltage Applications |
| Function | Voltage Division & Measurement |
| Dimensions | 130 × 228 × 14 mm |
| Weight | 0.25 kg |
| Mounting Type | PCB Assembly Mount |
| Application Environment | Industrial Automation, Power Systems |
Applications
-
High-voltage measurement and monitoring in industrial automation systems
-
Electrical power control and distribution systems
-
Integration within ABB power electronics equipment
-
Safety and protection circuits requiring precise voltage division
-
Use in demanding environments where varnished protection is critical
Advantages
-
High Accuracy – Ensures precise voltage division for reliable measurements.
-
Enhanced Protection – Varnished coating protects against environmental contaminants.
-
Long Service Life – Durable construction designed for industrial use.
-
Stable Performance – Maintains accuracy even in fluctuating conditions.
-
Compatibility – Optimized for ABB high-voltage control and monitoring systems.
FAQ
Q1: What is the main function of the ABB XV C772 A102 board?
A1: It is designed to divide and measure high voltages accurately in industrial systems.
Q2: Why is the board varnished?
A2: The varnish provides protection against dust, moisture, and corrosion.
Q3: Can this board be used in non-ABB systems?
A3: Yes, but optimal performance is achieved in ABB-compatible environments.
Q4: What industries commonly use this board?
A4: Power generation, industrial automation, and high-voltage testing facilities.
Q5: How should the board be stored before installation?
A5: Store in a dry, dust-free environment, ideally in anti-static packaging.
Q6: What is the lifespan of this board?
A6: With proper maintenance, it can operate reliably for many years in industrial settings.
Q7: Is this board suitable for outdoor use?
A7: It can be used outdoors if installed within a sealed and protected enclosure.
Q8: Does the board require calibration?
A8: It is factory-calibrated but may require periodic checks in precision applications.
Q9: What is the weight of the ABB XV C772 A102 board?
A9: The weight is 0.25 kg.
Q10: What is the recommended operating temperature range for this board?
A10: The ABB XV C772 A102 is designed to operate reliably within a typical industrial temperature range of 0°C to +55°C.
Related Models (Same Series or Function)
| Model | Part Number | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| XV C772 A101 | 3BHE032284R0101 | 130 × 228 × 14 | 0.25 |
| XV C772 A103 | 3BHE032286R0103 | 130 × 228 × 14 | 0.25 |
| XV C770 A101 | 3BHE025432R0101 | 130 × 228 × 14 | 0.25 |
| XV C770 A102 | 3BHE025433R0102 | 130 × 228 × 14 | 0.25 |
| XV C774 A101 | 3BHE034512R0101 | 130 × 228 × 14 | 0.26 |
| XV C775 A101 | 3BHE034522R0101 | 130 × 228 × 14 | 0.26 |
