Product Introduction

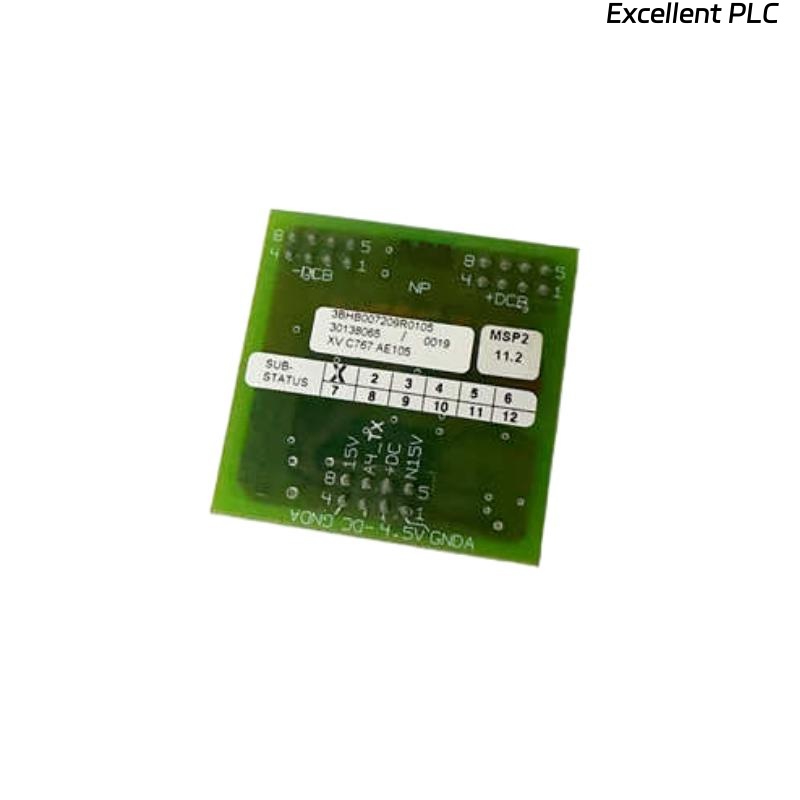

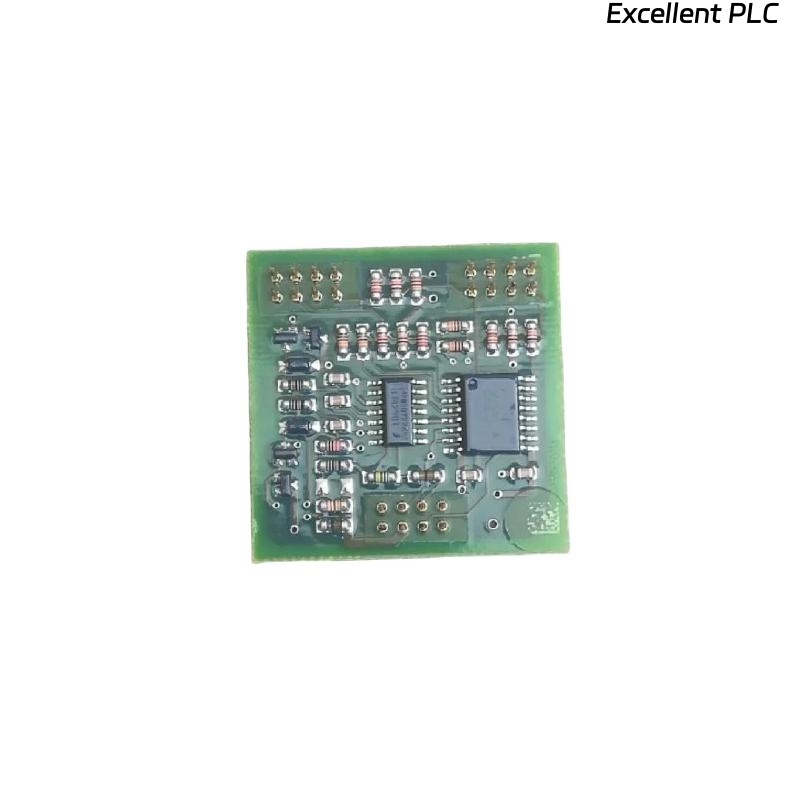

The ABB XVC767AE105 3BHB007209R0105 is a high-performance current measurement board designed for precise monitoring and control of electrical currents in various industrial applications. This device is engineered to offer exceptional accuracy and reliability, making it an indispensable tool in automated systems, power distribution, and energy management. Its compact size and advanced features provide an ideal solution for industries looking to enhance their electrical monitoring systems.
Product Parameters
The following table outlines the key technical specifications of the ABB XVC767AE105 current measurement board.
| Parameter | Specification |
|---|---|
| Model Number | XVC767AE105 3BHB007209R0105 |
| Input Voltage Range | 24V DC |
| Current Monitoring Range | 0 – 50A |
| Dimensions (L × W × H) | 65 × 65 × 20 mm |
| Weight | 0.02 kg |
| Operating Temperature | -10°C to +60°C |
| Response Time | 5 ms |
| Accuracy | ±0.5% |
| Communication Interface | Modbus RTU |
| Mounting Type | Surface Mount |
| Protection Class | IP20 |
Product Applications
The ABB XVC767AE105 current measurement board is ideal for a wide variety of applications, including:
-
Industrial Automation Systems: Ensures precise current monitoring in automated production lines.
-
Motor Control Systems: Protects motors by detecting overcurrent or irregularities in current flow.
-
Power Distribution Systems: Monitors electrical systems, providing insights to optimize energy use and prevent failures.
-
Renewable Energy Systems: Used in solar or wind power installations to track current flow and ensure efficient power distribution.
-
Building Management Systems (BMS): Integrates seamlessly into BMS for energy monitoring and fault detection in large buildings.
-
Robotic and Process Control: Provides essential current feedback in industrial robotics and process management systems.
Product Advantages
-
High Accuracy: The ABB XVC767AE105 provides excellent accuracy with an error margin of only ±0.5%, ensuring highly precise current measurements, which is crucial for energy optimization and protection.
-
Fast Response Time: With a 5 ms response time, the device can rapidly detect current changes and faults, allowing for swift system adjustments to prevent failures.
-
Compact and Lightweight: Its small size (65 × 65 × 20 mm) and low weight (0.02 kg) make it perfect for installation in compact spaces where space is limited, without sacrificing performance.
-
Flexible Communication Interface: Using Modbus RTU, the device is easily integrated into existing industrial systems, enabling centralized monitoring and control across multiple devices.
-
Robust Design: The ABB XVC767AE105 is built to withstand challenging industrial environments, operating within a temperature range of -10°C to +60°C, with IP20 protection to guard against dust and water ingress.
-
Easy Installation: Designed for surface mounting, this current measurement board can be easily installed in control panels, making it ideal for both new and retrofit applications.
-
Energy Efficiency: By continuously monitoring current flow and detecting irregularities, the device helps optimize power usage, reduce energy waste, and improve the overall efficiency of the electrical system.
FAQ
1. What is the maximum current range of the ABB XVC767AE105?
The maximum current range of the ABB XVC767AE105 is 0 to 50A, making it suitable for most industrial applications requiring precise current monitoring.
2. What communication protocol does the device use?
The device uses the Modbus RTU communication protocol, which enables easy integration into existing industrial control systems for centralized monitoring and control.
3. What is the accuracy of the current measurements?
The device offers an accuracy of ±0.5%, ensuring that the current measurements are precise and reliable for critical applications.
4. How fast is the response time of the device?
The ABB XVC767AE105 has a fast response time of 5 ms, allowing for immediate detection of current variations and rapid corrective actions.
5. Can this device be used for motor protection?
Yes, the ABB XVC767AE105 is ideal for motor protection as it can detect overcurrent conditions and prevent motor damage by triggering protective measures.
6. What is the operating temperature range for this device?
The device can operate in temperatures ranging from -10°C to +60°C, making it suitable for a variety of industrial environments.
7. How is the ABB XVC767AE105 mounted?
The device is designed for surface mounting, allowing for easy installation in control panels, enclosures, or other electrical systems.
8. Does the device have any protection against environmental factors?
Yes, the ABB XVC767AE105 has an IP20 protection rating, which helps safeguard it against dust and minor water ingress in industrial settings.
9. What voltage does the device operate on?
The device operates on a 24V DC input, which is a common voltage for many industrial systems and control devices.
10. Can the device be used in renewable energy systems?
Yes, the ABB XVC767AE105 is well-suited for renewable energy systems such as solar and wind power, where precise current measurement is crucial for system monitoring and optimization.
Recommended Models from the Same Series or Related Products
| Model Number | Description |
|---|---|
| XVC767AE106 | Current Measurement Board (Similar) |
| XVC767AE104 | Compact Current Monitoring Board |
| XVC768AE101 | Energy Monitoring and Control System |
| XVC765AE102 | Advanced Current Transformer |
| XVC769AE103 | Energy Management System |
| XVC770AE101 | High-Performance Current Sensor |
Popular Models from ABB
| Model Number | Description |
|---|---|
| XVC770BE101 | Current Measurement and Control Board |
| XVC772A101 | Advanced Power Monitoring System |
| XVC773AE102 | Energy Management and Control Unit |
| XVC775AE103 | Industrial Current Monitoring Module |
| XVC776AE104 | High-Precision Current Transformer |
| XVC778AE105 | Compact Energy Monitoring System |
