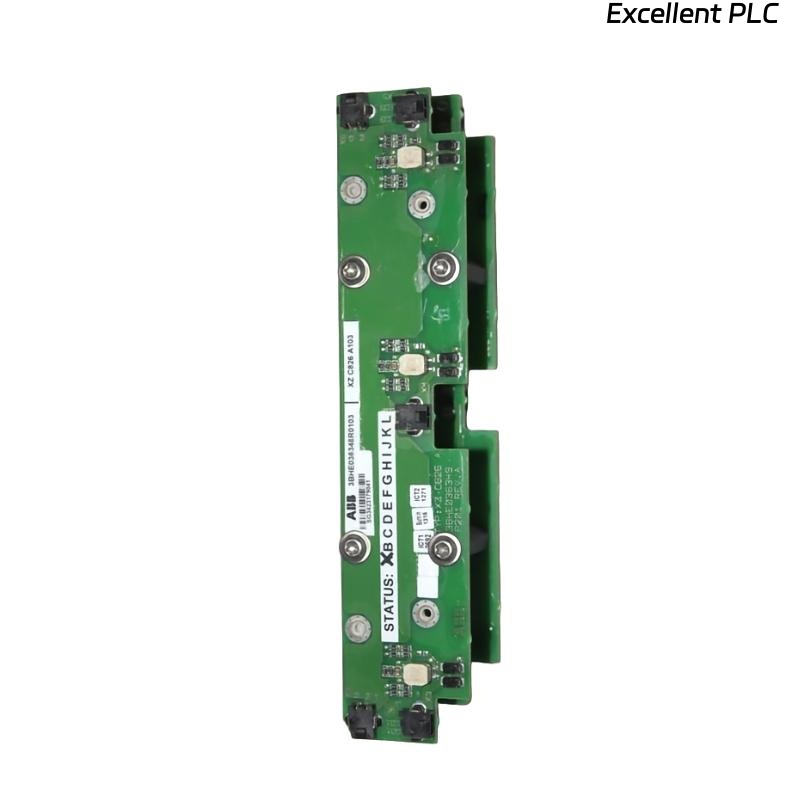

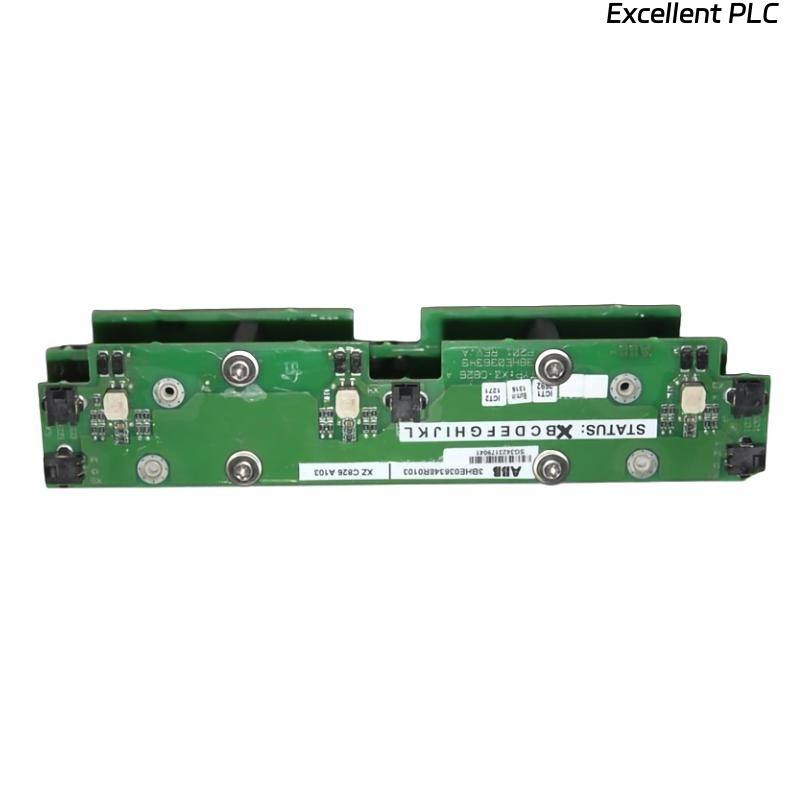

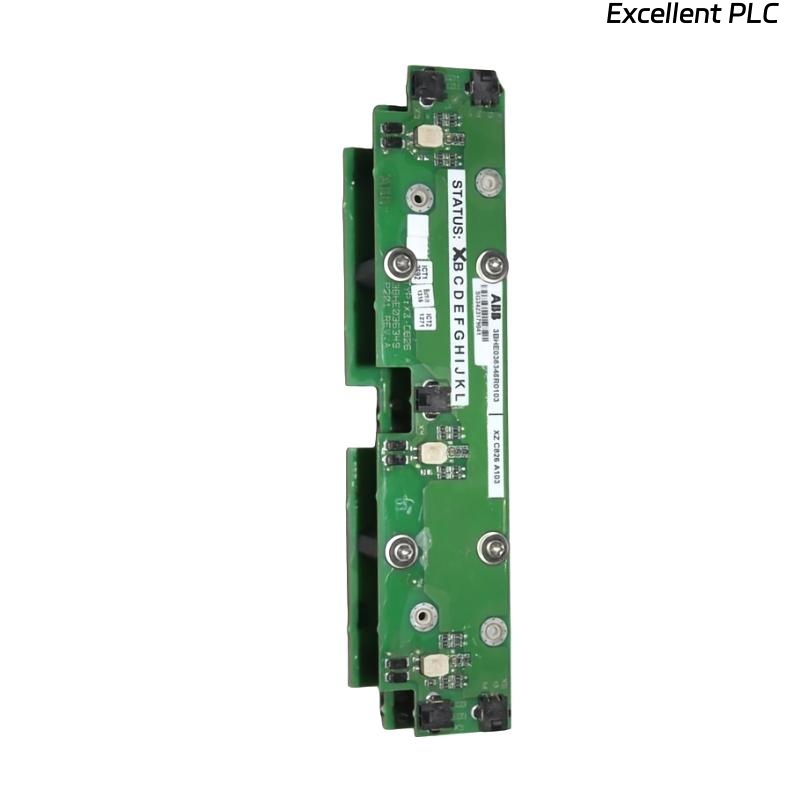

ABB XZ C826 A103 3BHE036348R0103 Drive Board

Manufacturer:ABB

Product Number:XZ C826 A103 3BHE036348R0103

Product Type:Drive Board

Origin:Sweden (SE)

Dimensions:170 × 100 × 20 mm

Weight:0.2 kg

Views:293

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

ABB XZ C826 A103 3BHE036348R0103 Drive Board

Product Introduction

The ABB XZ C826 A103 3BHE036348R0103 Drive Board is a high-performance electronic module designed for use within ABB’s range of industrial drive systems. It is engineered to provide precise motor control, ensuring smooth operation, improved energy efficiency, and robust performance in demanding industrial environments. This drive board serves as a critical component in power conversion and motor drive applications, contributing to reliable automation processes in manufacturing, processing plants, and other industrial sectors.


Product Specifications

Parameter Specification
Model Number XZ C826 A103 3BHE036348R0103
Function Drive Control Board
Compatibility ABB Drive Systems
Input Voltage 24 V DC (typical for control boards)
Communication Interface Digital I/O, Analog I/O, Fieldbus Compatible (varies by configuration)
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Humidity 5% to 95% non-condensing
Dimensions (L x W x H) 170 × 100 × 20 mm
Weight 0.2 kg
Cooling Forced air or conduction cooling
Compliance CE, UL certified (depending on version)

Applications

The ABB XZ C826 A103 Drive Board is widely employed in:

  • Industrial Automation: Precise motor control in conveyor systems, robotics, and automated assembly lines.

  • Pumps and Fans: Managing speed and torque for efficient fluid and air handling.

  • Material Handling: Ensures smooth acceleration and deceleration in cranes, hoists, and elevators.

  • Energy Sector: Used in renewable energy systems and power distribution for dynamic load control.

  • Process Industries: Controls in mixers, compressors, and extruders where variable speed is essential.

  • HVAC Systems: Optimizes fan and compressor motor operations for energy savings and system reliability.


Product Advantages

  • High Reliability: Designed with robust components for extended operational life under harsh conditions.

  • Precision Control: Supports advanced PWM and vector control techniques for optimal motor performance.

  • Flexible Integration: Compatible with various ABB drive platforms and communication protocols.

  • Energy Efficiency: Enhances system energy use through precise speed and torque control.

  • Easy Maintenance: Modular design allows for quick replacement and diagnostics.

  • Enhanced Protection: Built-in safeguards against overvoltage, undervoltage, short circuit, and overheating.

  • Compact Design: Space-saving board dimensions facilitate integration in existing control cabinets.


Frequently Asked Questions (FAQ)

  1. What type of motor control does the XZ C826 A103 Drive Board support?
    It supports both scalar (V/Hz) control and vector control methods, allowing for flexible motor operation.

  2. Is the drive board compatible with all ABB drives?
    It is compatible with specific ABB drive models in the ACS800 and ACS880 series; compatibility depends on firmware and drive version.

  3. What communication protocols does the board support?
    The board supports various protocols such as Modbus, Profibus, and Ethernet/IP, depending on the connected drive system.

  4. Can the board handle regenerative braking energy?
    Yes, when integrated with the proper ABB drive setup, it can manage regenerative energy to improve efficiency.

  5. How does the board protect against electrical faults?
    It features overcurrent, overvoltage, undervoltage, and thermal protection circuits to ensure safe operation.

  6. What diagnostics features are available?
    The board provides real-time monitoring of voltage, current, temperature, and fault codes via the drive interface.

  7. Is firmware upgrade possible on this drive board?
    Firmware updates can be performed through ABB’s proprietary software tools when connected to the drive controller.

  8. How does the board respond to sudden power loss?
    It includes a safe shutdown mechanism to protect the motor and drive electronics from damage during power interruptions.

  9. What is the typical maintenance required for the drive board?
    Regular visual inspection and cleaning from dust are recommended; no routine component replacements are necessary under normal operation.

  10. Can the board operate in environments with high electromagnetic interference (EMI)?
    The board design incorporates EMI shielding and filtering to maintain stable operation in industrial environments with moderate EMI levels.
