Product Introduction

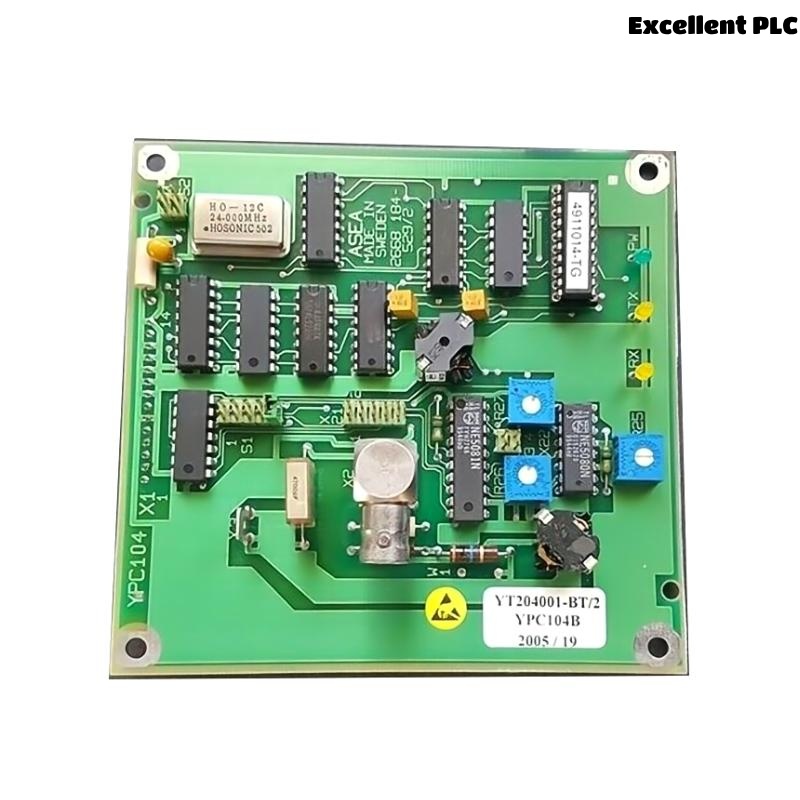

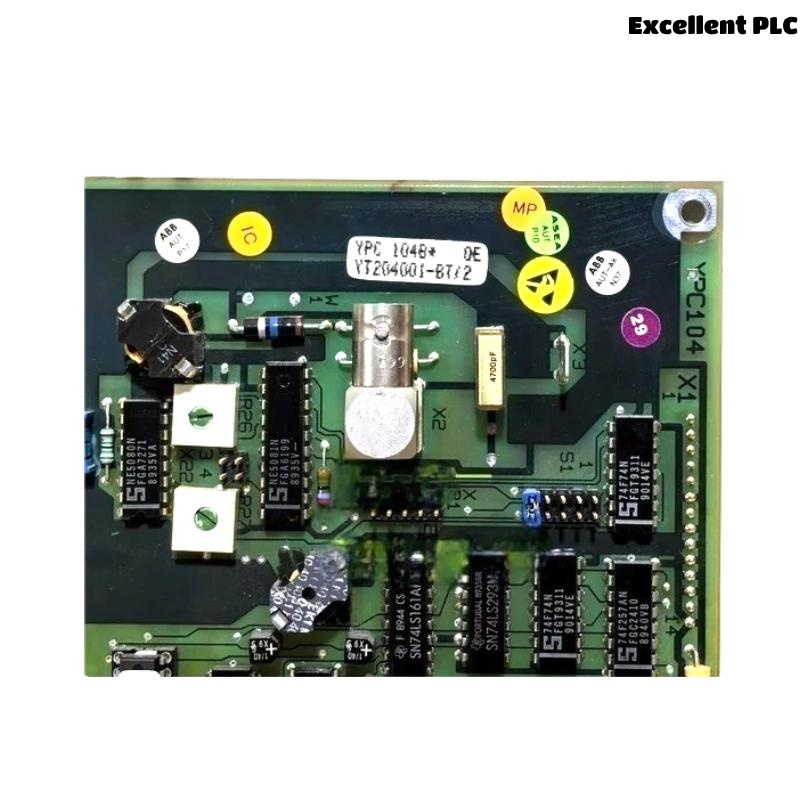

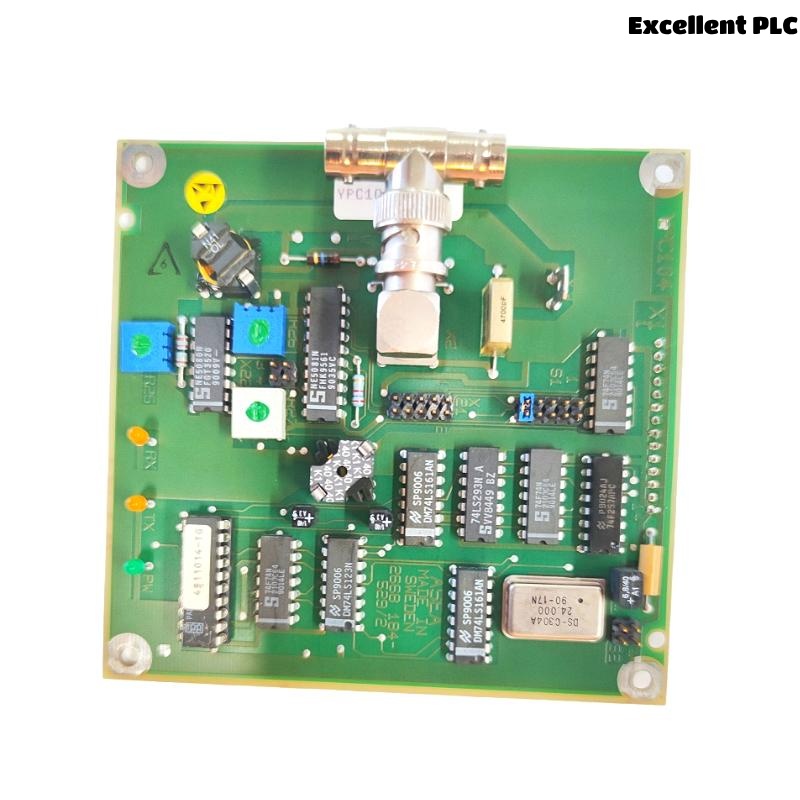

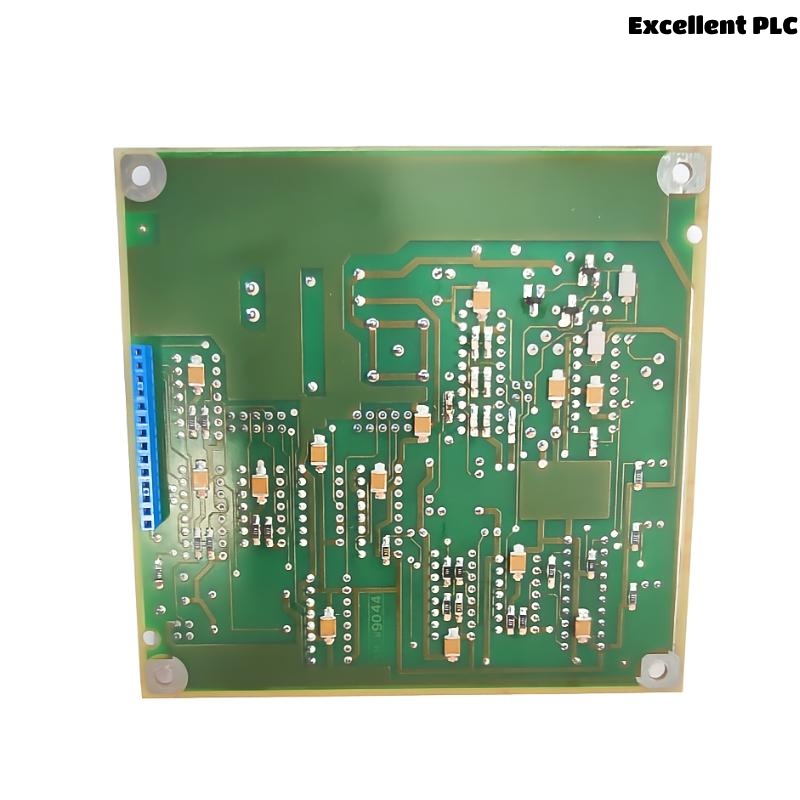

The ABB YPC 104B YT204001-BT/2 Modem Board is a high-performance communication module designed to enable reliable data transmission in industrial automation systems. It is used primarily in process control environments, where seamless communication between remote units and central control systems is essential. The modem board facilitates the exchange of data across industrial networks, enabling devices like programmable logic controllers (PLCs), remote I/O modules, and other field devices to communicate over long distances.
This modem board is part of ABB’s industrial communication portfolio, designed to ensure high-speed, secure, and robust connections for control and monitoring systems. With its modular design, the YPC 104B supports a variety of communication protocols and interfaces, making it a versatile choice for a wide range of applications in industries like energy, oil & gas, manufacturing, and building automation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | Modem Board (ABB YPC 104B YT204001-BT/2) |
| Manufacturer | ABB |
| Model Number | YPC 104B YT204001-BT/2 |
| Communication Protocol | Supports Modbus, Profibus, and other industrial protocols |
| Data Rate | Up to 115200 bps (variable based on protocol and connection) |
| Connector Type | DB9 connector for serial communication and network connection |
| Power Supply | 24 V DC (nominal) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L x W x H) | 150 x 100 x 35 mm |
| Weight | 0.2 kg |
| Protection Rating | IP20 |
| Interface Type | RS-232, RS-485 |
| Mounting Type | DIN rail or panel mount |
| LED Indicators | Power and data transmission indicators |
| Material | Industrial-grade PCB and metal housing |
| Compliance Standards | CE, RoHS, UL |
| Applications | Suitable for use in remote data collection, SCADA systems, PLCs, and automation control systems |
Applications
The ABB YPC 104B YT204001-BT/2 Modem Board is a versatile communication solution that is widely used in industries where remote monitoring and control of equipment are critical. Some of the typical applications include:
-
Process Control Systems: Connecting remote terminals and field devices to a central SCADA or DCS (Distributed Control System).
-
Energy Distribution: Enabling communication between substations, grid management systems, and energy monitoring equipment.
-
Building Automation: Integrating HVAC systems, lighting control, and security systems for smart building management.
-
Oil & Gas Industry: Facilitating communication between remote drilling sites, offshore platforms, and central monitoring stations.
-
Manufacturing Automation: Enabling PLCs and HMI systems to communicate with various sensors, actuators, and monitoring devices.
-
Water and Wastewater Treatment: Connecting remote monitoring systems and sensors to central treatment plants for real-time data transmission and analysis.
Product Advantages
-
Wide Compatibility: The YPC 104B supports multiple communication protocols like Modbus and Profibus, making it highly adaptable to various industrial automation systems.
-
High Data Rate: It supports data rates of up to 115200 bps, ensuring fast and efficient data transmission.
-
Compact and Robust Design: The modem board is designed to be compact yet durable, making it easy to install in tight spaces while withstanding harsh industrial environments.
-
Flexible Mounting Options: It can be mounted on a DIN rail or in a panel, providing flexibility in installation depending on your setup.
-
Industrial-Grade Protection: With an IP20 protection rating, it is protected against dust and accidental contact, ensuring reliable performance in industrial conditions.
-
Wide Temperature Range: The unit operates within a temperature range of -40°C to +70°C, making it suitable for deployment in harsh climates and extreme environments.
-
Easy Diagnostics: It features LED indicators for monitoring power and data transmission, making it easy to diagnose operational status.
-
Energy Efficient: The unit operates on a nominal 24 V DC, ensuring low power consumption and compatibility with standard industrial power supplies.
-
Quick Integration: The modem board supports standard RS-232 and RS-485 interfaces, allowing for easy integration into existing systems without extensive modifications.
Frequently Asked Questions (FAQ)
1. What is the main function of the ABB YPC 104B Modem Board?
The main function of the YPC 104B is to provide reliable data communication between field devices and central control systems, supporting protocols like Modbus and Profibus.
2. What communication protocols are supported by this modem board?
The YPC 104B supports various protocols, including Modbus, Profibus, and other industrial communication protocols suitable for remote data transmission.
3. What is the maximum data transmission rate?
The modem board can support data rates of up to 115200 bps, allowing for high-speed data communication.
4. How is the YPC 104B powered?
The modem board operates on a 24 V DC power supply, which is typical for industrial communication devices.
5. What is the mounting method for the YPC 104B?
The YPC 104B can be mounted on a DIN rail or panel-mounted, depending on your installation requirements.
6. Is the YPC 104B suitable for outdoor use?
The modem board is designed for indoor use with an IP20 rating, which provides basic protection against dust and accidental contact. For outdoor installations, additional enclosures may be necessary.
7. What is the operating temperature range of the unit?
The unit operates within a temperature range of -40°C to +70°C, making it suitable for use in various industrial environments.
8. What types of interfaces does the YPC 104B use?
It uses RS-232 and RS-485 interfaces for communication, which are common in industrial data transmission systems.
9. Can the YPC 104B be integrated into existing systems easily?
Yes, the YPC 104B supports standard communication interfaces, making it easy to integrate with existing systems that use Modbus or Profibus protocols.
10. What industries can benefit from using the YPC 104B?
The modem board is ideal for industries such as energy, oil & gas, manufacturing, building automation, and water treatment, where remote communication and monitoring are essential.
Related Models from the Same Series
| Model Number | Description | Compatibility |
|---|---|---|
| YPC 103B YT204001-BT/1 | Communication module for remote data transmission | PM860, AC 800M |
| YPC 105B YT204001-BT/3 | Advanced modem for high-speed industrial communication | PM864, S800 I/O |
| YPC 106B YT204001-BT/4 | Modem board for enhanced protocol compatibility | PM865, Profibus networks |
| YPC 107B YT204001-BT/5 | Long-distance communication modem with support for multiple protocols | AC 800M, SCADA systems |
| YPC 108B YT204001-BT/6 | Modem board for data transmission in remote monitoring systems | PM860, SCADA, DCS systems |
| YPC 109B YT204001-BT/7 | Communication module with additional fault diagnostics features | PM865, Building automation |
Popular Models from the Same Brand (ABB)
| Model Number | Product Type | Description |
|---|---|---|
| PM860 | CPU Module | High-performance CPU for AC 800M automation systems |
| DI810 | Digital Input Module | 16-channel digital input module for ABB control systems |
| DO810 | Digital Output Module | 16-channel digital output module for ABB control systems |
| CI854 | Communication Interface Module | Profibus DP communication for AC 800M |
| AI810 | Analog Input Module | 8-channel analog input module for AC 800M systems |
| PM864 | CPU Module | Standard CPU module for ABB industrial control systems |
