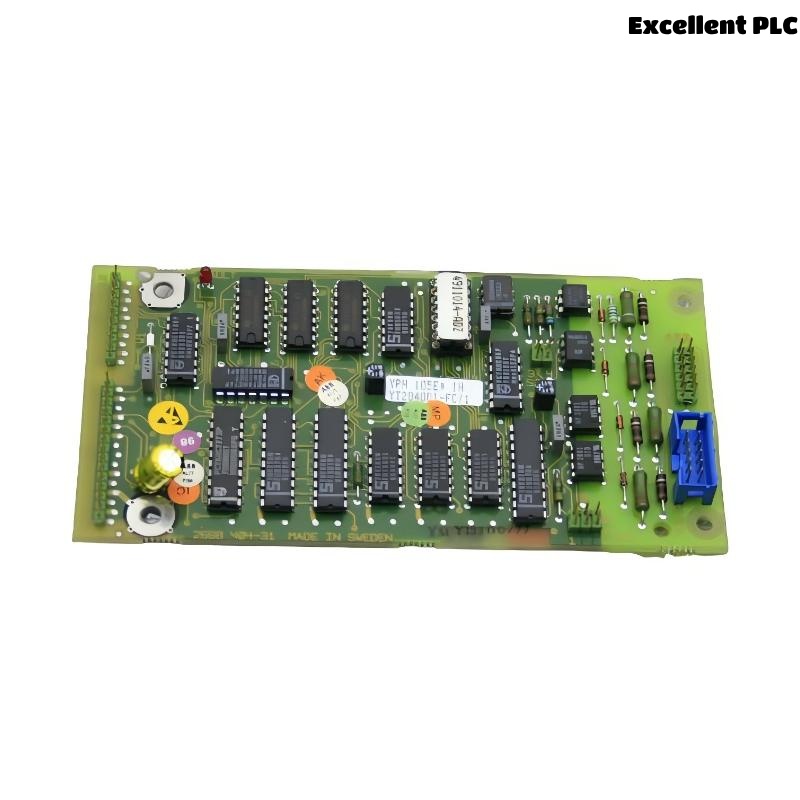

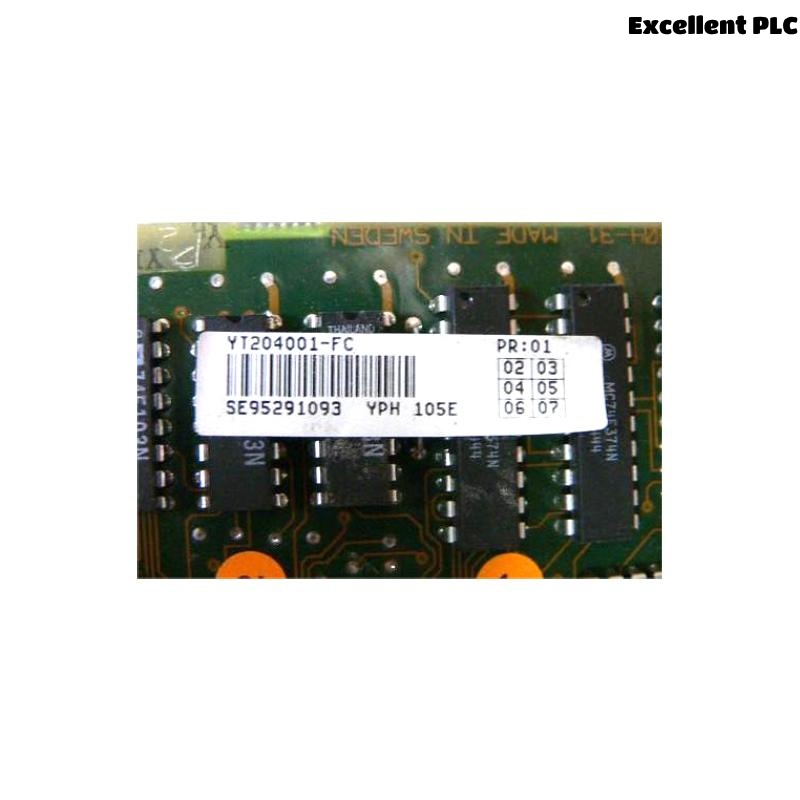

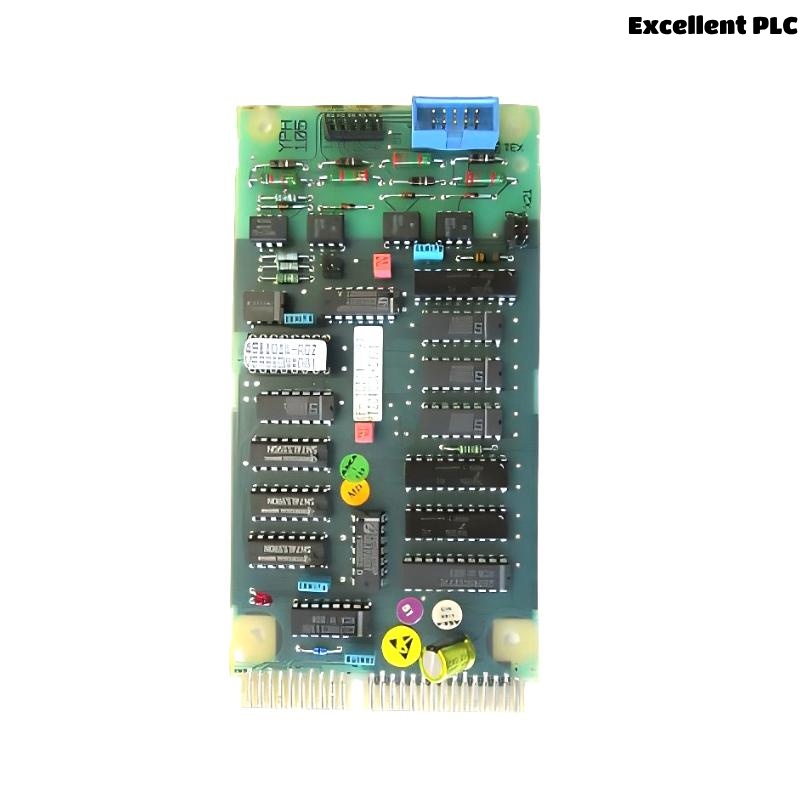

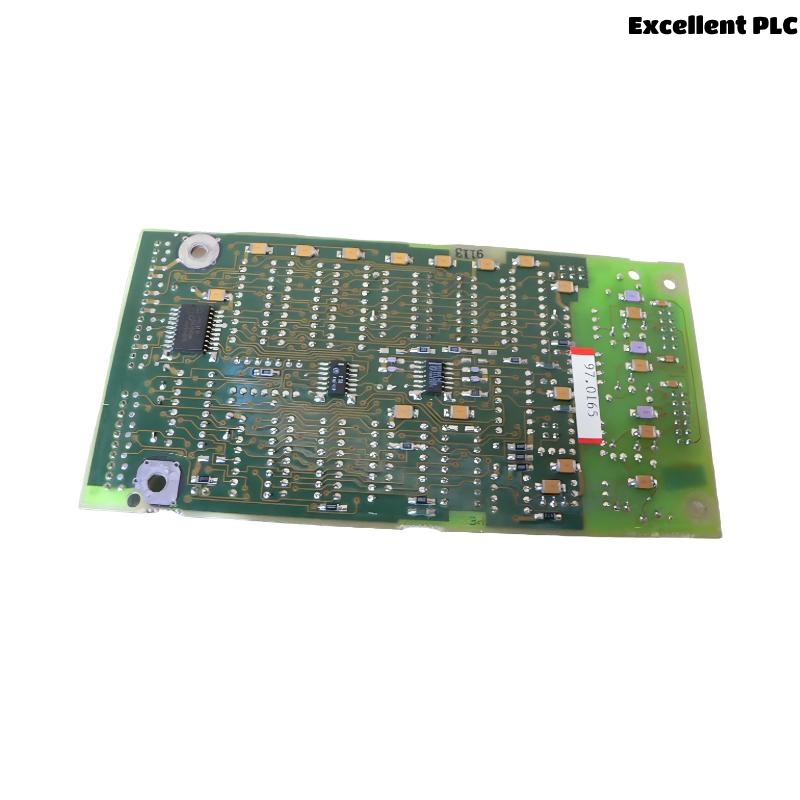

ABB YPH 105E YT204001-FC Digital Speed Input Board

Product Overview:

The ABB YPH 105E YT204001-FC Digital Speed Input Board is designed for precise measurement and monitoring of rotational speed in industrial automation systems. This board plays a critical role in applications requiring high-speed measurement and control, offering a reliable solution for rotational equipment such as motors, turbines, and fans.

By converting analog speed signals into digital signals, the YPH 105E enables accurate real-time data processing, ensuring efficient control and operation of machinery. This module supports integration with various ABB control systems like PLC and DCS, ensuring seamless data flow and system integration.

With its compact dimensions and lightweight design, the YPH 105E is easy to install and suitable for environments where space is limited. The module is highly reliable, designed to withstand harsh industrial conditions, and provides a high level of precision in speed monitoring, making it essential for industries like power generation, oil & gas, chemical processing, and manufacturing.

Product Specifications:

Applications:

The ABB YPH 105E YT204001-FC Digital Speed Input Board is used for measuring and monitoring rotational speed in various industrial applications:

1. Motor Speed Monitoring: The module is widely used in motor control systems to measure motor speeds, providing crucial data for maintaining motor performance and preventing failures.

2. Turbine Speed Measurement: In power plants, this module monitors the rotational speed of turbines, ensuring that they operate at optimal efficiency and preventing over-speed conditions.

3. Fan Speed Control: The YPH 105E is essential in HVAC systems for measuring and controlling the speed of ventilation fans, ensuring energy-efficient operation.

4. Pump Speed Monitoring: In oil & gas and chemical processing, this module tracks the speed of pumps, ensuring accurate flow rates and preventing mechanical wear.

5. Wind Turbine Monitoring: The module is used in renewable energy applications to monitor the speed of wind turbines, optimizing energy generation and system performance.

6. Automated Manufacturing Systems: In automated production lines, it ensures the precise speed of conveyors and other machinery, maintaining throughput and efficiency.

7. Material Handling Systems: Used in material handling systems, this module tracks the speed of conveyor belts and other equipment to ensure accurate processing and movement of materials.

8. Compressor Speed Monitoring: In industrial compressors, the YPH 105E monitors the rotational speed of compressors to ensure they operate within their specified parameters.

Product Advantages:

1. High-Speed Accuracy: The YPH 105E provides accurate digital conversion of speed signals, with an accuracy of ±0.5%, ensuring reliable data for critical applications.

2. Wide Input Range: The module accepts a variety of frequency/pulse signals, making it compatible with many types of speed sensors and machinery.

3. Compact and Lightweight Design: With dimensions of 140 x 70 x 30 mm and a weight of only 0.077 kg, it is ideal for installations in confined spaces and easy to handle during setup.

4. Fast Signal Processing: The YPH 105E offers rapid digital conversion of speed signals, enabling quick responses to changes in rotational speed.

5. Robust in Harsh Environments: With an IP20 rating, the module provides protection against dust and small particles, making it suitable for industrial environments.

6. Easy Integration: It seamlessly integrates with PLC and DCS systems, enhancing system control and automation capabilities.

7. Reliable Performance: The module’s design ensures long-term reliability, reducing maintenance requirements and ensuring consistent system performance.

8. Flexible Power Supply: The YPH 105E operates on 24V DC, offering versatility in various industrial setups and reducing energy consumption.

9. Wide Temperature Range: The module functions within a temperature range of -10°C to +55°C, making it suitable for both hot and cold industrial environments.

10. Cost-Effective Solution: With its high performance and durability, the YPH 105E offers a cost-effective solution for speed measurement and monitoring across various industries.

FAQs:

1. What are the dimensions of the ABB YPH 105E YT204001-FC Digital Speed Input Board?
   The module’s dimensions are 140 x 70 x 30 mm.

2. How much does the ABB YPH 105E weigh?
   The module weighs 0.077 kg.

3. What type of input does the YPH 105E module accept?
   The module accepts digital speed signals, including frequency and pulse signals.

4. What power supply does the YPH 105E require?
   The module operates with a 24V DC power supply.

5. What is the accuracy of the YPH 105E module?
   The accuracy is ±0.5% of full scale.

6. What is the temperature range for the YPH 105E?
   The module operates within a temperature range of -10°C to +55°C.

7. What is the environmental protection rating of the YPH 105E?
   The module has an IP20 rating, offering protection against dust and small particles.

8. Can the YPH 105E be used in motor control systems?
   Yes, it is ideal for motor speed monitoring and other rotational equipment.

9. How fast is the signal processing of the YPH 105E?
   The module offers rapid digital conversion of speed signals for real-time applications.

10. Can the YPH 105E be integrated into existing control systems?
    Yes, it integrates seamlessly with PLC and DCS systems for efficient automation and control.
