Product Introduction

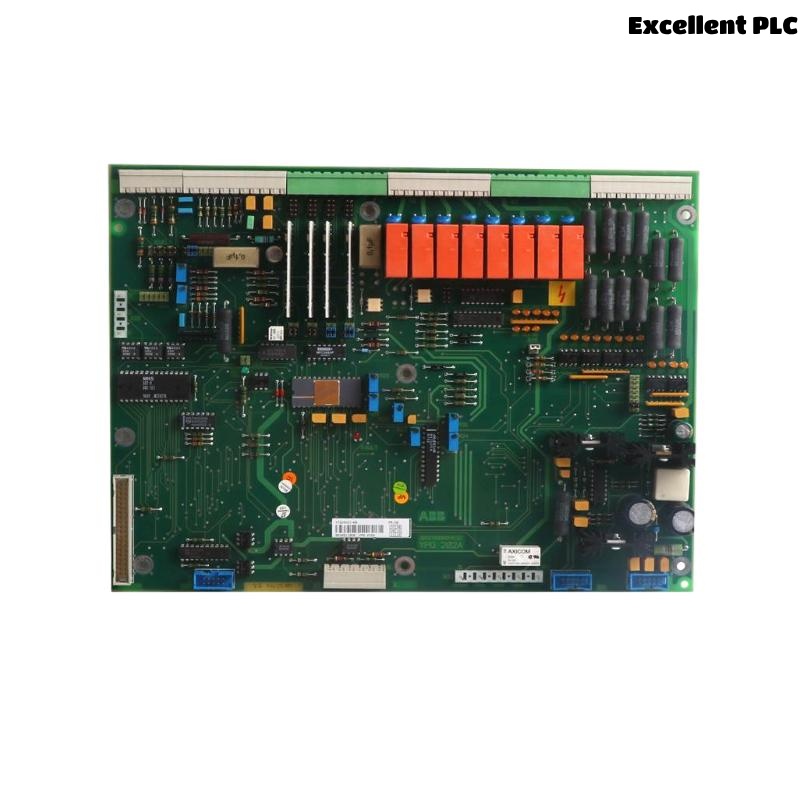

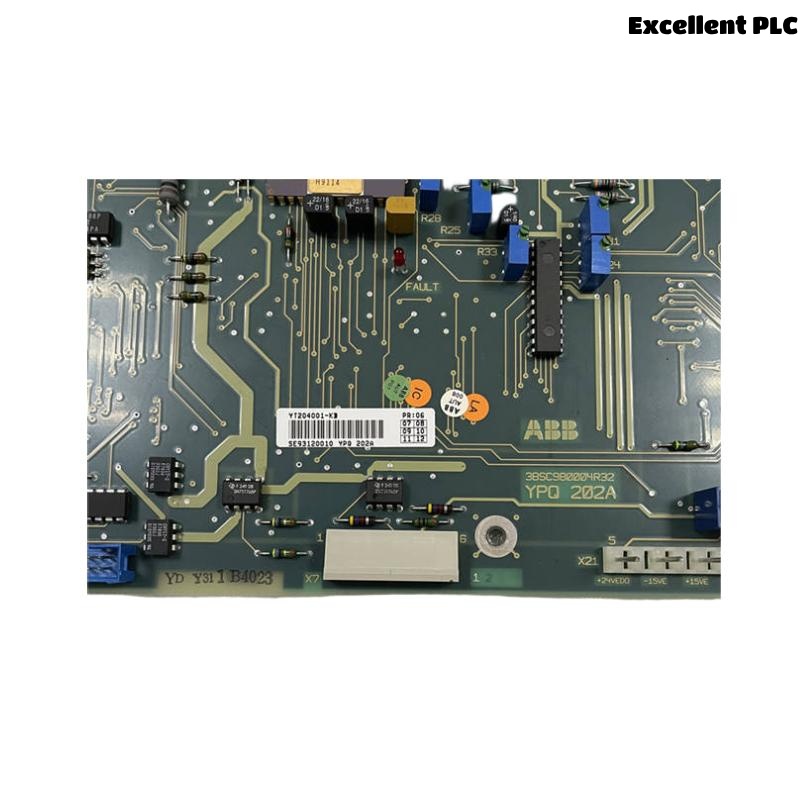

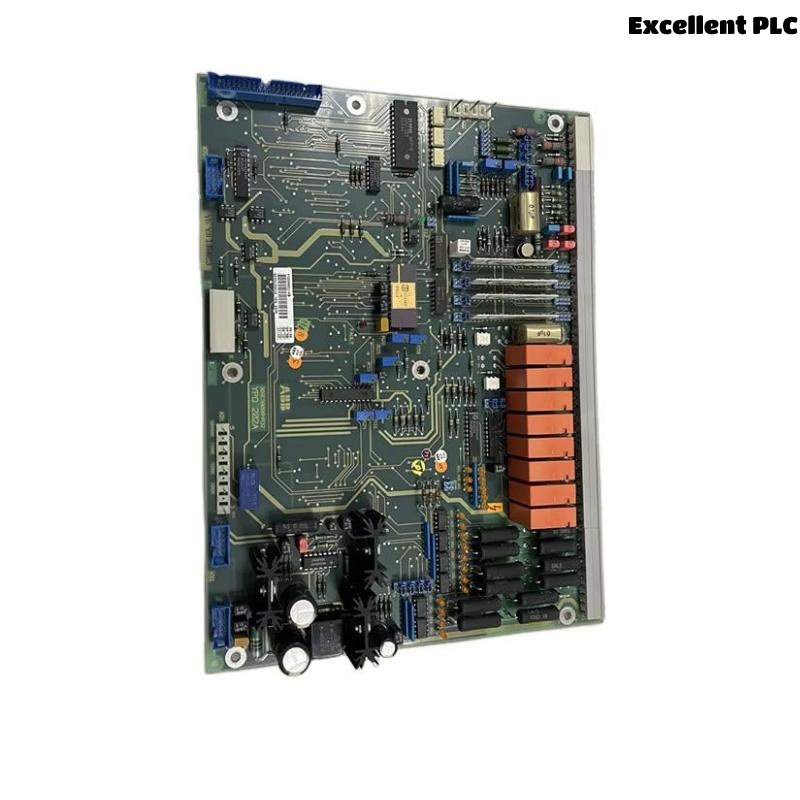

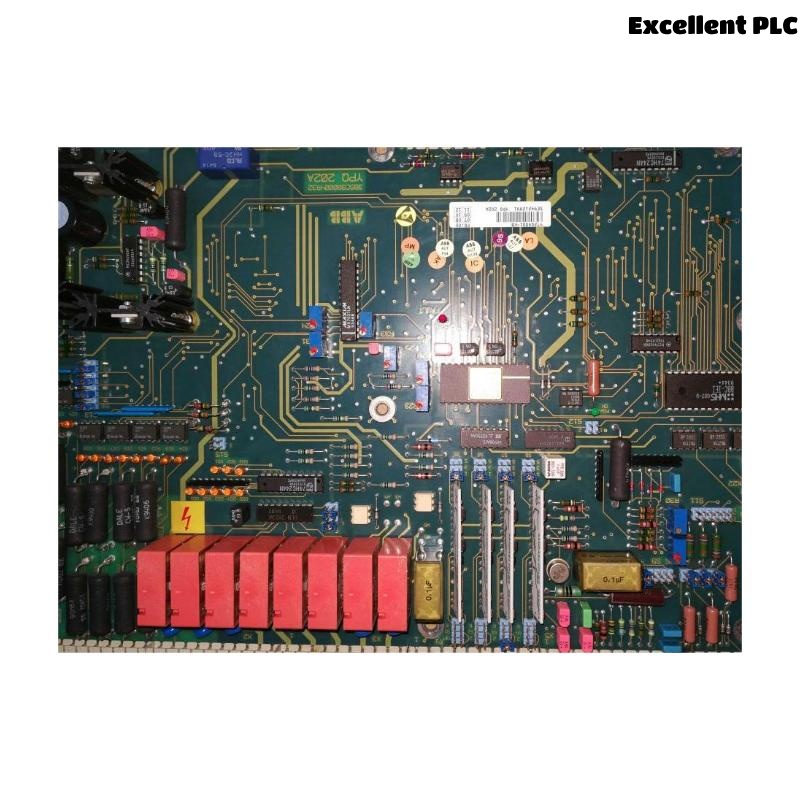

The ABB YPQ 202A 3BSC980004R32 I/O board is an advanced industrial input/output module designed to meet the high demands of modern automation systems. This board is ideal for integrating field devices with control systems, providing reliable and efficient data exchange. The YPQ 202A is engineered for seamless integration with ABB’s automation platforms, offering a flexible and scalable solution for industrial applications. Its robust design ensures longevity and reliability even in challenging operational environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | YPQ 202A 3BSC980004R32 |
| Type | I/O Module |
| Dimensions (W x H x D) | 158 x 85 x 30 mm |
| Weight | 0.535 kg |
| Input Voltage | 24 VDC |
| Current Consumption | 150 mA |
| Operating Temperature Range | -20°C to +60°C |
| Communication Interface | Modbus RTU, Profibus DP |
| Output Channels | 8 Digital Outputs |
| Input Channels | 8 Digital Inputs |
| Mounting Type | DIN Rail Mountable |
Product Applications
The ABB YPQ 202A 3BSC980004R32 I/O board is widely used in industries where automation and real-time data monitoring are crucial. Its flexibility allows it to be deployed in a wide range of applications, such as:
-
Process Automation: For controlling and monitoring various industrial processes.
-
Energy Management Systems: It helps in controlling and monitoring energy flow and ensuring optimal energy use.
-
Machine Control: Used for controlling machine inputs and outputs, ensuring smooth operation in automated environments.
-
Industrial Automation Systems: Ideal for seamlessly integrating with other ABB automation products in industrial systems.
-
Remote Monitoring and Control: Supports remote control and monitoring of devices over a network via Modbus RTU or Profibus DP protocols.
Product Advantages
-
High Performance: The YPQ 202A provides exceptional performance, with fast data transmission and reliable input/output handling.
-
Compact and Efficient Design: The module’s small footprint (158 x 85 x 30 mm) ensures easy integration into tight spaces while providing all necessary functionality.
-
Wide Operating Temperature Range: With an operating temperature range of -20°C to +60°C, the YPQ 202A is suitable for deployment in both cold and hot environments.
-
Enhanced Communication Flexibility: The module supports both Modbus RTU and Profibus DP, offering enhanced compatibility with various control systems.
-
Low Power Consumption: Drawing only 150 mA, the YPQ 202A operates efficiently, minimizing power usage and helping to reduce overall operational costs.
-
Reliable I/O Functionality: Equipped with 8 digital inputs and 8 digital outputs, it provides flexibility for diverse applications and ensures robust control and monitoring capabilities.
Frequently Asked Questions (FAQ)
Q1: What power supply is required for the ABB YPQ 202A I/O board?
A1: The YPQ 202A requires a 24 VDC power supply.
Q2: How many digital inputs and outputs does the board support?
A2: The YPQ 202A provides 8 digital inputs and 8 digital outputs.
Q3: Can the YPQ 202A operate in extreme environments?
A3: Yes, it is designed to function in environments with temperatures ranging from -20°C to +60°C.
Q4: What communication protocols are supported by the YPQ 202A?
A4: The module supports Modbus RTU and Profibus DP communication protocols.
Q5: How is the ABB YPQ 202A mounted?
A5: The module is designed for DIN rail mounting, ensuring easy and secure installation.
Q6: What is the weight of the YPQ 202A I/O board?
A6: The weight of the module is 0.535 kg.
Q7: What are the dimensions of the ABB YPQ 202A?
A7: The dimensions of the YPQ 202A are 158 x 85 x 30 mm.
Q8: Is the YPQ 202A compatible with other ABB products?
A8: Yes, it is designed for seamless integration with other ABB automation products and control systems.
Q9: Can the YPQ 202A be used for remote control and monitoring?
A9: Yes, it supports remote control and monitoring via Modbus RTU or Profibus DP communication protocols.
Q10: What is the current consumption of the YPQ 202A?
A10: The module consumes 150 mA of current.
Recommended Related Models (Same Series or Related)
| Model | Description | Input/Output Channels | Communication | Mounting |
|---|---|---|---|---|
| YPQ 201A | I/O board with more input/output capacity | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 203A | Enhanced I/O module for larger systems | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 204A | I/O board for high-speed applications | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 205A | I/O module with extended input/output capabilities | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 206A | High-performance I/O board with advanced features | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 207A | Modular I/O solution for large-scale systems | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
